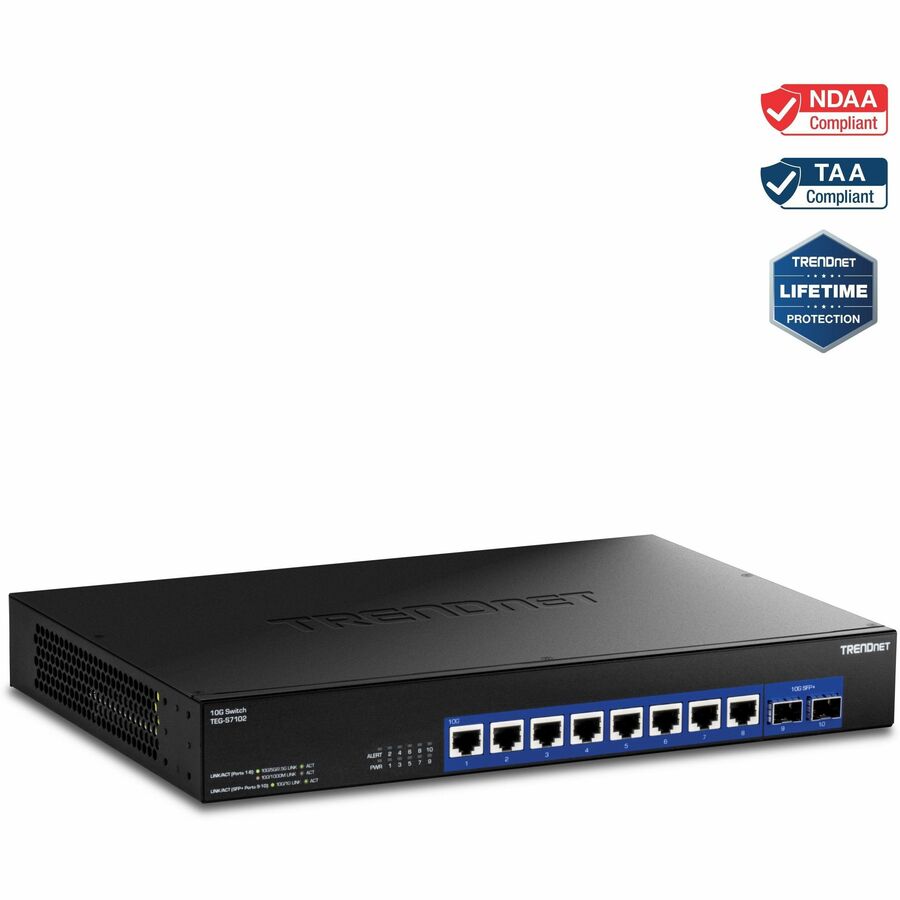

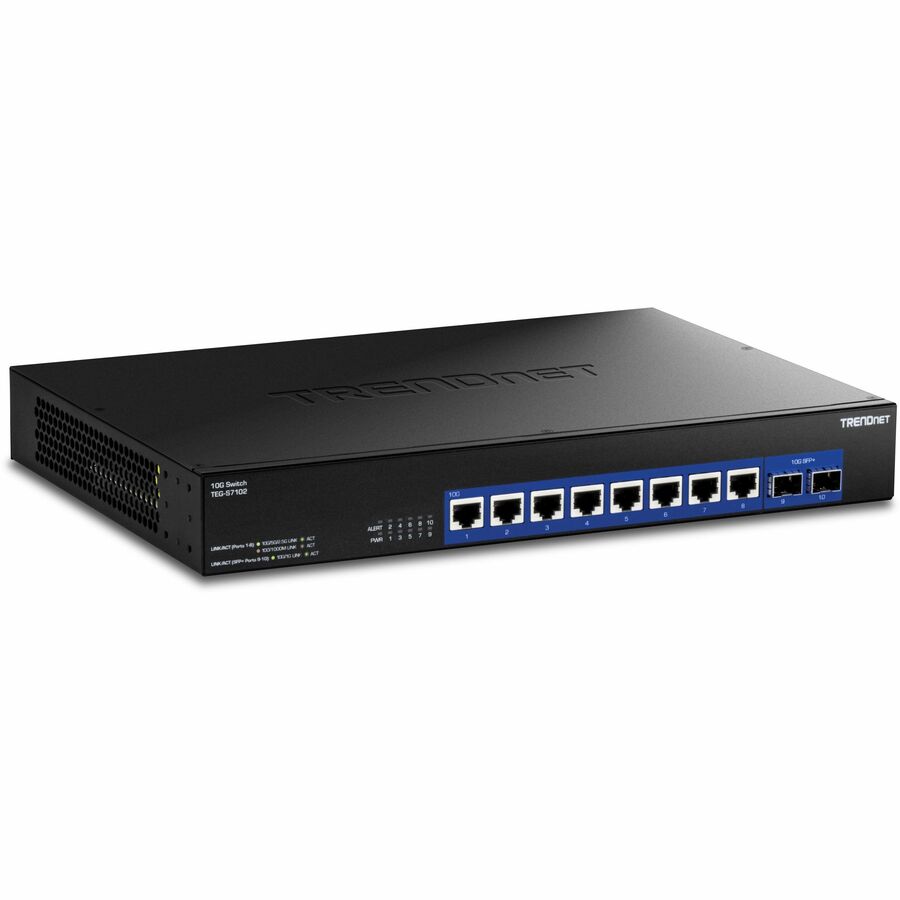

TRENDnet 10-Port 10G Unmanaged Switch, TEG-S7102, 8 x 10G RJ-45 Ports, 2 x 10G SFP+ Ports, 200Gbps Switching Capacity, Rackmount Design, Lifetime Protection, Black
8 Ports - 10 Gigabit Ethernet - 10GBase-T, 10GBase-X - 2 Layer Supported - Modular - 40 W Power Consumption - Twisted Pair, Optical Fiber - Rack-mountable
- SKU
- TEG-S7102
- Category
- Switches & Bridges
$449.83
Back ordered — ships when restocked.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- TEG-S7102
- Category
- Switches & Bridges
Overview
Expand your network's bandwidth and reduce traffic bottlenecks with TRENDnet's Unmanaged 10G Switches. This 10G switchcomes equipped with eight 10GBASE-T RJ-45 ports that provide speeds capable of up to 10Gbps over your existing Cat6A or bettercabling. The 10G switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effectivesolution in adding 10G link capability to an SMB network. The smart fan design lowers energy consumption and eliminatesdistracting operating noise. TRENDnet's reliable 10G switches are cost-effective solutions to increase your network's throughput DEVICE INTERFACE: 8 x 10G Ports (1Gbps/2.5Gbps/10Gbps), 2 x 10G SFP+ slots (1Gbps/10Gbps); LED Indicators
LIFETIME PROTECTION -We stand by the quality of our products. The TEG-S7102 10-Port 10G Unmanaged Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
10G PORTS: This Multi-Gig Ethernet switch offers eight 10GBASE-T RJ-45 Ethernet ports that provide higher gigabit speeds capable of up to 10Gbps over existing Cat6A or better cabling
10G SFP+ PORTS: The 10-port multi-gig switch features two 10G SFP+ ports for high-speed network uplinks or downlink NAS/ access server connections for a cost-effective solution to add 10G link capability
SMART FAN DESIGN: The smart fan design of the 10G network switch lowers energy consumption costs and eliminates distracting operating noise
EASY INSTALLATION: No configuration needed, simply connect network devices to the 10G Ethernet switch
SWITCHING CAPACITY: 200Gbps switching capacity
COMPLIANCE: IEEE 802.3ae (SFP+) and IEEE 802.3an (RJ-45) compliant
COMPATABILITY: Backwards compatible with 100/1000BASE-T devices; RACKMOUNT DESIGN: The network switch is equipped with 1U 19" rack mountable metal housing
More from the Manufacturer
Highlights

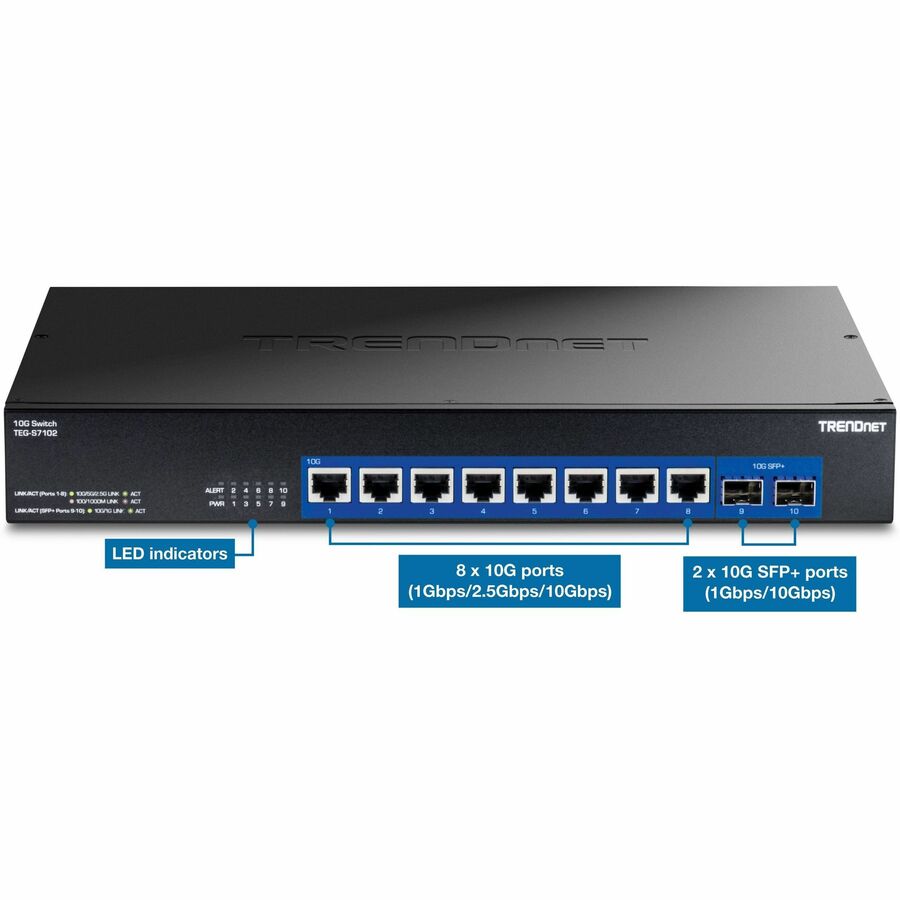

- 8 x 10G RJ-45 ports
- 2 x 10G SFP+ ports
- Backwards compatible with 100/1000BASE-T devices
- Smart fan design eliminates noise
- Rackmount design
- 200Gbps switching capacity
- IEEE 802.3ae (SFP+) and IEEE 802.3an (RJ-45) compliant
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |

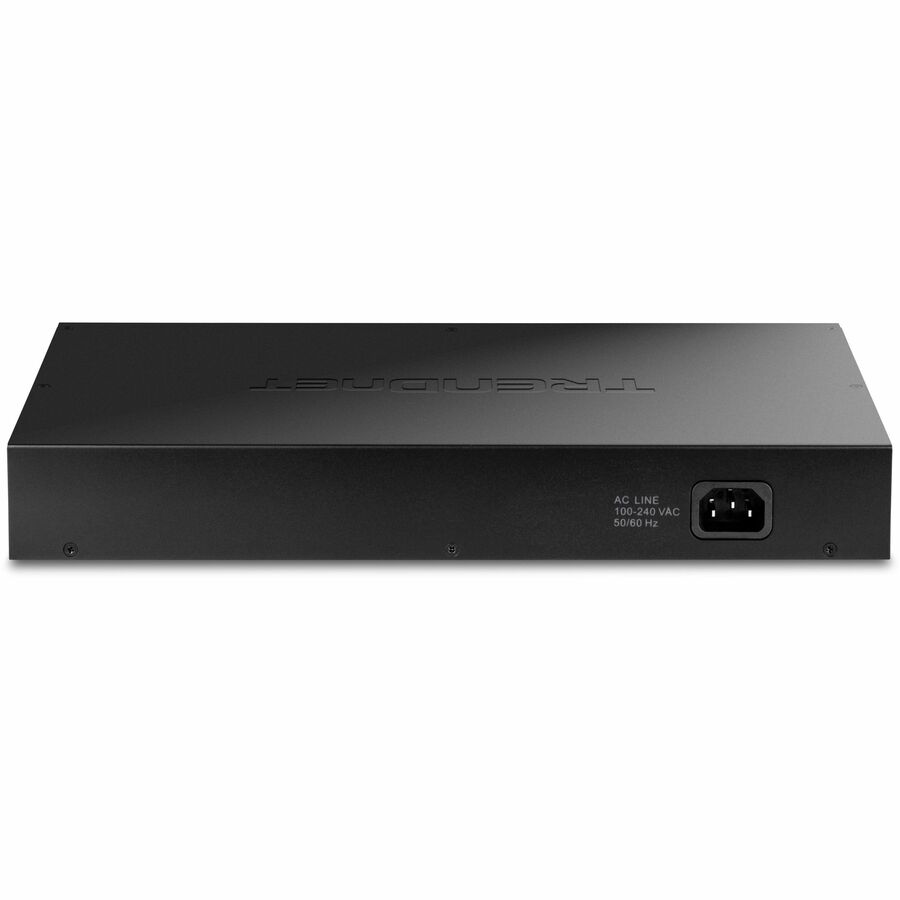

| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | TEG-S7102 |
| Power Source | AC |
| Limited Warranty | Lifetime |
| Layer Supported | 2 |
| Weight (Approximate) | 5.60 lb |
| Form Factor | Rack-mountable |
| Manufacturer | TRENDnet |
| Product Model | TEG-S7102 |
| Product Name | 10-Port 10G Unmanaged Switch |
| Network Technology | 10GBase-T, 10GBase-X |
| Power Consumption | 40 W |
| Brand Name | TRENDnet |
| Expansion Slot Type | SFP+ |
| Country of Origin | Taiwan |
| Height | 1.7" |
| Width | 13" |
| Depth | 9.1" |
| Manageable | No |
| Maximum Data Transfer Rate | 2.50 GB/s |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP+ Slots | 2 |
| Modular | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x 10 Gigabit Ethernet Network, 2 x 10 Gigabit Ethernet Expansion Slot |
| Total Number of Expansion Slots | 2 |
| Networking Standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.1x |
| Product Material | Metal |
