8 Ports - Gigabit Ethernet - 1000Base-FX, 1000Base-T - 2 Layer Supported - 2 SFP Slots - AC/DC - 6.30 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable
$230.88
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

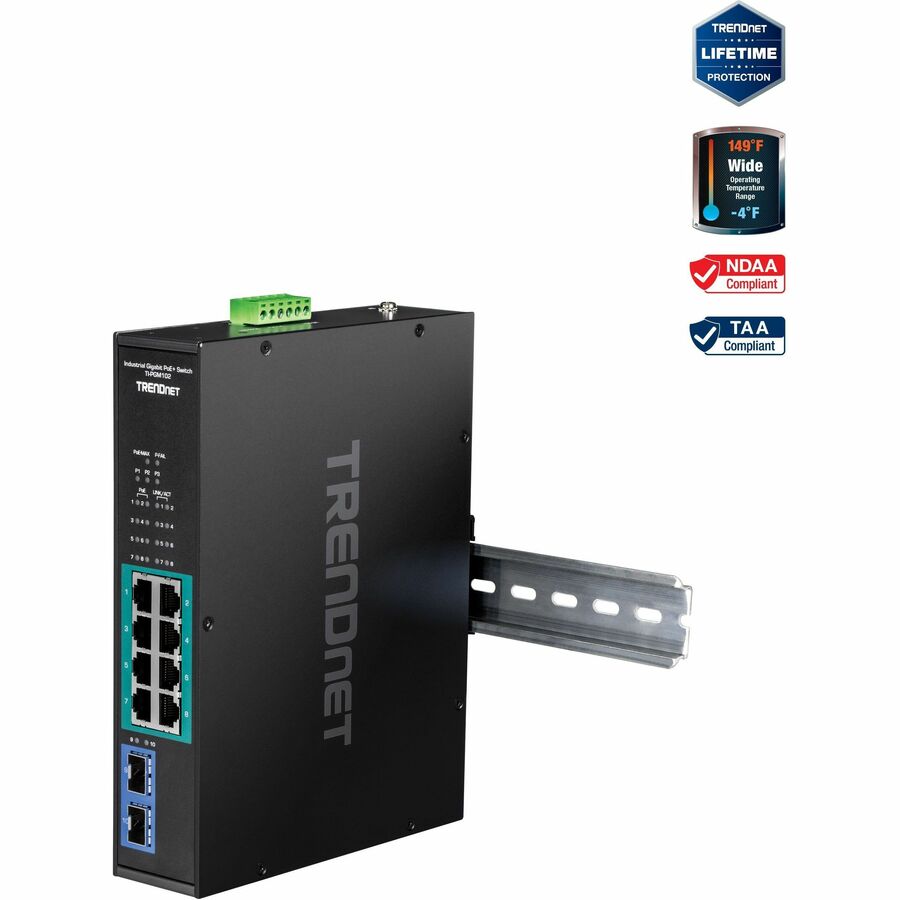

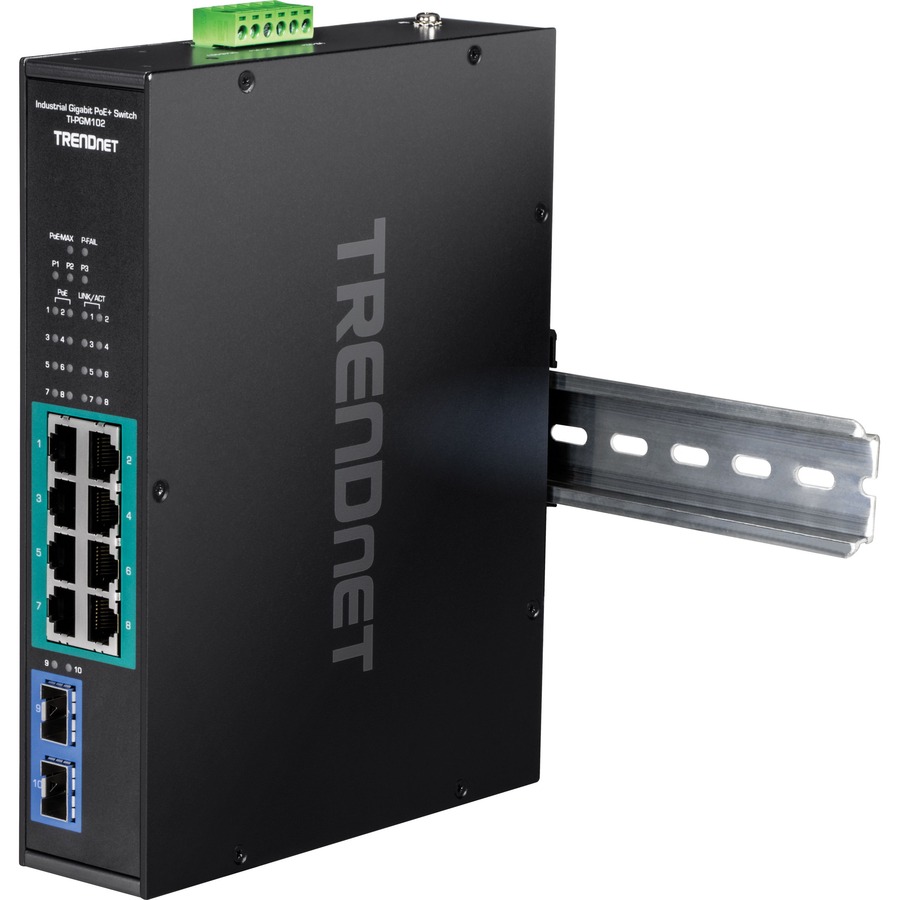

TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F), model TI-PGM102, has eight gigabit PoE+ ports with a 240W PoE power budget, plus two gigabit SFP slots for long distance fiber applications. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit SFP slots for additional network connections. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F) for harsh, industrial environments.
• 8 x Gigabit PoE+ ports
• 2 x Gigabit SFP slots
• 240W PoE power budget
• 20Gbps switching capacity
• Hardened IP30 rated metal switch
• Includes DIN-Rail and wall mounts
• Wide operating temperature range of -20° - 65°C (-4° - 149°F)
• Redundant power inputs with overload current protection
• Alarm output triggered by power failure
• Power supply sold separately (models: TI-S24052, TI-S24048)
• NDAA / TAA compliant
• Lifetime Warranty
PoE Power A 240W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance Features redundant power inputs with overload current protection and output alarm relay.
Industrial Hardened Design Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F).
More from the Manufacturer
OVERVIEW
TRENDnet’s 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° – 65°C (-4° – 149°F), model TI-PGM102, has eight gigabit PoE+ ports with a 240W PoE power budget, plus two gigabit SFP slots for long distance fiber applications. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit SFP slots for additional network connections. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° – 65°C (-4° – 149°F) for harsh, industrial environments.
PoE Power
A 240W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features redundant power inputs with overload current protection and output alarm relay
Industrial Hardened Design
Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° – 65°C (-4° – 149°F).
Full PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port with a 240W PoE power budget
Network Ports
8 x Gigabit PoE+ ports and 2 x Gigabit slots

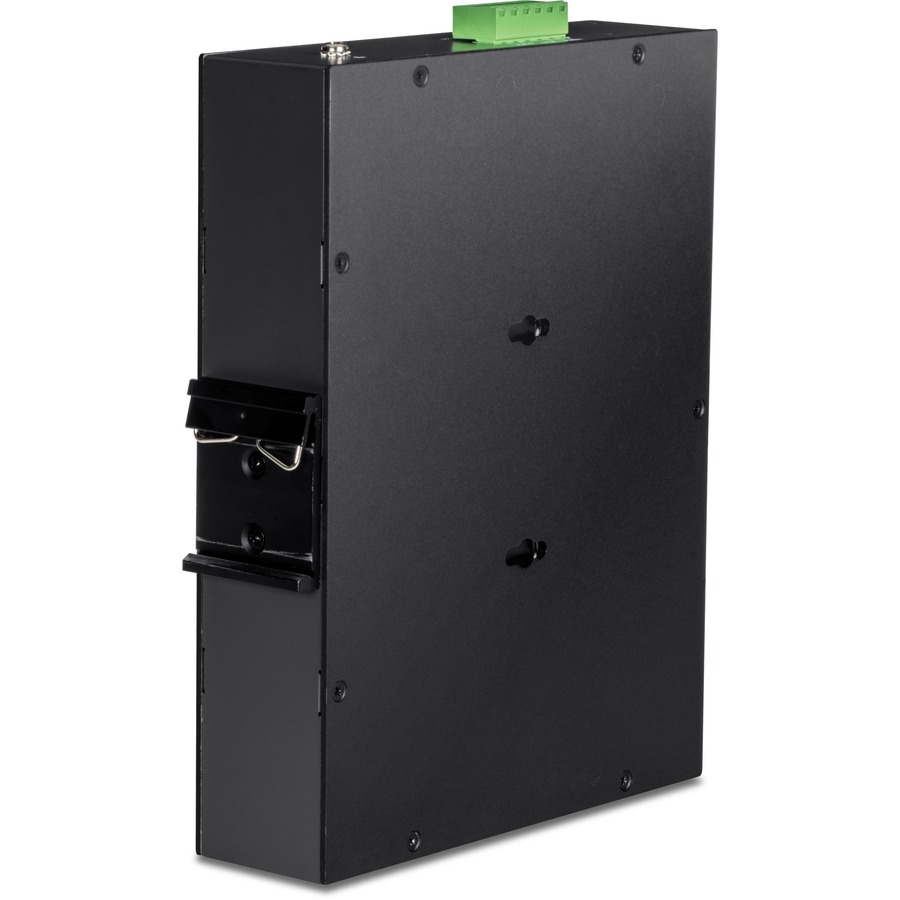

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware
Switching Capacity
20Gbps switching capacity
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately, models: TI-S24052, TI-S24048)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Wide Operating Temperature
Rated for an operating temperature range of -20° – 65°C (-4° – 149°F)
Grounding Point
Grounding point protects equipment from external electrical surges
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at

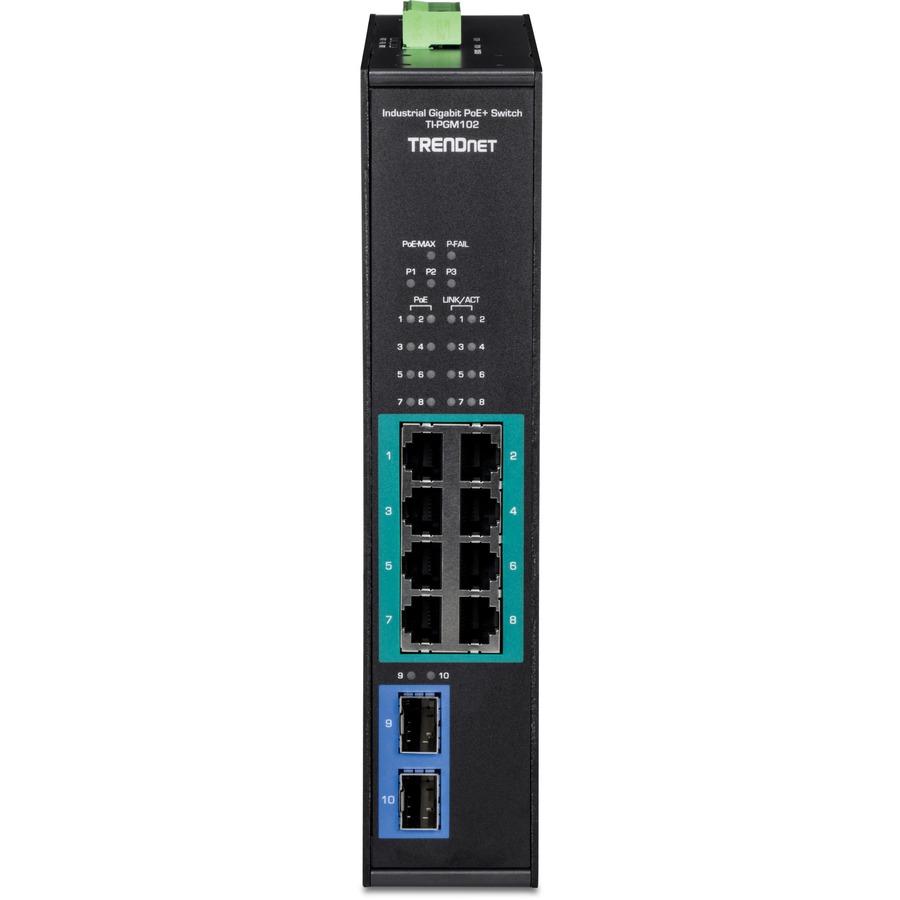

Device Interface
8 x Gigabit PoE+ ports
2 x Gigabit SFP slots (1000Base-FX)
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
SFP: 2000Mbps (full duplex)
Performance
Data RAM Buffer: 1.5MB
Switching Fabric: 20Gbps
MAC Address Table: 4K entries
Jumbo Frame: 9KB
Forwarding rate: 14.88Mpps (64-byte packet size)
Special Features
Hardened components rated for extreme temperatures
Redundant power inputs
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
DC Power
Input: 48 – 55 V DC
Compatible power supply: TI-S24052, TI-S24048 (sold separately)
Max. consumption: 6.38W (no PoE)
PoE
PoE budget: 240W@56V DC
Terminal Block
Redundant power inputs, alarm relay contact, 6-pin
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG): 28-14
Stranded wire (AWG): 28-14
Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
Wire strip length: 7-8mm
Alarm Relay Contact
Relay outputs with current carrying capacity of 1A, 24V DC
Short circuit mode when two power sources are connected
Open circuit mode when only one power source is connected
MTBF
1,000,000 hours @ 25°C
Housing
IP30 metal case
DIN-Rail mount
Wall mount
Grounding point
Operating Temperature
-20° – 65° C (-4° – 149° F)
Operating Humidity
Max. 95 % non-condensing
Dimensions
210 x 160 x 45mm (8.3 x 6.3 x 2 in.)
Weight
1.1kg (2.45 lb.)
Certifications
CE
FCC
LVD
IEC 61000-4-2
IEC 61000-4-4
IEC 61000-4-5
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TI-PGM102
Quick Installation Guide
Removable terminal block
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-PGM102 |
| Brand Name | TRENDnet |
| Product Model | TI-PGM102 |
| Product Name | 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F) |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+, 2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-FX, 1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | DIN Rail Mountable, Wall Mountable |
| Height | 1.8" |
| Width | 8.3" |
| Depth | 6.3" |
| Weight (Approximate) | 2.43 lb |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 240 W |
| Power Source | AC/DC |
| Power Consumption | 6.30 W |
| Plug/Connector Type | Terminal Block |
| Warranty | |
| Limited Warranty | Lifetime |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
