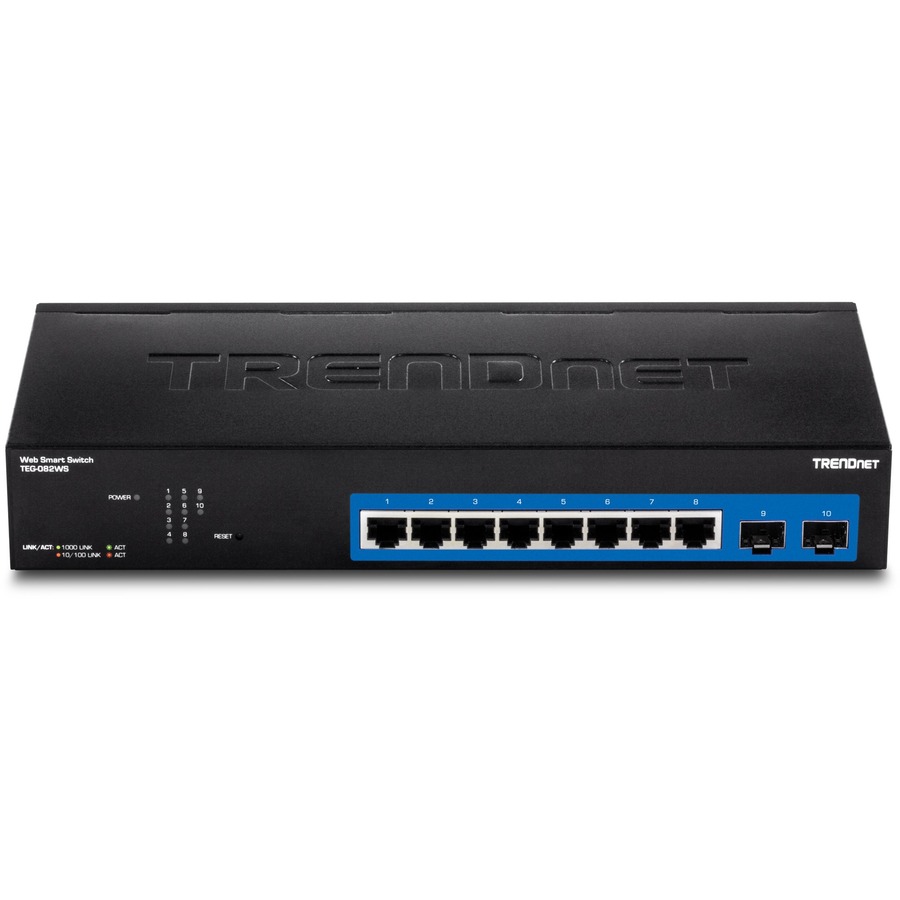

TRENDnet 10-Port Gigabit Web Smart Switch; 20 Gbps Switching Capacity; 8 x RJ-45 Ports; 2 x SFP; Slots; VLAN; QoS; LACP; IPv6 Support; Fanless; Rack Mountable; Lifetime Protection; TEG-082WS

TRENDnet's Gigabit Web Smart Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet's web smart managed switches also feature SFP slots to support long-distance fiber networking applications.

Easily manage and configure TRENDnet's Web Smart Managed Switch Series remotely by updating switches to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. These cloud managed switches require no additional hardware, server, or personal cloud with TRENDnet's reliable cloud service.

• 8 x Gigabit ports and 2 x SFP slots; Easy-to-use web-based management interface

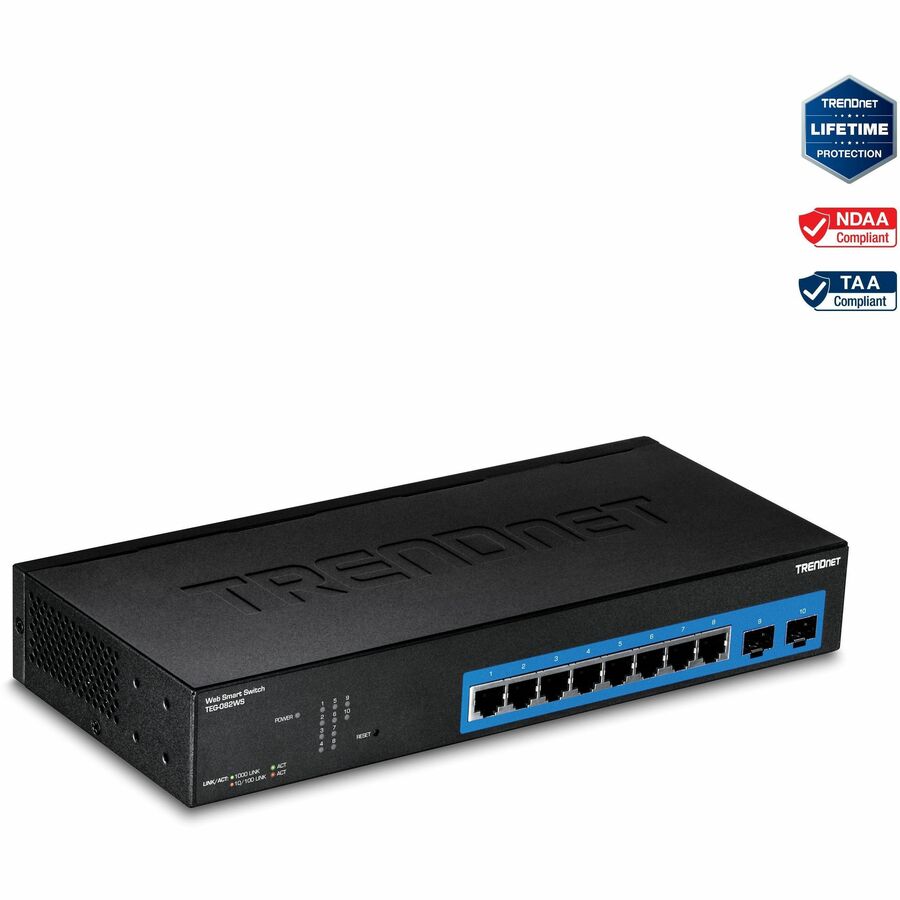

• LIFETIME PROTECTION -We stand by the quality of our products. The TEG-082WS, 10-Port Gigabit Web Smart Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA COMPLIANT: With our NDAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only).

• Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping; Bandwidth control per port

• REMOTE CLOUD MANAGEMENT: Hive allows you to remotely manage, configure, and easily diagnose your network devices. Monitor and download detailed usage reports, easily locate data bottlenecks, and expand the network to improve overall productivity

• 20Gbps switching capacity; Private and Voice VLAN support

• IEEE 802.1p QoS with queue scheduling support

• Fanless rack mountable metal housing

More from the Manufacturer

Overview

TRENDnet’s Gigabit Web Smart Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet’s web smart managed switches also feature SFP slots to support long-distance fiber networking applications.

Easily manage and configure TRENDnet’s Web Smart Managed Switch Series remotely by updating switches to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. These cloud managed switches require no additional hardware, server, or personal cloud with TRENDnet’s reliable cloud service.

Web Smart Management

Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment

Integration Flexibility

Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration

High-Speed SFP

Offers two dedicated gigabit SFP slots to allow for long distance fiber optic connections

Hardware Design

Provides eight gigabit ports, two SFP slots, a 20Gbps switching capacity, a built-in power supply, and rackmount brackets

Troubleshooting

A convenient cable diagnostic test and traffic statistics aid in network troubleshooting

IPv6 Ready

This switch supports IPv6 configuration and IPv6 neighbor discovery

Traffic Management

A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling

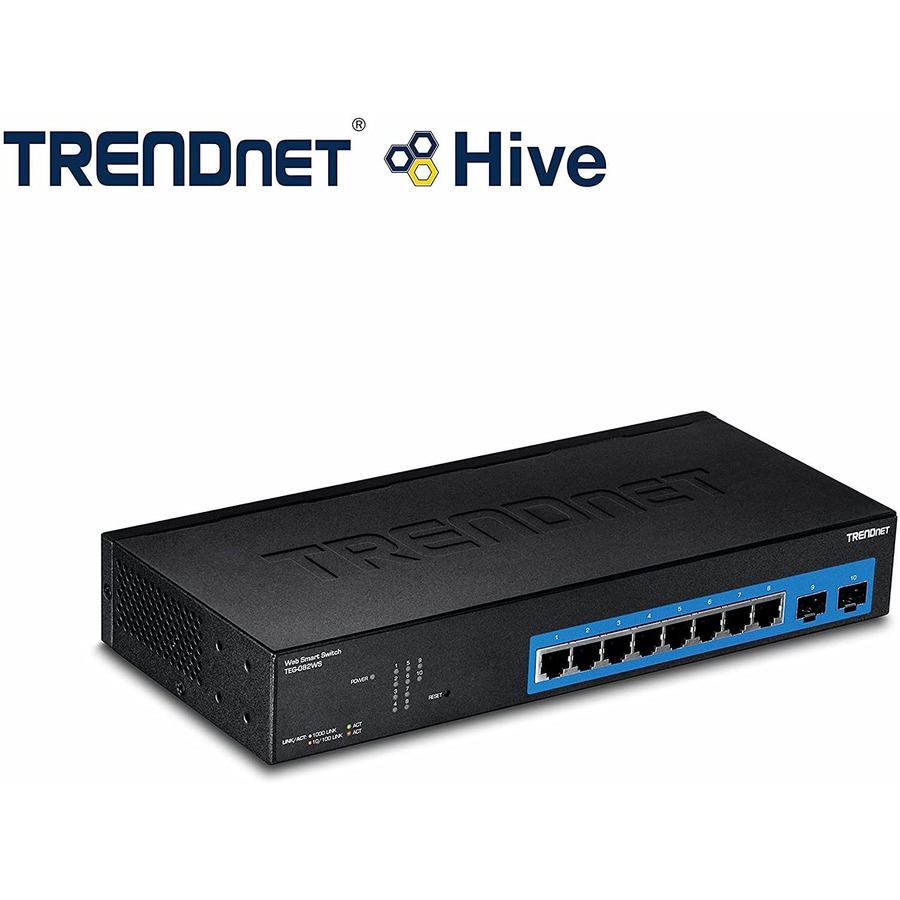

TRENDnet Hive Cloud Manager

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3az

Device Interface

8 x Gigabit ports

2 x SFP slots

LED indicators

Data Transfer Rate

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)

Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Gigabit Ethernet: 2000 Mbps (full duplex)

Performance

Switch fabric: 20 Gbps

RAM buffer: 4.1 Mbits

MAC Address Table: 8K entries

Jumbo Frames: 10 Kbytes

HOL Blocking Prevention

Forwarding rate: 14.9 Mpps (64-byte packet size)

Management

CLI (Telnet / SSHv2) for basic administration

HTTP/HTTPS (SSL v2/3 TLS) Web based GUI

SNMP v1, v2c, v3

RMON v1

Static Unicast MAC Address

Enable/disable 802.3az Power Saving

LLDP and LLDP-MED

Virtual Cable Diagnostics Test

IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

Dual image and configuration

TC Root/Protect

Hive Cloud Management

Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser

Multi-device management

Provisioning through scheduled batch firmware or configuration updates for multiple switches

Event/hardware network monitoring (CPU/memory utilization)

Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management

MIB

IP Forward Table MIB RFC 1354

RMON MIB RFC 1271

IPv4 MIB RFC 1213

IPv6 MIB RFC 2465

GVRP MIB IEEE 802.1Q-VLAN

LA MIB IEEE 802.3ad

LLDP MIB IEEE 802.1ab

IGMP Snooping MIB RFC 2933

MLD Snooping MIB RFC 3019

Private VLAN MIB IEEE 802.1Q

DHCP SNOOP MIB RFC 2026

QoS MIB RFC 4323

SNMP MIB RFC 3415

STP MIB RFC 4318

PNAC MIB IEEE 802.1x

VLAN MIB IEEE 802.1q

DNS MIB RFC 1611

ACL MIB

Bandwidth CTRL MIB

LBD MIB

Mirror MIB

IPv6 NEIGHBOR MIB

SNTP MIB

Storm CTRL MIB

Statistics MIB

Tool MIB

Voice VLAN MIB

DoS MIB

Spanning Tree

IEEE 802.1D STP (Spanning Tree protocol)

IEEE 802.1w RSTP (Rapid Spanning Tree protocol)

IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation

Static Link Aggregation

802.3ad Dynamic LACP

Quality of Service (QoS)

802.1p Class of Service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth Control per port

Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN

Multiple management VLAN assignment

Asymmetric VLAN

802.1Q Tagged VLAN

Dynamic GVRP

MAC-based VLAN

Protocol-based VLAN

Up to 256 VLAN groups, ID Range 1-4094

Private VLAN (Protected Ports)

Voice VLAN (10 user defined OUIs)

Multicast

IGMP Snooping v1, v2, v3

MLD Snooping v1, v2

IGMP fast leave

MVR (Multicast VLAN Registration)

Static Multicast Address

Up to 256 multicast entries

Port Mirror

RX, TX, or Both

Many to one

Access Control

802.1X Port-Based Network Access Control , RADIUS, TACACS+

Local Dial In User Authentication

DHCP Snooping (per VLAN)

Loopback Detection

Duplicated Address Detection

Trusted Host

Denial of Service (DoS)

IP MAC port binding

Dynamic ARP inspection

Block unknown multicast

ACL IPv4 L2-L4 & IPv6

MAC Address

VLAN ID

Ether Type (IPv4 only)

IP Protocol 0-255

TCP/UDP Port 1-65535

802.1p

DSCP (IPv4 only)

IPv6 Address (IPv6 only)

Layer 3 Features

IPv4 / IPv6 static routing

IP interfaces: Up to 6

Routing table entries: Up to 32 (IPv4 / IPv6)

ARP table (up to 128 entries)

Inter-VLAN routing

Compatibility

Optional Software Utility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server

Special Features

Fanless Design

IPv6

802.3az power saving

Rack mountable

Power

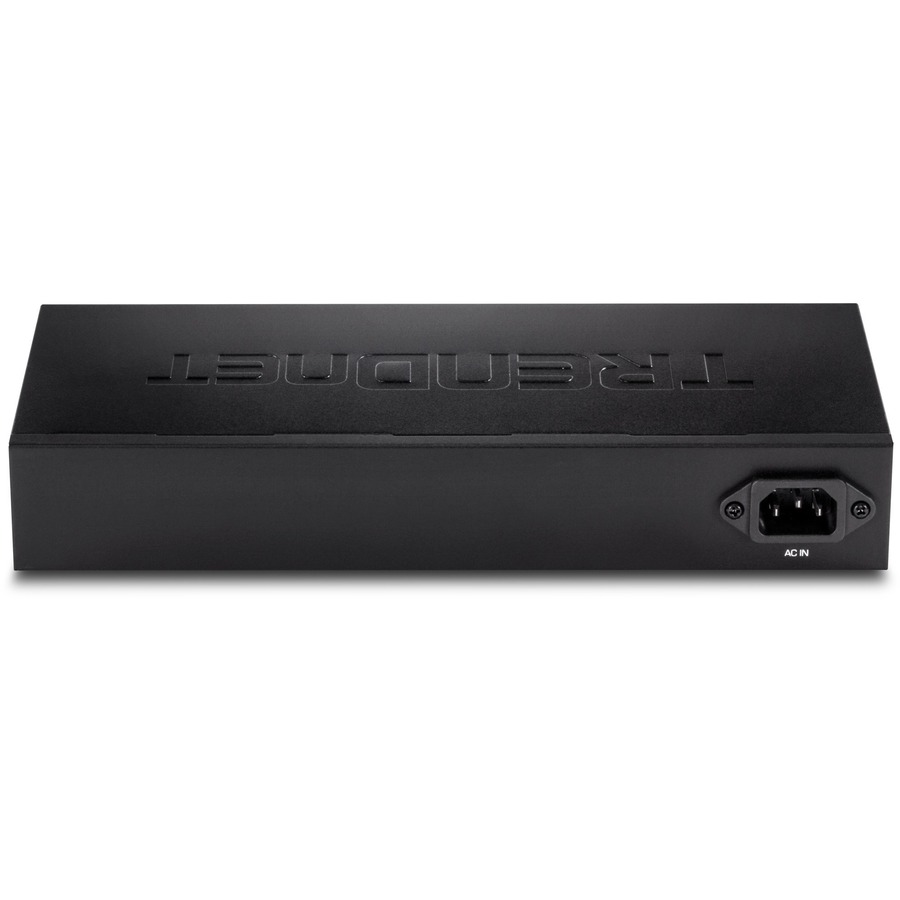

Input: 100 - 240 V AC, 50/60 Hz, internal power supply

Consumption: 7.1 Watts (max.)

Fan/Acoustics

Quantity: 0

Noise Level: 0 dB(A) (max.)

MTBF

1,092,872 hours

Operating Temperature

-5 – 50°C (23 - 122°F)

Operating Humidity

Max. 95% non-condensing

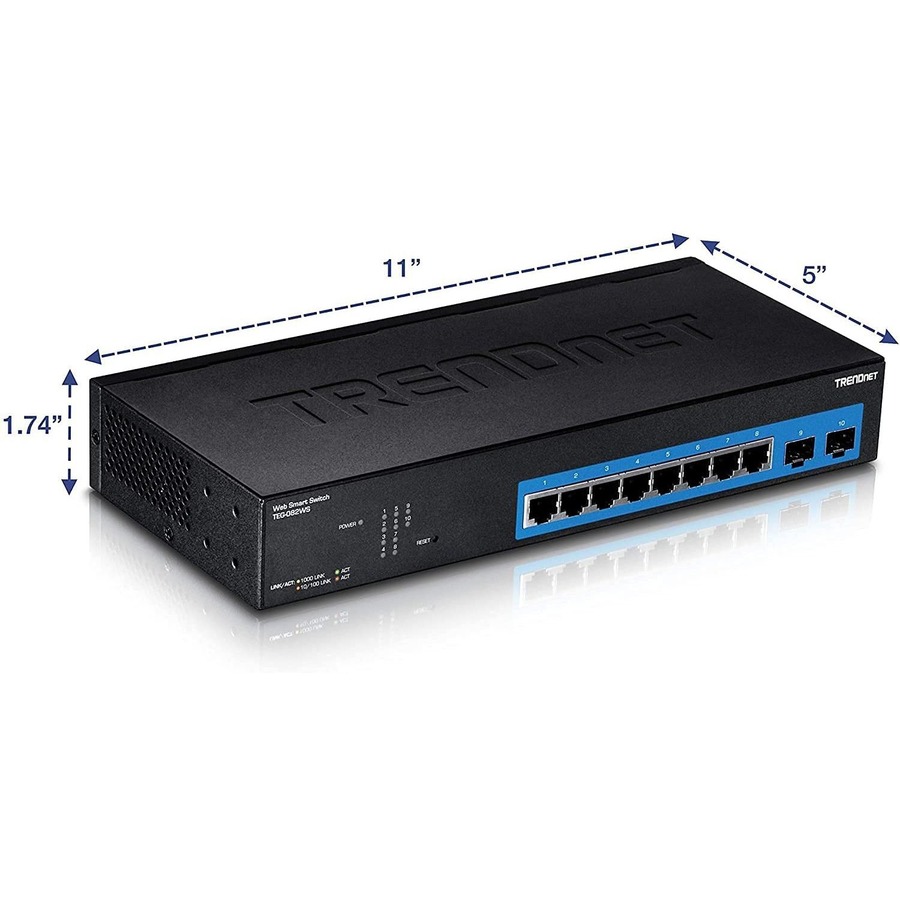

Dimensions

280 x 125.8 x 44 mm (11 x 5 x 1.74 in.)

Rack mountable 1U height

Weight

0.98 kg (2.2 lbs.)

Certifications

CE

FCC

Warranty

Lifetime Warranty

PACKAGE CONTENTS

TEG-082WS

Quick Installation Guide

CD-ROM (Utility & User's Guide)

Power cord (1.8 m/6 ft.)

Rack mount kit
