TRENDnet 4-Port Gigabit Switch with SFP Ports, TFC-G22SFP, 2 x 1Gbps RJ45 Ports, 2 x 1Gbps SFP Ports, 8Gbps Switching Capacity, NDAA & TAA Compliant

DEVICE INTERFACE: 2 x Gigabit RJ-45 port (10/100/1000Mbps); 2 x Gigabit SFP ports (100/1000Mbps); LED Indicators;

8Gbps Switching Capacity

NDAA + TAA COMPLIANT: With NDAA and TAA compliant products, you can plan and install the networking solutions that

government customers demand today. (U.S. and Canada only)

RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your

needs during normal business hours. We take pride in being there for our customers.

GIGABIT SPEEDS: Gigabit ports provide high-speed network connections to four devices and an 8Gbps switching capacity

allows data traffic to flow smoothly, reducing traffic bottlenecks.

FANLESS: Fanless design on the network switch lowers energy consumption and eliminates operating noise

COMPACT DESIGN: Small, compact, and lightweight metal housing of the gigabit switch provides greater installation flexibility

EASY SETUP: Simply power up the SFP Ethernet switch and plug in connected devices

JUMBO FRAME: Send larger packets, or Jumbo Frames (up to 9KB), for increased performance

WALL MOUNTABLE: Features a convenient wall mountable design for greater installation flexibility

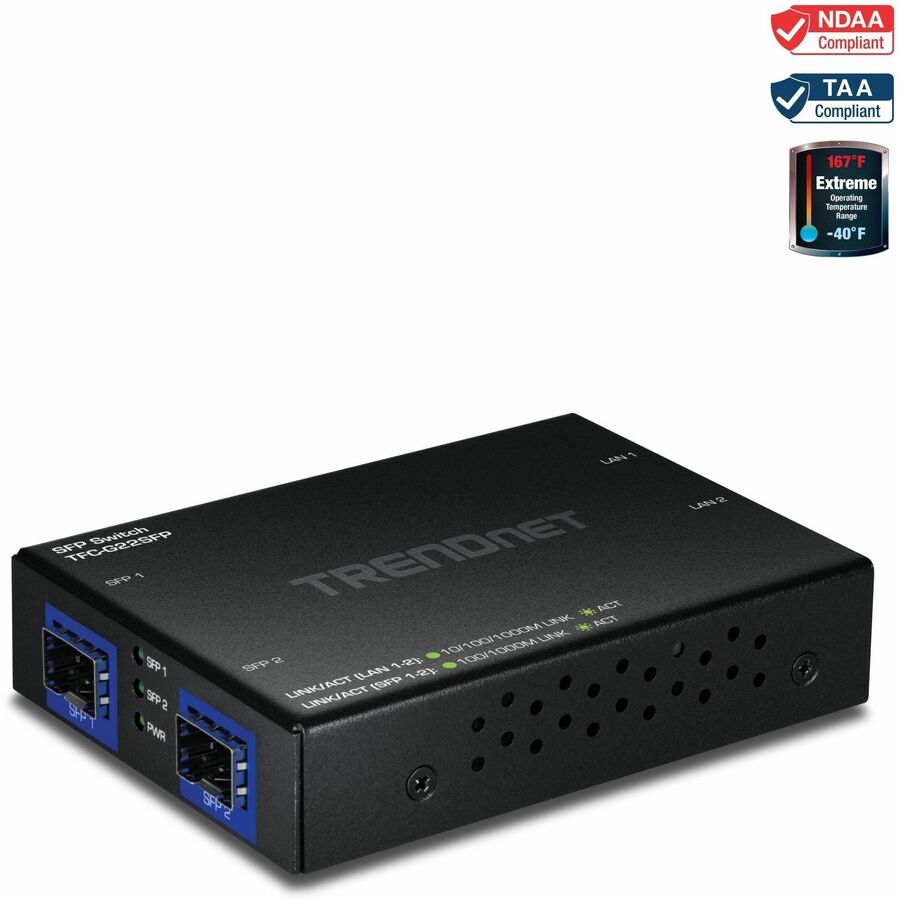

TRENDnet's compact 4-Port Gigabit Switch with SFP Ports, model TFC-G22SFP, provides high-bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 8Gbps with full-duplex mode. This 4-port switch with SFP ports is ideal to network devices at long distances over fiber connection with its two SFP ports. The wall mountable, fanless design provides installation flexibility.

More from the Manufacturer

OVERVIEW

TRENDnet’s compact 4-Port Gigabit Switch with SFP Ports, model TFC-G22SFP, provides high-bandwidth performance, ease ofuse, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 8Gbps with full-duplex mode. This 4-port switch with SFP ports is ideal to network devices at long distances over fiber connection with its two SFP ports. The wall mountable, fanless design provides installation flexibility

Gigabit Speeds

Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie.

Fiber

ex odio pulvinar felis, id sodales tellus erat in lectus. Sed at nulla et urna imperdiet venenatis ut bibendum enim. Donec nec massa quam.

Compact

Compact and lightweight metal housing design provides greater installation flexibility.

Easy Setup

Simply power up the SFP Ethernet switch and plug in connected devices

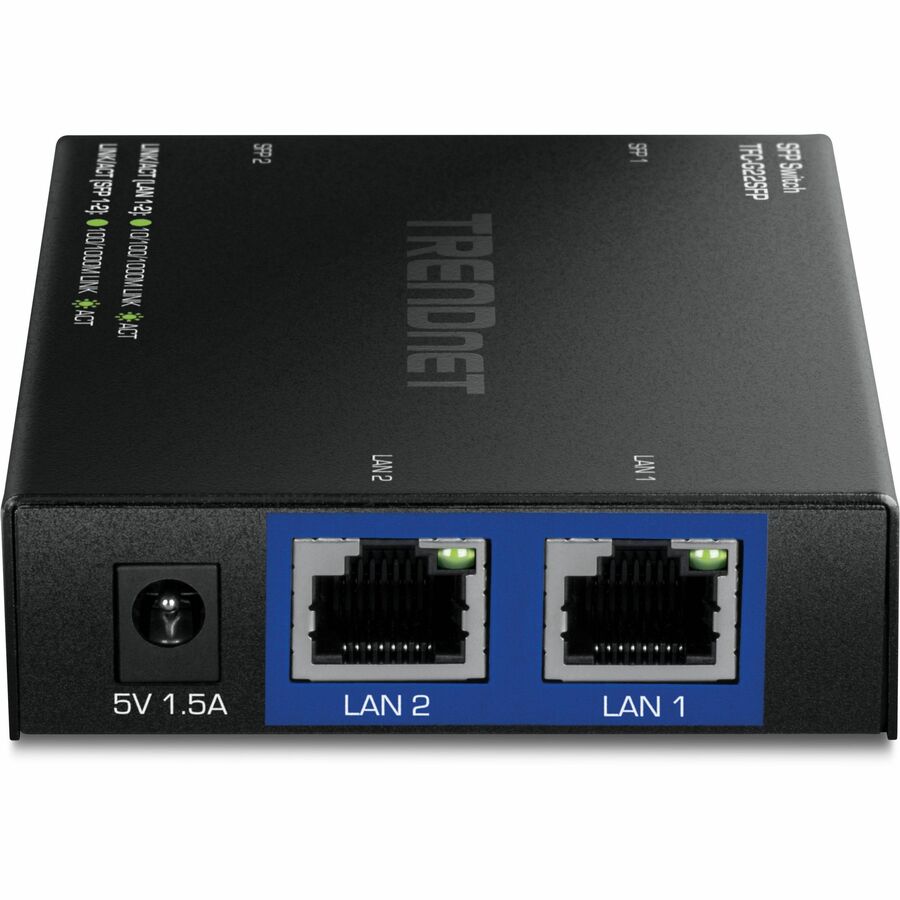

Gigabit Ports

This 4-port switch with SFP ports is equipped with two gigabit Ethernet ports and two gigabit SFP ports

Switching Capacity

8Gbps switching capacity

Jumbo Frame

Send larger packets, or Jumbo Frames (up to 9KB), for increased performance

Wall Mountable

Features a convenient wall mountable design for greater installation flexibility

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Compact Design

Small, compact, and lightweight metal housing of the gigabit switch provides greater installation flexibility

LED Indicators

LED indicators on this Ethernet switch with fiber ports convey port status

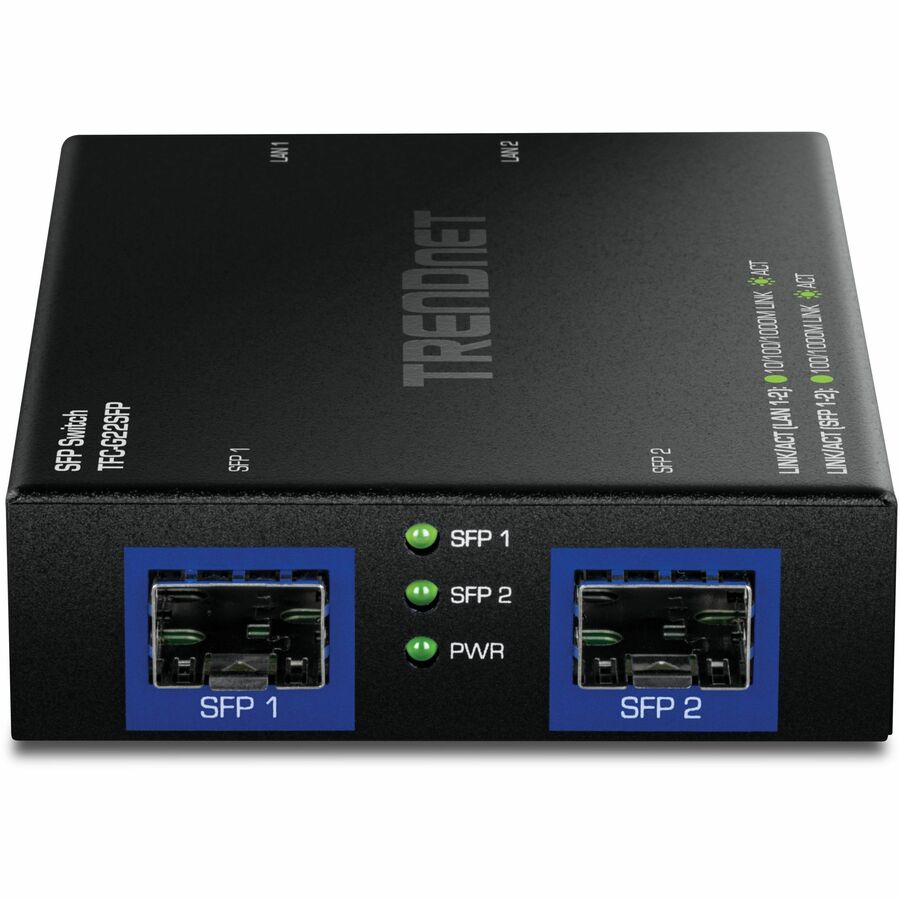

SFP Support

The 4-port switch with SFP ports is compatible with multi-mode and single mode transmissions

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3az

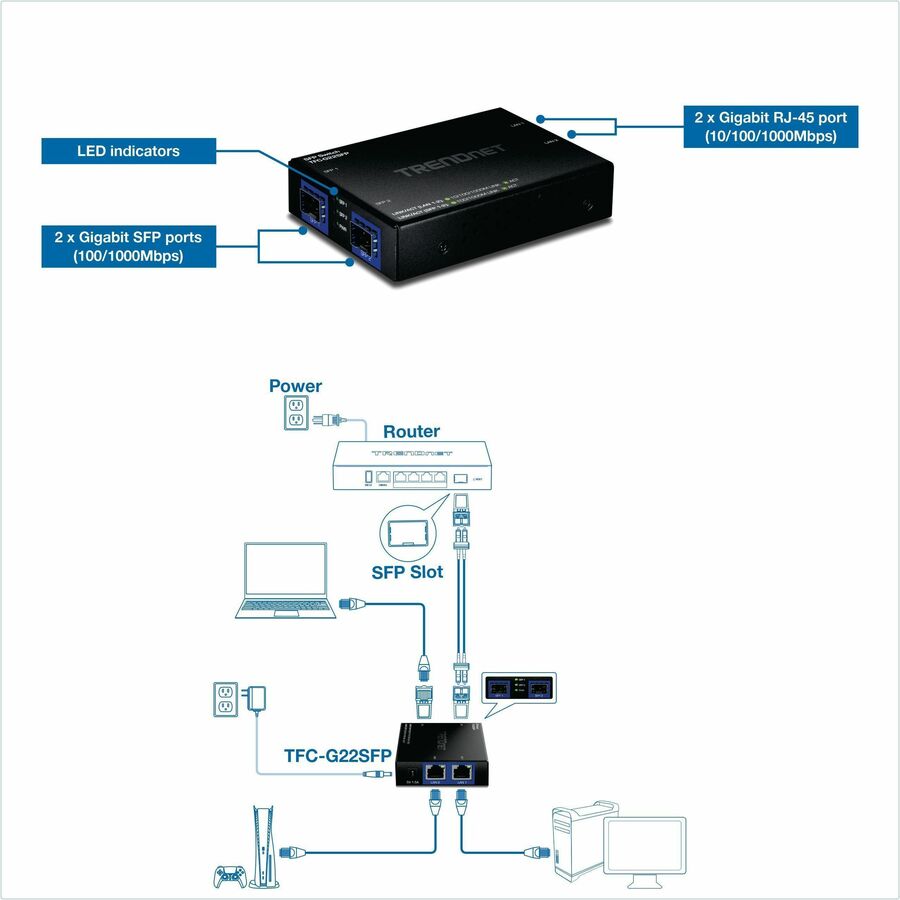

Device Interface

2 x Gigabit RJ45 ports (10/100/1000Mbps)

2 x Gigabit SFP ports (10/100/1000Mbps)

LED indicators

Data Transfer Rate

Ethernet: 10Mbps (half duplex) 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex)

Gigabit: 2Gbps (full duplex)

100Mbps SFP: 200Mbps (full duplex)

Gigabit SFP: 2Gbps (full duplex)

Performance

Switching Capacity: 8Gbps

RAM Buffer: 4MB

Jumbo Frames: 9KB

MAC Address Table: 8K entries

Forwarding Rate: 1.488Mpps (64-byte packet size)

Power

Input: 100 – 240V AC, 50/60 Hz

Output: 5V DC, 1.5A

Max. Consumption: 3.3W

Fan/Acoustics

Fanless design

MTBF

770,000 hours @ 25° C

Operating Temperature

0° – 50° C (32° – 122° F)

Operating Humidity

Max. 90% non-condensing

Dimensions (L x W x H)

101 x 75 x 22.6mm (3.97 x 2.95 x 0.89 in.)

Weight

203.5g (0.45 lbs)

Certifications

CE

FCC

LVD

Warranty

3-year

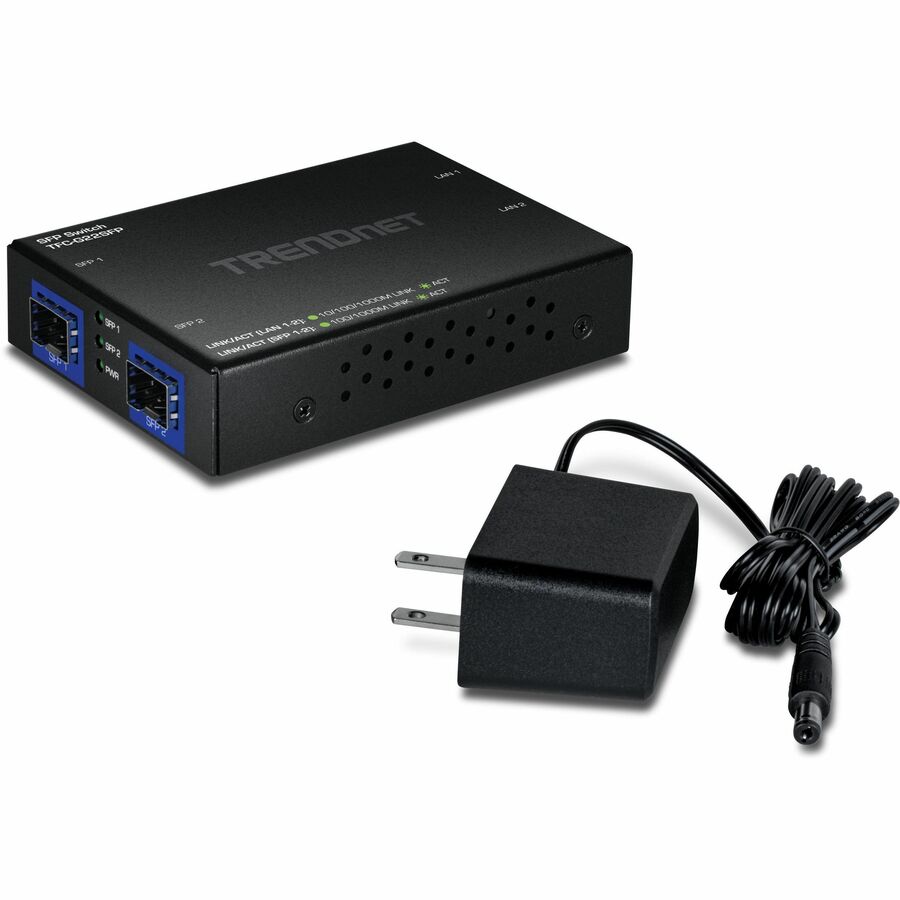

PACKAGE CONTENTS

TFC-G22SFP

Power adapter (5V DC, 1.5A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
