26-Port Industrial Gigabit L2 Managed PoE+ Switch
$1,336.69
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
These Industrial Gigabit L2 Managed PoE+ Rackmount Switch Series provides an intuitive web-based management interface. Each TRENDnet industrial layer 2 rackmount switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together and increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS to prioritize traffic, port bandwidth controls, SNMP monitoring, and more, making each TRENDnet industrial layer 2 rackmount switch a powerful solution for SMB networks.
• DEVICE INTERFACE: 24 x Gigabit PoE+ ports; 2 x SFP slots; Supports 100/1000Base-FX fiber SFP modules
• LIFETIME PROTECTION -We stand by the quality of our products. The TI-RP262i 26-Port Industrial Gigabit L2 Managed PoE+ Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• POWER: Multiple power inputs are featured on the industrial layer 2 rackmount switch (power supply sold separately: TI-RSP100048)
• TRAFFIC MANAGEMENT: Managed features include 802.1Q, IGMP v1 / 2 / 3, IGMP Snooping, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP, static and dynamic link aggregation, and ERPS for flexible network integration
• SYSTEM MONITORING: Monitoring features include SNMP v1 / v2c / 3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, and ModBus / TCP
• PoE POWER: Industrial layer 2 PoE+ rackmount switch supplies up to 30W of PoE+ power per port with a 685W total PoE power budget
• 19? RACKMOUNT: Sturdy rack mountable metal housing with mounting kit included
• WIDE TEMPERATURE RANGE: A wide operating temperature range of -40° - 70° C (-40° - 158° F) allows the industrial layer 2 rackmount switch to be installed in extreme hot or cold environments
More from the Manufacturer
OVERVIEW
TRENDnet's Industrial Gigabit L2 Managed PoE+ Rackmount Switch Series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 rackmount switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for industrial environments. Our industrial layer 2 rackmount switch models feature copper gigabit ports for high-speed device connections, as well as SFP slots that support 100/1000Base-FX SFP modules for long distance fiber networking applications. These industrial layer 2 rackmount switches feature a fanless design that eliminates operating noise and lowers energy consumption.
These Industrial Gigabit L2 Managed PoE+ Rackmount Switch Series provides an intuitive web-based management interface. Each TRENDnet industrial layer 2 rackmount switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together and increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS to prioritize traffic, port bandwidth controls, SNMP monitoring, and more, making each TRENDnet industrial layer 2 rackmount switch a powerful solution for SMB networks.
L2 Management
Provides an easy to use web management interface for traffic management controls such as VLAN, QoS, access controls, link aggregation, troubleshooting, SNMP monitoring, and per port MAC restriction
PoE Power
A 685W PoE power budget supplies up to 24 Power over Ethernet devices, and includes advanced PoE port controls, such as enabling / disabling PoE, power priority, PD alive check, and power scheduling
Industrial Design
Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for industrial environments
SPECIFICATIONS
Standards
IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.1ax
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3az
IEEE 802.3af
IEEE 802.3at

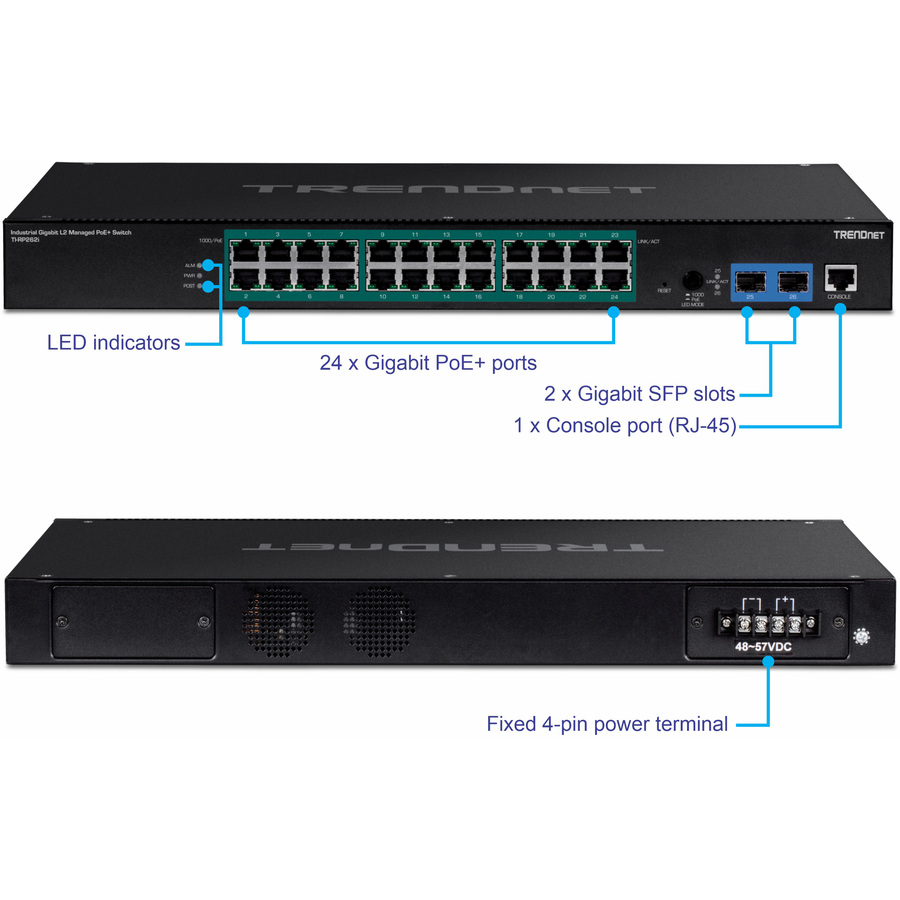

Device Interface

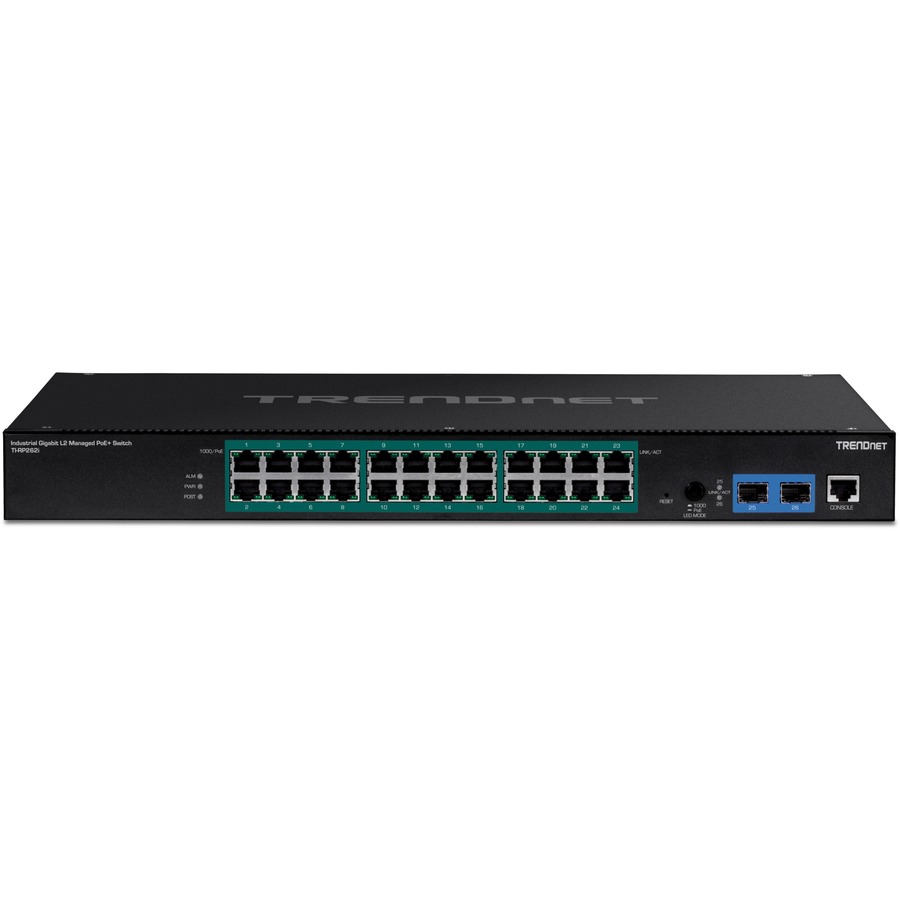

24 x Gigabit PoE+ ports
2 x Gigabit SFP slots
1 x Console port (RJ-45)

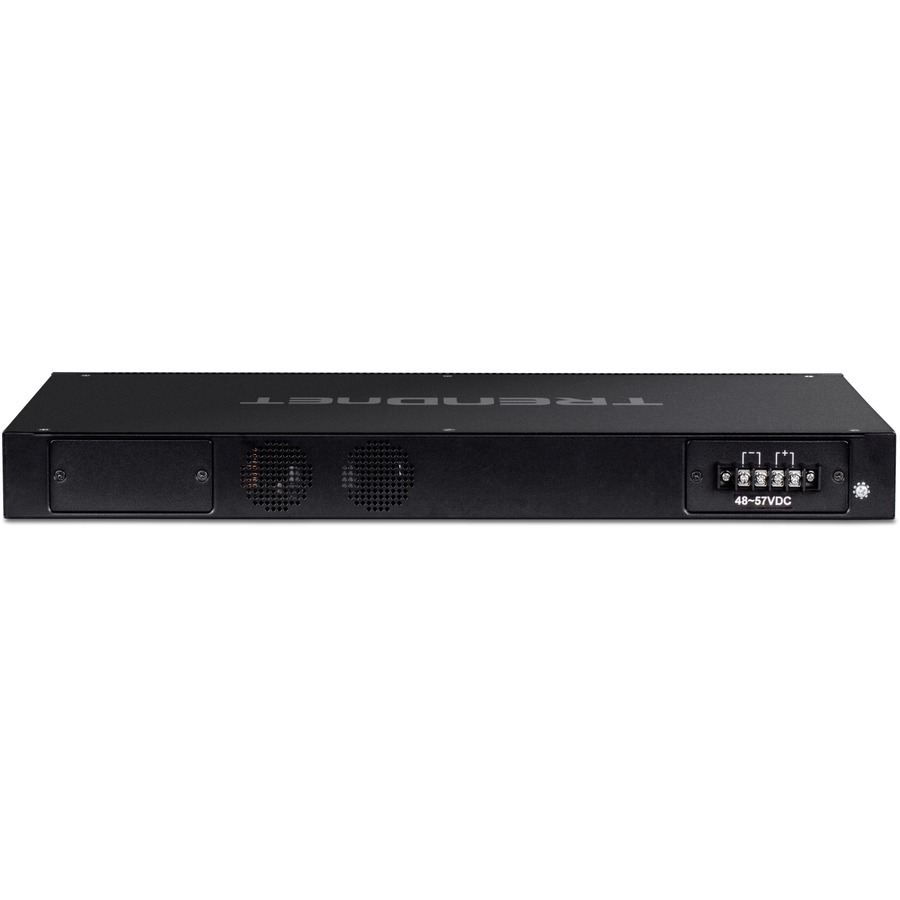

Fixed 4-pin power terminal
LED indicators
LED Display mode button (toggles LED indicators to display link/activity or PoE only port status)
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
SFP: 2000Mbps (full duplex)
Performance
Switch fabric: 52Gbps
Data RAM buffer: 512KB
MAC address table: 8K entries
Jumbo frames: 10KB
Forwarding mode: store and forward
Forwarding rate: 38.7Mpps (64-byte packet size)
Management
HTTP web-based GUI
CLI: Telnet / SSHv2
SNMP v1, v2c, v3
SNMP trap (up to 5 receivers)
RMON groups 1/2/3/9
Device configuration backup & restore, upgrade firmware, reboot, and reset to default
Multiple administrative or read-only user accounts
Enable or disable power saving mode per port
Static MAC entries
Static unicast entries
LLDP (Link layer discovery protocol)
Netlite device map
ONVIF device discovery
SNTP
SMTP alert
Syslog
Port statistics/utilization
Traffic monitor
Port mirror: one to one, many to one
Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)
Loopback detection
DHCP relay/option 82
Modbus/TCP
ERPS (Ethernet Ring Protection Switching) G8032v2
MIB
MIB II RFC 1213
Bridge MIB RFC 1493
RMON (Group 1,2,3,9) RFC 2819 RFC 1757
Spanning Tree
IEEE 802.1d STP (spanning tree protocol)
IEEE 802.1w RSTP (rapid spanning tree protocol)
BPDU filter, guard, and root guard
Link Aggregation
Static link aggregation and 802.1ax/802.3ad dynamic LACP (Up to 8 groups)
Quality of Service (QoS)
802.1p Class of service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth control per port
Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)
VLAN
802.1Q tagged VLAN
MAC-based VLAN
Port isolation
Up to 256 VLAN groups, ID range 1-4094
Multicast
IGMP snooping v1, v2, v3
IGMP querier
IGMP fast/immediate leave
Up to 256 multicast groups
Static multicast entries
Access Control
802.1X authentication (Local user database, RADIUS, guest VLAN assignment)
DHCP snooping/screening
Trusted host/IP access list for management access
Port Security/MAC address learning restriction (Up to 100 entries per port)
Static/dynamic ARP inspection
ACL
Source/Destination MAC address
Source/Destination IP address
Source Interface
VLAN ID
EtherType
TCP/UDP port 1-65535
Special Features
Netlite device discovery and map display in GUI
Port security: MAC address learning restriction per port
DHCP relay/option 82 & DHCP server snooping/screening support
Wide operating temperature range
Surge and ESD protection
Power
Power terminal input: 48 – 57V DC
Compatible power supply: TI-RSP100048 (1000W) sold separately
Max. Consumption: 20W (no PoE load); 705W (full PoE load)
PoE
PoE budget: 685W @ 48V DC input
802.3at: Up to 30W per port
PoE Mode A: Pins 1, 2, 3, and 6 for power
PoE auto classification
PoE port priority/power scheduling/PD alive check
Over current/short circuit protection
Terminal Block
Power input, 4 pin
Wire range: 1.5 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-18
Stranded wire (AWG): 12-18
Wire strip length: 10-11mm
Enclosure
IP30 rated metal enclosure
Fanless passive cooling
Rack mountable 1U
Grounding point
ESD (Ethernet) Protection: 8KV DC (Air) 4KV (Contact)
Surge (Power) Protection: 1KV DC
MTBF
475,352 hours @ 25° C
127,076 hours @ 70° C
Operating Temperature
-40° – 70° C (-40° – 158° F)
Operating Humidity
Max. 95% non-condensing
Dimensions
440 x 310 x 44mm (17.3 x 12.3 x 1.7 in.)
Weight
3.58kg (7.89 lbs.)
Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
PACKAGE CONTENTS
TI-RP262i
Quick Installation Guide
Console cable (RJ-45 to RS-232)
Rackmount Kit
TRENDnet hardened industrial switches
Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.
TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.
26-Port Industrial Gigabit L2 Managed PoE+ Rackmount Switch
24 x Gigabit PoE+ ports
2 x SFP slots
Supports 100/1000Base-FX fiber SFP modules
685W PoE power budget
PoE alive check restarts unresponsive PoE powered devices
52Gbps switching capacity
Hardened IP30 rated metal housing
Operating temperature range of -40° – 70° C (-40° – 158° F)
Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
IEEE 802.1p QoS with queue scheduling support
CLI (Console / Telnet / SSH), Web (HTTP/HTTPS), SNMP v1 / 2c / 3 management
IGMP Snooping / MVR support
802.1p / DSCP / Queue Scheduling (SPQ / WRR) QoS support
Bandwidth control per port
Supports Ethernet Ring Protection Switching (ERPS)
19” rack mountable metal housing with included mounting kit
Multiple inputs provide power with overload current protection
Power supply sold separately (model: TI-RSP100048)
NDAA / TAA compliant
Lifetime Warranty
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-RP262I |
| Brand Name | TRENDnet |
| Product Model | TI-RP262i |
| Product Name | 26-Port Industrial Gigabit L2 Managed PoE+ Rackmount Switch |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+, 2 x Gigabit Ethernet Expansion Slot |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T, 1000Base-X, 1000Base-FX |
| Network & Communication | |
| Layer Supported | 2 |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 12.3" |
| Weight (Approximate) | 7.89 lb |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 685 W |
| Power Consumption | 20 W |
| Warranty | |
| Limited Warranty | Lifetime |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | No |
| Number of SFP Slots | 2 |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
