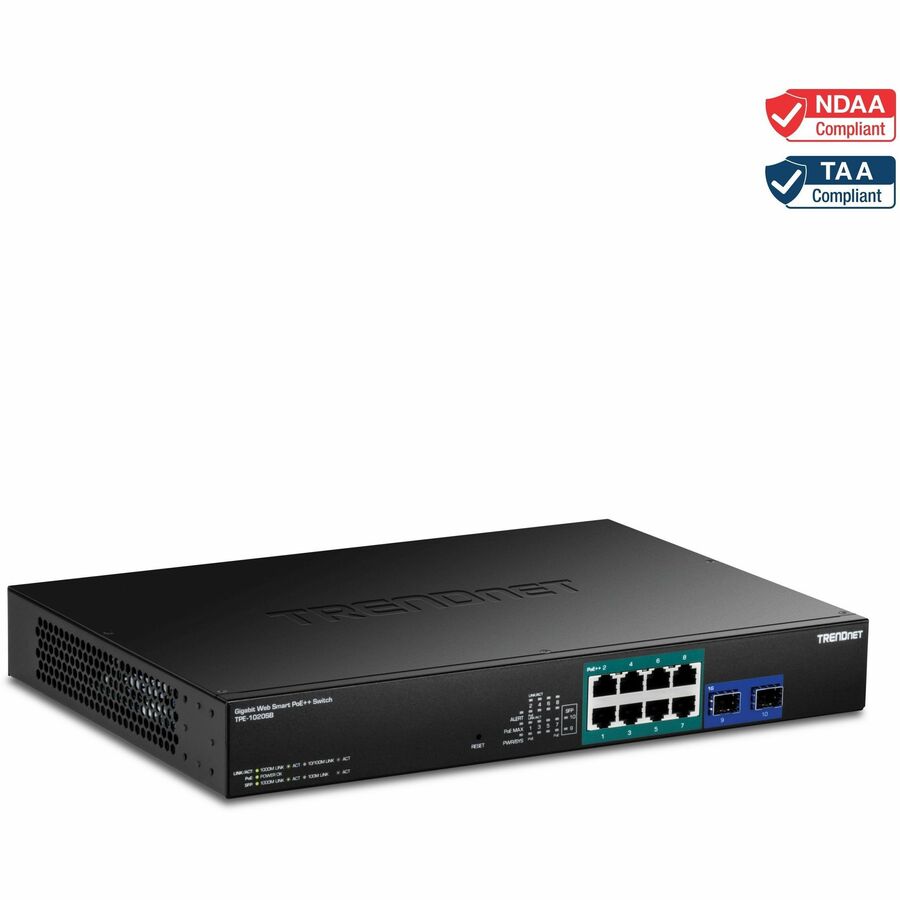

TRENDnet 10-Port Gigabit Web Smart PoE++ Switch, TPE-1020SB, 8 x Gigabit 95W PoE++ Ports, 2 Gigabit SFP Ports, 180W PoE Power Budget, Lifetime Protection, Black

TRENDnet's Gigabit Web Smart PoE++ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed PoE++ switch comes with an intuitive webbased interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this managed PoE++ switch a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Gigabit Web Smart Managed PoE++ Switch by delivering up to 95W of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power. This PoE++ switch is ideal for networking PoE devices, such as high-power wireless access points, PoE lighting, digital signage, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

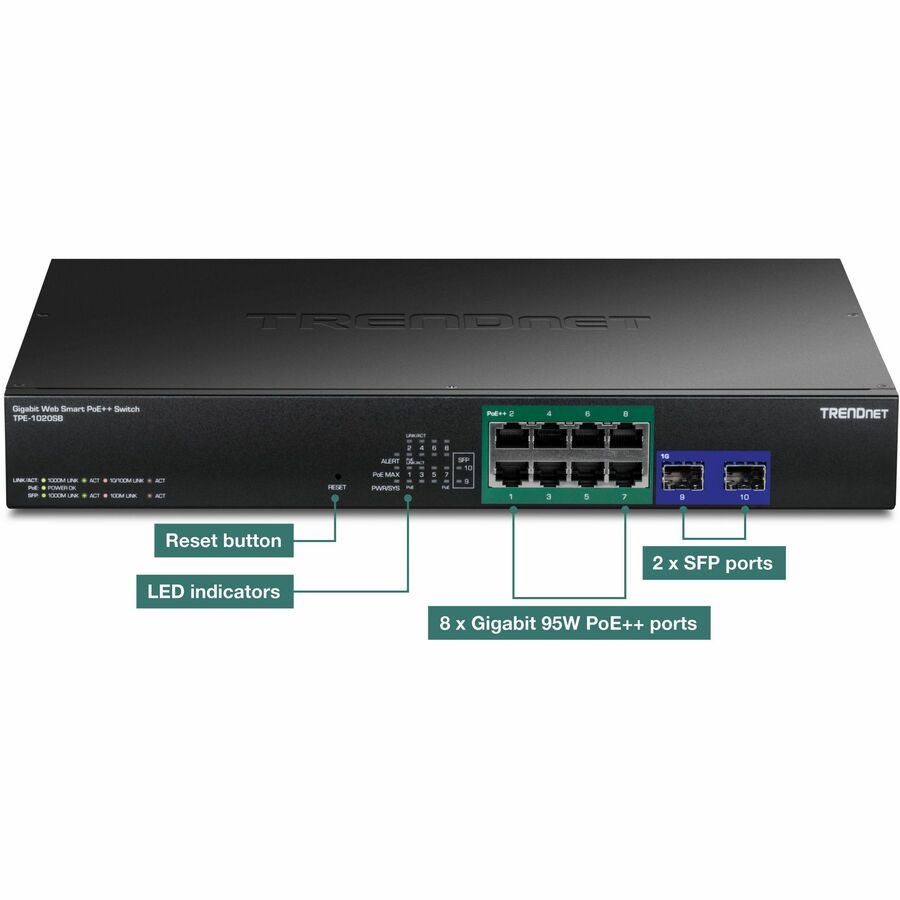

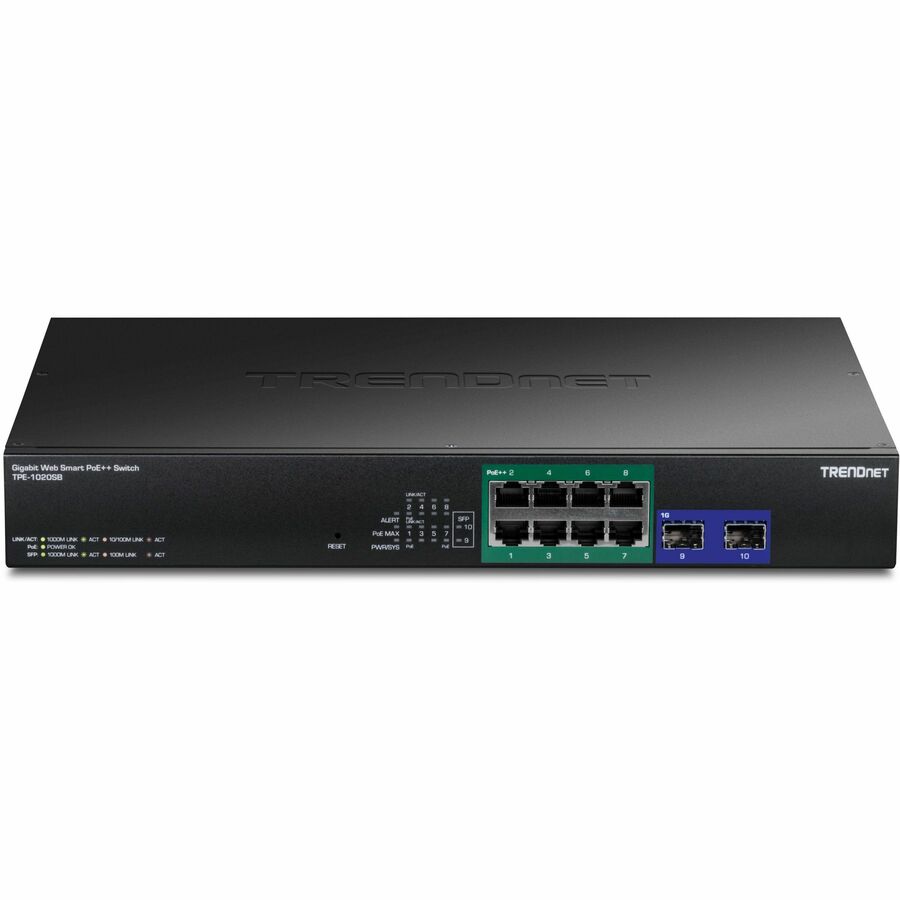

• DEVICE INTERFACE: 8 x Gigabit 95W PoE++ Ports; 2 x Gigabit SFP Ports; LED Indicators; Reset Button

• TRENDnet LIFETIME PROTECTION: The TPE-1020SB 10-Port switch comes with Lifetime TRENDnet Manufacturer Protection.

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Network Switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• GIGABIT SFP PORTS: Two dedicated gigabit SFP ports produce high-speed long distance network connections

• POE++ POWER: The PoE switch has a 180W PoE power budget, 8 x Gigabit PoE++ ports and 20Gbps switching capacity

• POE ALIVE CHECK: An automated PoE self-healing switch feature. If a PoE device becomes unresponsive, the switch will autoreboot the affected PoE port in an attempt to recover the device.

• WEB SMART MANAGEMENT: The 10 Port Gigabit switch provides an easy-to-use web-based GUI management for reduced switch configuration complexity, and offers a combination of SMB management features for easy deployment.

• TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling

• ACCESS CONTROL: Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls

More from the Manufacturer

TRENDnet’s Gigabit Web Smart PoE++ Switch series offers advanced L2+

features with enhanced traffic management controls to meet the evolving

demands of SMB networks. This rack-mountable IPv6-ready managed PoE++

switch comes with an intuitive web-based interface. Advanced managed

switch features include LACP to increase bandwidth between switches by

grouping ports together, VLANs for segmenting and isolating virtual LAN

groups, QoS for traffic prioritization, port bandwidth controls, and

SNMP monitoring, making this managed PoE++ switch a powerful solution

for any SMB network. Improve voice performance by isolating and

prioritizing VoIP traffic from normal data traffic with an easy-to-use

voice VLAN feature. Installers and integrators can save on equipment

costs and reduce installation time with TRENDnet’s Gigabit Web Smart

Managed PoE++ Switch by delivering up to 95W of PoE power and data over

existing Ethernet cables. With PoE technology, users only need one cable

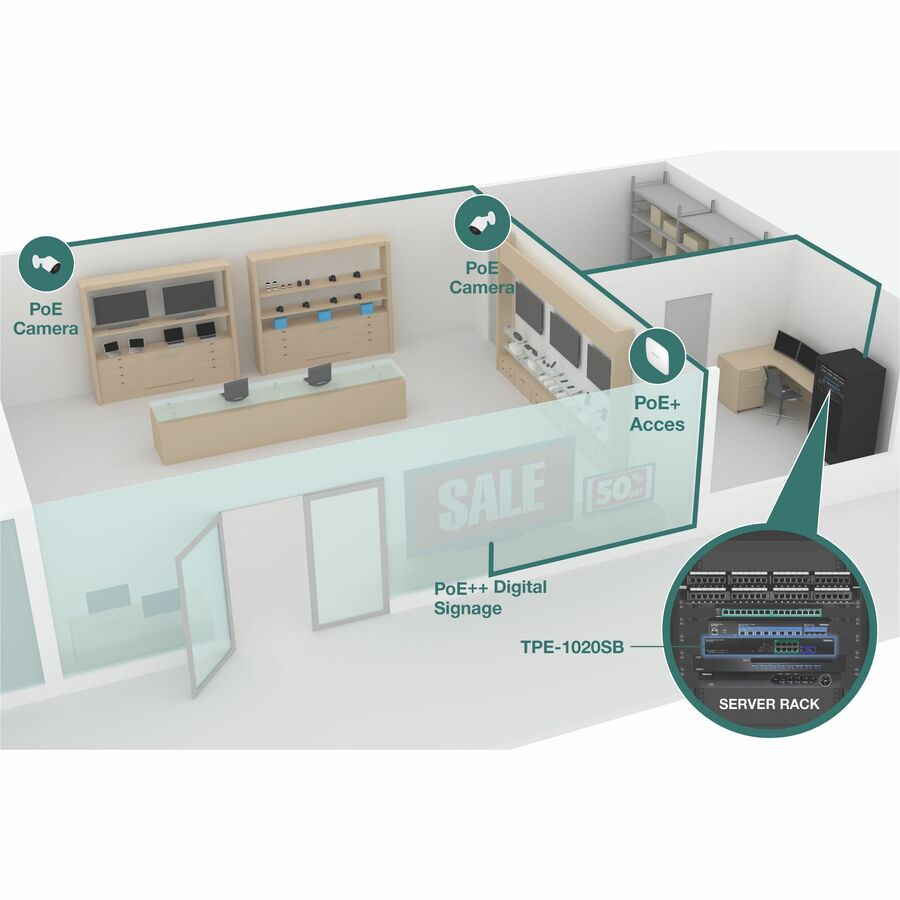

to deliver both data and power. This PoE++ switch is ideal for

networking PoE devices, such as high-power wireless access points, PoE

lighting, digital signage, PTZ and other advanced IP cameras, VoIP phone

systems, IPTV decoders, access controls, and more.

10-Port Gigabit Web Smart PoE++ Switch

8 x Gigabit 95W PoE++ ports

2 x Gigabit SFP slots

180W PoE power budget

Easy-to-use web-based management interface

PoE alive check automatically attempts to recover an unresponsive PoE device

Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping

Bandwidth control per port

Private, Multicast, and Voice VLAN support

1U 19” rack mountable

20Gbps switching capacity

IEEE 802.3bt PoE++ compliant

NDAA / TAA compliant (U.S. and Canada only)

Lifetime Warranty

PoE Power

This managed PoE++ switch comes with eight PoE++ ports that can supply up to 180W of PoE power.

PoE Device Alive Check

PD alive check is an automated PoE selfhealing switch feature. If a PoE

device becomes unresponsive, the switch will auto-reboot the affected

PoE port in an attempt to recover the device.

Web Smart Management

Provides an easy-to-use web-based GUI management for reduced switch

configuration complexity, and offers a combination of SMB management

features for easy deployment.

PoE++ Power

Vivamus egestas pretium convallis. Proin aliquet fermentum dui sed ultricies. Etiam tempor nec est nec viverra.

Fiber SFP

Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas molestie velit congue.

IPv6 Ready

Maecenas sit amet facilisis leo. Vivamus vel metus vitae mi congue mollis et ac quam. Phasellus faucibus libero.

Traffic Management

A broad range of network

configurations are supported by:

802.3ad link aggregation,

Asymmetric VLAN, 802.1Q VLAN,

Voice VLAN, RSTP, MSTP,

Loopback Detection, GVRP, 802.1p

Class of Service (CoS), port

bandwidth management, and QoS

queue scheduling

Troubleshooting

The managed PoE++ switch’s

convenient cable diagnostic test

and traffic statistics aid in

network troubleshooting

Access Control

Features such as ACL, SSL, MAC/

port filtering, 802.1X, TACACS+,

and RADIUS are compatible with

layered access controls

Monitoring

RMON, SNMP, SNMP Trap, and

Port Mirroring support

administrator monitoring solutions

Web Smart Management

Provides an easy-to-use web-

based GUI management for

reduced switch configuration

complexity,

and offers a combination of SMB

management features for easy

deployment

Housing Design

Sturdy metal housing

19” Rackmount Design

Rack mountable housing

with mounting kit included

Jumbo Frame

Sends larger packets, or Jumbo

Frames (up to 9KB), for

increased performance

LED Indicators

LED indicators on this

PoE++ switch convey port

status

Network Monitoring

Managed features on the

managed PoE++ switch include

RMON, SNMP trap, and syslog for

monitoring and flexible network

integration

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3af

IEEE 802.3at

IEEE 802.3az

IEEE 802.3bt

Device Interface

8 x Gigabit 95W PoE++ ports

2 x SFP ports

LED indicators

Reset button

Data Transfer Rate

Gigabit Ethernet: 2000Mbps (full duplex)

SFP: 2000Mbps (full duplex)

Performance

Switch fabric: 20Gbps

RAM buffer: 512KB

MAC Address Table: 8K entries

Jumbo Frames: 9KB

HOL Blocking Prevention

Forwarding rate: 14.88Mpps (64-byte packet size)

Management

CLI (Telnet / SSHv2) for basic administration

HTTP/HTTPS (SSL v2/3 TLS version 1.2) Web based GUI

SNMP v1, v2c, v3

RMON v1

Static Unicast MAC Address

Enable/disable 802.3az Power Saving

LLDP and LLDP-MED

Virtual Cable Diagnostics Test

IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

Dual image and configuration

MIB

RMON MIB RFC 1271

LLDP MIB IEEE 802.1ab

RFC 1213 MIB II

RFC 1493 bridge MIB

Spanning Tree

IEEE 802.1d STP (Spanning Tree protocol)

IEEE 802.1w RSTP (Rapid Spanning Tree protocol)

IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation

Static Link Aggregation

802.3ad Dynamic LACP

Quality of Service (QoS)

802.1p Class of Service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth Control per port

Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN

802.1Q Tagged VLAN

Dynamic GVRP

Up to 256 VLAN groups, ID Range 1-4094

Private VLAN (Protected Ports)

Voice VLAN (10 user defined OUIs)

Multicast

IGMP Snooping v1, v2, v3

MLD Snooping v1, v2

IGMP fast leave

Up to 256 multicast entries

Port Mirror

RX, TX, or Both

Many to one

Access Control

802.1X Port-Based Network Access Control, RADIUS, TACACS+

Local Dial-In User Authentication

DHCP Snooping

Loopback Detection

Trusted Host

Denial of Service (DoS)

IP MAC port binding

Block unknown multicast

ACL IPv4 L2-L4 & IPv6

MAC Address

VLAN ID

Ether Type (IPv4 only)

TCP/UDP Port 1-65535

802.1p

DSCP (IPv4 only)

TOS (IPv4 only)

IPv4 Address and Mask (IPv4 only)

IPv6 Address and Prefix Length (IPv6 only)

Layer 3 Features

IPv4 / IPv6 static routing

IP interfaces: Up to 15

Routing table entries: Up to 32 (IPv4 / IPv6)

ARP table (up to 128 entries)

Inter-VLAN routing

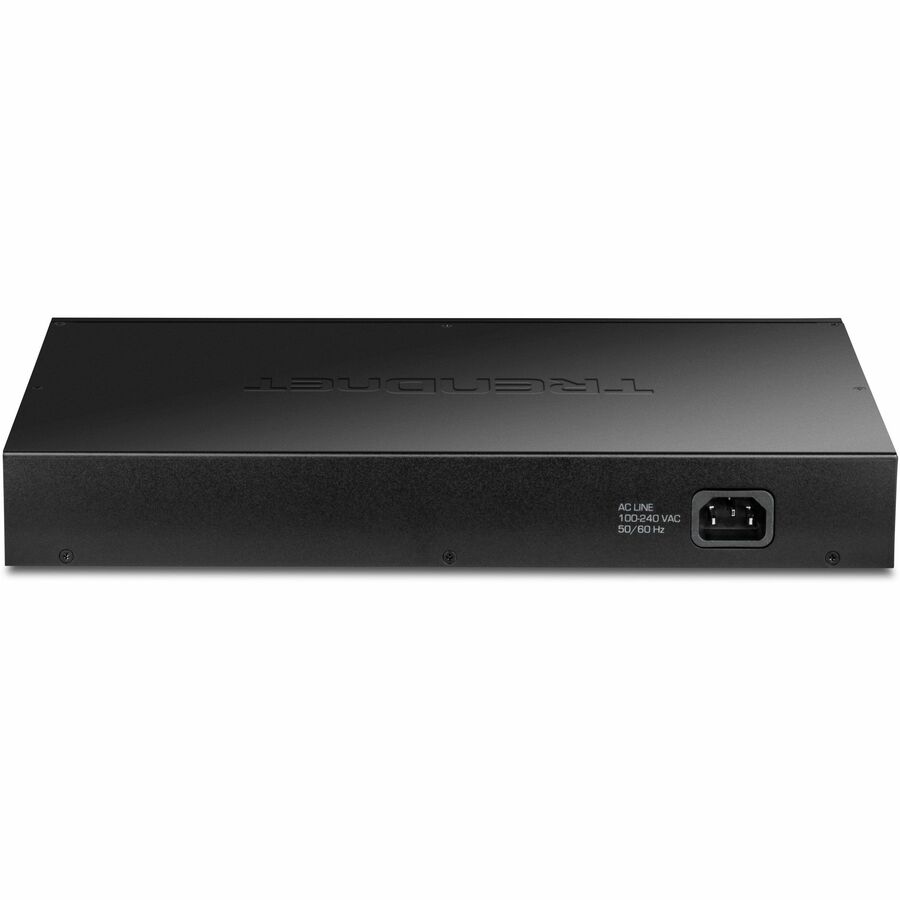

Power

Input: 100 – 240V AC, 50/60Hz, internal power supply

Max. consumption: 5.8W (without PD) / 185.8W (with PD)

PoE

Power Budget: 180W

802.3bt: up to 95W

PoE++: pin 1, 2, 4, 5 + and pin 3, 6, 7, 8 -

PoE manual classification

Fan/Acoustics

Quantity: 1

Smart Fan

Noise Level: 55dB(A) (max.)

MTBF

243,000 @ 25° C

Operating Temperature

0° – 40° C (32° – 104° F)

Operating Humidity

Max. 90% non-condensing

Dimensions

330 x 230 x 44mm (12.80 x 9.06 x 1.74 in.)

Rack mountable 1U height

Weight

2.38kg (5.25 lbs.)

Certifications

CE

FCC

LVD

ETL

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TPE-1020SB

Quick Installation Guide

Power cord (1.5m/4.9 ft.)

Rackmount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
