8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 3 Layer Supported - Modular - 2 SFP Slots - Power Supply - 152.30 W Power Consumption - 130 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable - Lifetime Limited Warranty
$230.88
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with TRENDnet's reliable cloud service.
• 8 x Gigabit PoE+ ports;2 x SFP slots ;130W PoE power budget
• LIFETIME PROTECTION -We stand by the quality of our products. The TPE-1021WS 10-Port Gigabit Web Smart PoE+ Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• Easy-to-use web-based management interface; PoE alive check automatically attempts to recover an unresponsive PoE device connected
• TRENDNET HIVE: The advanced network cloud management solution designed to save you both time and cost by simplifying and centralizing management and monitoring of networks(s) and networked devices all from the palm of your hand.(Additional fee applies)
• REMOTE CLOUD MANAGEMENT: Hive allows you to remotely manage, configure, and easily diagnose your network devices. Monitor and download detailed usage reports, easily locate data bottlenecks, and expand the network to improve overall productivity
• Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping; IPv4/IPv6 Static Routing support
• Bandwidth control per port;Private, Multicast, and Voice VLAN support; IEEE 802.1p QoS with queue scheduling support; 20Gbps switching capacity
More from the Manufacturer
OVERVIEW
TRENDnet’s Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Easily manage and configure TRENDnet’s Web Smart PoE+ Managed Switch Series remotely by updating switches to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with TRENDnet’s reliable cloud service
Web Smart Management
Provides an easy-to-use web-based management interface for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.
Integration Flexibility
Managed switch features include access control lists, VLAN, IGMP/MLD snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
PoE Device Alive Check
PD alive check is an automated PoE self-healing switch feature. If a PoE device becomes unresponsive, the switch will auto-reboot the affected PoE port in an attempt to recover the device.
TRENDnet Hive Cloud Manager

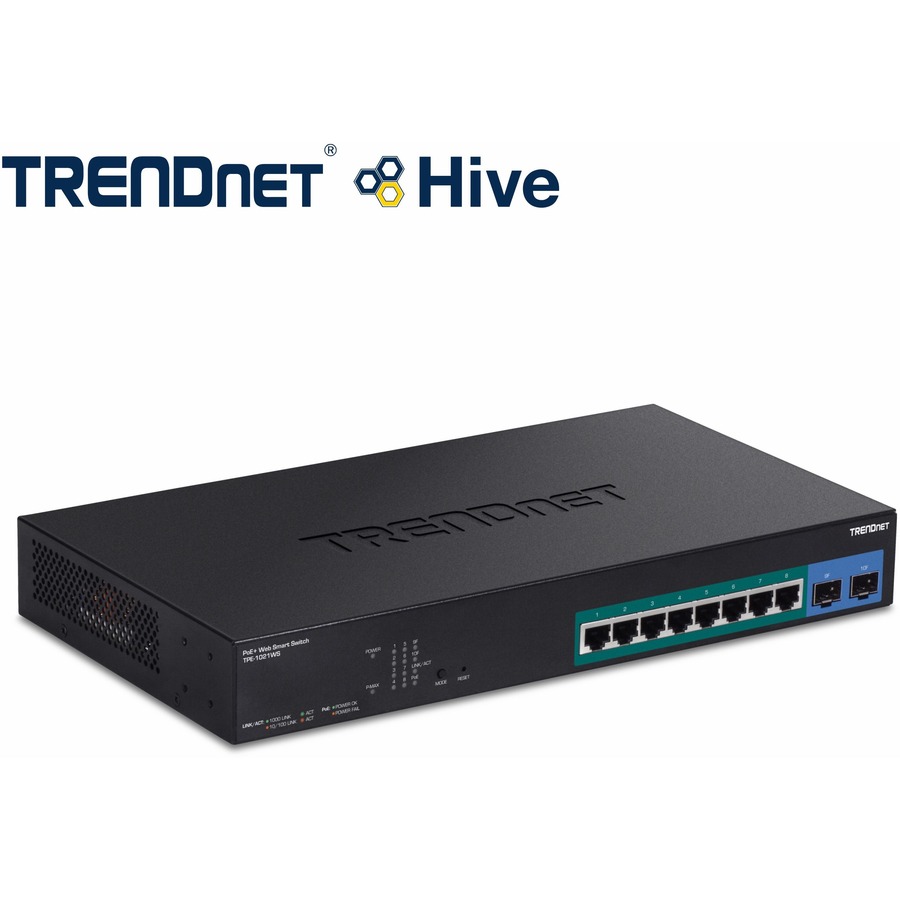

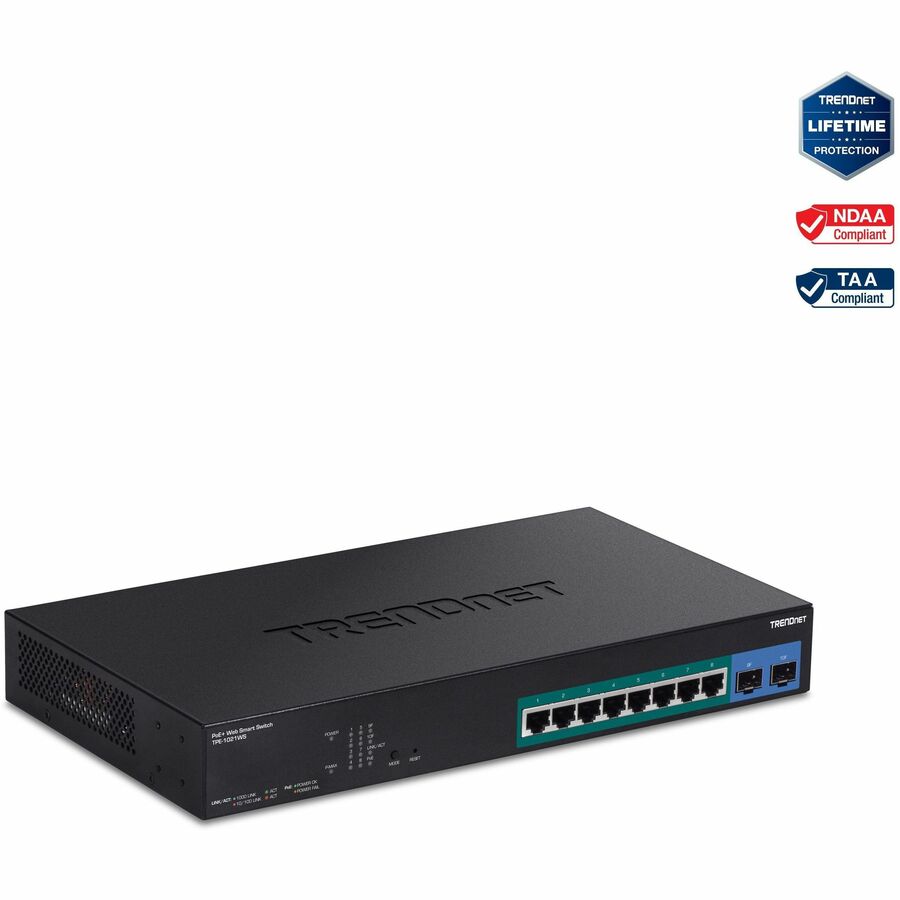

10-Port Gigabit Web Smart PoE+ Switch
8 x Gigabit PoE+ ports
2 x SFP slots
130W PoE power budget
Easy-to-use web-based management interface
PoE alive check automatically attempts to recover an unresponsive PoE device connected
Remote cloud management with TRENDnet Hive (Additional fee applies)
Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping
IPv4/IPv6 Static Routing support
Bandwidth control per port
Private, Multicast, and Voice VLAN support
IEEE 802.1p QoS with queue scheduling support
20Gbps switching capacity
NDAA / TAA compliant (U.S. and Canada only)
Hardware Design

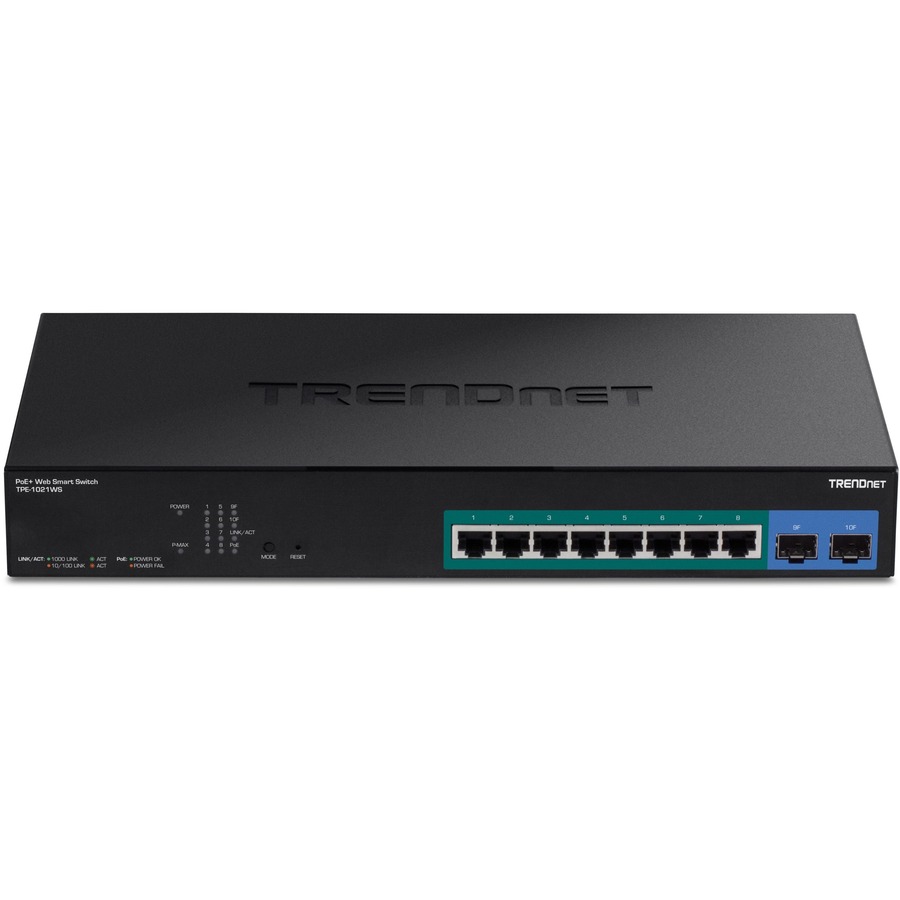

Provides 8 Gigabit PoE+ ports, 2 SFP slots, a 20Gbps switching capacity, and 1U 19” rackmount design with brackets included
PoE Power
The 130W total PoE power budget on this PoE managed switch supplies 8 Power over Ethernet devices with up to 30W per port
Hive Enabled
Remotely manage, configure, and diagnose this web smart switch via TRENDnet’s cloud service (Additional fee applies)
IPv6 Ready
This managed switch supports IPv6 configuration and IPv6 neighbor discovery
Traffic Management
Managed switch features include: Link aggregation, 802.1Q VLAN, Voice VLAN, Multicast VLAN, RSTP, MSTP, Loopback Detection, QoS, and port bandwidth management
IP Routing
Offload routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level
Dynamic ARP Inspection
Dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets
Troubleshooting
A convenient cable diagnostic test and traffic statistics aid in network troubleshooting
Access Control
Includes ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS
Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
SPECIFICATIONS
Standards
IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3az
Device Interface
8 x Gigabit PoE+ ports
2 x SFP Slots
LED indicators
LED Display mode button (toggles LED indicators to display link/activity or PoE only port status)
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
SFP: 2000Mbps (full duplex)
Performance
Switch fabric: 20Gbps
RAM buffer: 4.1MB
MAC Address Table: 8K entries
Jumbo Frames: 10KB
HOL Blocking Prevention
Forwarding rate: 14.9Mpps (64-byte packet size)
Management
CLI (Telnet / SSHv2) for basic administration
HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP and LLDP-MED
Virtual Cable Diagnostics Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
Dual image and configuration
TC Root/Protect
MIB
IP Forward Table MIB RFC 1354
RMON MIB RFC 1271
IPv4 MIB RFC 1213
IPv6 MIB RFC 2465
GVRP MIB IEEE 802.1Q-VLAN
LA MIB IEEE 802.3ad
LLDP MIB IEEE 802.1ab
IGMP Snooping MIB RFC 2933
MLD Snooping MIB RFC 3019
Private VLAN MIB IEEE 802.1Q
DHCP SNOOP MIB RFC 2026
QoS MIB RFC 4323
SNMP MIB RFC 3415
STP MIB RFC 4318
PNAC MIB IEEE 802.1x
VLAN MIB IEEE 802.1q
DNS MIB RFC 1611
ACL MIB
Bandwidth CTRL MIB
LBD MIB
Mirror MIB
IPv6 NEIGHBOR MIB
SNTP MIB
Storm CTRL MIB
Statistics MIB
Tool MIB
Voice VLAN MIB
DoS MIB
Spanning Tree
IEEE 802.1d STP (Spanning Tree protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation
Static Link Aggregation
802.3ad Dynamic LACP
Quality of Service (QoS)
802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN
Multiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
MAC-based VLAN
Protocol-based VLAN
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs)
Multicast
IGMP Snooping v1, v2, v3 (per VLAN)
MLD Snooping v1, v2
IGMP fast leave
MVR (Multicast VLAN Registration)
Static Multicast Address
Up to 256 multicast entries
Port Mirror
RX, TX, or Both
Many to one
Access Control
802.1X Port-Based Network Access Control, RADIUS, TACACS+
Local Dial-In User Authentication
DHCP Snooping
Loopback Detection
Duplicated Address Detection
Trusted Host
Denial of Service (DoS)
IP MAC port binding
Dynamic ARP inspection
Block unknown multicast
ACL IPv4 L2-L4 & IPv6
MAC Address
VLAN ID
Ether Type (IPv4 only)
IP Protocol 0-255
TCP/UDP Port 1-65535
802.1p
DSCP (IPv4 only)
IPv6 Address (IPv6 only)
Layer 3 Features
IPv4 / IPv6 static routing
IP interfaces: Up to 6
Routing table entries: Up to 32 (IPv4 / IPv6)
ARP table (up to 128 entries)
Inter-VLAN routing
Compatibility
Optional Software Utility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Power

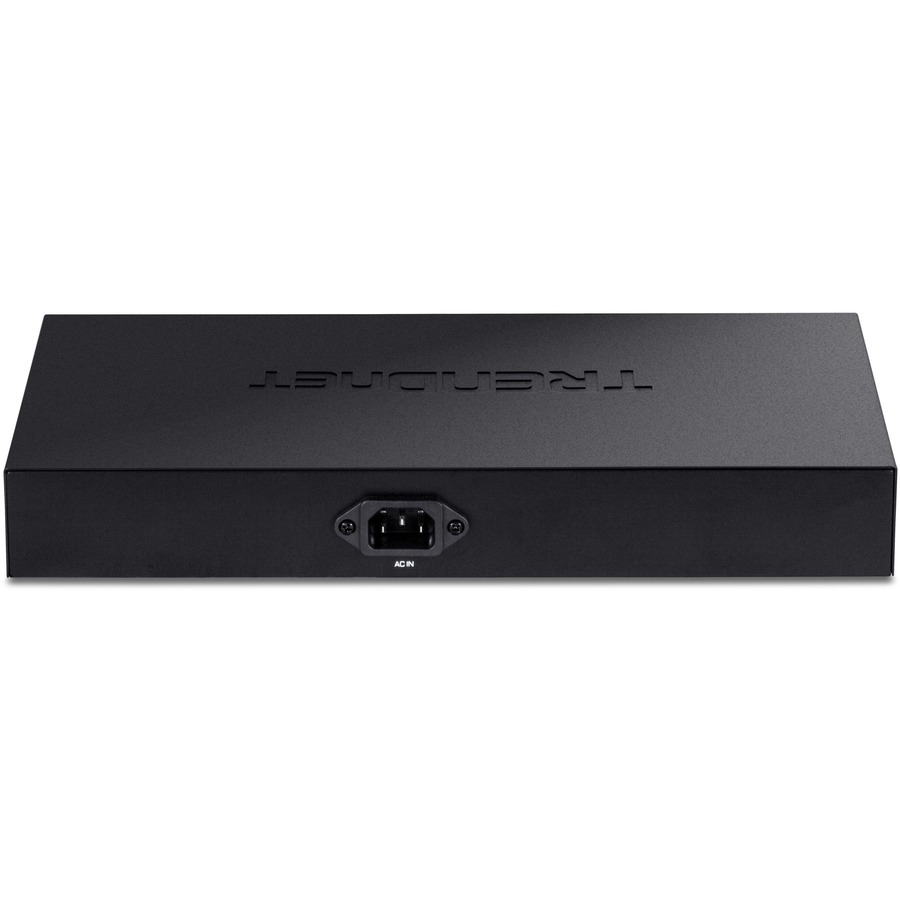

Input: 100 – 240V AC, 50/60Hz, internal power supply
Max. consumption: 152.3W
Max consumption (No PoE Load):
PoE
Power Budget: 130W
802.3at: Up to 30W per port
PoE Mode A: Pins 1, 2, 3, and 6 for power
PoE auto/manual classification
PoE port priority/power scheduling
Fan/Acoustics
Fanless
MTBF
590,929 hours
Operating Temperature
-5° – 50° C (23° – 122° F)
Operating Humidity
Max. 90% non-condensing
Dimensions
330 x 180 x 44mm (12.99 x 7.08 x 1.74 in.)
Rack mountable 1U height
Weight
1.76kg (3.88 lbs.)
Certifications
CE
FCC
UL
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TPE-1021WS
Quick Installation Guide
Power cord (1.8m/6 ft.)
Rack mount kit
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPE-1021WS |
| Brand Name | TRENDnet |
| Product Model | TPE-1021WS |
| Product Name | 10-Port Gigabit Web Smart PoE+ Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+, 2 x Gigabit Ethernet Expansion Slot |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T, 1000Base-X |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 13" |
| Depth | 7.1" |
| Weight (Approximate) | 3.88 lb |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 130 W |
| Power Source | Power Supply |
| Power Consumption | 152.30 W |
| Warranty | |
| Limited Warranty | Lifetime |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
