SKU
LPB3010A
Category
Switches & Bridges
Overview
The Gigabit Ethernet Managed Switches add high-speed ports while offering the management and security features your enterprise network needs. Provides 10/100/1000BASE-T UTP ports and 1G/10G SFP+ ports.
Fully Manageable
The switch is fully managed, supporting SNMP versions 1, 2c, and 3. The embedded RMON software agents support RMON groups 1 (history), 2 (statistics), 3 (alarms), and 9 (events).
The integral webserver enables web-based management via a web browser. This GUI interface enables switch configuration, system dashboard, maintenance, and monitoring.
The wide range of management and support features also includes dual image, port mirroring, LLDP, sFlow®, UPnP®, IPv6, SSH, RADIUS, DHCP Client/DHCPv6 Client, SNTP, cable diagnostics, ping, Syslog, and Telnet client with SSH security.
Support for VLAN and QoS
Support for up to four simultaneous VLANs enables you to segment traffic with port-based, 802.1Q tag-based, or MAC-based VLANs. VoIP traffic is automatically assigned to a voice-specific VLAN to maintain quality. 802.1p Layer 2 quality of service (QoS) enables prioritization of time-sensitive applications such as VoIP and video.
Secure
You get enterprise-class security features, too. 802.1X port-based network access control authenticates devices connecting to your network. The switch also supports SNMPv3 cryptographic security, SSH, and SSL. Plus, you can set up a guest VLAN that enables visitors to access the Internet without also giving them access to the corporate network.
10-GE Uplinks
This switch features 10-GE uplinks that increase backplane capacity.
Super-Fast Switch Control Processor
The Gigabit Ethernet Managed Switch has a powerful switch control processor that improves IGMP performance.
Green
The PoE+ Gigabit Managed Switch Eco features IEEE 802.3az energy-efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%.
Cable length detection adjusts signal strength to the cable length, reducing power consumption on shorter cable runs.
This product is covered by one or more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
Highlights
Provides 10/100/1000BASE-T UTP ports plus SFP+ ports
Powers 802.3af PoE or 802.3at PoE+ wireless access points, security cameras, VoIP phones, remote sensors, and other devices
Scalable: Add SFPs only when you need more capacity
Flexible: SFP slot enables you to define distances from 500 meters to 10 kilometers.
Applicable for data backhaul applications
Full SNMP management plus web-based management
Higher backplane capacity, 10GE uplinks
Faster processor for better IGMP performance
Higher POE power capacity
Specifications

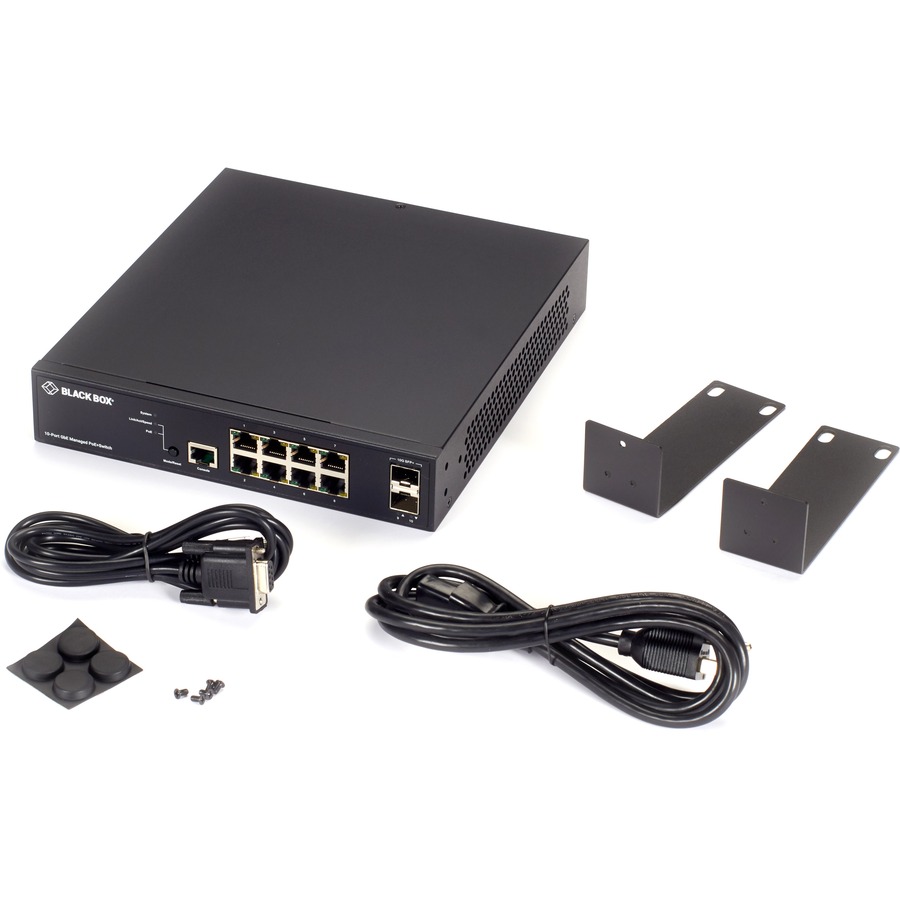

Package Contents
LPB3000 Ethernet Switch
1 x AC Power Cord
4 x Adhesive Rubber Feet
1 x Mounting Kit
1 x RJ-45 to DB9 Serial Console Cable
Product Type
Ethernet Switch
Manufacturer Part Number
LPB3010A
Limited Warranty
1 Year
Layer Supported
2
Form Factor
Wall Mountable
Manufacturer
Black Box Corporation
Product Name
LPB3000 Ethernet Switch
Network Technology
10/100/1000Base-T, 10GBase-X
Product Series
LPB3000
Brand Name
Black Box
Expansion Slot Type
SFP+
Country of Origin
Taiwan
Manageable
Yes
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet, 10 Gigabit Ethernet
Number of SFP+ Slots
2
Modular
Yes
Uplink Port
Yes
Media Type Supported
Optical Fiber, Twisted Pair
Total Number of Network Ports
8
PoE (RJ-45) Port
Yes
Port/Expansion Slot Details
8 x Gigabit Ethernet PoE+, 2 x 10 Gigabit Ethernet SFP+ Expansion Slot
Total Number of Expansion Slots
2
TAA Compliant
Yes
PoE Budget
130 W
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
