Overview
Provide Gigabit Speeds and Power to Devices

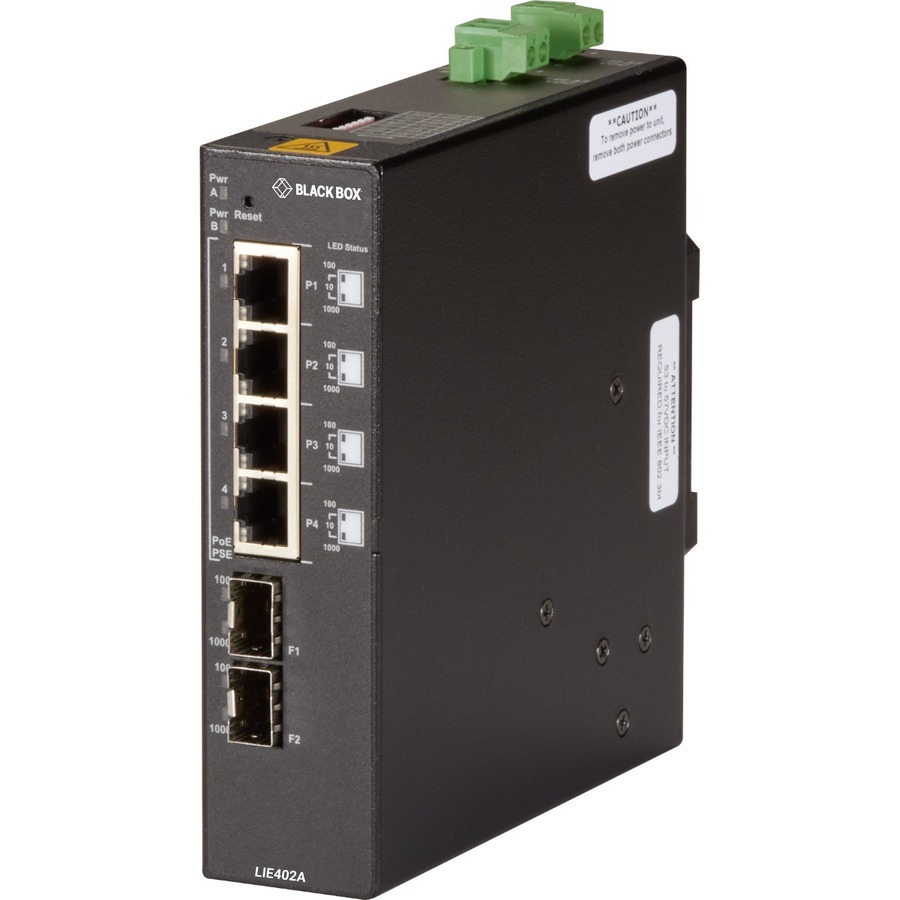

Unmanaged Industrial PoE++ Network Switch features two Gigabit fiber SFP ports and four 10/100/1000-Mbps copper RJ-45 ports so you can send high-speed internet to multiple devices in your network. It is a standard Layer 2 Ethernet switch that can forward frames to any port based on its MAC address. The switch also supports PoE, PoE+, and 60-watt PoE++ so you can power devices like cameras, wireless access points, and more. It can automatically negotiate and deliver the power level required by a Powered Device (PD) partner.
Supports Directed Switch Mode
Directed Switch Mode directs multicast traffic only to the appropriate fiber port, preventing multicast traffic from flooding other network ports.
Redundant Fiber Uplinks
This switch comes with two fiber ports to support redundant fiber uplinks for critical applications that require protection and sub 50-ms restoration in the event of a fiber failure. The second fiber port may also be used to daisy chain multiple Ethernet switches, or it may be used as another switch port.
Remote PoE Power Reset

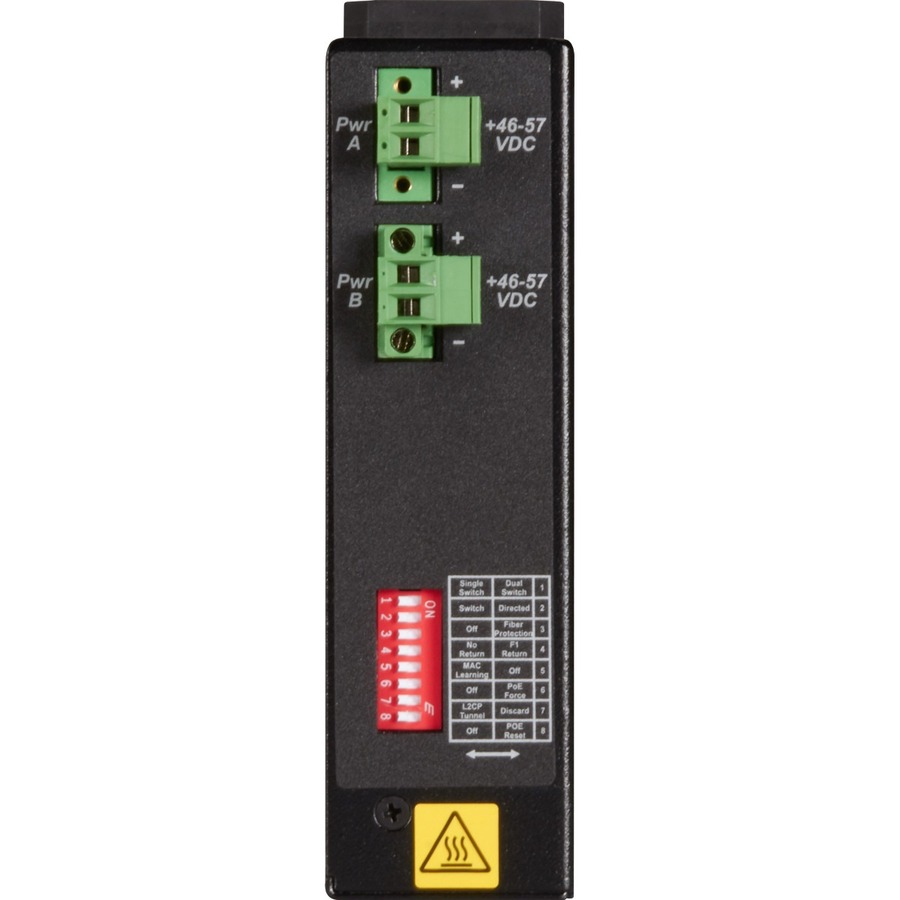

Features a remote PoE power reset function that can be configured with a DIP-switch. This feature allows all PDs to be power-cycled and reset remotely to save time and expense by eliminating the need to dispatch manpower to remote network sites.
Made to Work in the Toughest Environments
With an extended temperature range of -40° to 75° C, this hardened switch can withstand some of the harshest conditions on earth, making it perfect for industrial applications.
Highlights

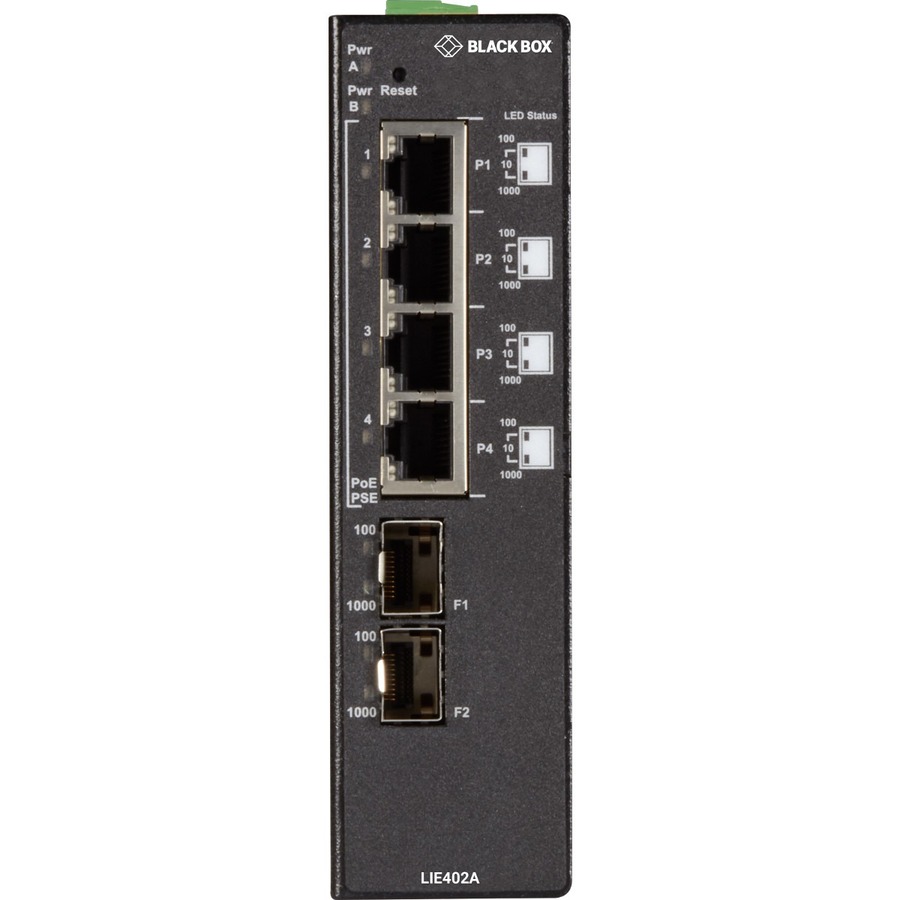

Four 10/100/1000-Mbps RJ-45 PoE++ ports and two 100/1000-Mbps SFP ports
IEEE 802.3bt compliant with up to 60 watts of PoE power per port
Provides full PoE++ power simultaneously to all Ethernet RJ-45 ports
Supports 100BASE-X or 1000BASE-X SFP transceivers

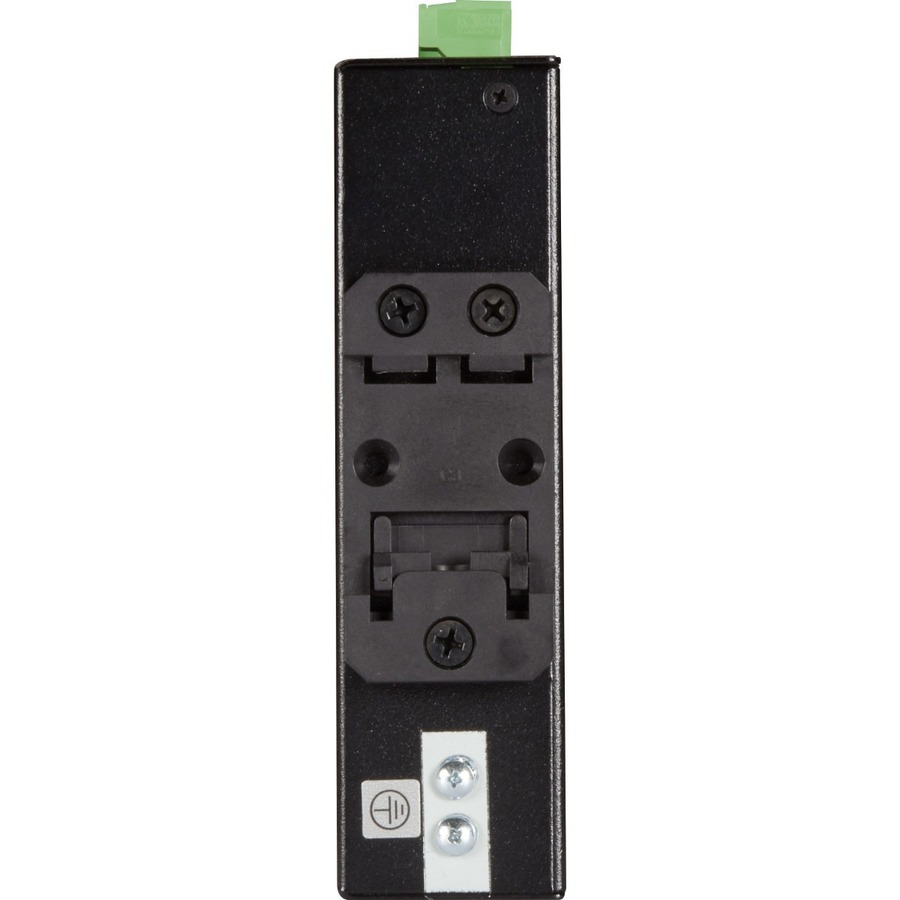

DIN-rail mountable with included clip
Industrial (-40 to 75ºC) operating temperature
Fanless design for long life and vibration resistance
Specifications
Package Contents
Ethernet Switch
1 x ±46 To ±57 VDC Power Adapter
Product Type
Ethernet Switch
Manufacturer Part Number
LIE402A
Packaged Quantity
1
Power Source
Power Adapter
Limited Warranty
2 Year
Layer Supported
2
Weight (Approximate)
1.70 lb
Form Factor
DIN Rail Mountable
Manufacturer
Black Box Corporation
Product Name
Ethernet Switch
Network Technology
10/100/1000Base-T, 1000Base-X
Brand Name
Black Box
Expansion Slot Type
SFP (mini-GBIC)
Country of Origin
United States
Height
5.5"
Width
1.5"
Depth
5.5"
Manageable
No
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Network (RJ-45)
Yes
Number of SFP Slots
2
Modular
Yes
Uplink Port
Yes
Media Type Supported
Optical Fiber, Twisted Pair
Total Number of Network Ports
4
PoE (RJ-45) Port
Yes
Port/Expansion Slot Details
4 x Gigabit Ethernet PoE++, 2 x Gigabit Ethernet Expansion Slot
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
