Genuine Transition Networks through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Switches & Bridges
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

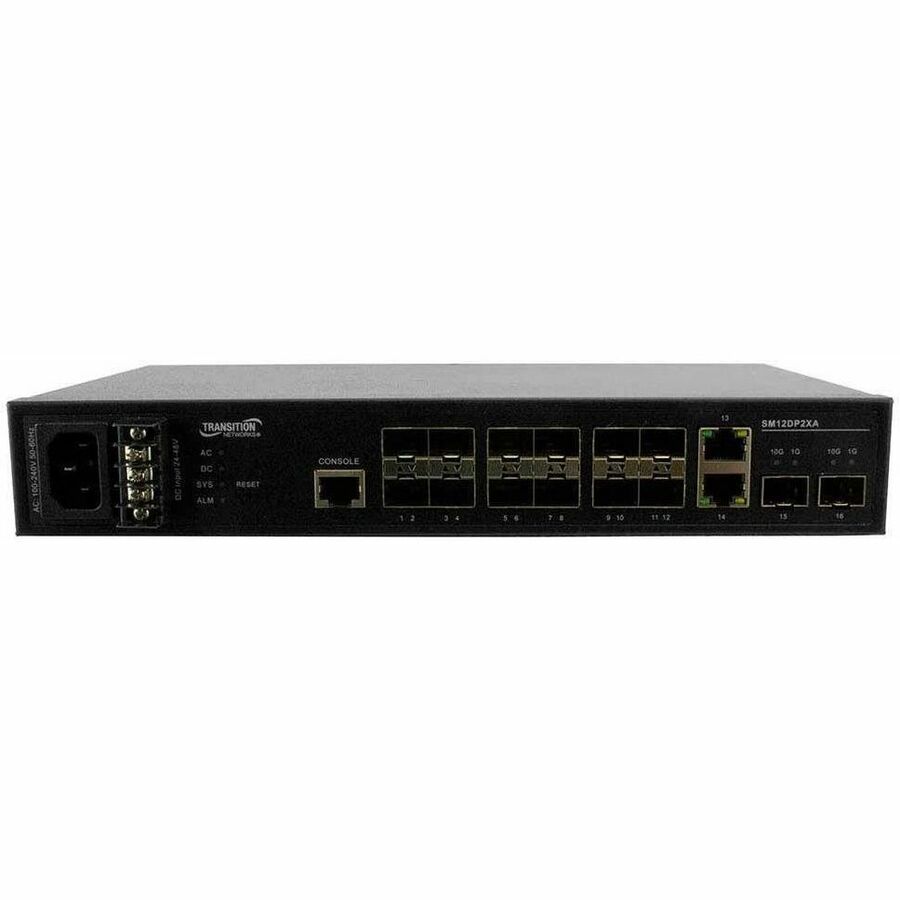

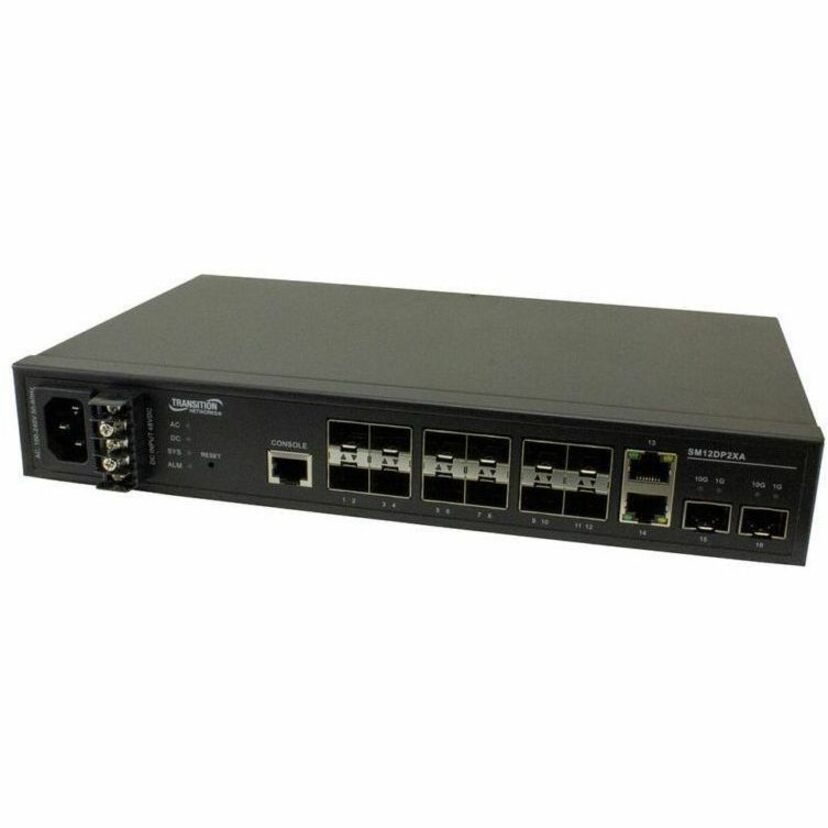

This switch is a next generation fully managed fiber switch with 68Gbps switching capacity. It provides (12) 100/1000 dual speed SFP slots, (2) 1G/10G SFP+ slots and (2) additional Gigabit RJ-45 ports. NDAA Compliant, TAA Compliant
Warranty
Limited Warranty: Lifetime
Highlights
IPv6 Management
Support Jumbo Frame up to 9K bytes
Authentication ? RADIUS, TACACS+
IEEE 802.1X: RADIUS authentication authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
DHCP Relay, DHCP Option 82, DHCP Snooping, DHCP Server
L2/L3/L4 ACLs Support MAC, VLAN ID or IP, protocol, port, DSCP/IP precedence/TCP.UDP, Ether Type, ICMP, TCP flag
LLDP (Link Layer Discovery Protocol)
IEEE 802.3az Energy Efficiency
IP Source Guard, Port Security
Port Mirroring
Firmware Update through TFTP/HTTP and console
Syslog
Specifications
General Information
Manufacturer
Lantronix, Inc
Manufacturer Part Number
SM12DP2XA-NA
Brand Name
Transition Networks
Product Name
Managed Gigabit Ethernet Fiber Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
2
Modular
Yes
Port/Expansion Slot Details
12 x Gigabit Ethernet Expansion Slot, 2 x 10 Gigabit Ethernet Expansion Slot, 2 x Gigabit Ethernet Network
Management & Protocols
Manageable
Yes
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Ethernet Technology
Gigabit Ethernet, 10 Gigabit Ethernet
Network Technology
1000Base-X, 10GBase-X, 10/100/1000Base-T
Network & Communication
Layer Supported
4
Physical Characteristics
Form Factor
Rack-mountable
Height
1.7"
Width
11"
Depth
5.3"
Weight (Approximate)
2.20 lb
Power Description
Power Source
Power Supply
Redundant Power Supply Supported
No
Power Consumption
24 W
Technical Information
Features
DHCP Snooping
Warranty
Limited Warranty
Lifetime
I/O Expansions
Total Number of Expansion Slots
14
Expansion Slot Type
SFP (mini-GBIC), SFP+
Shared SFP Slot
No
Number of SFP Slots
12
Number of SFP+ Slots
2
Miscellaneous
Package Contents
Managed Gigabit Ethernet Fiber Switch
19" Rack Mount Brackets
Power Cord (North America)
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
