Genuine Transition Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
SISTP1040-382B-LRT
Category
Switches & Bridges
Overview

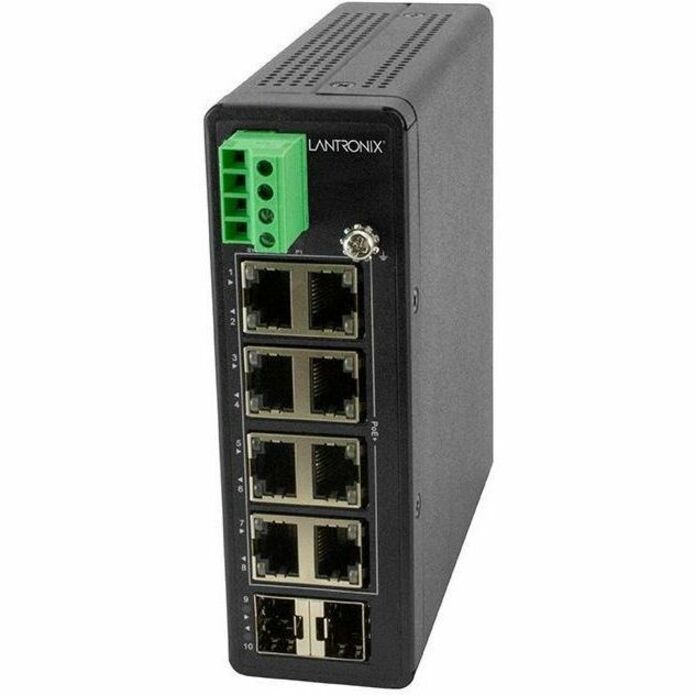

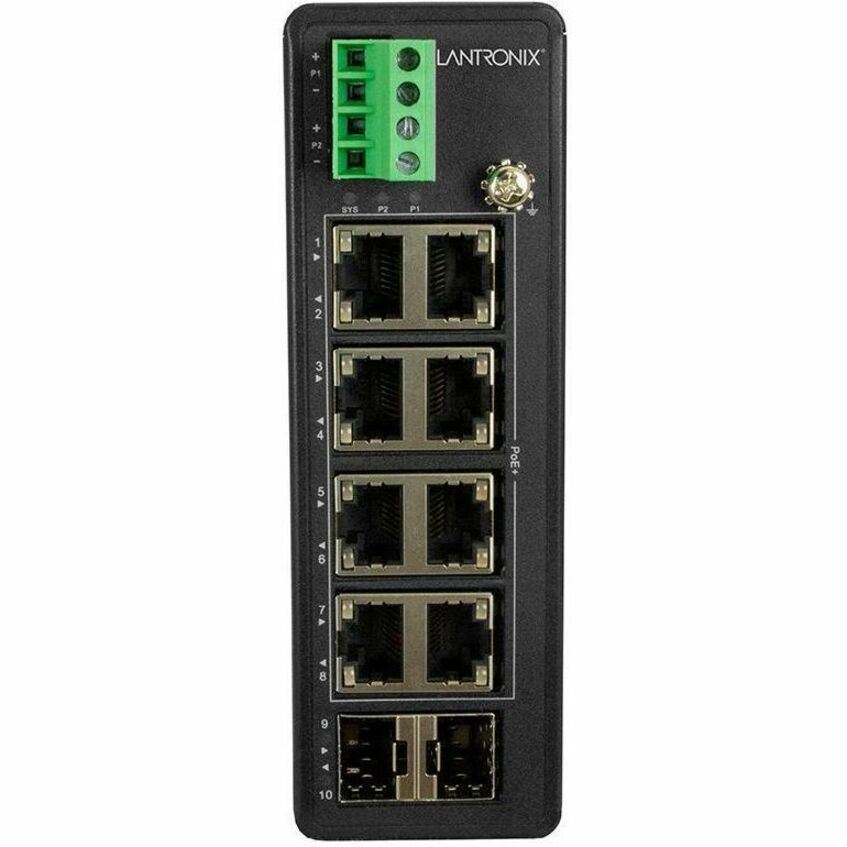

This switch is an unmanaged full Gigabit Ethernet hardened PoE+ switch that complies with IEEE 802.3at and IEEE 802.3af. The switch has (8) 10/100/1000Base-T PoE+ ports with (2) 100/1000 dual speed SFP slots. In many fields such as Vehicle, Factory or Solar systems, there are no standard power input requirements of 52 to 57 volts for PoE devices. The SISTP1040-382B-LRT uses booster technology to allow the user to deploy the PoE switches in the power input range of 12 to 24 volts. It can still deliver up to 30 Watts on each PoE+ port. The two fiber uplink ports can also be used in a daisy chain for maximum network reliability. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +70°C. Lantronix' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other hazardous environments. NDAA Compliant, TAA Compliant
Warranty
Limited Warranty: 5 Year
Highlights
Support Jumbo Frame up to 9K bytes
Layer 2 wire-speed switching engine
Ruggedized metal closure
IEEE 802.3az Energy Efficient Ethernet
Fan-less design
Wide operating temperature range (-40°C to +70°C)
Dual Power input
Din Rail and Wall Mount options
PoE Features:
IEEE 802.3at compliant
IEEE 802.3af compliant
Specifications
General Information
Manufacturer
Lantronix, Inc
Manufacturer Part Number
SISTP1040-382B-LRT
Brand Name
Transition Networks
Product Model
SISTP1040-382-LRT
Product Name
Unmanaged Hardened Gigabit Ethernet PoE+ Switch with Low Voltage Input
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
8
Modular
Yes
Port/Expansion Slot Details
8 x Gigabit Ethernet PoE+, 2 x Gigabit Ethernet Expansion Slot
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Ethernet Technology
Gigabit Ethernet
Network Technology
1000Base-X, 10/100/1000Base-T
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
Wall Mountable, DIN Rail Mountable
Height
1.7"
Width
5.3"
Depth
5.1"
Weight (Approximate)
1.01 lb
Power Description
PoE (RJ-45) Port
Yes
PoE Budget
120 W
Power Source
Power Supply, PoE+
Redundant Power Supply Supported
Yes
Technical Information
Features
IP30
Warranty
Limited Warranty
5 Year
I/O Expansions
Total Number of Expansion Slots
2.0
Expansion Slot Type
SFP (mini-GBIC)
Number of SFP Slots
2
Miscellaneous
Package Contents
Unmanaged Hardened Gigabit Ethernet PoE+ Switch with Low Voltage Input
Din Rail Bracket
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
