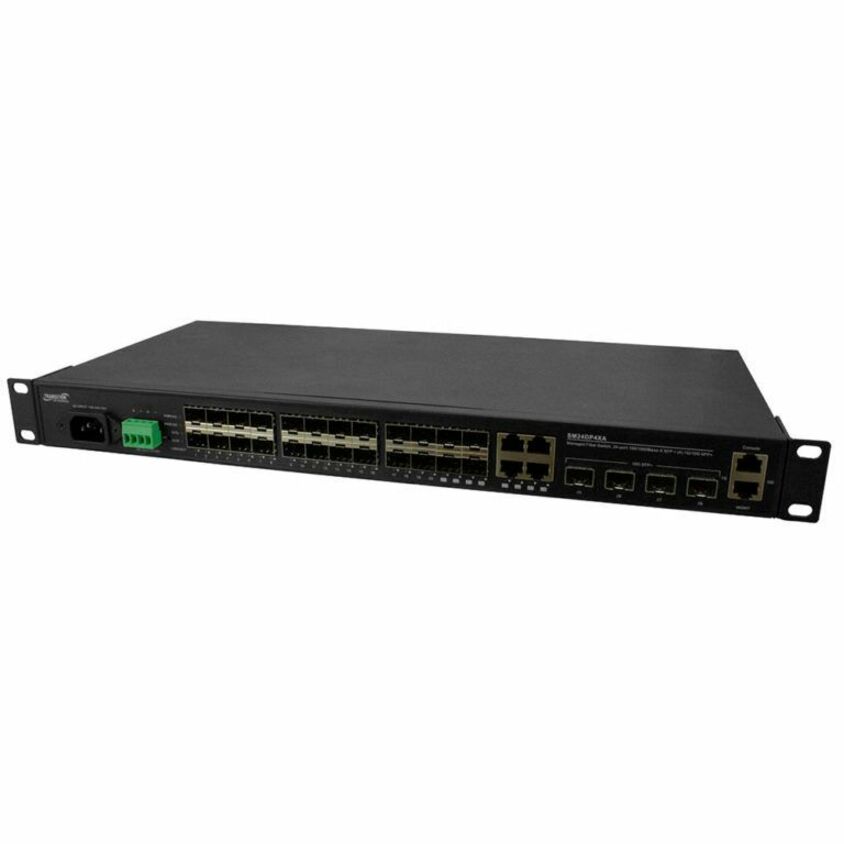

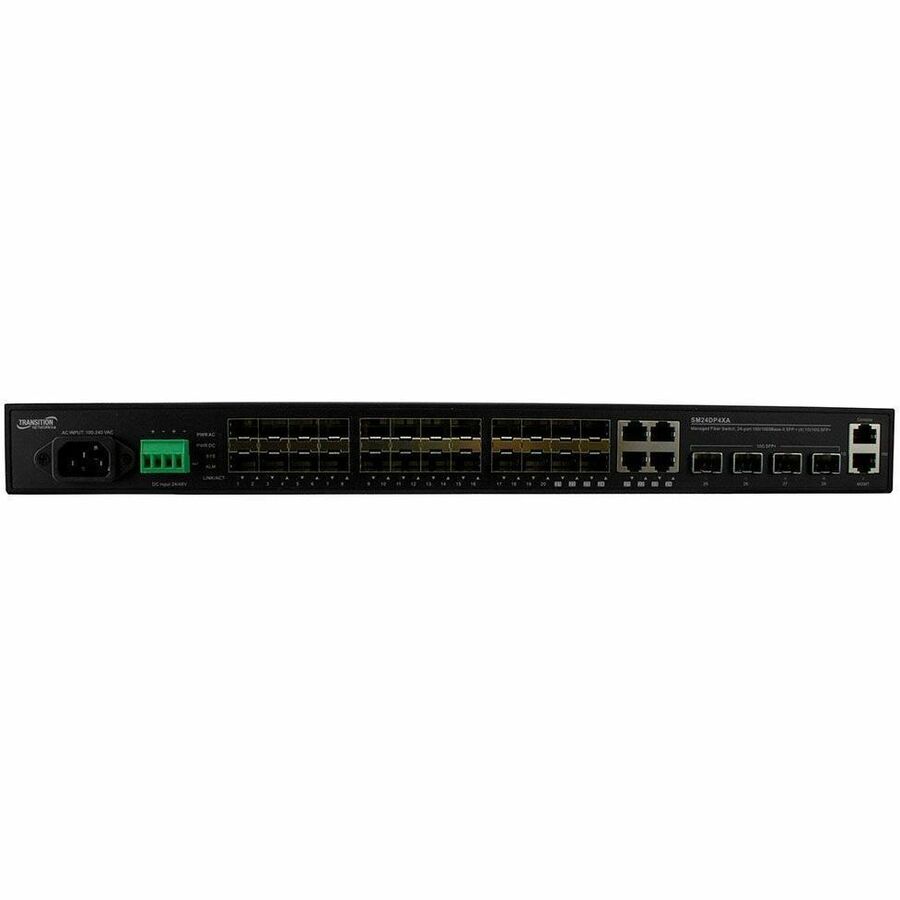

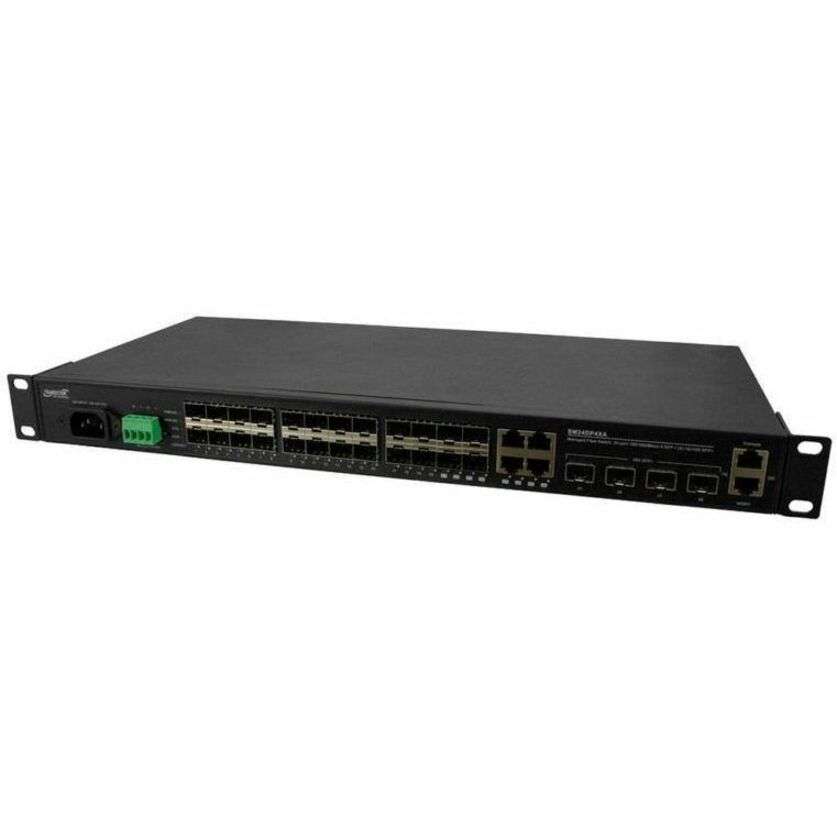

Managed Gigabit Ethernet Fiber Switch 20 100/1000Base-X SFP Slots + 4 100/1000Base SFP/RJ-45 Combo Ports + 4 1G/10GBase-X SFP+ Slots
Managed Fiber Aggregation Switch, 20-port 100/1000 SFP, 4 SFP/RJ Combo, 4 1G/10G SFP+
- SKU
- SM24DP4XA-NA
- Category
- Switches & Bridges
MSRP$1,685.40
$1,231.06
Save 27%Back ordered
Back ordered — ships when restocked.
Genuine Transition Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SM24DP4XA-NA
- Category
- Switches & Bridges
Overview
This switch is a next generation Layer 2 managed switch with 128Gbps switching capacity. It provides up to (24) dual speed fiber slots and (4) 10Gig aggregation ports, it's an ideal switch for fiber aggregation applications. NDAA Compliant, TAA Compliant
Highlights
- IPv4/IPv6 dual protocol stack
- Support Jumbo Frame up to 1518-4776 bytes
- Authentication ? IEEE 802.1X, RADIUS, TACACS+
- Security ? Supports SSH/SSL
- DHCP Relay, DHCP Option 82
- L2/L3/L4 ACLs Support MAC ACL, IP standard/extended ACL,
- IEEE 802.1p, Ethernet type
- LLDP (Link Layer Discovery Protocol)
- DHCP Server
- IEEE 802.3az Energy Efficiency
- IP Source Guard, Port Security
- IEEE 1588v2 PTP
- IEEE 802.3ah OAM
- IEEE 802.1ag CFM
- ITU-T Y.1731 Performance Monitoring
- ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
- Ethernet Virtual Circuts (EVC) for EPL and EVPL Services
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Manufacturer Part Number | SM24DP4XA-NA |
| Power Source | Power Supply |
| Limited Warranty | 5 Year |
| Layer Supported | 4 |
| Weight (Approximate) | 2.87 lb |
| Features | DHCP Relay |
| Form Factor | Rack-mountable |
| Manufacturer | Lantronix, Inc |
| Product Model | SM24DP4XA |
| Product Name | Ethernet Switch |
| Network Technology | 10/100/1000Base-T, 1000Base-X, 10GBase-X |
| Power Consumption | 60 W |
| Brand Name | Transition Networks |
| Expansion Slot Type | SFP (mini-GBIC), SFP+ |
| Country of Origin | Taiwan |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 8.3" |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet |
| Number of SFP Slots | 24 |
| Number of SFP+ Slots | 4 |
| Modular | Yes |
| Uplink Port | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 4 |
| Shared SFP Slot | Yes |
| Port/Expansion Slot Details | 20 x Gigabit Ethernet Expansion Slot, 4 x 10 Gigabit Ethernet Expansion Slot, 4 x Gigabit Ethernet TP/SFP Combo |
| Total Number of Expansion Slots | 28.0 |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
