6 Ports - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 2.5GBase-T, 10GBase-X - TAA Compliant - 2 Layer Supported - Modular - 120 W Power Consumption - 100 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Black - Desktop, Wall Mountable - 3 Year Limited Warranty
MSRP$520.00
$334.89
Save 36%In stock: 140
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Provides a 2.5 Gb Ethernet connection and power for PoE devices in your small office network or workgroup.
• Capable of 2.5 Gb Ethernet network speeds ideal for high-bandwidth applications
• Supports PoE to save you expense and effort of powering PoE devices individually
• 8 twisted-pair auto-negotiable RJ45 ports support auto MDI/MDIX functionality
• Unused ports shift into low-power state without interrupting network connection
• IEEE friendly: supports 802.3az Energy Efficient Ethernet standards
• 3-year limited warranty
Features | 8-Port Unmanaged 2.5 Gigabit Ethernet Switch for Home Offices and Workgroups

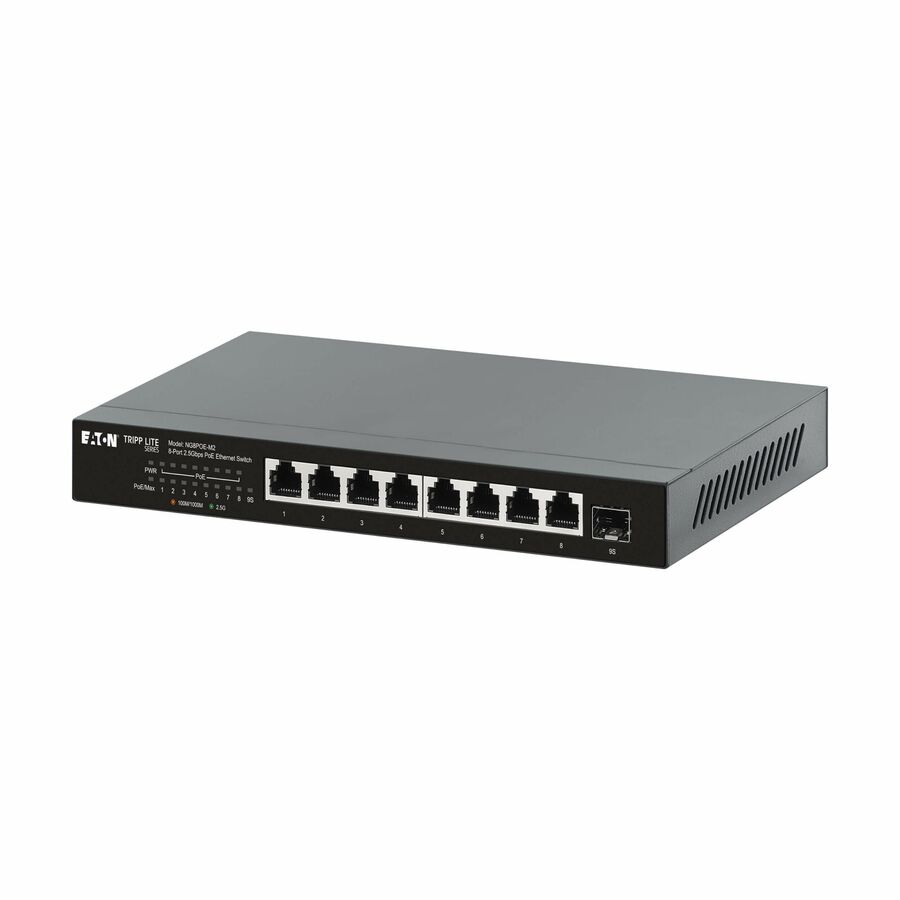

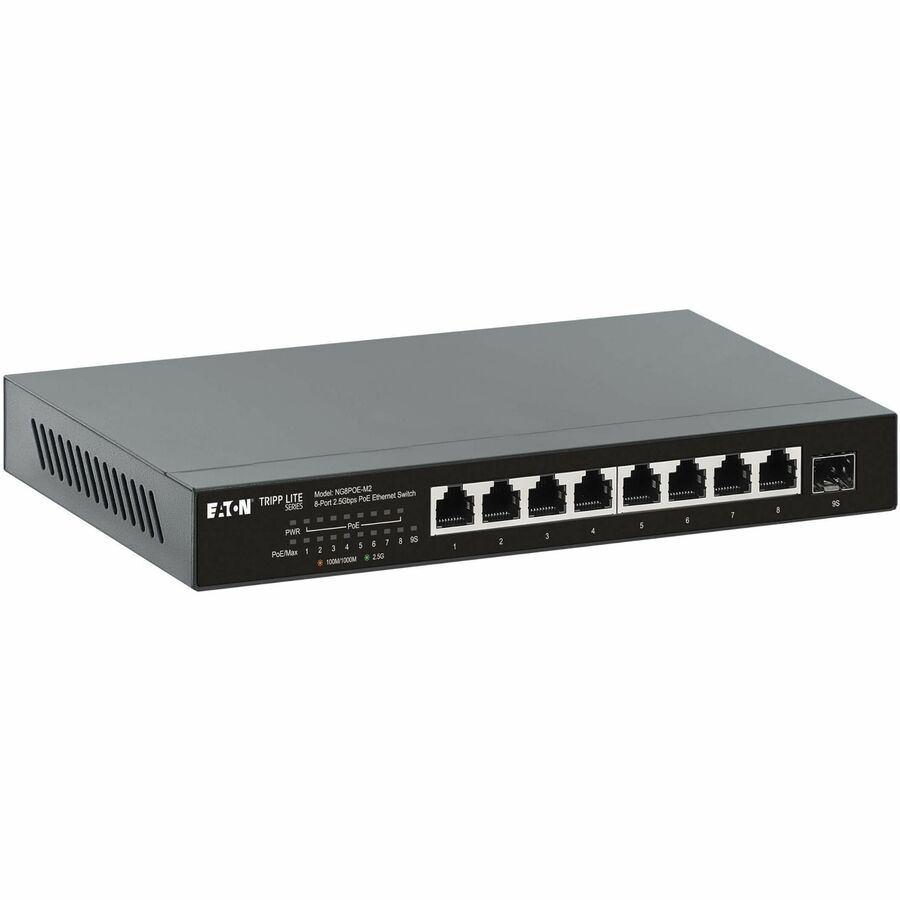

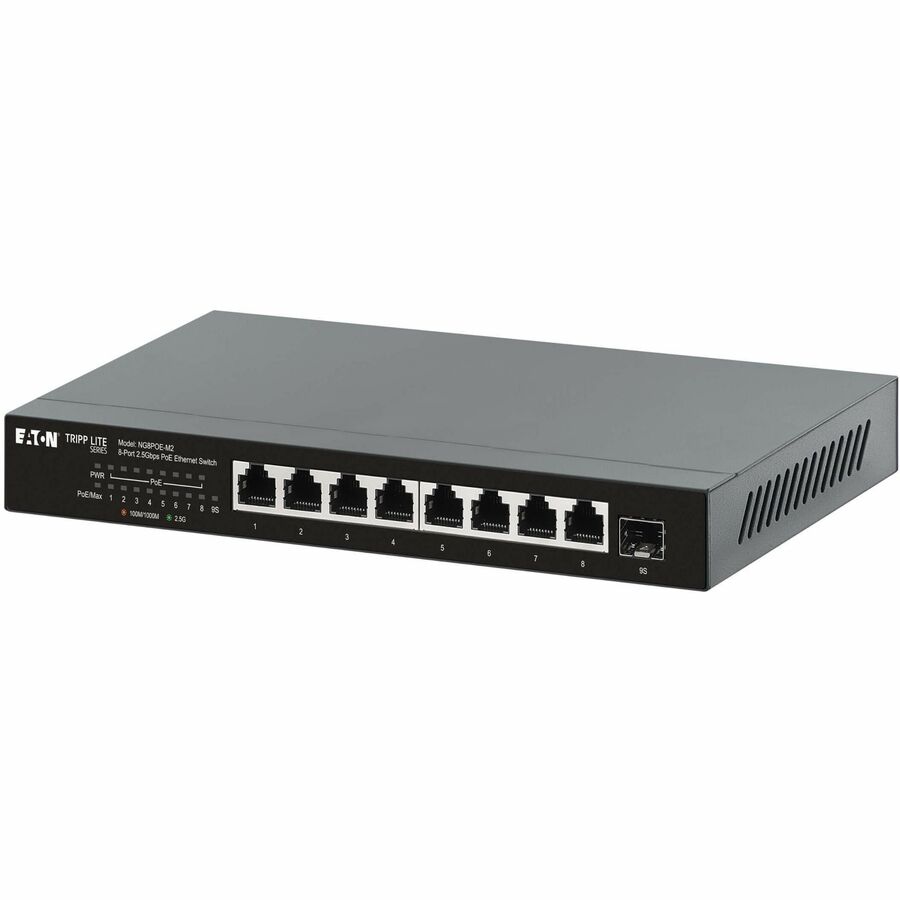

The energy-efficient NG8POE-M2 network switch connects up to eight devices to a Gigabit Ethernet network and allows them to communicate with each other. It's recommended for your home network, small office, workgroup or creative production environment. It helps you share large bandwidth-intensive files, such as CAD drawings and videos, at 2.5 Gigabit (2.5 Gbps) speeds, improving efficiency and cutting costly downtime.
Maximum Network Functionality

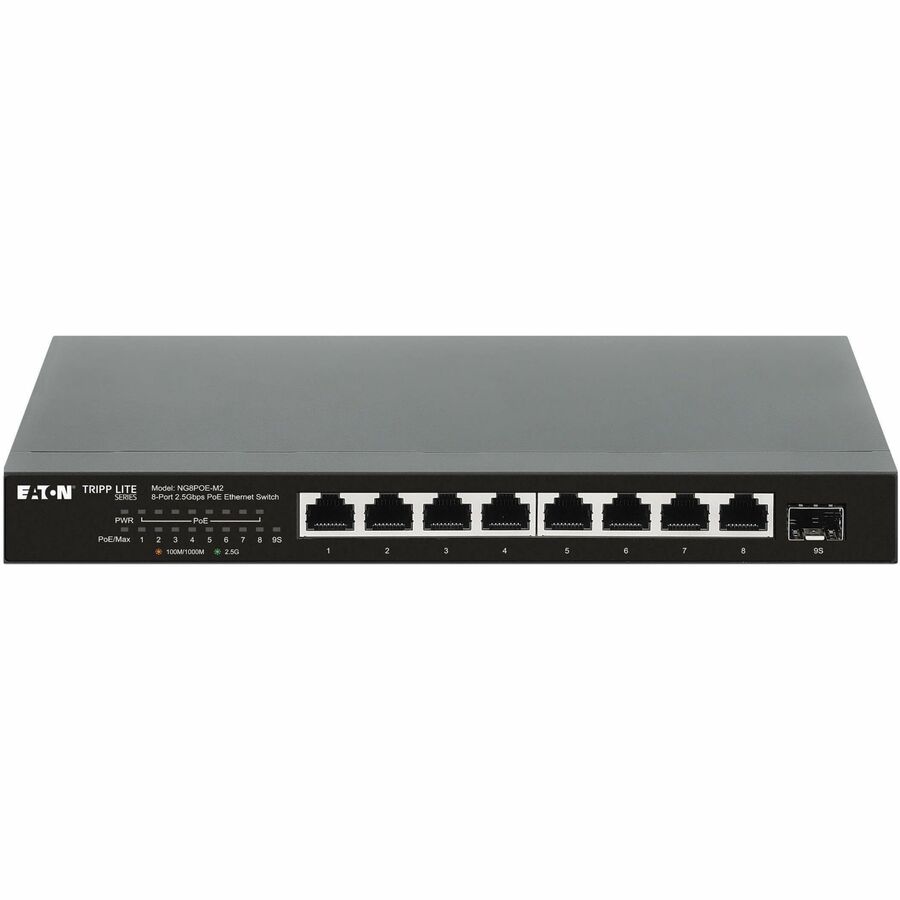

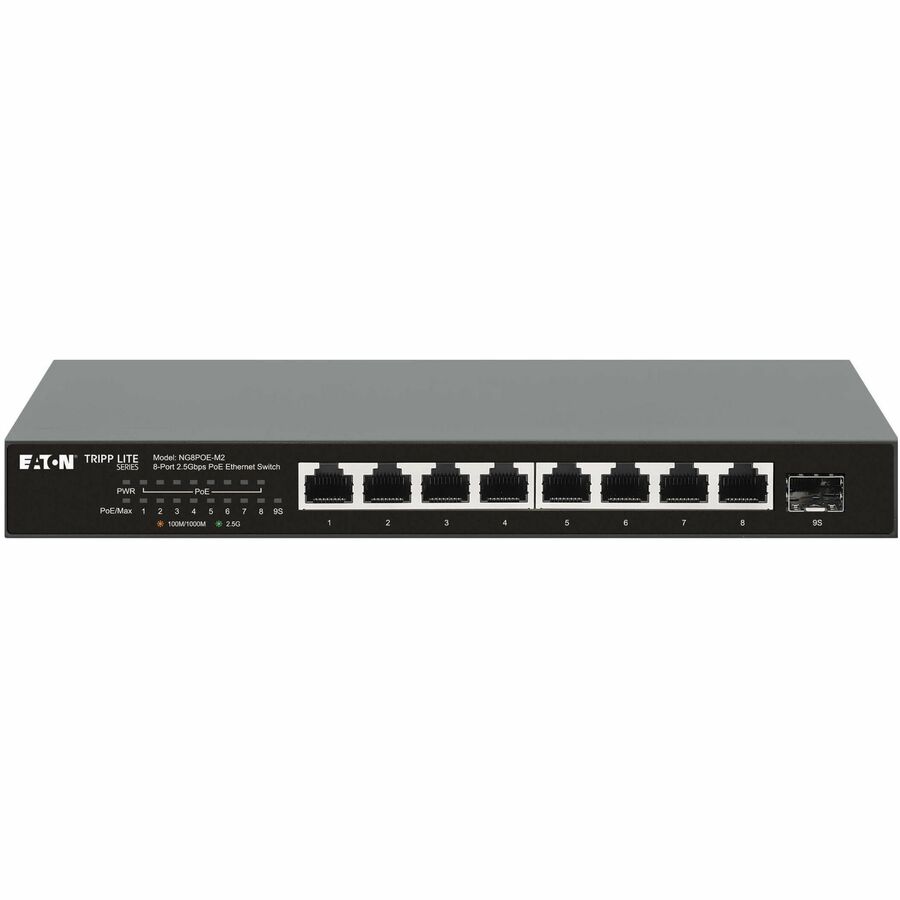

The NG8POE-M2 features eight twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 2.5 Gbps and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex), back pressure (half duplex) and 60 Gbps switching capacity allow smooth transmission of large files. One 10 Gbps SFP+ port is included for uplinking data to other switches using optical fiber cabling.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
Because this network switch supports PoE, it can supply the power to operate compatible PoE devices, such as wireless LAN access points and bridges, VoIP phones and IP video cameras. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. Eight RJ45 ports support up to 30W each with a total PoE budget of 100W when using the included AC power adapter.
Complies with IEEE Energy Efficient Ethernet Standards
The NG8POE-M2 supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It also meets IEEE 802.3ab, 802.3i and 802.3u standards.
Plug-and-Play Functionality for Easy Use
No configuration is required in setting up the unmanaged NG8POE-M2, so you can have your 2.5 Gbps network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The NG8POE-M2 supports MAC address auto-learning and auto-aging for efficient routing.
Limited Warranty: 3 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | NG8POE-M2 |
| Power Source | Power Adapter, AC, DC |
| Limited Warranty | 3 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 1.10 lb |
| Features | Energy Efficient, Fanless |
| Form Factor | Desktop, Wall Mountable |
| Input Receptacles | NEMA 5-15P |
| Manufacturer | Eaton Corporation |
| Product Model | NG8POE-M2 |
| Product Name | NG8POE-M2 Ethernet Switch |
| Network Technology | 2.5GBase-T, 10GBase-X |
| Power Consumption | 120 W |
| Brand Name | Tripp Lite series |
| Plug/Connector Type | C14 |
| Expansion Slot Type | SFP+ |
| Country of Origin | Taiwan |
| Height | 1.1" |
| Width | 9.5" |
| Depth | 4.1" |
| Manageable | No |
| Ethernet Technology | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP+ Slots | 1 |
| Modular | Yes |
| Uplink Port | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 6 |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 8 x 2.5 Gigabit Ethernet Network, 1 x 10 Gigabit Ethernet Expansion Slot |
| Total Number of Expansion Slots | 1 |
| TAA Compliant | Yes |
| PoE Budget | 100 W |
| Networking Standards | IEEE 802.3at, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u |
| Product Color | Black |
| Product Material | Metal |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
