5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 63.75 W Power Consumption - 60 W PoE Budget - Twisted Pair - PoE Ports - Black - Wall Mountable, Desktop - 3 Year Limited Warranty
MSRP$148.00
$119.22
Save 19%Special order — estimated available by September 10, 2026.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Provides a Gigabit Ethernet connection and power for PoE devices in your small office network or workgroup.
• Supports PoE to save you expense and effort of powering PoE devices individually
• 5 twisted-pair auto-negotiable RJ45 ports support auto MDI/MDIX functionality
• Unused ports shift into low-power state without interrupting network connection
• IEEE friendly: supports 802.3az Energy Efficient Ethernet standards
• Designed for either desktop installation or wall mounting with keyhole tabs
• 3-year limited warranty
Features | 5-Port Unmanaged Gigabit Ethernet Switch for Home Offices and Workgroups
The energy-efficient NG5POE-1 network switch connects up to five devices to a Gigabit Ethernet network and allows them to communicate with each other. It's recommended for your home network, small office, workgroup or creative production environment. It helps you share large bandwidth-intensive files, such as CAD drawings and videos, at Gigabit (1000 Mbps/1 Gbps) speeds, improving efficiency and cutting costly downtime.
Maximum Network Functionality

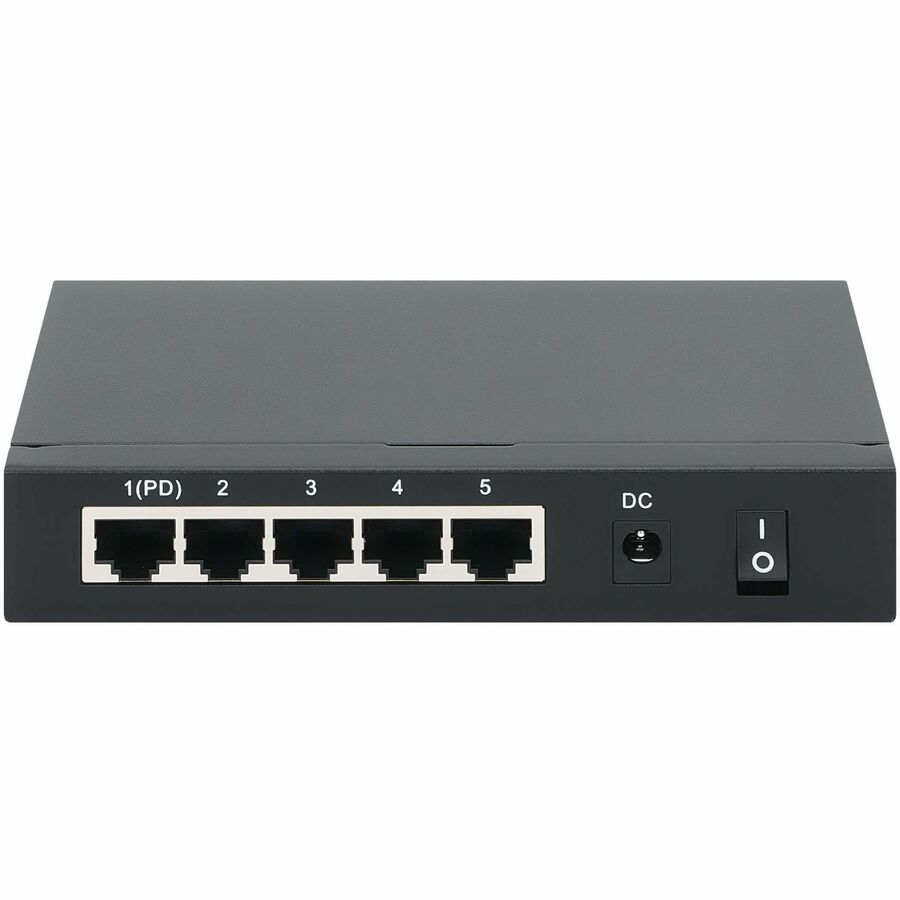

The NG5POE-1 features five twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex), back pressure (half duplex) and 10 Gbps switching capacity (2 Gbps per port with full duplex) allow smooth transmission of large files.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
When you connect the PD port (Port 1) to a PoE-enabled, IEEE 802.3af/at-compliant PoE injector, midspan or switch, the NG5POE-1 draws power from that device to power itself and passes the available surplus power to up to four PoE edge devices, such as VoIP phones and security cameras, allowing you to realize the full potential of each of the power sourcing equipment (PSE) ports in your network. Four RJ45 ports support up to 30W each with a total PoE budget of 60W when using the included AC power adapter.
Complies with IEEE Energy Efficient Ethernet Standards
The NG5POE-1 supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It also meets IEEE 802.3ab, 802.3i and 802.3u standards.
Plug-and-Play Functionality for Easy Use
No configuration is required in setting up the unmanaged NG5POE-1, so you can have your 10/100/1000 Mbps network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The NG5POE-1 supports MAC address auto-learning and auto-aging for efficient routing.
Limited Warranty: 3 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | NG5POE-1 |
| Brand Name | Tripp Lite series |
| Product Model | NG5POE-1 |
| Product Name | NG5POE-1 Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3at, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3i |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Metal |
| Form Factor | Wall Mountable, Desktop |
| Height | 1.1" |
| Width | 5.5" |
| Depth | 3.1" |
| Weight (Approximate) | 1.68 lb |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 60 W |
| Input Voltage | 120 V AC, 230 V AC |
| Power Source | Power Adapter |
| Power Consumption | 63.75 W |
| Plug/Connector Type | C14 |
| Input Receptacles | NEMA 5-15P |
| Technical Information | |
| Features | Energy Efficient, Fanless |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Philippines |
