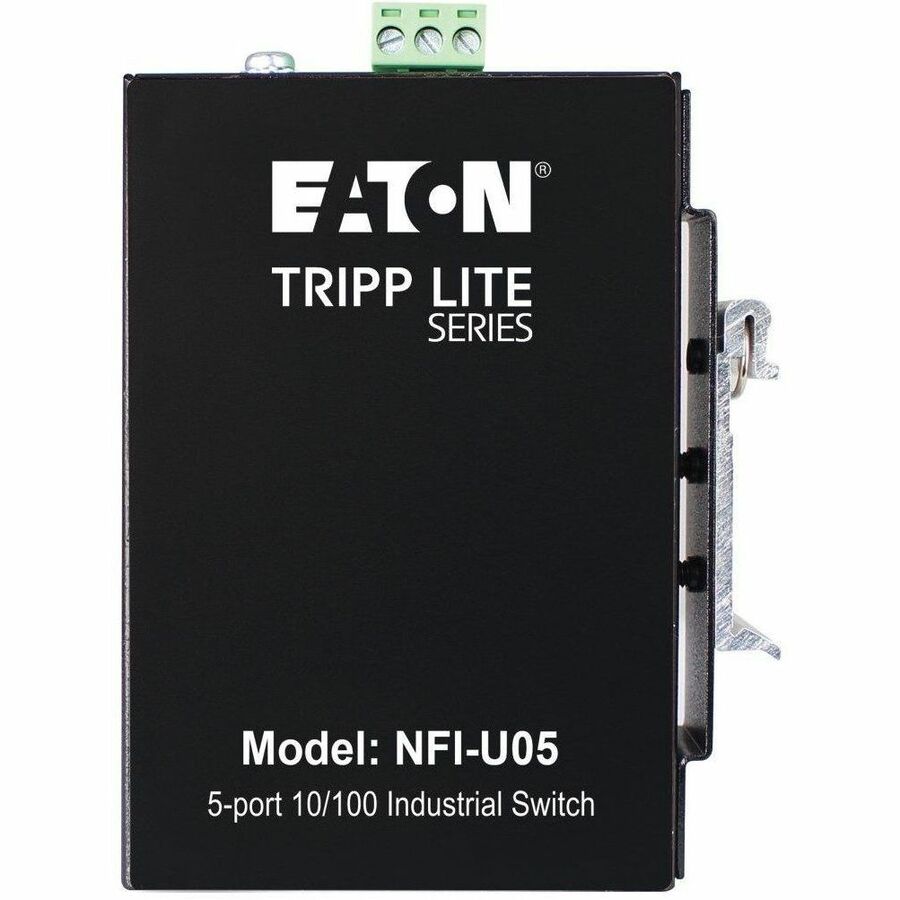

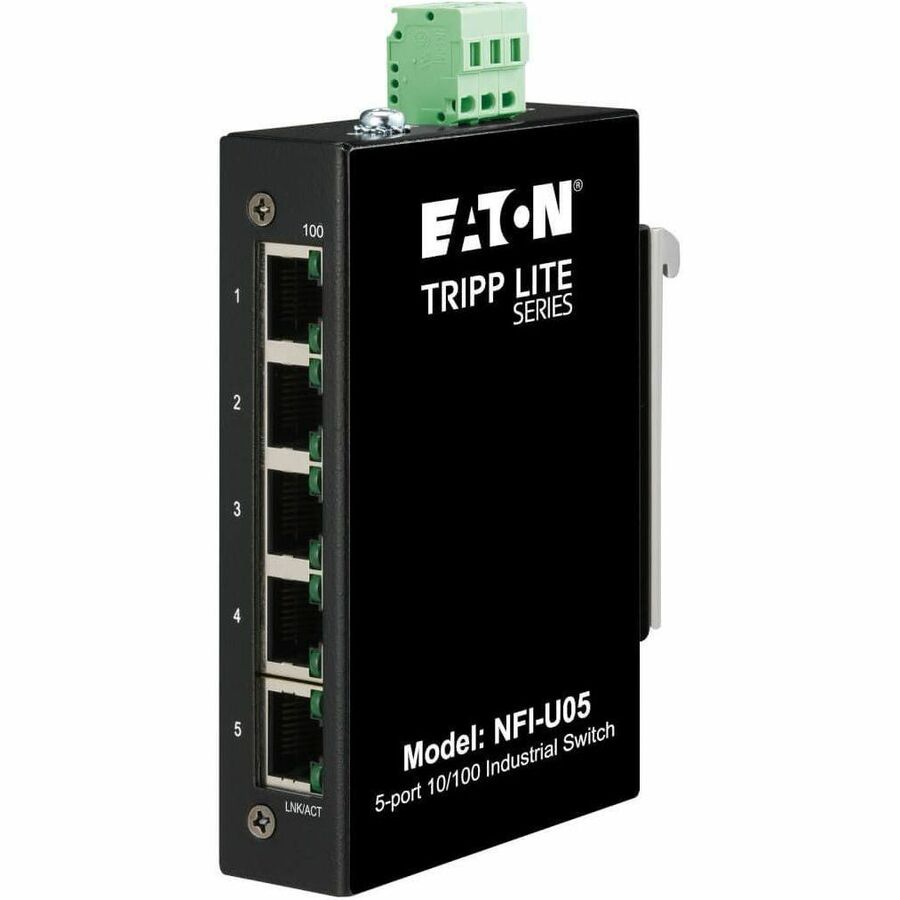

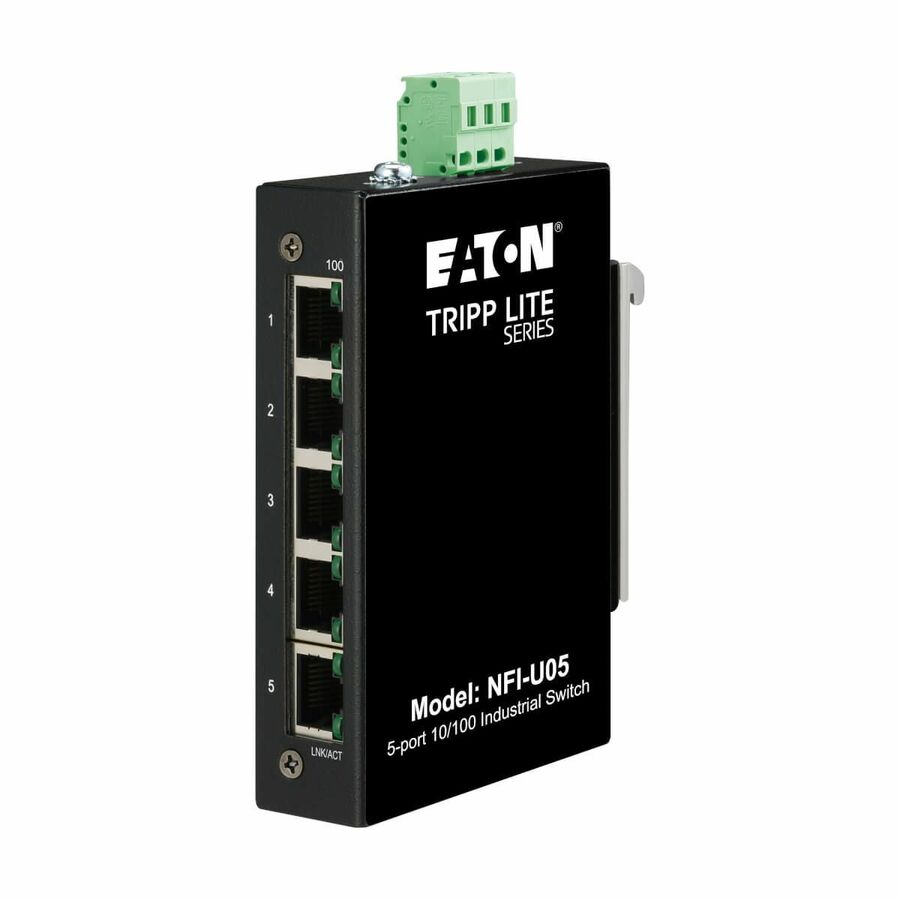

Eaton Tripp Lite Series 5-Port Unmanaged Industrial Ethernet Switch - 10/100 Mbps, Ruggedized, -40° to 75°C, DIN/Wall Mount, TAA
5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 3 W Power Consumption - Twisted Pair - DIN Rail Mountable, Wall Mountable - 3 Year Limited Warranty
- SKU
- NFI-U05
- Category
- Switches & Bridges
MSRP$158.62
$103.45
Save 35%In stock: 199
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- NFI-U05
- Category
- Switches & Bridges
Overview
Industrial-grade switch expands Ethernet connectivity to factory floors and other environments with space constraints and wide temperature ranges.
Features | 5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite switch transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Unmanaged Switch Requires Little to No Configuration

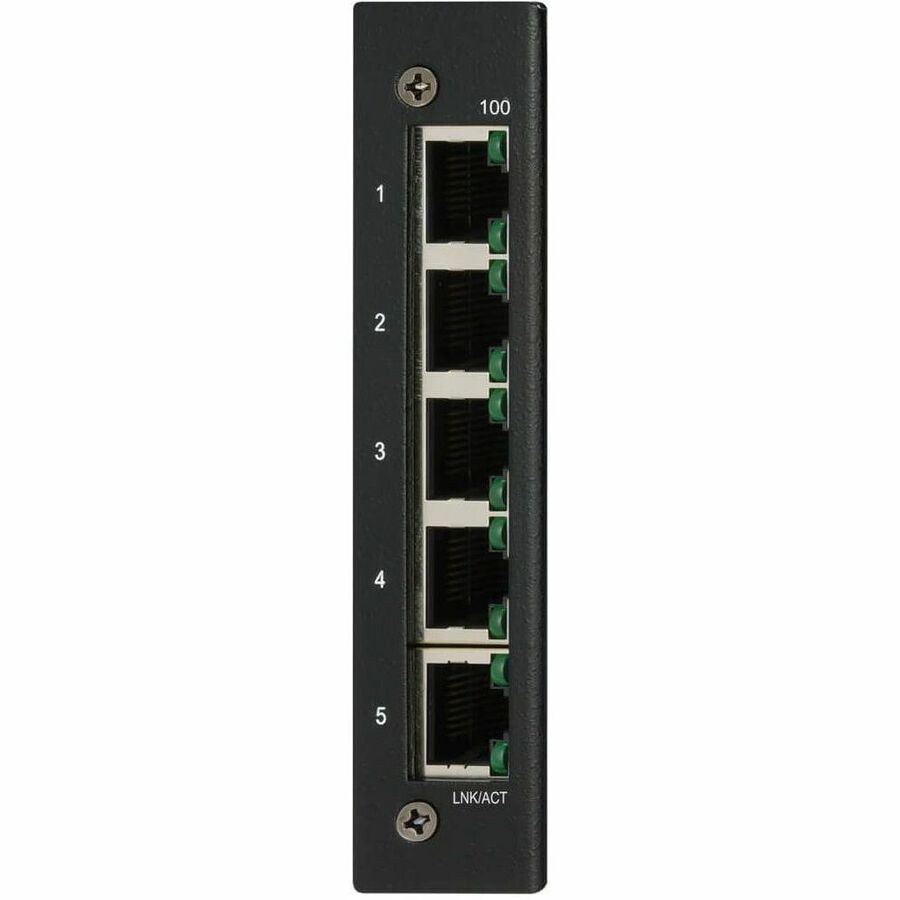

Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address autolearning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plugand-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Flexible Mounting Options

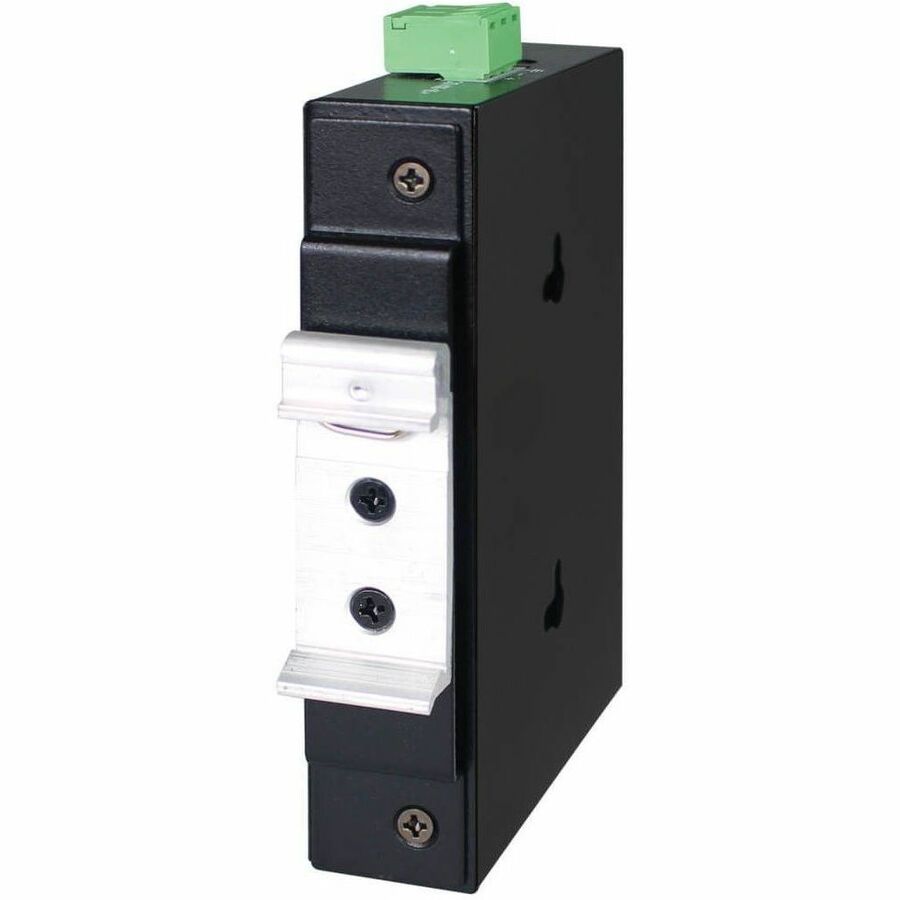

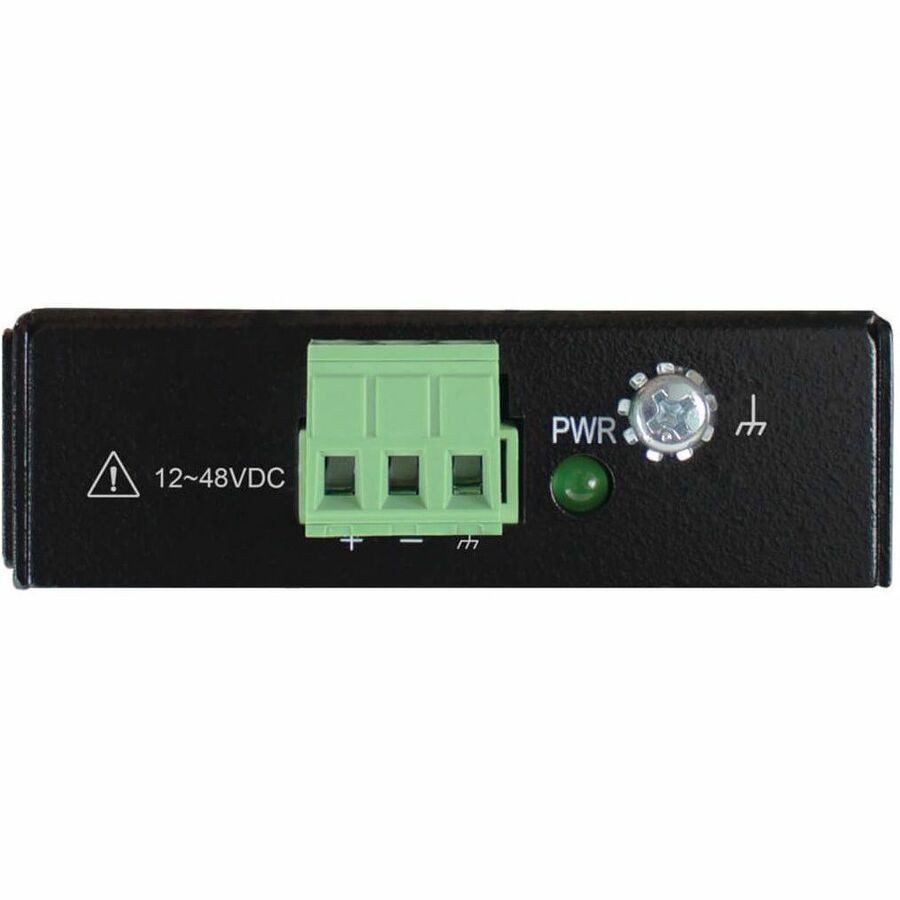

The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12-48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.
TAA-Compliant for GSA Schedule Purchases
The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- 5 auto-negotiable 10/100 Mbps RJ45 ports connect devices over a LAN
- Industrial-grade switch supports operating temperature range of - 40° to 167°F
- Easy-to-read LEDs indicate connection and activity status for all 5 Ethernet ports
- Plug-and-play operation with no software or configuration required before use
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Manufacturer Part Number | NFI-U05 |
| Limited Warranty | 3 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 6.70 oz |
| Form Factor | DIN Rail Mountable, Wall Mountable |
| Manufacturer | Eaton Corporation |
| Product Model | NFI-U05 |
| Product Name | NFI-U05 Ethernet Switch |
| Network Technology | 10/100Base-T |
| Power Consumption | 3 W |
| Brand Name | Tripp Lite series |
| Country of Origin | Taiwan |
| Height | 4.3" |
| Width | 0.9" |
| Depth | 2.9" |
| Manageable | No |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| TAA Compliant | Yes |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Product Material | Aluminum |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
