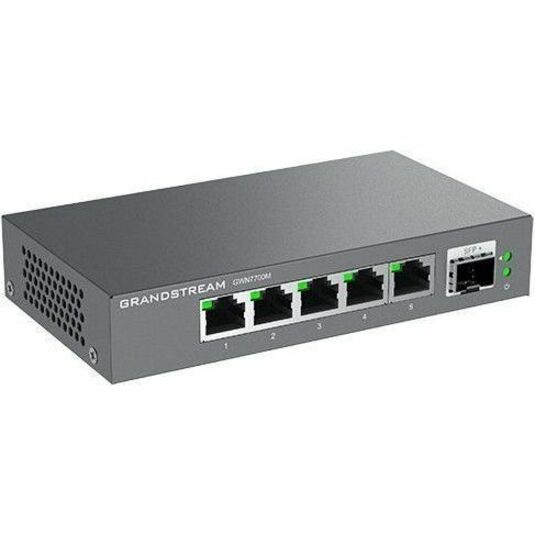

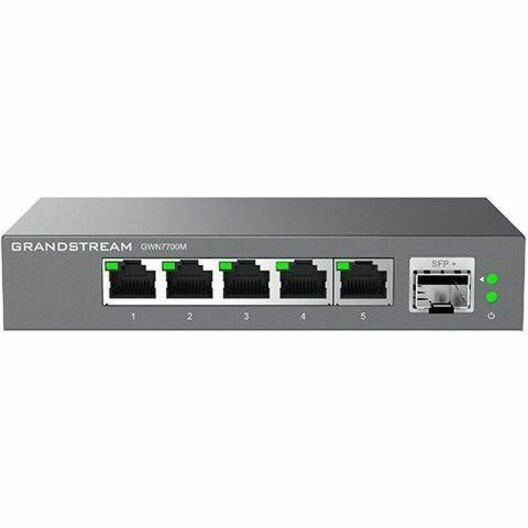

Grandstream GWN7700 Ethernet Switch
5 Ports - Gigabit Ethernet, 2.5 Gigabit Ethernet - 100/1000Base-T, 2.5GBase-T, 1000Base-X - 2 Layer Supported - 7 W Power Consumption - Twisted Pair, Optical Fiber - Wall Mountable, Desktop
- SKU
- GWN7700M
- Category
- Switches & Bridges
MSRP$50.00
$46.42
Save 7%Back ordered — ships when restocked.
Genuine Grandstream Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GWN7700M
- Category
- Switches & Bridges
Overview
GWN7700M Series
Unmanaged 2.5G Multi-Gigabit Network Switches
The GWN7700M series are 6 & 9 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses
• 5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
• One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
• LED Indicators; Per port: Link/Activity/Speed Per device: Power
• Auto MDI/MDIX crossover for all ports
• Whisper Quiet: fanless
• Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Green technology reduces power consumption
• QoS - Supports Default Strict Priority when present
Unmanaged Network Switches
The GWN7700M Series are 6 and 9 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity
through 5 or 8 built-in 2.5 Gbps ports.
Plug and Play
These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.
Highlights
- Effectively reduces downtime with improved network performance
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 5 networking ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Wall Mountable form factor for your convenience and simplicity of usage
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Specifications
| Product Type | Ethernet Switch |
|---|---|
| Input Voltage | 12 V DC |
| Manufacturer Part Number | GWN7700M |
| Power Source | Power Adapter |
| Layer Supported | 2 |
| Features | Fanless, Plug and Play, Energy Efficient |
| Form Factor | Wall Mountable, Desktop |
| Length | 5.7" |
| Manufacturer | Grandstream Networks, Inc |
| Product Name | GWN7700 Ethernet Switch |
| Network Technology | 100/1000Base-T, 2.5GBase-T, 1000Base-X |
| Power Consumption | 7 W |
| Product Series | GWN7700 |
| Brand Name | Grandstream |
| Expansion Slot Type | SFP+ |
| Height | 1.1" |
| Width | 3.1" |
| Manageable | No |
| Maximum Data Transfer Rate | 320 MB/s |
| Ethernet Technology | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP+ Slots | 1 |
| Uplink Port | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 5 × 100/1000/2500 Gigabit Ethernet RJ-45 Network Port, 1 × Gigabit Ethernet SFP+ Expansion Slot |
| Total Number of Expansion Slots | 1 |
| Networking Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq |
| Product Material | Plastic |
