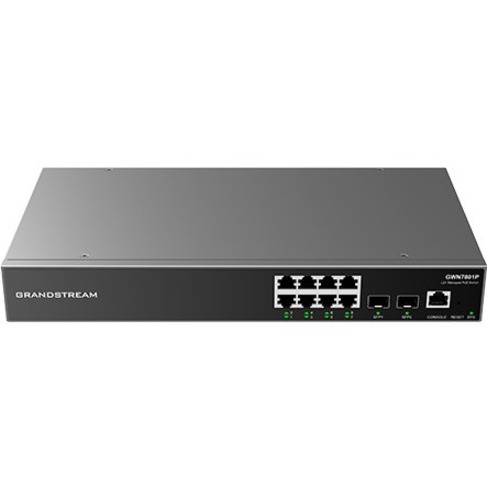

Grandstream Enterprise Layer 2+ Managed Network Switch
8 Ports - Manageable - Gigabit Ethernet - 1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 30 W Power Consumption - Twisted Pair, Optical Fiber - Desktop, Wall Mountable, Compact
- SKU
- GWN7801
- Category
- Switches & Bridges
MSRP$100.00
$84.60
Save 15%Back ordered — ships when restocked.
Genuine Grandstream Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GWN7801
- Category
- Switches & Bridges
Overview

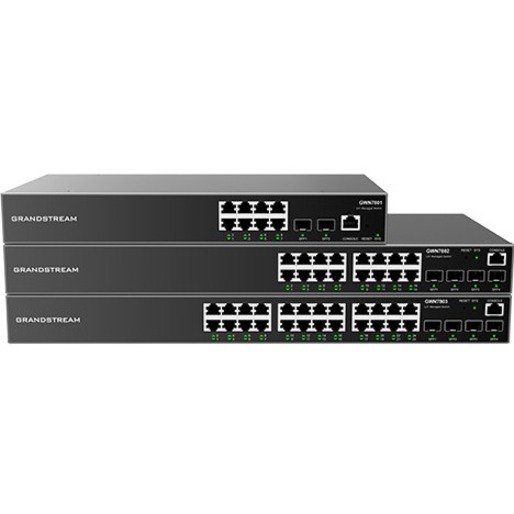

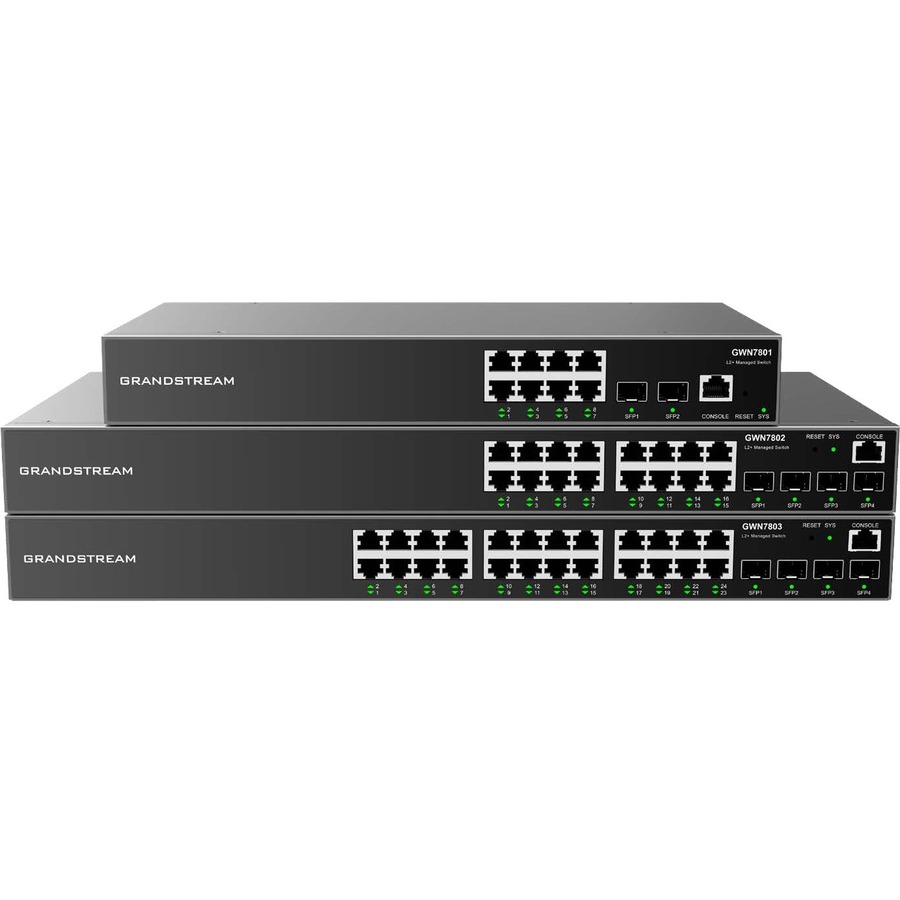

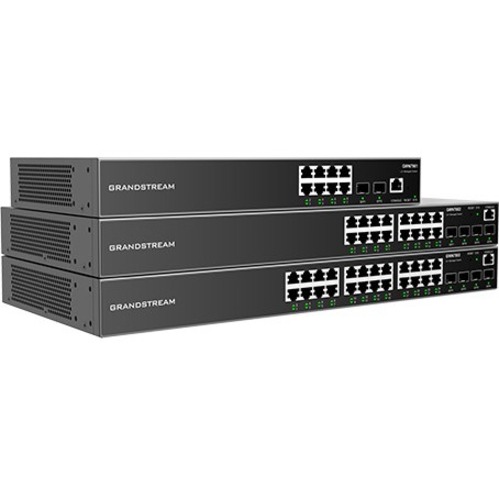

GWN7801(P) - GWN7802(P) - GWN7803(P)
The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local web user interface of the GWN7800 series switch. The series is also supported by GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform. The enterprise-grade GWN7800 series are the ideal managed network switches for small-to- medium businesses.
• 8/16/24 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform
• Built-in QoS allows for prioritization of network traffic
Highlights
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Desktop form factor allows hassle-free and easy usage with increased efficiency
- Management capability allows maximum efficiency and with unrestricted control
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Manufacturer Part Number | GWN7801 |
| Power Source | Power Supply |
| Layer Supported | 2 |
| Weight (Approximate) | 3.97 lb |
| Form Factor | Desktop, Wall Mountable, Compact |
| Length | 1.2" |
| Manufacturer | Grandstream Networks, Inc |
| Product Model | GWN7801 |
| Product Name | Enterprise Layer 2+ Managed Network Switch |
| Network Technology | 1000Base-T, 1000Base-X |
| Power Consumption | 30 W |
| Product Series | GWN7800 |
| Brand Name | Grandstream |
| Expansion Slot Type | SFP (mini-GBIC) |
| Height | 1.7" |
| Width | 6.9" |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 2 |
| Modular | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot |
| Total Number of Expansion Slots | 2.0 |
| Networking Standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D, IEEE 802.1s |
