Grandstream GWN7701P Ethernet Switch
5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 2 W Power Consumption - 60 W PoE Budget - Twisted Pair - PoE Ports - Desktop, Wall Mountable
- SKU
- GWN7701P
- Category
- Switches & Bridges
MSRP$49.00
$45.30
Save 8%Back ordered — ships when restocked.
Genuine Grandstream Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GWN7701P
- Category
- Switches & Bridges
Overview

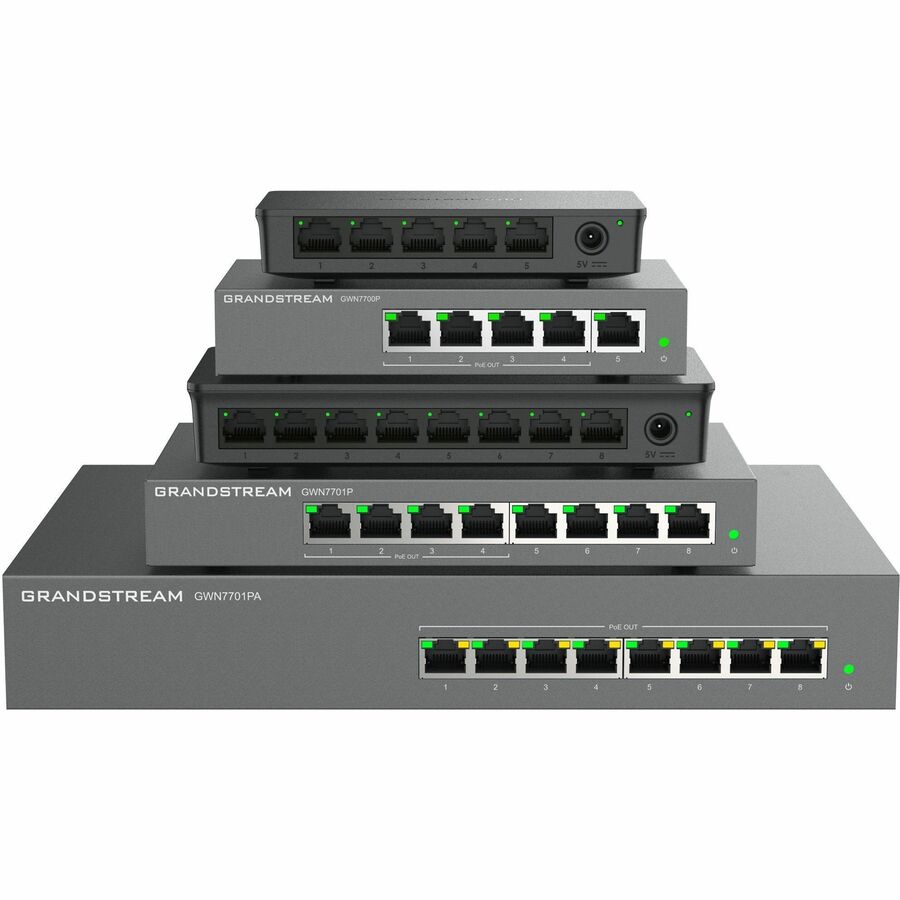

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.

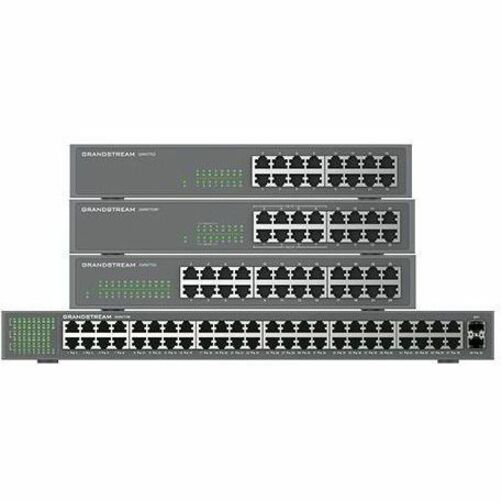

• 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
• Green technology reduces power consumption
• LED Indicators; Per port: Link/Activity Per device: Power
• Auto MDI/MDIX crossover for all ports
• 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/ GWN7701PA/GWN7702P only)
• Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Supports long cable connection
• QoS - Supports Default Strict Priority when present
Highlights
- Effectively increases available bandwidth on your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | 48 V DC, 53.5 V DC |
| Manufacturer Part Number | GWN7701P |
| Packaged Quantity | 1 |
| Power Source | Power Adapter |
| Layer Supported | 2 |
| Weight (Approximate) | 9.17 oz |
| Form Factor | Desktop, Wall Mountable |
| Length | 5.7" |
| Manufacturer | Grandstream Networks, Inc |
| Product Model | GWN7701P |
| Product Name | GWN7701P Ethernet Switch |
| Network Technology | 10/100/1000Base-T |
| Power Consumption | 2 W |
| Product Series | GWN7700 |
| Brand Name | Grandstream |
| Height | 1.1" |
| Width | 3.1" |
| Manageable | No |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 5 |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE, 1 x Gigabit Ethernet Network |
| PoE Budget | 60 W |
| Networking Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Product Material | Metal |
