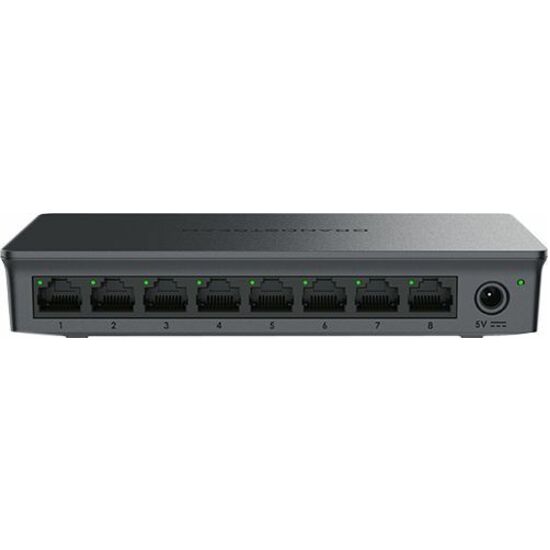

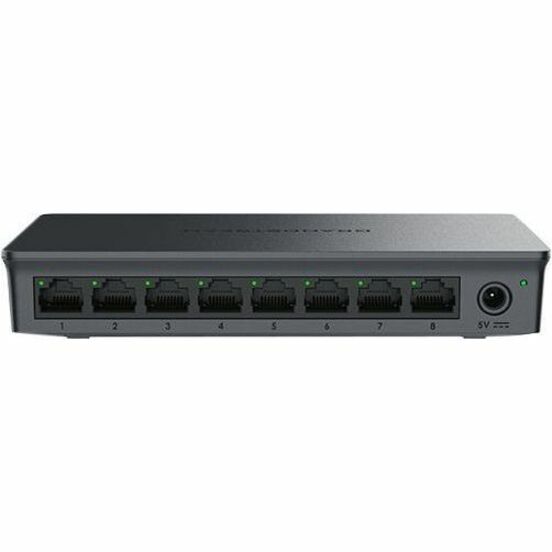

8 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2.70 W Power Consumption - Twisted Pair - Desktop, Wall Mountable
SKU
Category
Switches & Bridges
$25.51
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Sep 29 and Nov 3, then process your delivery right after.
Genuine Grandstream Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Category
Switches & Bridges
Overview
The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add highspeed
Gigabit connectivity to home offices and small-to-medium sized businesses.
• 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
• Green technology reduces power consumption
• LED Indicators; Per port: Link/Activity/Speed, Per Port: PoE output (GWN7701PA/GWN7702P), Per device: Power
• Auto MDI/MDIX crossover for all ports
• 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/
• GWN7701PA/GWN7702P only)
• Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Supports long cable connection
• QoS - Supports Default Strict Priority when present
Unmanaged Network Switches
The GWN7700 series are unmanaged network switches that provide a quick and cost- effective way to add highspeed Gigabit connectivity to home offices and small-to-medium sized businesses.
The Ideal Model for Every Need
Nine model options allow users to choose from 5, 8, 16, 24, or 48 Gigabit ports and 4 or 8 port PoE+ output (on PoE capable models).
Plug and Play
These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.
Highlights
Ethernet Switch provides reliable, efficient connectivity to ensure maximum feasibility
Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
Desktop form factor allows hassle-free and easy usage with increased efficiency
The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
Gigabit Ethernet port for ultra-fast network speeds
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
General Information
Manufacturer
Grandstream Networks, Inc
Manufacturer Part Number
GWN7701
Brand Name
Grandstream
Product Series
GWN7700
Product Model
GWN7701
Product Name
GWN7701 Ethernet Switch
Packaged Quantity
1
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
8
Network (RJ-45)
Yes
Port/Expansion Slot Details
8 × 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
