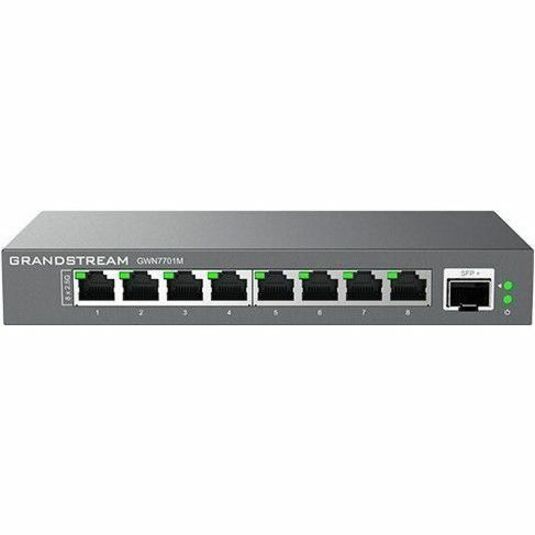

Grandstream GWN7700M GWN7701M Ethernet Switch
8 Ports - Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 100/1000Base-T, 10GBase-X, 2.5GBase-T - 2 Layer Supported - 9.70 W Power Consumption - Twisted Pair - Desktop, Wall Mountable
- SKU
- GWN7701M
- Category
- Switches & Bridges
MSRP$75.00
$65.64
Save 12%Back ordered — ships when restocked.
Genuine Grandstream Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GWN7701M
- Category
- Switches & Bridges
Overview
Unmanaged 2.5G Multi-Gigabit Network Switches
The GWN7700M series are 5 & 8 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses
• 3 Models - GWN7700M, GWN7700MP, and GWN7701M
• 5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
• One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
• LED Indicators; Per port: Link/Activity/Speed Per device: Power
• Auto MDI/MDIX crossover for all ports
• Whisper Quiet: fanless
• Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Green technology reduces power consumption
• QoS - Supports Default Strict Priority when present
Unmanaged Network Switches
The GWN7700M Series are 6 and 9 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity through 5 or 8 built-in 2.5 Gbps ports.
Plug and Play
These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.
GDMS Networking
GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.
GWN Manager
GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.
Embedded Controller
Grandstream's GWN networking products include an embedded controller software and is built-in to the product's web user interface.
Highlights
- Effectively increases available bandwidth on your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The desktop installation makes it ideal for deployments outside the wiring closet
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | 12 V DC |
| Manufacturer Part Number | GWN7701M |
| Packaged Quantity | 1 |
| Power Source | Power Adapter, DC |
| Layer Supported | 2 |
| Weight (Approximate) | 1.15 lb |
| Features | Plug and Play, Fanless, Energy Efficient |
| Form Factor | Desktop, Wall Mountable |
| Length | 7.5" |
| Manufacturer | Grandstream Networks, Inc |
| Product Model | GWN7701M |
| Product Name | GWN7700M GWN7701M Ethernet Switch |
| Network Technology | 100/1000Base-T, 10GBase-X, 2.5GBase-T |
| Power Consumption | 9.70 W |
| Product Series | GWN7700M |
| Brand Name | Grandstream |
| Expansion Slot Type | SFP+ |
| Height | 1.1" |
| Width | 3.9" |
| Manageable | No |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Ethernet Technology | Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP+ Slots | 1 |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 × 10/1000/2500BASE-T Gigabit Ethernet RJ-45 Network Port, 1 × 10 Gigabit Ethernet SFP+ Expansion Slot |
| Total Number of Expansion Slots | 1 |
| Networking Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az |
| Product Material | Metal |
