8 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Power Adapter - 71 W Power Consumption - 65 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable, Compact - Lifetime Limited Warranty
$87.91
In stock: 1
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG83, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch provides eight gigabit PoE+ ports with a total PoE power budget of 65W. The TPE-TG83 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.
• DEVICE INTERFACE: 8 x Gigabit PoE+ ports; LED indicators
• LIFETIME PROTECTION -We stand by the quality of our products. The TPE-TG83 8-Port Gigabit PoE+ Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• POE+ POWER BUDGET & SWITCH CAPACITY: 65 W PoE power budget supports up to eight power over Ethernet devices and the 8-port gigabit PoE+ network switch provides 16Gbps switching capacity to support edge network installations
• COMPACT FANLESS DESIGN: With a compact and lightweight rugged metal housing design, this desktop switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation
• DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit: 2000 Mbps (full duplex)
• OPERATING TEMPERATURE: This 8-port gigabit PoE+ network switch is rated with an operating temperature range of OPERATING TEMPERATURE: This 8-port gigabit PoE+ network switch is rated with an operating temperature range of 0° - 40° C (32° - 104° F)
• IEEE and DSCP: IEEE 802.1p QoS and DSCP pass-through support
More from the Manufacturer
OVERVIEW
TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG83, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch provides eight gigabit PoE+ ports with a total PoE power budget of 65W. The TPE-TG83 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.
PoE+
A 65W PoE power budget supports up to eight Power over Ethernet devices.
Gigabit Ports
Eight gigabit PoE+ ports provide a 16Gbps
switching capacity to support edge network
installations.
Compact Design
Compact, lightweight, and fanless, this switch
is designed for desktops and quiet
environments.
PoE+
Supplies up to 30 watts of PoE power per port with a 65W power budget
Gigabit Ports
8 x Gigabit PoE+ Ethernet ports
Compact Design
With a compact and lightweight metal housing design, this switch is well-suited for desktop installations
Switching Capacity
16Gbps switching capacity
Jumbo Frame
Sends Jumbo Frames (up to 9KB) for increased performance
Fanless
Fanless design is ideal for quiet environments that require silent operation
LED Indicators
LED indicators convey port status
Cost Effective PoE Switches
TRENDnet offers a wide variety of PoE switches including PoE, PoE+ and 802.3bt supported switches. TRENDnet also offers a variety of specialty PoE switches including long range PoE switches that reach up to 200m away, smart surveillance switches, and industrial switches.
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3p
IEEE 802.3af
IEEE 802.3at
Device Interface
8 x Gigabit PoE+ ports
LED indicators
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
Performance
Switch Fabric: 16Gbps
RAM Buffer: 192KB
MAC Address Table: 4K entries
Jumbo Frames: 9KB
Forwarding rate: 11.9Mpps (64-byte packet size)
Special Features
802.1p Class of Service (CoS)

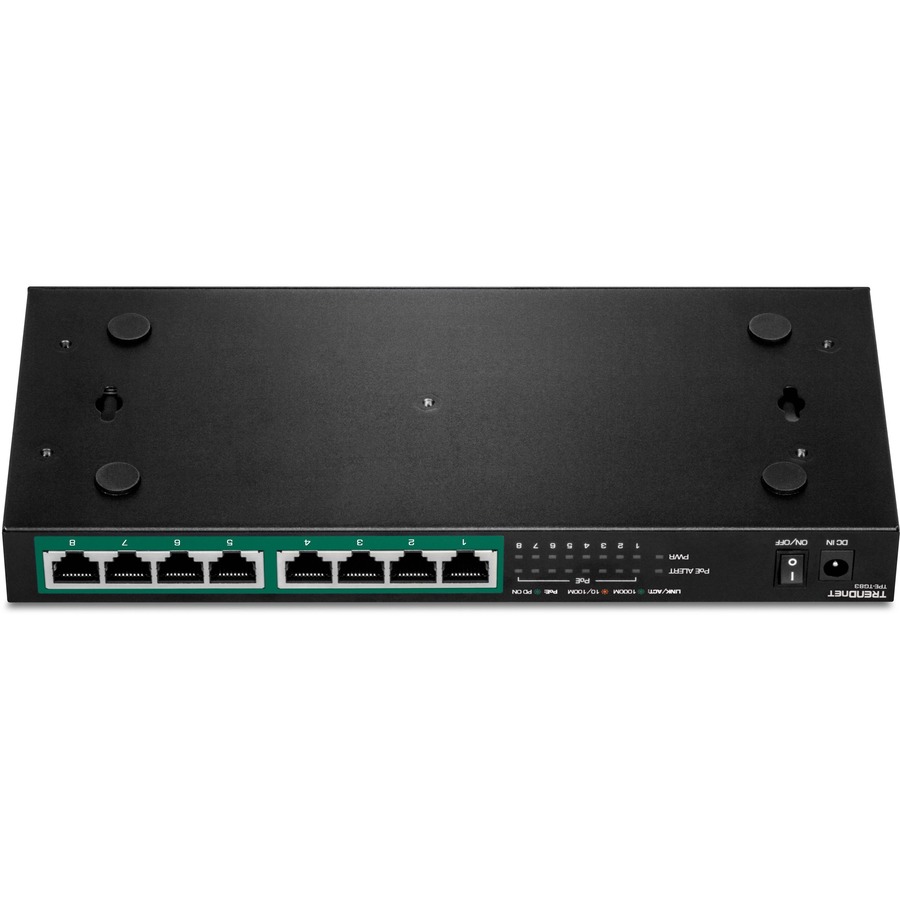

Wall mountable
Power
Input: 100 – 240 V AC, 50/60Hz, 2.5A
Output: 55V DC, 1.3A external power adapter
Max. consumption: 71W
PoE
PoE budget: 65W
PoE Mode A: Pins 1,2 for power and pins 3,6 for power
Operating Temperature
0° – 40° C (32° – 104° F)
Operating Humidity
Max. 90% non-condensing
Dimensions
240 x 105 x 27mm (9.45 x 4.13 x 1.1 in.)
Weight
580g (20.45 oz.)
Certifications
CE
FCC
LVD
Warranty
Lifetime Warranty

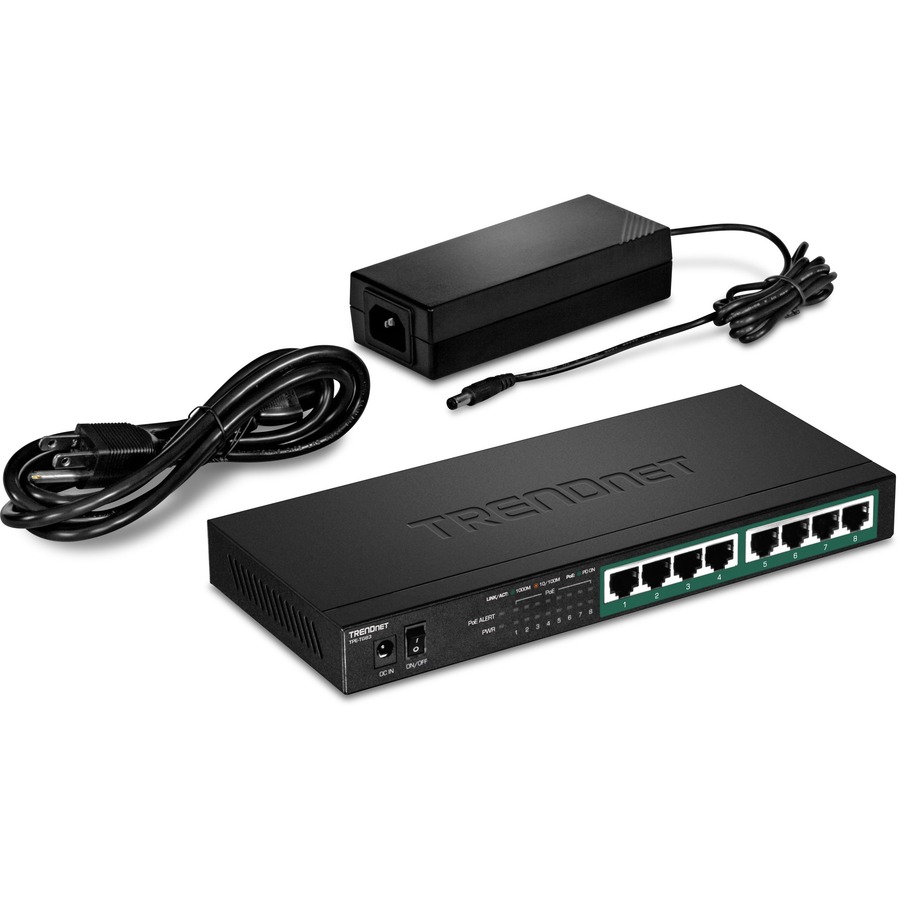

PACKAGE CONTENTS
TPE-TG83
Quick Installation Guide
Power adapter (55V DC, 1.3A)
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPE-TG83 |
| Brand Name | TRENDnet |
| Product Model | TPE-TG83 |
| Product Name | 8-Port Gigabit PoE+ Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p, IEEE 802.3af, IEEE 802.3at |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Wall Mountable, Compact |
| Height | 1.1" |
| Width | 9.4" |
| Depth | 4.1" |
| Weight (Approximate) | 1.28 lb |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 65 W |
| Power Source | Power Adapter |
| Power Consumption | 71 W |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
