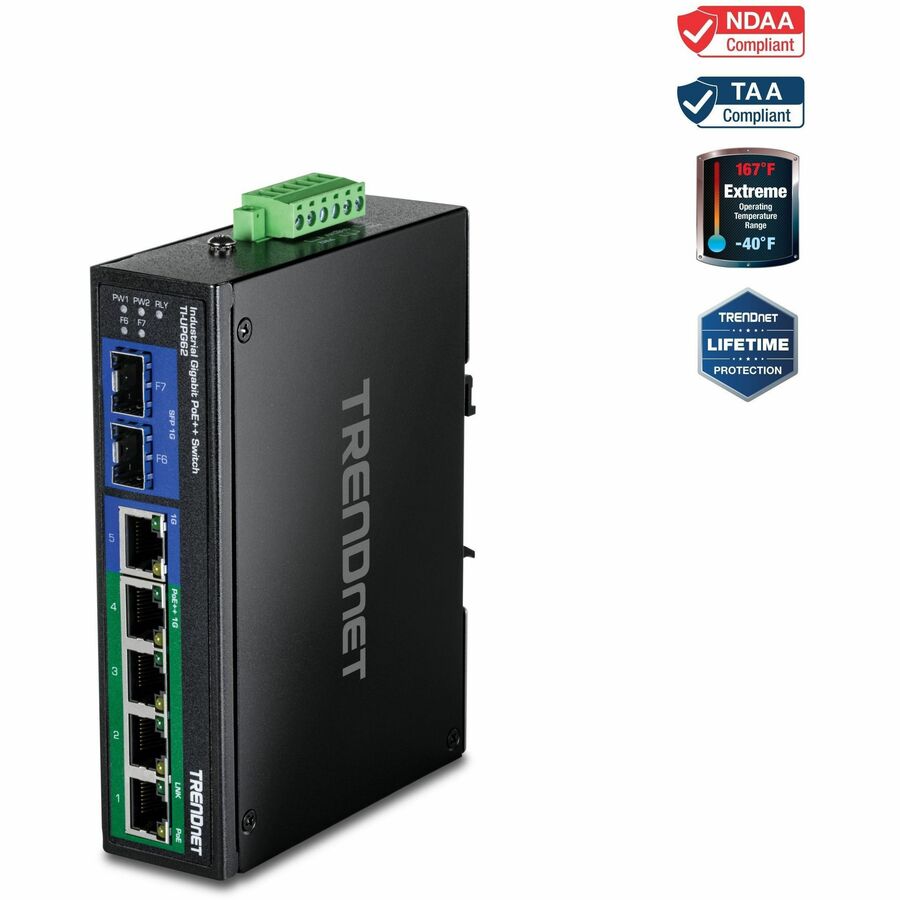

TRENDnet 7-Port Industrial Gigabit PoE++ DIN-Rail Switch, TI-UPG62…

TRENDnet's 7-Port Industrial Gigabit PoE++ DIN-Rail Switch, model TI-UPG62, features a rugged IP50 rated metal enclosure for industrial environments. This industrial unmanaged PoE++ switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures within -40° - 75° C (-40° - 167° F). Redundant power inputs with power failure alarm relay and overload current protection minimize network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ Switch by delivering up to 95W** per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE++ switch. Utilize TRENDnet's industrial PoE++ switch to easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

• DEVICE INTERFACE: 4 x Gigabit PoE++ Ports; 1x Gigabit Share Port; 2 x Gigabit SFP Ports; 6-pin Removable Terminal Block; 240W Power Budget

• LIFETIME PROTECTION -We stand by the quality of our products. The TI-UPG62 6-Port Hardened Industrial Gigabit PoE++ DIN Rail Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.

• POE++ POWER: Maximum 240W PoE++ power budget supplies power with up to 95W per port.

• FAULT TOLERANCE: Redundant power inputs with overload current protection (Power supplies sold separately, model TIS24048,TI-S48048)

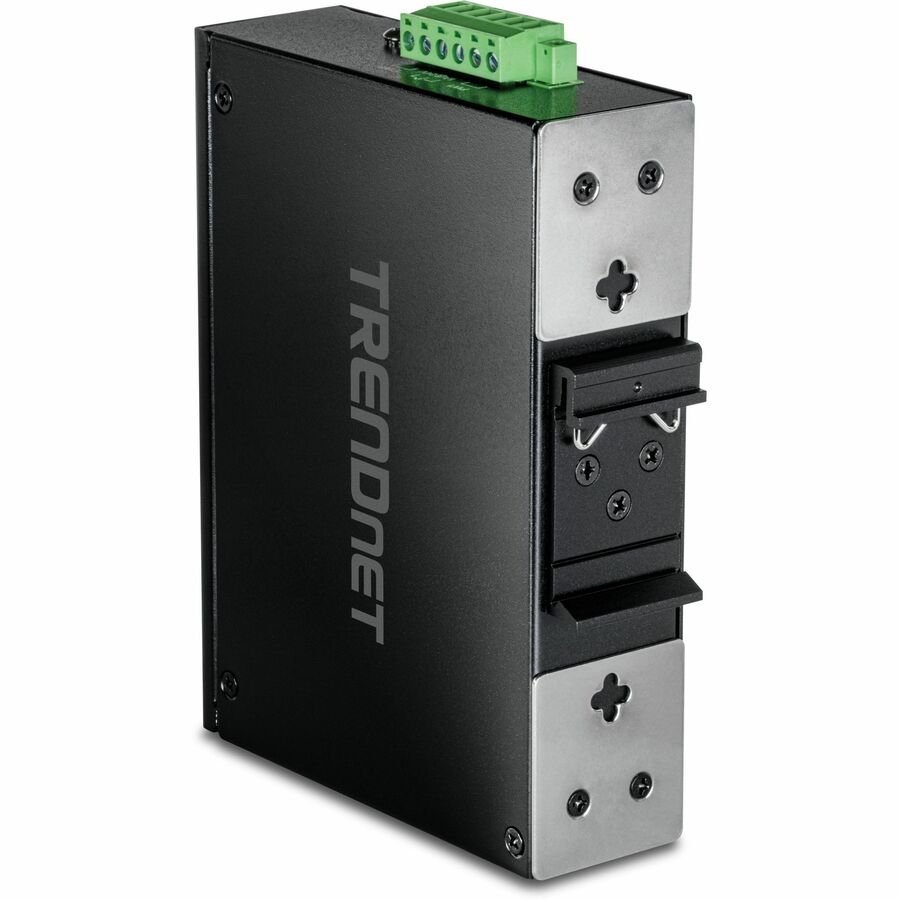

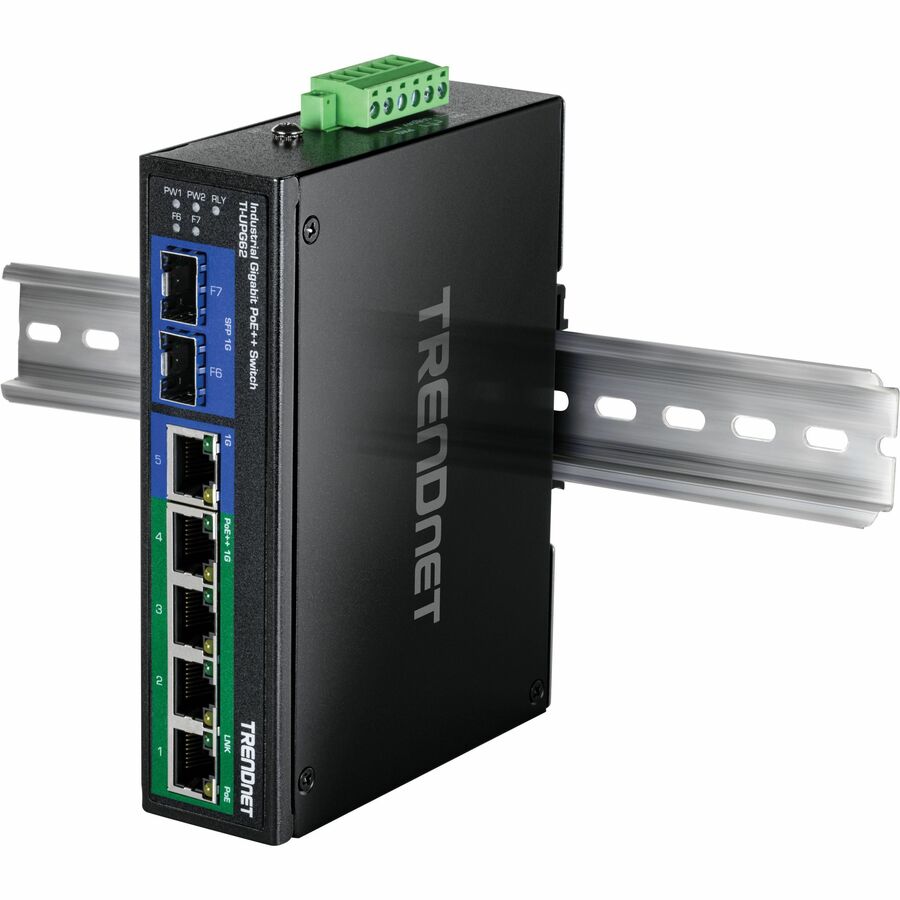

• DIN-RAIL / WALL MOUNTS: IP50 rated metal enclosure with included DIN-rail and wall mount hardware

• RATED FOR EXTREME ENVIRONMENTS: Rugged IP50 rated enclosure designed to withstand a high degree of vibration, shock,and operate within a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments

• SWITCHING CAPACITY: 14Gbps switching capacity

• SHOCK AND VIBRATION RESISTANT Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)

• ELECTRO MAGNETIC COMPLIANCE: Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air:

8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

More from the Manufacturer

OVERVIEW

TRENDnet’s 7-Port Industrial Gigabit PoE++ DIN-Rail Switch, model TI-UPG62, features a rugged IP50 rated metal enclosure for industrial environments. This industrial unmanaged PoE++ switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures within -40° – 75° C (-40° – 167° F). Redundant power inputs with power failure alarm relay and overload current protection minimize network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE++ Switch by delivering up to 95W** per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE++ switch. Utilize TRENDnet's industrial PoE++ switch to easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

PoE++ Power

Maximum 240W PoE++ power budget supplies power with up to 95W per port.

Fault Tolerance

Features redundant power inputs from external power sources, and an output alarm relay to indicate an input power failure.

Industrial Hardened Design

Rugged IP50 rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).

Features

PoE++ Power

Up to 95W of power per port and data over a single Ethernet cable to PoE devices with a maximum 240W PoE budget

Network Ports

Four gigabit PoE++ ports, one gigabit port, and two gigabit SFP ports

Easy Installation

No configuration needed, simply connect PoE++ network devices to the industrial unmanaged PoE++ switch

IP50 Rated

This industrial switch is IP50 rated for ingress dust protection

Fault Tolerance

Features redundant power inputs from external power sources, and an output alarm relay to indicate an input power failure – power supply sold separately (model: TI-S24048, TI-S48048)

Extreme Temperature Range

An extreme operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with intense hot or cold conditions

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3z

IEEE 802.3x

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bt

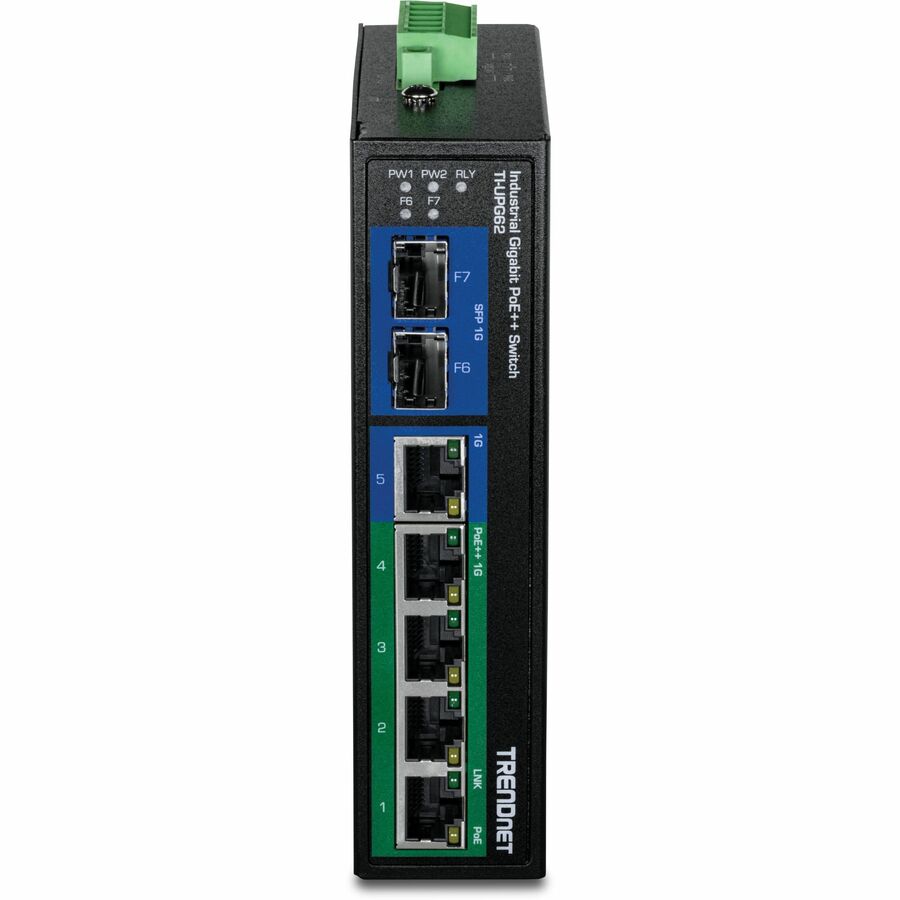

Device Interface

4 x Gigabit PoE++ ports (10/100/1000Mbps)

1 x Gigabit port (10/100/1000Mbps)

2 x Gigabit SFP ports (1000Mbps)

6-pin removable terminal block

LED indicators

Performance

Data RAM Buffer: 256KB

Switching Fabric: 14Gbps

MAC Address Table: 4K entries

Jumbo Frame: 9KB

Forwarding rate: 10.416Mpps (64-byte packet size)

DC Power

Input: 52 - 56V DC

Compatible power supply: TI-S24048 (sold separately)

Max. consumption: 4.48W @ 56V DC (no PD)

PoE

802.3af PoE: up to 15.4W per port

802.3at PoE+: up to 30W per port

802.3bt PoE++: up to 95W per port

Power budget: 240W

Pins 1, 2, 7, 8 for power - and 3, 6, 4 5 for power +

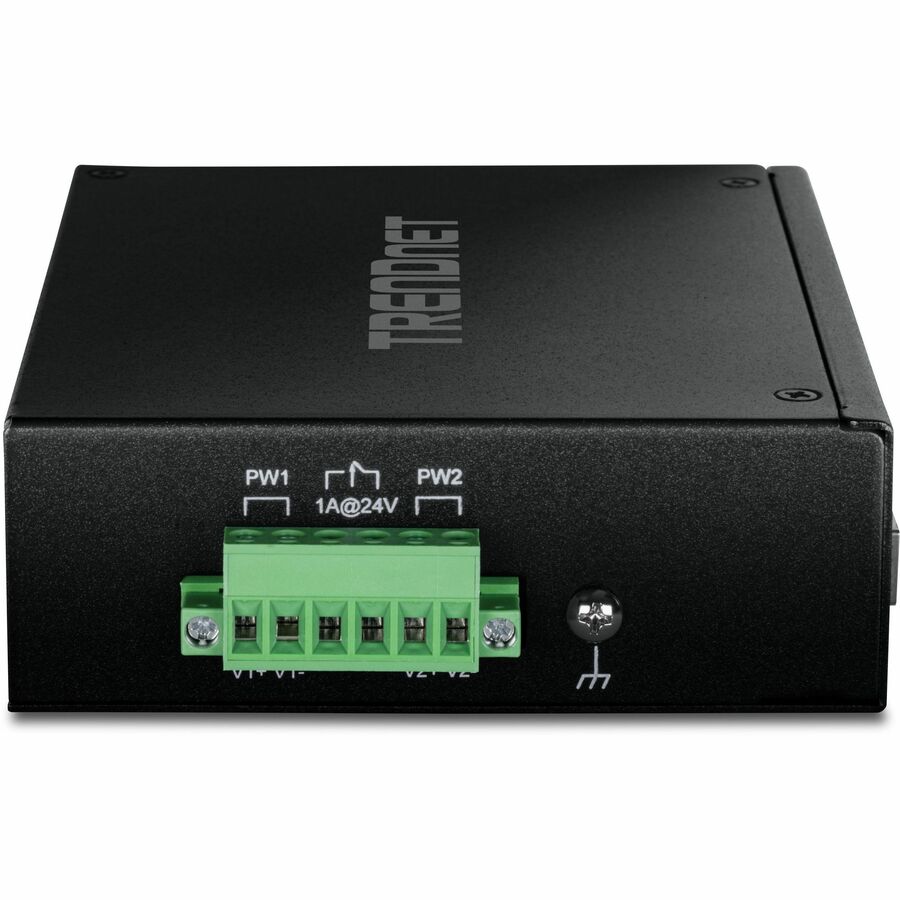

Terminal Block

6-pin terminal block

Alarm Relay: 1A @ 24V DC

Wire range: 2.5mm2

Solid wire (AWG): 12-24

Stranded wire (AWG): 12-24

Torque: 5 lb. – In / 0.5Nm (North America) / 0.56 Nm (EU)

Wire strip length: 7-8mm

MTBF

1,285,091 hours @ 25°C

Housing

IP50 metal case

DIN-Rail mount

Wall mount

Grounding point

6KV ESD protection

2kV Surge protection

Operating Temperature

- 40° – 75° C (-40 – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

142 x 105 x 36.2mm (5.6 x 4.13 x 1.42 in.)

Weight

300g (10.6 oz.)

Certifications

CE

FCC

LVD

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-UPG62

Removable terminal block

DIN-Rail and wall mount kit

** 56V power input is required for 95W PoE++ output per port

TRENDnet offers a lifetime warranty for all of its metal-enclosed network switches that have been purchased in the United States/Canada on or after 1/1/2015. Cooling fan and internal power supply carry a one-year warranty.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
