TRENDnet 8-Port Hardened Industrial Unmanaged Gigabit 10/100/1000Mbps…

TRENDnet's 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG80B, is an industrial variable voltage switch with eight gigabit PoE+ ports and a 200W PoE power budget. Users are able to connect eight PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Dual 24 - 56V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay.

• DEVICE INTERFACE: 8 x Gigabit PoE+ ports;PoE power budget 120W@24V - 200W@48V

• LIFETIME PROTECTION -We stand by the quality of our products. The TI-PG80B 8-Port Industrial Gigabit PoE+ DIN-Rail Switch with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• REDUNDANT POWER: Dual 24V - 56V DC power inputs with overload current protection (compatible power supplies for this industrial variable voltage PoE+ switch sold separately, models: TI-S15052, TI-S24052, TI-S12024, TI-S24048)

• SWITCHING CAPACITY: 16Gbps switching capacity

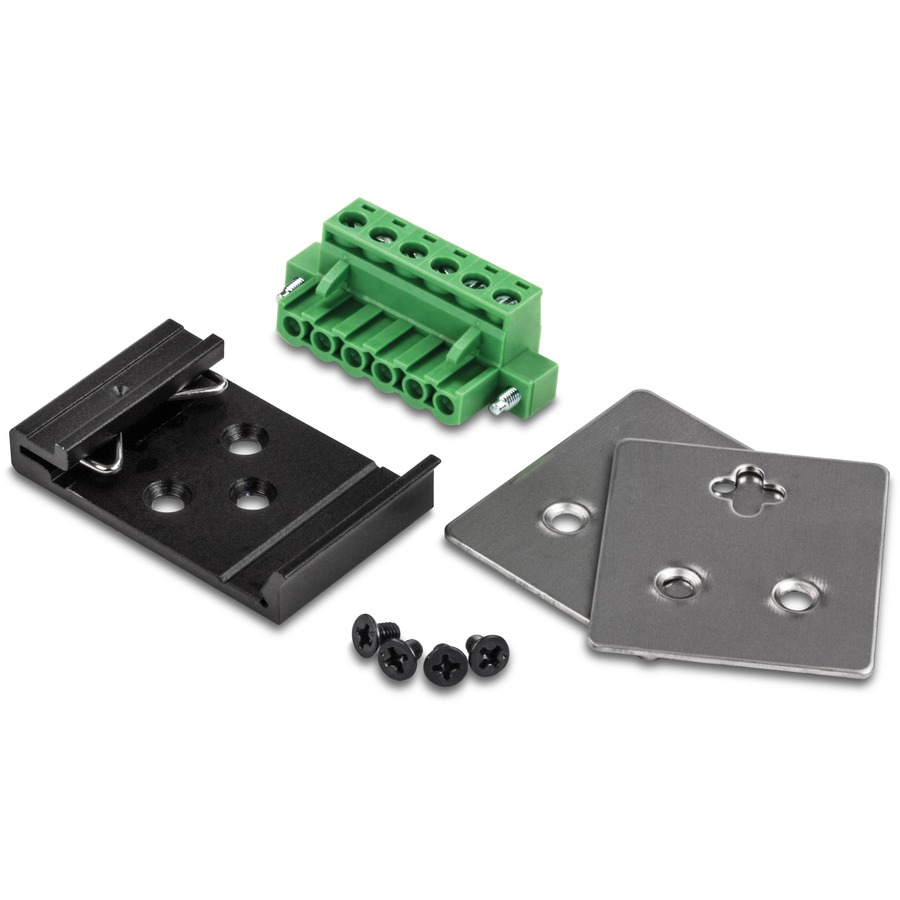

• DIN-RAIL/WALL MOUNTS: IP30 rated metal enclosure with DIN-Rail and wall mount hardware included

• WIDE OPERATING TEMPERATURE: Industrial variable voltage switch rated for an operating temperature range of -40° - 75° C (-40° - 167° F)

• SHOCK AND VIBRATION RESISTANT: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

• JUMBO FRAME: Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance on the variable voltage switch

More from the Manufacturer

OVERVIEW

TRENDnet's 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG80B, is an industrial variable voltage switch with eight gigabit PoE+ ports and a 200W PoE power budget. Users are able to connect eight PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 24 – 56V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay.

Fault Tolerance

The industrial variable voltage PoE switch features dual 24V – 56V DC power inputs for redundancy with overload current protection

Industrial Design

Equipped with a rugged IP30 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° – 75° C (-40° – 167° F)

PoE Power

The industrial variable voltage PoE switch features a 200W PoE+ power budget, and supplies up to eight Power over Ethernet devices with PoE+ power

PoE+ Power Budget

Supplies up to 30W of PoE power per port on the industrial variable voltage switch with a 200W PoE power budget

Network Ports

8 x Gigabit PoE+ ports

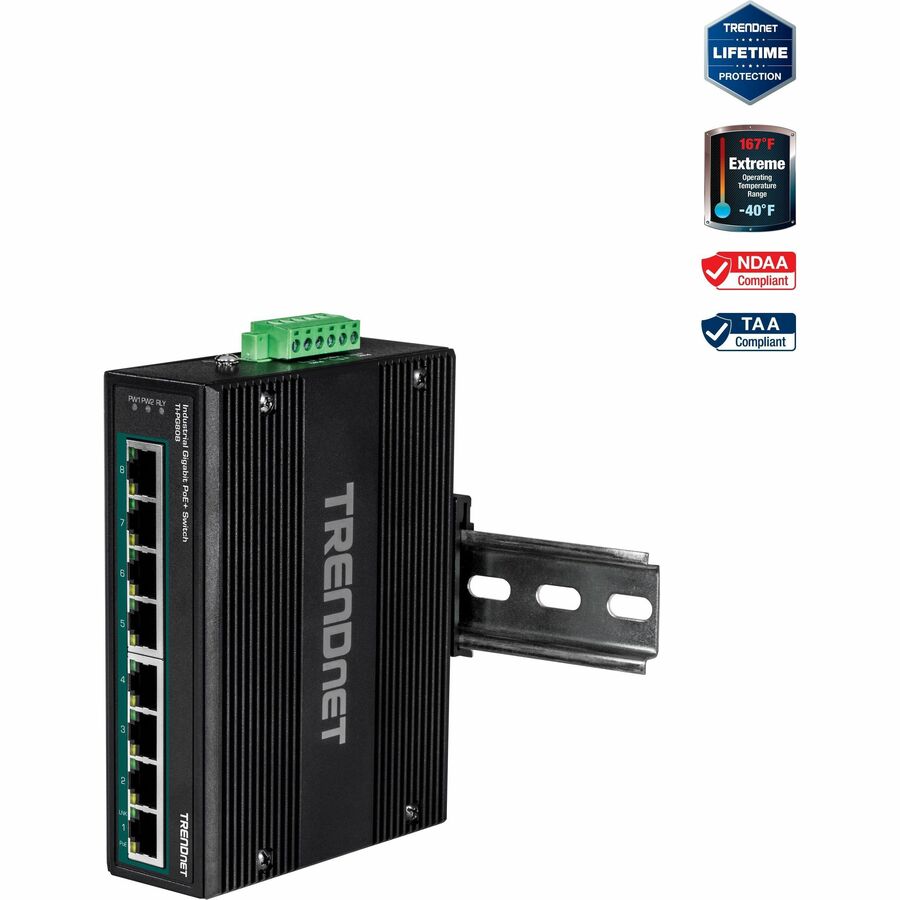

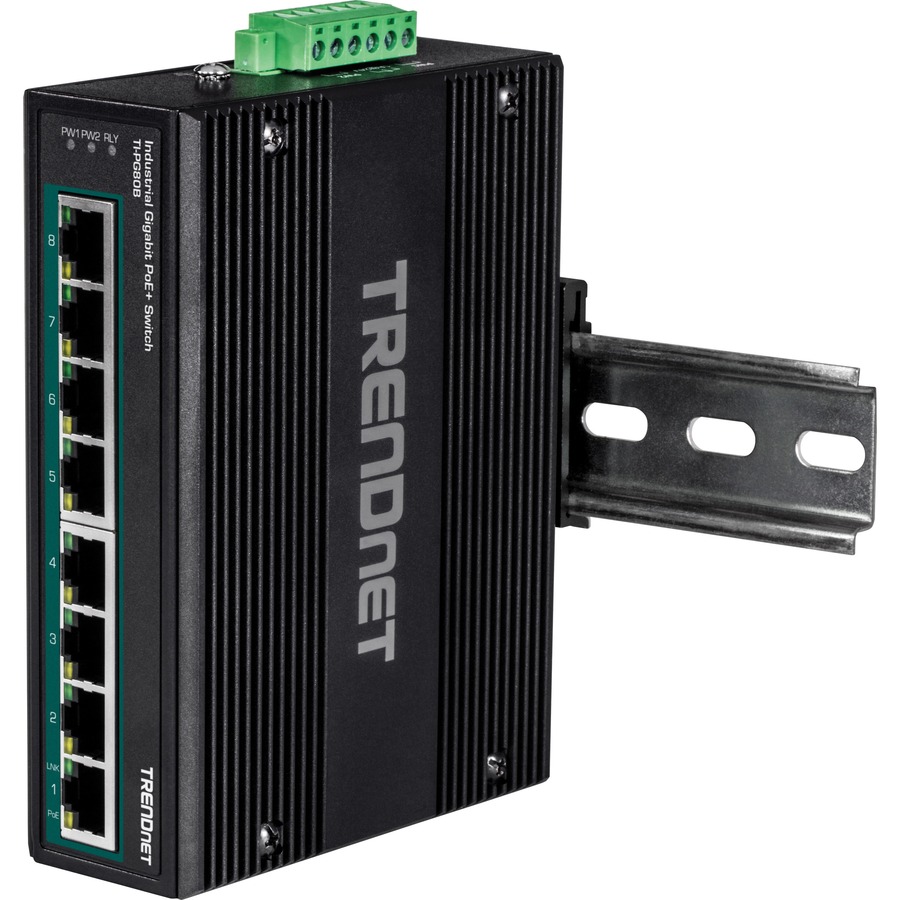

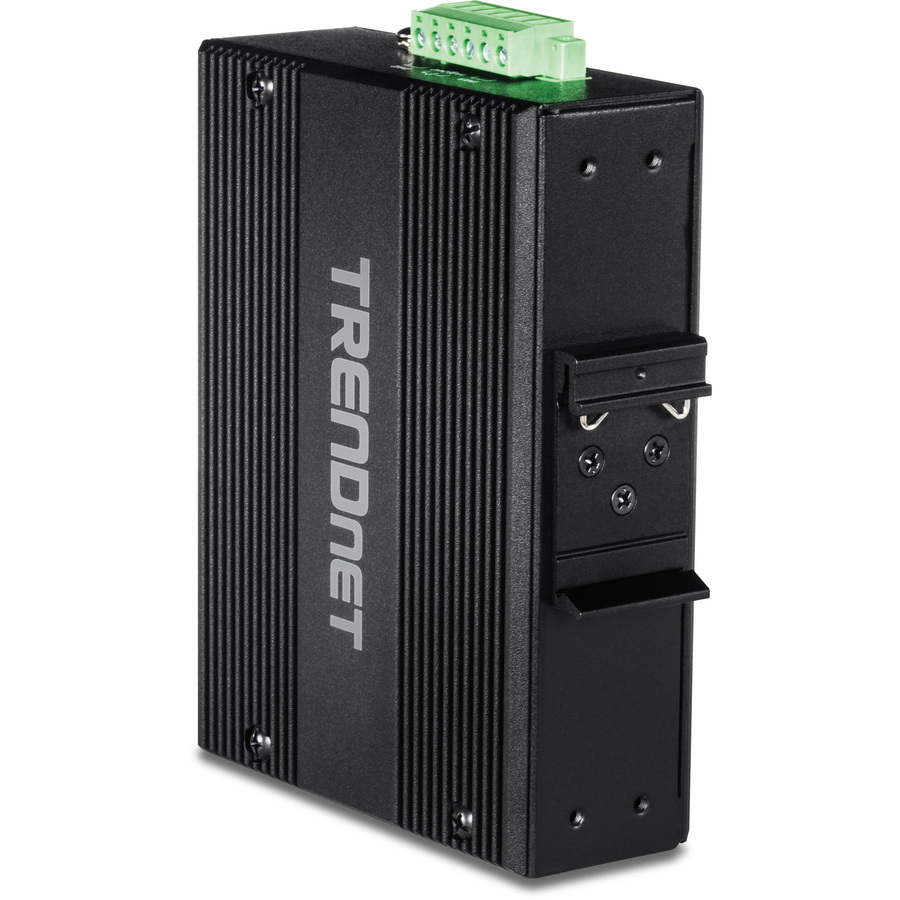

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with DIN-Rail and wall mount hardware included

Switching Capacity

16Gbps switching capacity

Redundant Power

Dual 24V – 56V DC power inputs with overload current protection (compatible power supplies for this industrial variable voltage PoE+ switch sold separately, models: TI-S15052, TI-S24052, TI-S12024, TI-S24048)

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance on the variable voltage switch

Wide Operating Temperature

Industrial variable voltage switch rated for an operating temperature range of -40° – 75° C (-40° – 167° F)

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point on the industrial variable voltage switch protects equipment from external electrical surges

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

8-Port Industrial Gigabit PoE+ DIN-Rail Switch (24 – 56V)

8 x Gigabit PoE+ ports

PoE power budget 120W@24V – 200W@48V

16Gbps switching capacity

Hardened IP30 rated metal switch

Includes DIN-Rail and wall mounts

Operating temperature range of -40° – 75° C (-40° – 167° F)

Dual 24 – 56V DC power inputs for redundancy

Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12024, TI-S24048)

NDAA / TAA compliant

Lifetime Warranty
