Attention: Due to high order volume, orders may require an additional business day to process.
x Gigabit PoE+ Ports, 200W PoE Power Budget, 16Gbps Switching Capacity, NDAA TAA Compliant, Lifetime Protection

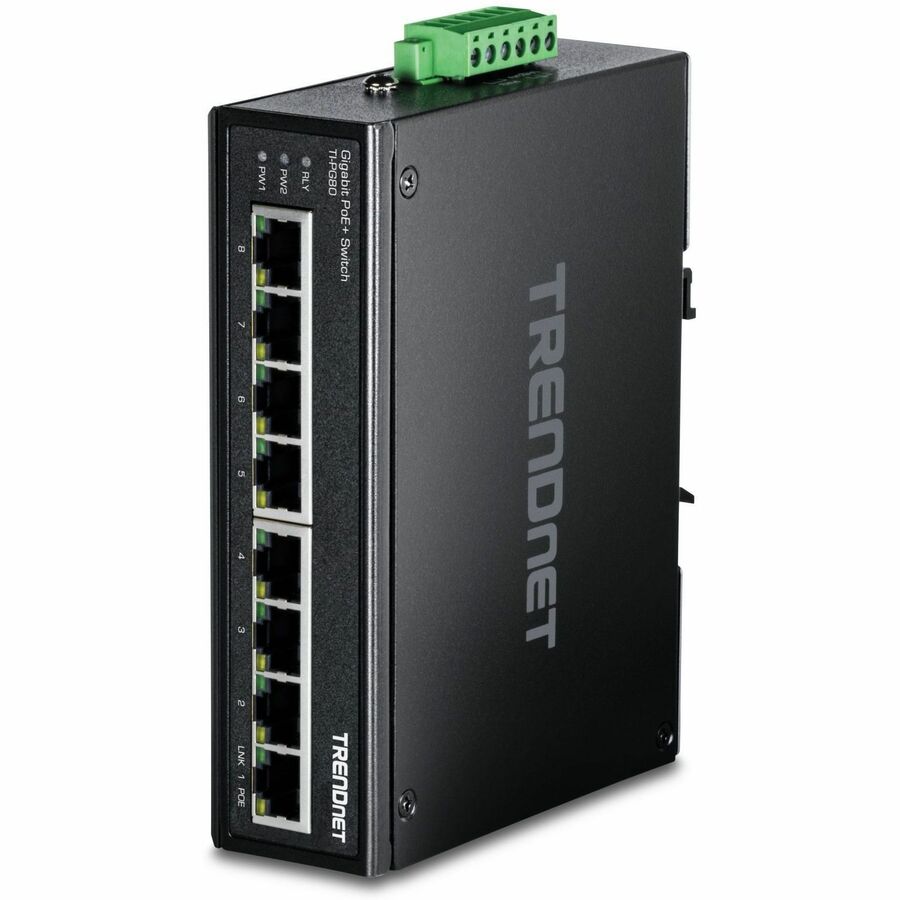

8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
$214.02*
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 25 and Nov 29, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine TRENDnet through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
TRENDnet's Industrial Gigabit PoE+ DIN-Rail Switches feature a rugged IP50 rated metal enclosure. These industrial unmanaged PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
DEVICE INTERFACE: 8 x Gigabit PoE+ Ports; 6-Pin Removable Terminal Block; LED Indicators
TRENDnet LIFETIME PROTECTION: We stand by our products. The TI-PG80 8-Port Industrial Switch is secured with LifetimeManufacturer Protection from TRENDnet.
NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutionsthat government customers demand today. (U.S. and Canada only)
RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all yourneeds during normal business hours. We take pride in being there for our customers.
POE+ POWER: Maximum 200W PoE+ power budget and 16Gbps switching capacity supplies power up to eight Power overEthernet devices. Up to 30W of power per port and data over a single Ethernet cable to PoE devices
INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree ofvibration and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F).

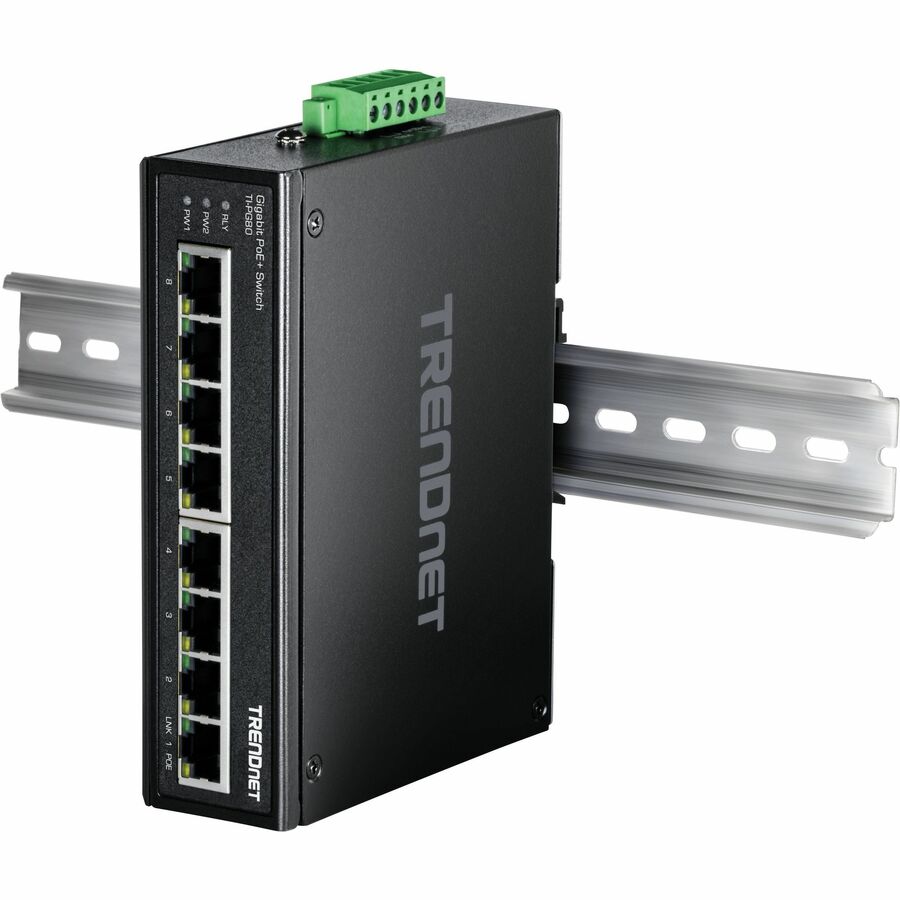

DIN RAIL & WALL MOUNTS: IP50 rated metal enclosure on the industrial switch with included DIN-Rail mount and wall mounthardware
POWER SUPPLY SOLD SEPARATELY: Use this industrial switch with the compatible power supply
Model TI-S24052 (Sold Separately)
FAULT TOLERANCE: The industrial unmanaged PoE+ switch features redundant power inputs for backup power.
EASY INSTALLATION: No configuration needed, simply connect network devices to the industrial Ethernet switch with an intuitiveguided setup
REDUNDANT POWER: Dual power inputs provide redundant power with overload current protection
GROUNDING POINT: The industrial unmanaged PoE+ switch features a grounding point to protect equipment from externalelectrical surges
More from the Manufacturer
OVERVIEW
TRENDnet’s 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG80, features a rugged IP50 rated metal enclosure for
industrial environments. This industrial unmanaged PoE+ switch is designed to withstand a high degree of vibration and shock, while
operating in both high and low temperatures within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current
protection minimize network downtime.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE+ Switch by
delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to
deliver both data and power from the industrial unmanaged PoE+ switch. Utilize TRENDnet's industrial PoE+ switch to easily network
PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders,
access controls, and more.
FEATURES
PoE+ Power
Maximum 200W PoE+ power budget supplies power up to eight Power over Ethernet devices.
Fault Tolerance
Features redundant power inputs from external power sources and an output alarm relay to indicate an input power failure.
Industrial Hardened Design
Rugged IP50 rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).
PoE+ Power
Up to 30W of power per port and
data over a single Ethernet cable
to PoE devices
Easy Installation
No configuration needed, simply
connect PoE+ network devices
to the industrial unmanaged
PoE+ switch
IP50 Rated
This industrial switch is IP50
rated for ingress dust protection
Fault Tolerance
Features redundant power inputs
from external power sources and
an output alarm relay to indicate an
input power failure – power supply
sold separately (model: TI-S24052)
Extreme Temperature Range
An extreme operating temperature
range of -40° – 75° C (-40° – 167°
F) allows for installations in
industrial environments with
intense hot or cold conditions
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27),
freefall (EN 60068-2-32), and
vibration (EN 60068-2-6)
Electro Magnetic Compliance
Complies with industrial EMS
certifications ESD (IEC 61000-4
2):
Contact: 6kV, Air: 8kV; EFT (IEC
61000-4-4): Power: 2kV, Signal:
2kV; Surge (IEC 61000-4-5):
Power: 2kV, Signal: 2kV
DIN-Rail / Wall Mounts
The rugged PoE+ switch
includes DIN-Rail mount and wall
mount hardware
Grounding Point
The industrial unmanaged PoE+
switch features a grounding point
to protect equipment from external
electrical surges
TRENDnet hardened industrial switches
Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.
TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
Device Interface
8 x Gigabit PoE+ ports
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2Gbps (full duplex)
Performance
Data RAM Buffer: 125KB
Switching Fabric: 16Gbps
MAC Address Table: 4K entries
Jumbo Frame: 9KB
Forwarding rate: 11.9Mpps (64-byte packet size)
DC Power
Input: 48 - 56V DC
Compatible power supply: TI-S24052 (sold separately)
Max. consumption: 5.76W @ 48V DC (without PD)
PoE
802.3af PoE: up to 15.4W per port
802.3at PoE+: up to 30W per port
Power budget: 120W - 200W
PoE Mode A: Pins 1, 2, 3, and 6 for power
Terminal Block
6-pin terminal block
Alarm Relay: 1A @ 24V DC
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG): 12-24
Stranded wire (AWG): 12-24
Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
Wire strip length: 7-8mm
MTBF
83,000 hours @ 25°C
Housing
IP50 metal case
DIN-Rail mount
Wall mount
Grounding point
6kV ESD protection
Operating Temperature
- 40° – 75° C (-40 – 167° F)
Operating Humidity
Max. 95% non-condensing
Dimensions
143 x 104 x 36mm (5.6 x 4.1 x 1.4 in.)
Weight
554g (1.22 lbs.)
Certifications
CE
FCC
LVD
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
IEC 61000-4-2
IEC 61000-4-4
IEC 61000-4-5
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TI-PG80
Removable terminal block
DIN-Rail and wall mount kit
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
8-Port Industrial Gigabit PoE+ DIN-Rail Switch
8 x Gigabit PoE+ ports
Up to 200W PoE power budget
Hardened IP50 rated metal switch
Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
Dual inputs provide redundant power with overload current protection
Alarm relay triggered by power failure
16Gbps switching capacity
Includes DIN-Rail mount and wall mount brackets
Power supply sold separately (model: TI-S24052)
NDAA / TAA compliant
Lifetime Warranty
Limited Warranty: Lifetime
TRENDnet 8-port hardened Industrial Gigabit PoE+ Switch
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-PG80 |
| Brand Name | TRENDnet |
| Product Model | TI-PG80 |
| Product Name | 8-port hardened Industrial Gigabit PoE+ Switch |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Physical Characteristics | |
| Form Factor | Rail-mountable, Wall Mountable |
| Height | 3" |
| Width | 5" |
| Depth | 7" |
| Weight (Approximate) | 14.96 oz |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
