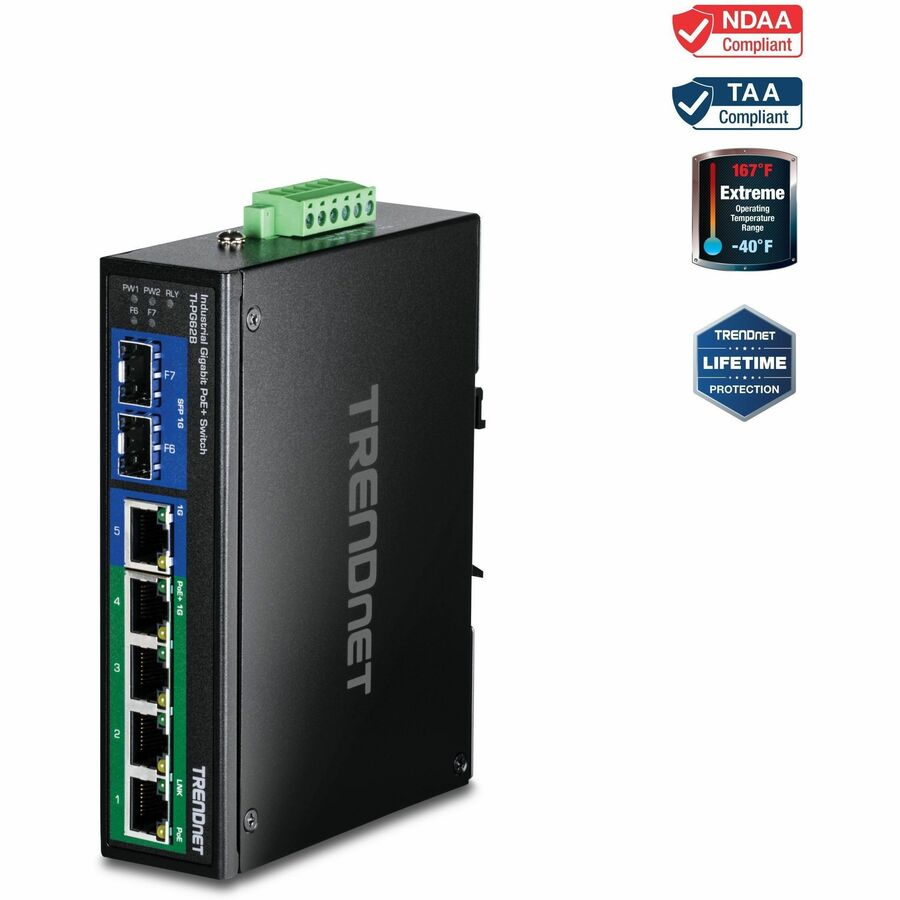

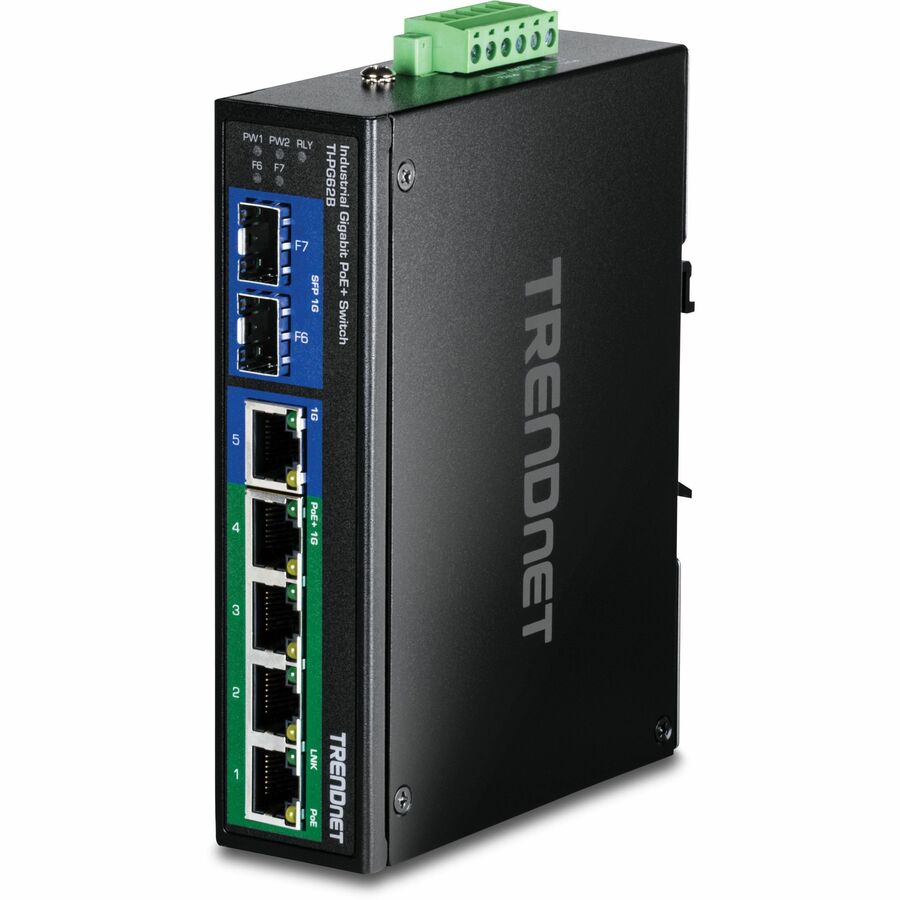

TRENDnet's 7-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG62B, is an industrial variable voltage switch with four gigabit PoE+ ports and a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial variable voltage

PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP50 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Dual 12 - 56V DC power inputs on this industrial variable voltage switch provides power redundancy and failure alarm relay.

DEVICE INTERFACE: 4 x Gigabit PoE+ Ports; 1 x Gigabit Port; 2 x Gigabit SFP Ports; 6-Pin Removable Terminal Block; LED

Indicators; 14Gbps Switching Capacity; 60W PoE Power Budget

TRENDnet LIFETIME PROTECTION: We stand by our products. The TI-PG62B 7-Port Industrial Gigabit PoE Switch is secured

with Lifetime Manufacturer Protection from TRENDnet.

NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions

that government customers demand today. (U.S. and Canada only)

RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your

needs during normal business hours. We take pride in being there for our customers.

POE+ POWER: Maximum up to 60W @ 12V; 120W @ 24 - 56V, Up to 30W of power per port and data over a single Ethernet

cable to PoE devices

INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration

and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F).

DIN RAIL & WALL MOUNTS: IP50 rated metal enclosure on the industrial switch with included DIN-Rail mount and wall mount

hardware

POWER SUPPLY SOLD SEPARATELY: Use this industrial switch with the compatible power supply

Model TI-S15052 (Sold Separately)

FAULT TOLERANCE: The industrial Ethernet switch features dual power inputs to provide redundant power with overload current

protection.

EASY INSTALLATION: No configuration needed, simply connect network devices to the industrial Ethernet switch with an intuitive

guided setup

GROUNDING POINT: The industrial switch features a grounding point to protect equipment from external electrical surges

More from the Manufacturer

Overview

TRENDnet’s 7-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG62B, is an industrial variable voltage switch with four gigabit PoE+ ports and a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP50 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 12 – 56V DC power inputs on this industrial variable voltage switch provides power redundancy and failure alarm relay.

Variable Voltage Input

Provides up to 120W PoE+ power budget with a 24 – 56V DC power supply or 60W PoE+ power budget with a 12V DC power supply

Fault Tolerance

Features redundant 12 – 56V DC power inputs from external power sources, and an output alarm relay to indicate an input power failure.

Industrial Hardened Design

Rugged IP50 rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).

Wide Input Voltage

Dual variable voltage 12 – 56V DC power inputs – power supply sold separately (model: TI-S150052)

Easy Installation

No configuration needed, simply connect PoE+ network devices to the industrial unmanaged PoE+ switch

IP50 Rated

This industrial switch is IP50 rated for ingress dust protection

Fault Tolerance

Features an output alarm relay to indicate an input power failure

Grounding Point

The industrial unmanaged PoE+ switch features a grounding point to protect equipment from external electrical surges

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

Shock and Vibration Resistant

Rated for shock, freefall, and vibration

Extreme Temperature Range

An extreme operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with intense hot or cold conditions

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

7-Port Industrial Gigabit PoE+ DIN-Rail Switch (12 – 56V)

4 x Gigabit PoE+ ports

1 x Gigabit port

2 x Gigabit SFP ports

Up to 60W @ 12V; 120W @ 24 – 56V

Hardened IP50 rated metal switch

Extreme operating temperature range of -40° – 75°C (-40° – 167°F)

Dual 12–56V DC inputs provide redundant power with overload current protection

Alarm relay triggered by power failure

14Gbps switching capacity

Includes DIN-Rail mount and wall mount brackets

Power supply sold separately (model: TI-S15052)

NDAA / TAA compliant (U.S. and Canada only)

Lifetime Warranty

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3x

IPEEE 802.3z

IEEE 802.3af

IEEE 802.3at

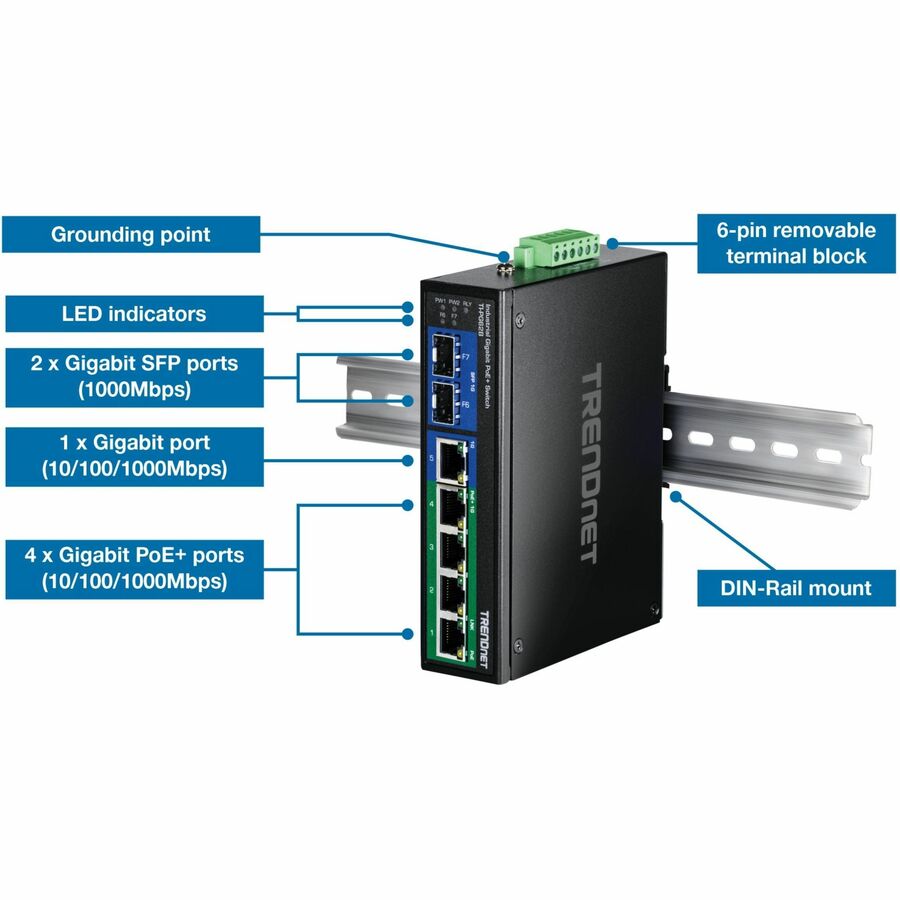

Device Interface

4 x Gigabit PoE+ ports (10/100/1000Mbps)

1 x Gigabit port (10/100/1000Mbps)

2 x Gigabit SFP ports (1000Mbps)

6-pin removable terminal block

LED indicators

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2Gbps (full duplex)

Gigabit SFP: 2Gbps (full duplex)

Performance

Data RAM Buffer: 125KB

Switching Fabric: 14Gbps

MAC Address Table: 4K entries

Jumbo Frame: 9KB

Forwarding rate: 10.4Mpps (64-byte packet size)

DC Power

Input: 12 - 56V DC

Compatible power supply: TI-S15052 (sold separately)

Max. consumption: 4.1W @ 56V DC (without PD)

PoE

802.3af PoE: up to 15.4W per port

802.3at PoE+: up to 30W per port

Power budget: 60W @ 12V; 120W @ 24 – 56V

PoE Mode A: Pins 1, 2, 3, and 6 for power

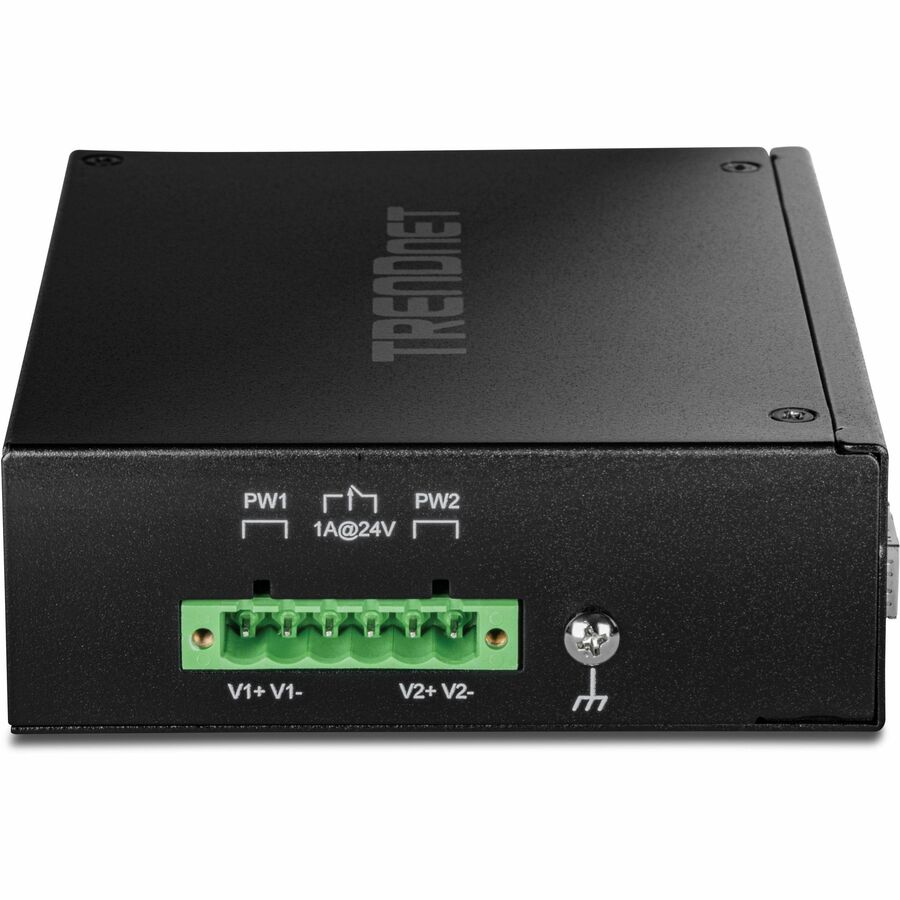

Terminal Block

6-pin terminal block

Alarm Relay: 1A @ 24V DC

Wire range: 0.34mm^2 to 2.5mm^2

Solid wire (AWG): 12-24

Stranded wire (AWG): 12-24

Torque: 5 lb. – In / 0.5Nm / 0.56 Nm

Wire strip length: 7-8mm

MTBF

508,869 hours @ 25°C

Housing

IP50 metal case

DIN-Rail mount

Wall mount

Grounding point

6kV ESD protection

Operating Temperature

- 40° – 75° C (-40 – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

143 x 105 x 36mm (5.6 x 4.1 x 1.4 in.)

Weight

337g (0.74 lb.)

Certifications

CE

FCC

LVD

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-PG62B

Removable terminal block

DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
