TRENDnet 6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch, 4…

TRENDnet's TI-PG62 is a reliable IP30 unmanaged DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, one shared Gigabit port (RJ-45 / SFP), one dedicated SFP slot, and a 12 Gbps switching capacity. Dual redundant power inputs and a power failure alarm relay.

• ETHERNET PORT INTERFACE: 4 x Gigabit PoE+ ports, 1 x shared Gigabit port (RJ-45/ SFP), 1 x Dedicated SFP slot

• LIFETIME PROTECTION -We stand by the quality of our products. The TI-PG62 6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Switches , you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• POE POWER & SWITCHING CAPACITY: The 6 Port Gigabit PoE+ DIN-Rail Switch has a 12 Gbps switching capacity and 120 Watt PoE+ power.

• REDUNDANT POWER: The 6 port network switch has dual redundant power inputs with overload current protection (power supply sold separately: models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, 48VDC3000)

• EXTREME TEMPERATURE SWITCH: This Gigabit PoE+ Switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.

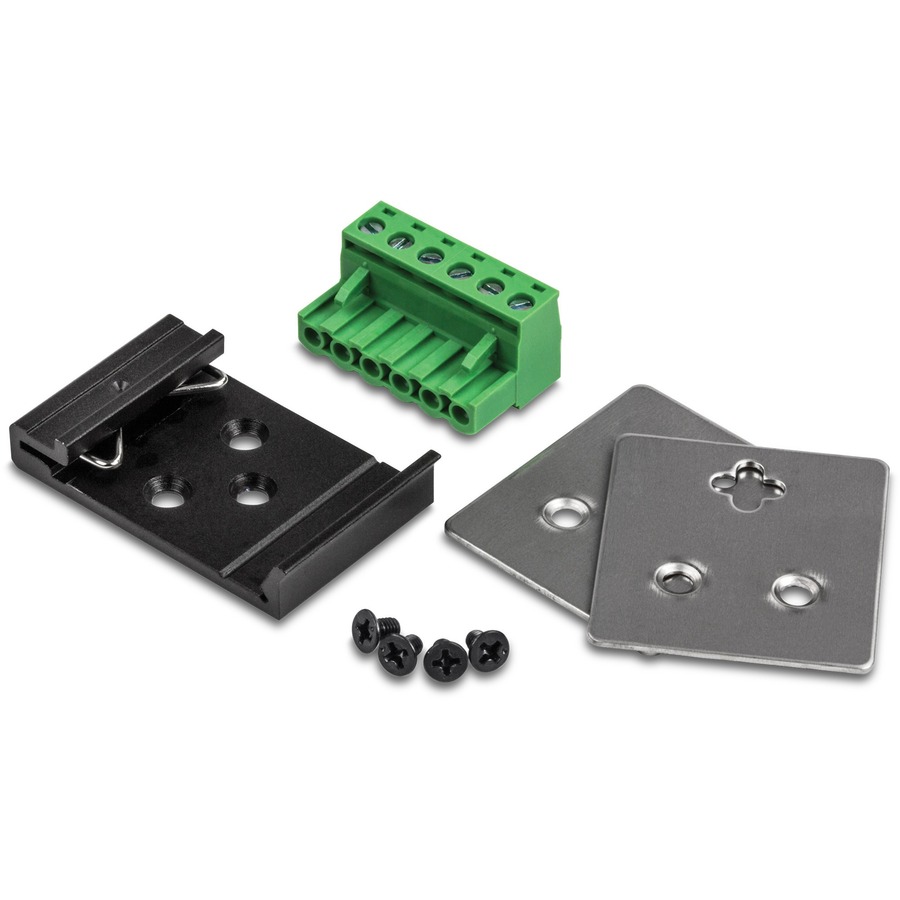

• DIN-RAIL & WALL MOUNT KIT: This 6-port Gigabit PoE+ industrial switch comes with an integrated DIN-rail mount and mounting hardware

• SHOCK AND VIBRATION RESISTANT: Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

• GROUNDING POINT: Grounding point protects equipment from external electrical surges

More from the Manufacturer

Overview

TRENDnet's TI-PG62 is a reliable IP30 unmanaged DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, one shared Gigabit port (RJ-45 / SFP), one dedicated SFP slot, and a 12 Gbps switching capacity. Redundant power inputs and a power failure alarm relay.

PoE Power

A 120 Watt PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power

Fault Tolerance

Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure

Industrial Hardened Design

Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments

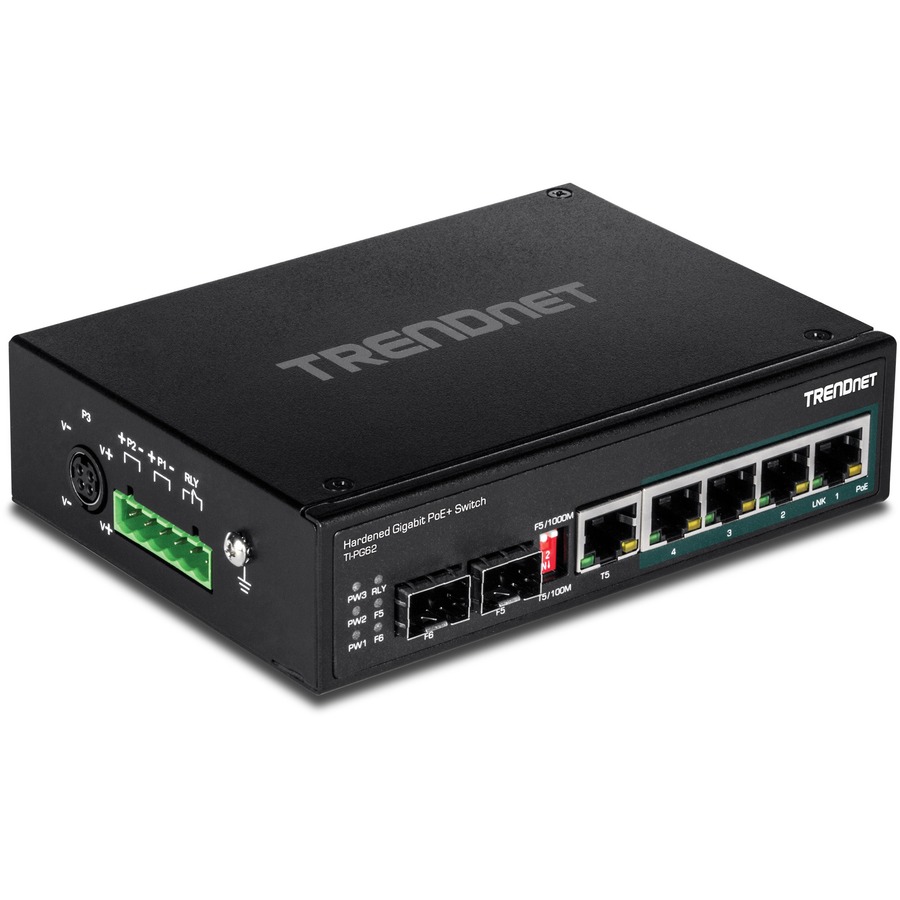

Network Ports

4 x Gigabit PoE+ ports, 1 x shared Gigabit port (RJ-45 / SFP) and 1 x dedicated SFP slot

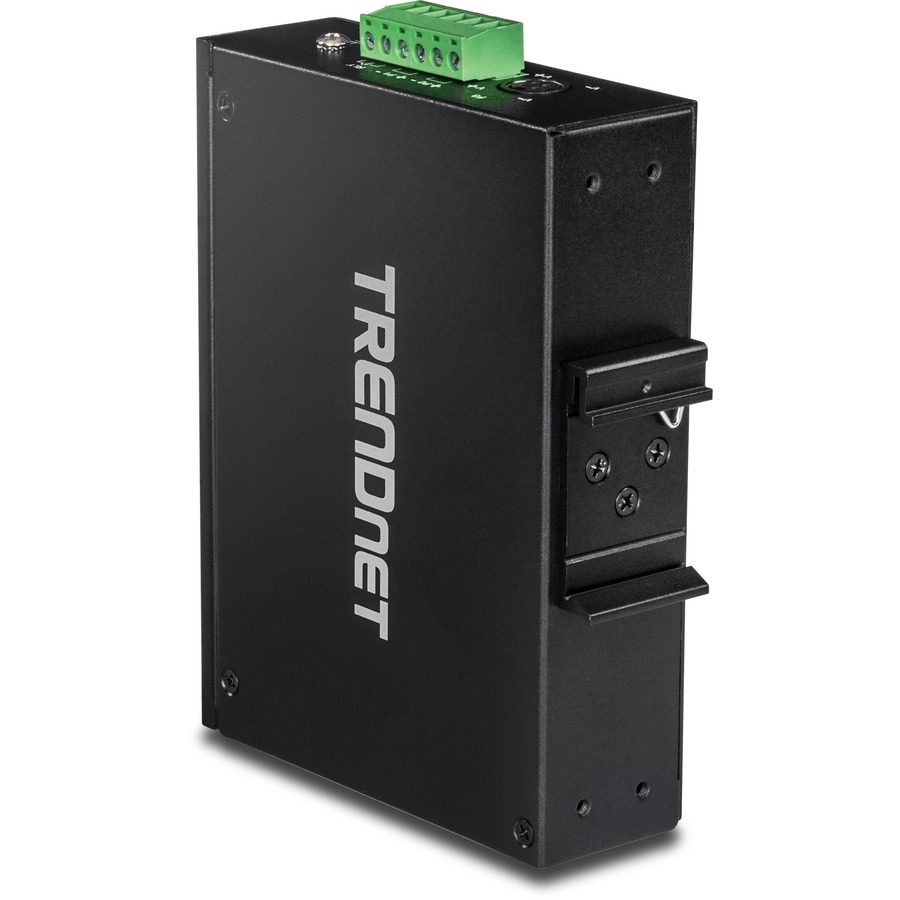

DIN-Rail / Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

12 Gbps switching capacity

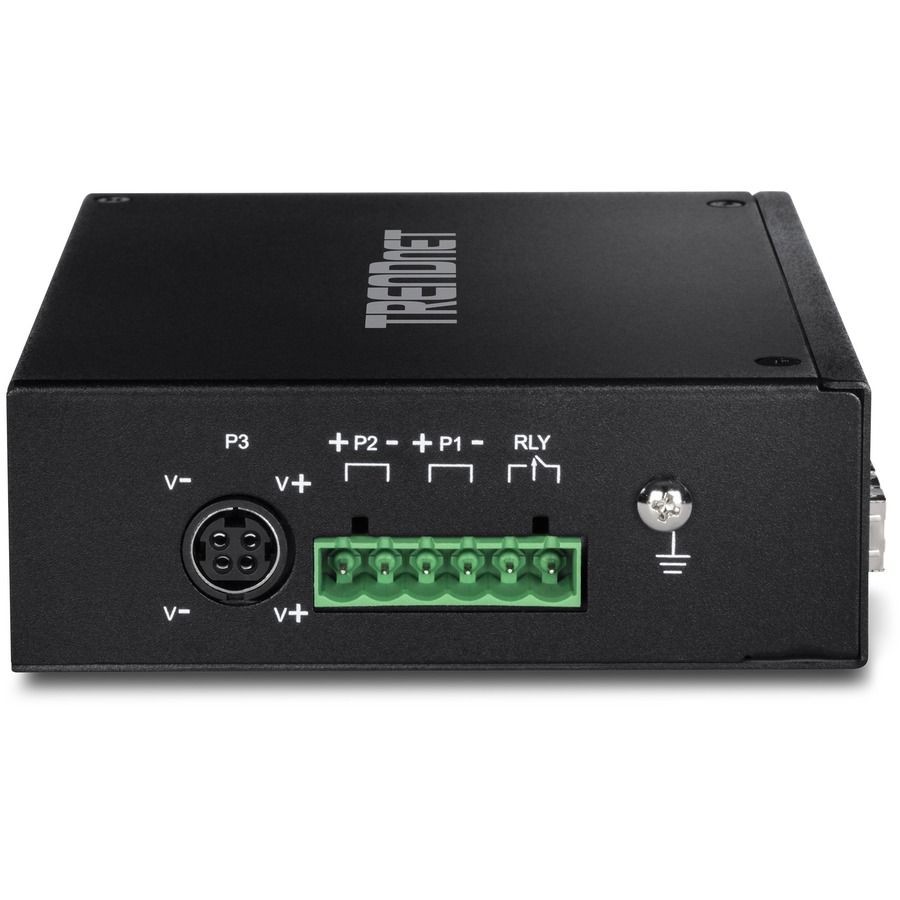

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, 48VDC3000)

Alarm Relay

Alarm relay triggered by power failure of primary and / or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance

Extreme Temperatures

Hardened switch is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

Electro Magnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications

Rated for information technology (ITE) equipment (EN55022 / 24); industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch

4 x Gigabit PoE+ ports

1 x shared Gigabit port (RJ-45 / SFP)

1 x dedicated SFP slot

120 Watt power budget

12 Gbps switching capacity

Hardened IP30 rated metal switch

Includes wall and DIN-rail mounts

Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range

Redundant power inputs with overload current protection

Alarm output triggered by power failure

Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, 48VDC3000)

NDAA / TAA compliant

Lifetime Warranty*
