Power Budget, 1 x SFP Slot, IP30 Rated, Unmanaged Switch, Gigabit PoE+ Network Switch, Lifetime Protection, Black, TI-PG541

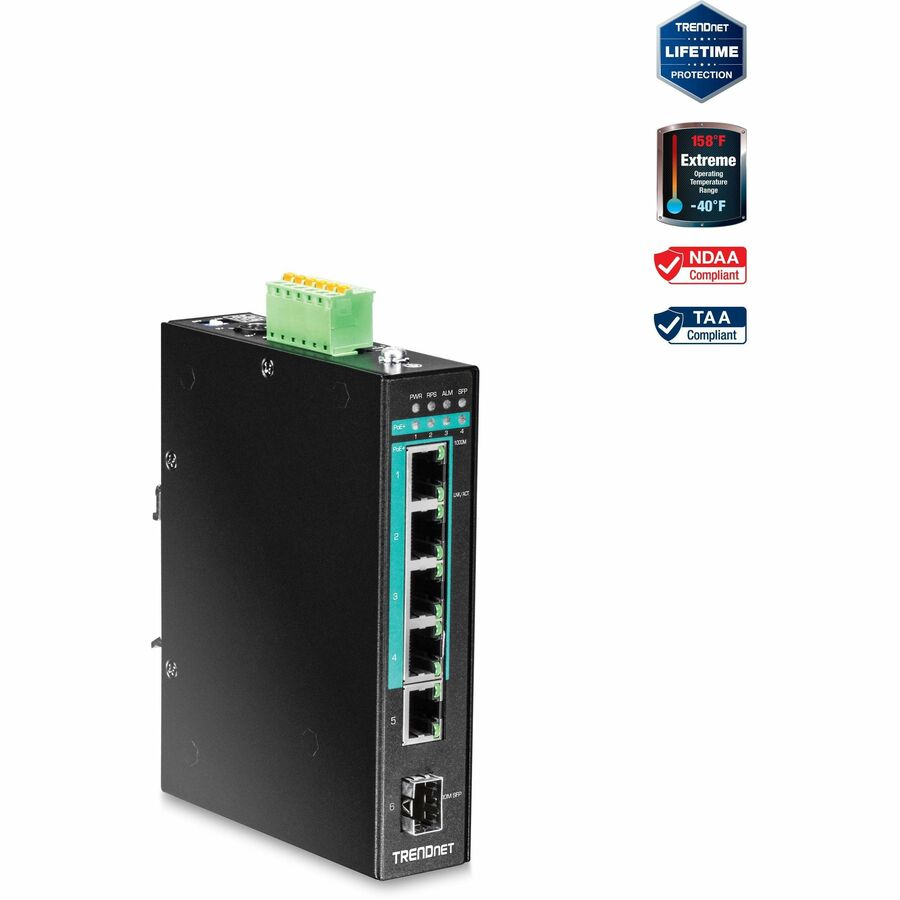

5-port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
$188.84*
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 25 and Nov 29, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine TRENDnet through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
TRENDnet's TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports (Ports 1-4, 802.3at), one Gigabit port, one SFP slot, and a full PoE power budget of 120 Watts. Dual redundant power inputs (power adapter sold separately) with overload current protection support zero downtime requirements. An alarm output can be triggered by a primary and / or redundant power failure.
• ETHERNET PORT INTERFACE: 4 x Gigabit PoE+ (802.3at) ports, 1 x Gigabit port, and 1 x Gigabit SFP slot
• FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The unmanaged PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port (ports 1-4 802.3at / 802.3af) with a 120 Watt PoE power budget and allows for a 12 Gbps switching capacity.
• DIN-RAIL & WALL MOUNT KIT: This 5-Port gigabit PoE+ unmanaged switch comes with an integrated DIN-Rail mount and mounting hardware.
• EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 167 °F) for harsh environments.
• REDUNDANT POWER: The 5 port switch has dual redundant power inputs with overload current protection (power supply sold separately: models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, 48VDC3000)
• TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches are backed by our lifetime TRENDnet Manufacturer Protection
• NDAA / TAA compliant (U.S. and Canada only)
More from the Manufacturer
OVERVIEW
TRENDnet's TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports (Ports 1-4, 802.3at), one Gigabit port, one SFP slot, and a full PoE power budget of 120 Watts. Dual redundant power inputs (power adapter sold separately) with overload current protection support zero downtime requirements. An alarm output can be triggered by a primary and / or redundant power failure.
Alarm Output
Alarm output triggered by power failure of primary and / or redundant power (defined by DIP switch)
Redundant Power
Dual redundant power inputs with overload current protection
Extreme Temperatures
Hardened switch is rated for an operating temperature range of -40 to 70 ºC (-40 to 158 ºF)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance
Network Ports
5 x Gigabit Ethernet ports (port 1-4 PoE / PoE+) and 1 x SFP slot
Full PoE+ Power Budget
Supplies up to 30 Watts of PoE / PoE+ power per port (ports 1-4 802.3at / 802.3af) with a 120 Watt PoE power budget
Integrated DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-rail mounting hardware
Switching Capacity
12 Gbps switching capacity
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3at
IEEE 802.3af
IEEE 802.3x

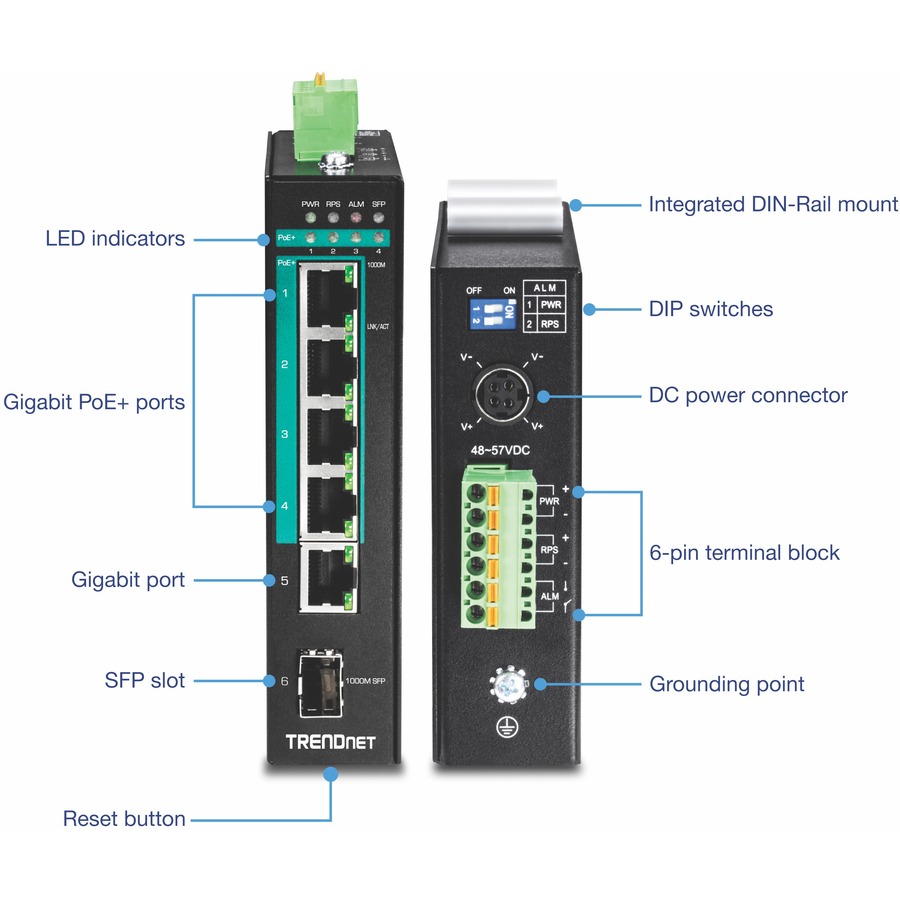

Device Interface
4 x Gigabit PoE+ ports
1 x Gigabit port
1 x Gigabit SFP slot
6-pin terminal block (removable)
DIP switch
DC power connector
LED indicators
Integrated DIN-Rail mount
Data Transfer Rate
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
SX / LX: 2000 Mbps (full duplex)
Performance
Data RAM Buffer: 512 KB
Switching Fabric: 12 Gbps
MAC Address Table: 8 K entries
Jumbo Frame: 10 KB
Forwarding rate: 8.9 Mpps (64-byte packet size)
Special Features
Full PoE+ power to each PoE+ port
Hardened components rated for extreme temperatures
Dual redundant power inputs
Alarm output triggered by power failure
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
ESD 8 KV and Surge 6 KV protection
Optional Power Adapter (48VDC3000 sold separately)
Input: 100 - 240 V AC, 50/60 Hz, 2 A
Output: 48 V DC, 3.34 A 160 watts max.
Optional Power Supply (TI-S24048 / TI-S12048 sold separately)
Input: 100 – 240 V AC, 50/60 Hz, 1.8 A 125 – 370 V DC
Output: 240 Watts, 48 V, 5 A
DIN-rail: TS-35/7.5 or 15
Operating Temperature: - 25 to 70 °C (- 13 to 158 °F)

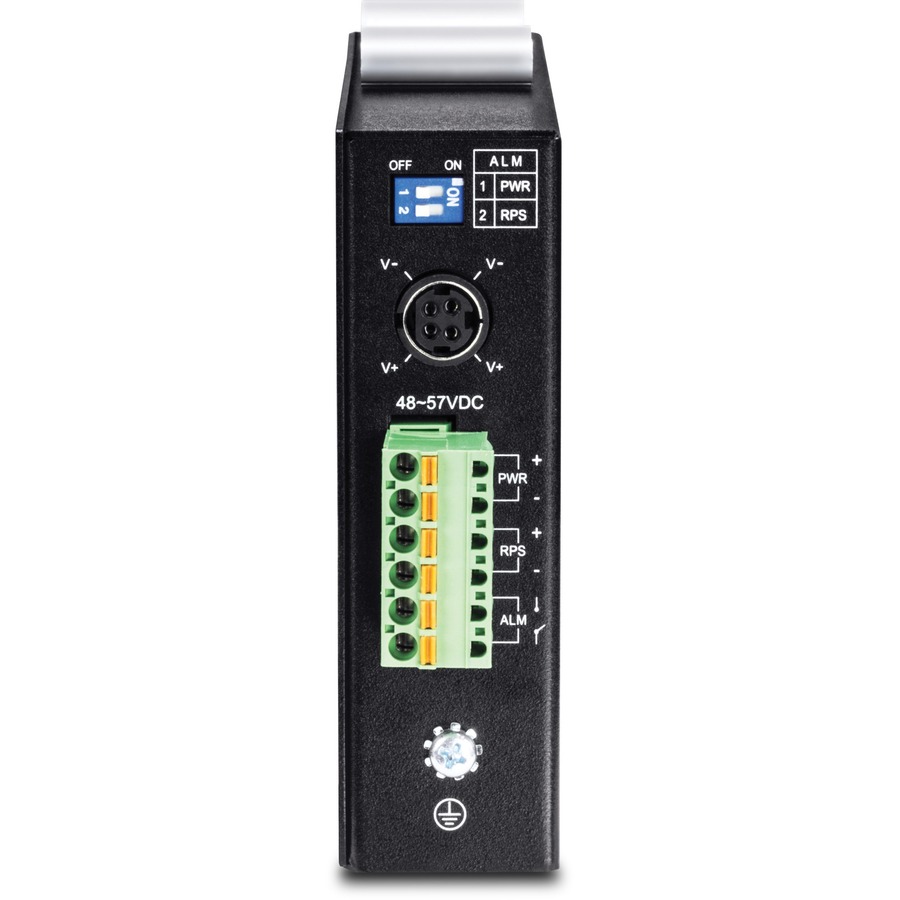

Terminal Block
Input: PWR (Primary): 48 - 57 V DC
RPS (Redundant): 48 - 57 V DC
Power Consumption
Min.: 10 Watts (standby)
Max.: 130 Watts
PoE budget: 120 Watts (Max.)
PoE
Up to 15.4 watts / port for PoE
Up to 30 watts / port for PoE+
PoE: pin 1, 2 for power + and pin 3, 6 for power - (mode A)
IP30 metal case
Integrated DIN-rail mount
Grounding point
8 KV ESD protection
6 KV Surge protection
Operating Temperature
- 40 – 70 °C (- 40 - 158 °F)
Operating Humidity
Max. 95 % non-condensing
Dimensions
135 x 100 x 30 mm (5.3 x 3.9 x 1.2 in.)
Weight
500 g (1.2 lbs.)
Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TI-PG541
Quick Installation Guide
DIN-Rail kit
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
4 x Gigabit PoE+ (802.3at) ports, 1 x Gigabit port, and 1 x Gigabit SFP slot
120 W full PoE+ power budget
12 Gbps switching capacity
Hardened IP30 rated metal switch with integrated DIN-Rail mount
-40 to 70 ºC (-40 to 158 ºF) operating temperature range
Dual redundant power inputs with overload current protection
Alarm output triggered by power failure
Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, 48VDC3000)
NDAA / TAA compliant
Lifetime Warranty
Limited Warranty: Lifetime
TRENDnet 5-port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-PG541 |
| Brand Name | TRENDnet |
| Product Model | TI-PG541 |
| Product Name | 5-port Hardened Industrial Gigabit PoE+ DIN-Rail Switch |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 6 |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network, 1 x Gigabit Ethernet Expansion Slot |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T, 1000Base-X |
| Network & Communication | |
| Layer Supported | 2 |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 17" |
| Width | 10" |
| Depth | 13" |
| Length | 5.3" |
| Weight (Approximate) | 24.20 lb |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Source | Power Adapter |
| Warranty | |
| Limited Warranty | Lifetime |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
