TRENDnet 5-Port Hardened Industrial Unmanaged Gigabit Switch; TI-PG50…

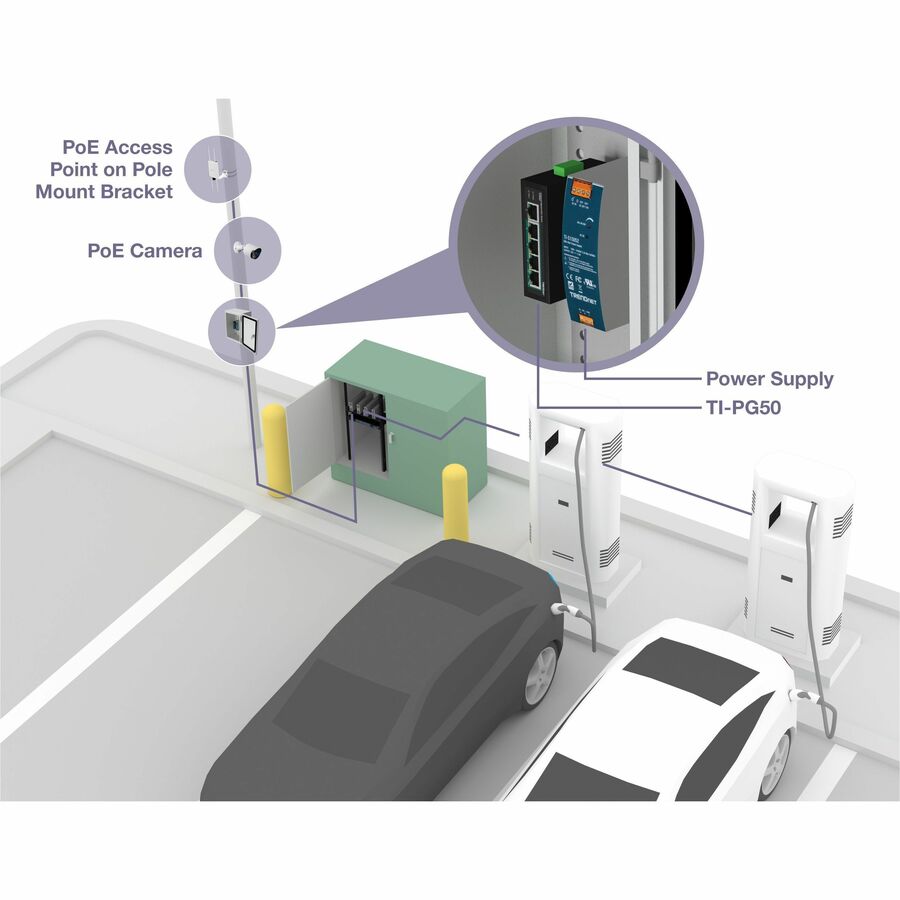

TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG50, features a rugged IP50 rated metal enclosure. This industrial unmanaged PoE+ switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection minimizes network downtime. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE+ Switch by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. Utilize TRENDnet's industrial PoE+ switch to easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

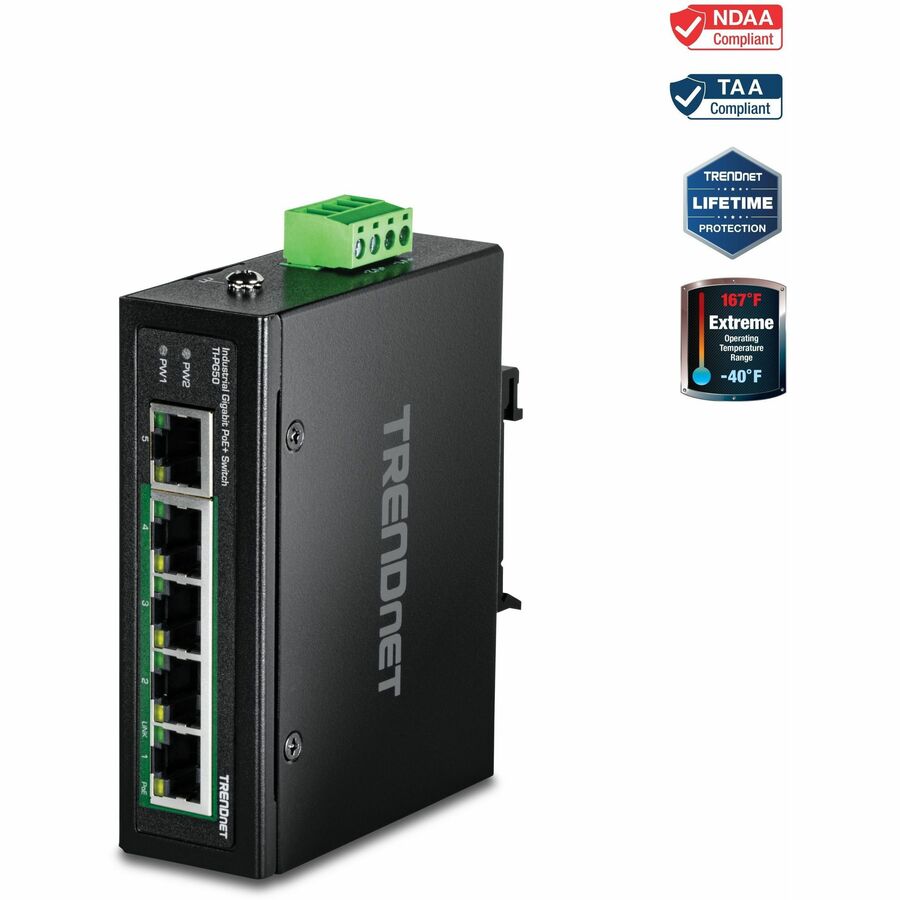

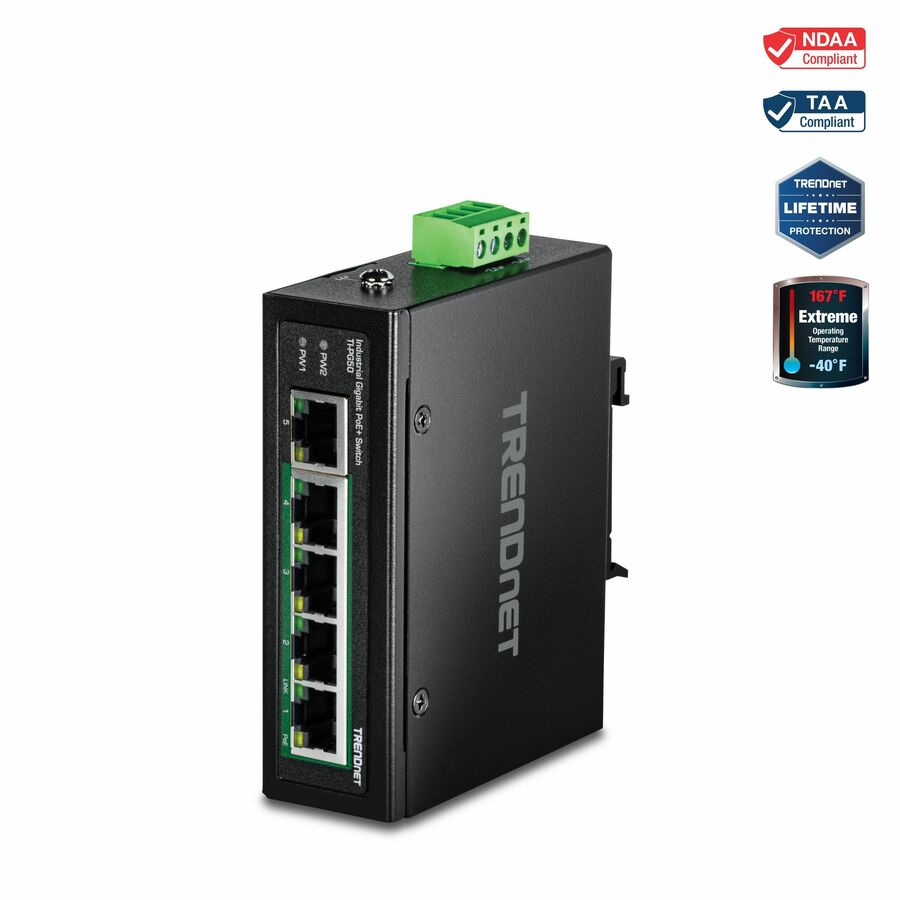

DEVICE INTERFACE: 4 x Gigabit PoE+ Ports; 1 x Gigabit Port; 4-Pin Removable Terminal Block; LED Indicators

TRENDnet LIFETIME PROTECTION: We stand by our products. The TI-PG50 5-Port Industrial Switch is secured with Lifetime

Manufacturer Protection from TRENDnet.

NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions

that government customers demand today. (U.S. and Canada only)

RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your

needs during normal business hours. We take pride in being there for our customers.

POE+ POWER: Maximum 120W PoE+ power budget and 10Gbps switching capacity supplies power up to four Power over

Ethernet devices. Up to 30W of power per port and data over a single Ethernet cable to PoE devices

INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree of

vibration and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F).

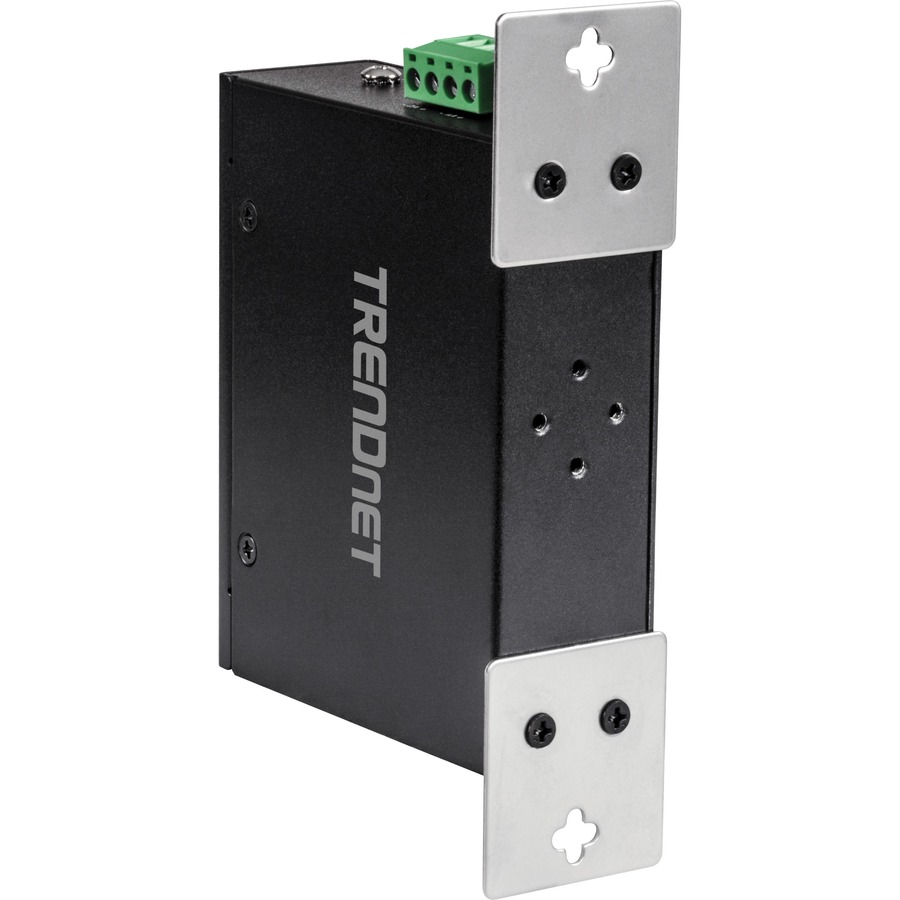

DIN RAIL & WALL MOUNTS: IP50 rated metal enclosure on the industrial switch with included DIN-Rail mount and wall mount

hardware

POWER SUPPLY SOLD SEPARATELY: Use this industrial switch with the compatible power supply

Model TI-S15052 (Sold Separately)

FAULT TOLERANCE: The industrial unmanaged PoE+ switch features redundant power inputs for backup power.

EASY INSTALLATION: No configuration needed, simply connect network devices to the industrial Ethernet switch with an intuitive

guided setup

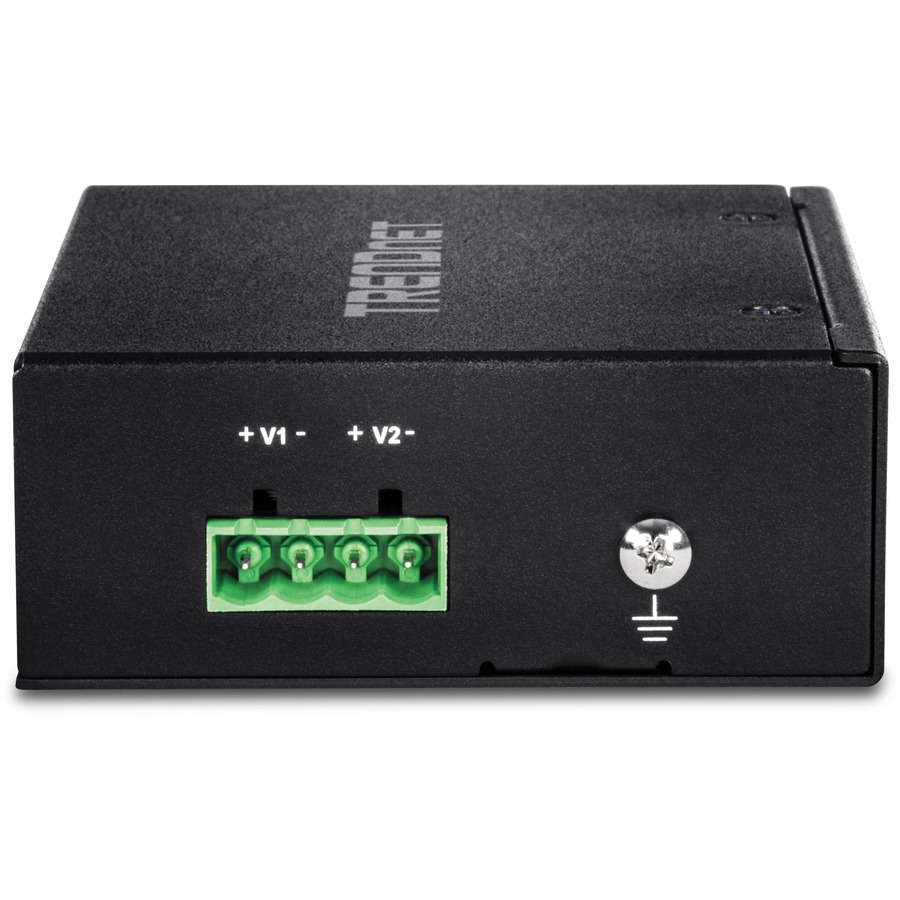

REDUNDANT POWER: Dual power inputs provide redundant power with overload current protection

GROUNDING POINT: The industrial unmanaged PoE+ switch features a grounding point to protect equipment from external

electrical surges

More from the Manufacturer

OVERVIEW

TRENDnet’s 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG50, features a rugged IP50 rated metal enclosure. This industrial unmanaged PoE+ switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection minimizes network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE+ Switch by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. Utilize TRENDnet's industrial PoE+ switch to easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

FEATURES

PoE+ Power

Maximum A 120W PoE+ power budget supplies power up to four Power over Ethernet devices.

Fault Tolerance

The industrial unmanaged PoE+ switch features redundant power inputs for backup power.

Industrial Hardened Design

Rugged IP50 rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).

PoE+ Power

Up to 30W of power per port and data over a single Ethernet cable to PoE devices

Easy Installation

No configuration needed, simply connect PoE+ network devices to the industrial unmanaged PoE+ switch

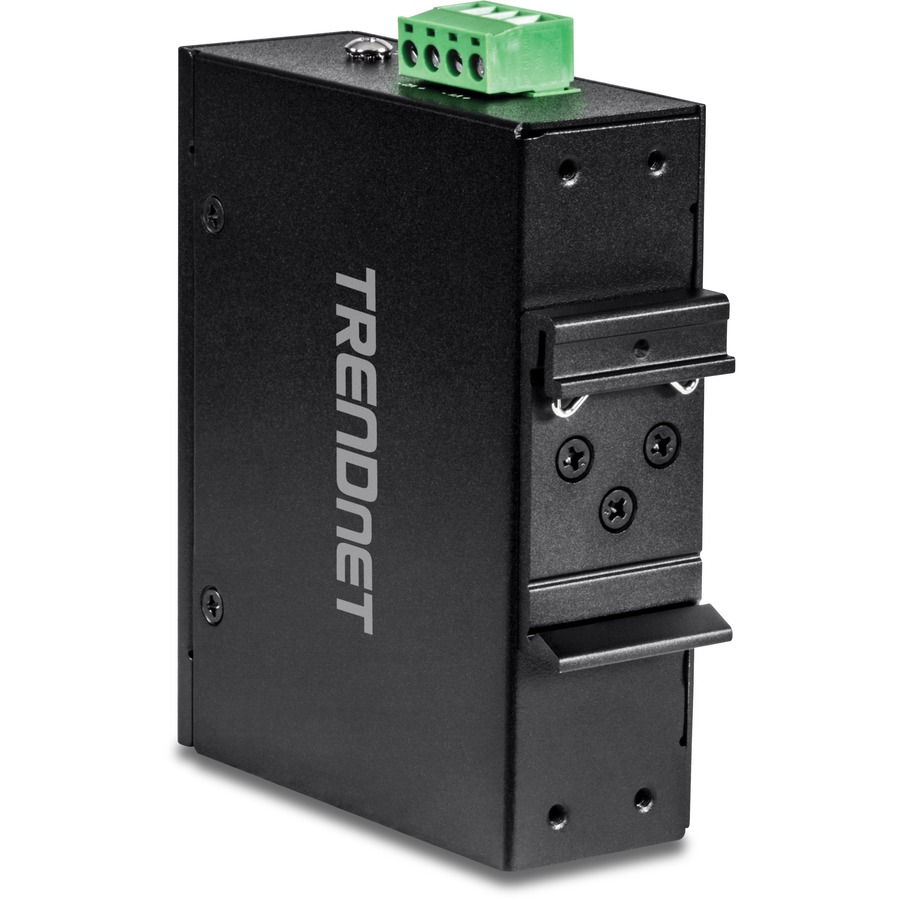

DIN-Rail / Wall Mounts

The se rugged PoE+ switches each includes DIN-Rail mount and wall mount hardware included

IP50 Rated

This industrial media converter is IP50 rated for ingress dust protection

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3x

IEEE 802.3af

IEEE 802.3at

Device Interface

4 x Gigabit PoE+ ports

1 x Gigabit port

4-pin removable terminal block

LED indicators

DIN-Rail mount

Wall mount

Grounding point

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2Gbps (full duplex)

Performance

Data RAM Buffer: 125KB

Switching Fabric: 10Gbps

MAC Address Table: 2K entries

Jumbo Frame: 9KB

Forwarding rate: 7.44Mpps (64-byte packet size)

DC Power

Input: 48 - 56V DC

Compatible power supply: TI-S15052 (sold separately)

Max. consumption: 2.24W @ 48V DC (without PD)

PoE

802.3af PoE: up to 15.4W per port

802.3at PoE+: up to 30W per port

Power budget: 60W - 120W

PoE Mode A: Pins 1, 2, 3, and 6 for power

Terminal Block

4-pin terminal block

Wire range: 0.34mm^2 to 2.5mm^2

Solid wire (AWG): 12-24

Stranded wire (AWG): 12-24

Torque: 5 lb. – In / 0.5Nm / 0.56 Nm

Wire strip length: 7-8mm

MTBF

83,000 hours @ 25°C

Housing

IP50 metal case

DIN-Rail mount

Wall mount

Grounding point

6kV ESD protection

Operating Temperature

- 40° – 75° C (-40 – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

156 x 122 x 48mm (6.1 x 4.8 x 1.9 in.)

Weight

630g (1.38 lbs.)

Certifications

CE

FCC

LVD

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-PG50

Removable terminal block

DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
