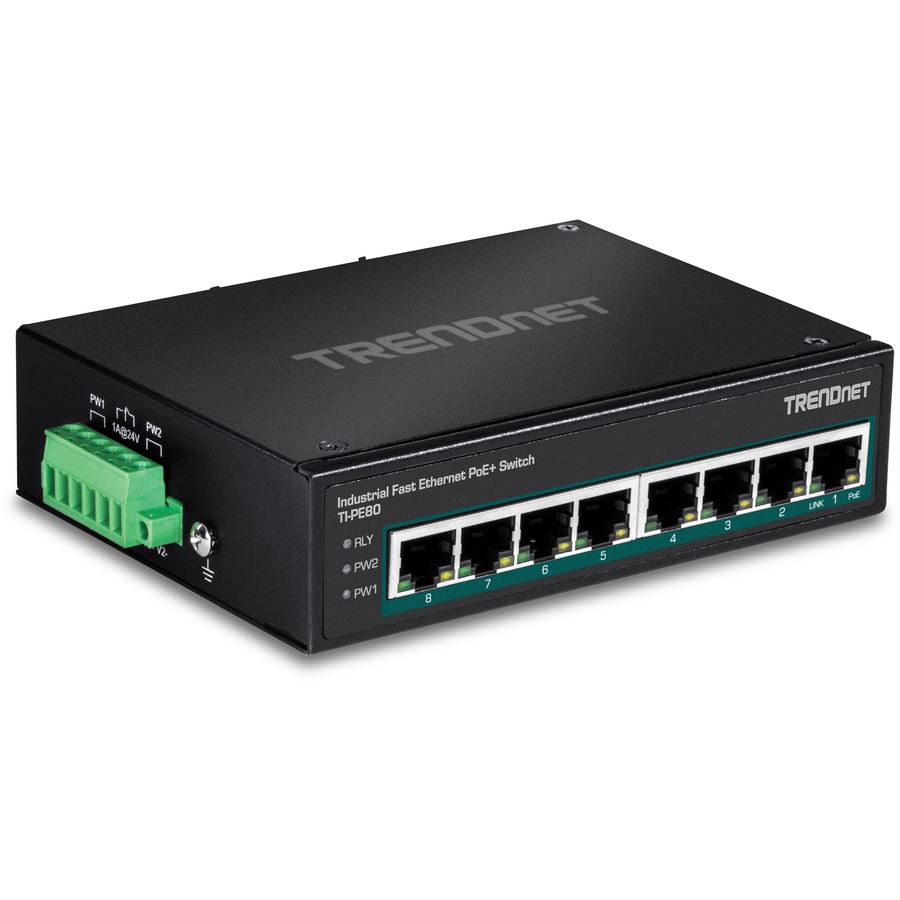

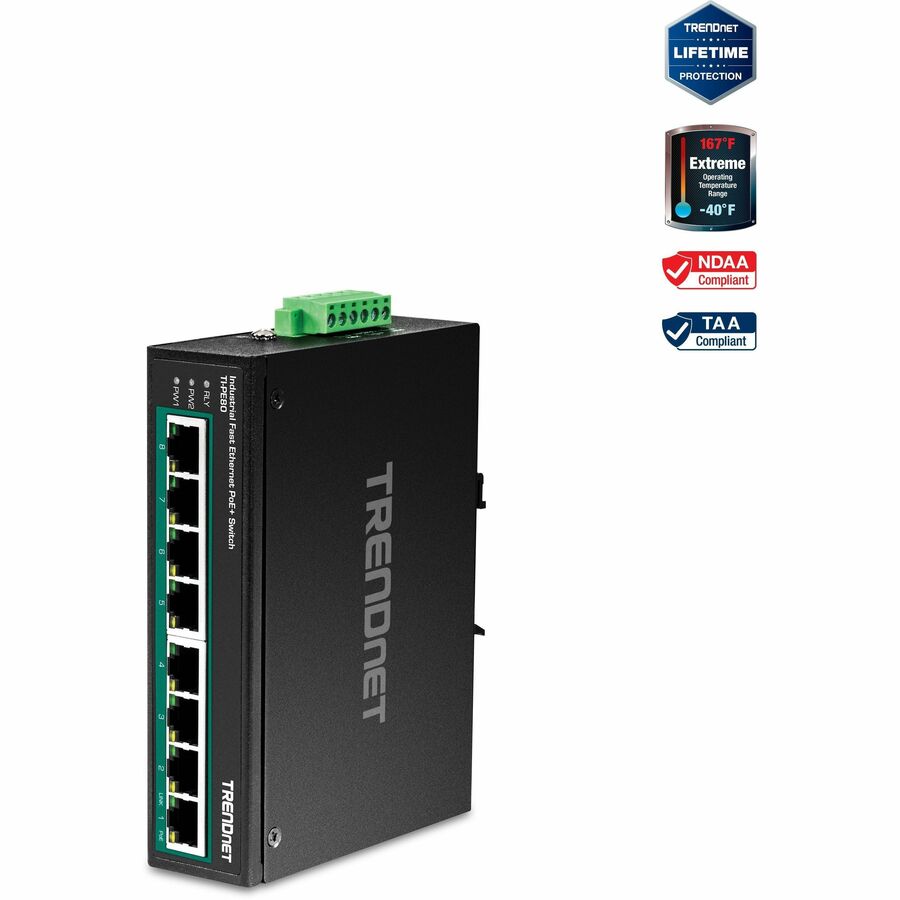

TRENDnet 8-Port Industrial Unmanaged Fast Ethernet PoE+ DIN-Rail…

TRENDnet's 8-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch, model TI-PE80, features a rugged IP50 rated metal enclosure. This industrial unmanaged PoE+ switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection minimizes network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Fast Ethernet PoE+ Switch by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. Utilize TRENDnet's industrial PoE+ switch to easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

• DEVICE INTERFACE: 8 x Fast Ethernet PoE+ Ports

• TRENDnet LIFETIME PROTECTION: We stand by our products. The TI-PE80 8-Port Industrial Switch is secured with Lifetime Manufacturer Protection from TRENDnet.

• NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only)

• RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.

• POE+ POWER & SWITCHING CAPACITY: The industrial unmanaged switch is equipped with 1.6Gbps switching capacity, and a 200W PoE power budget supplies up to eight Power over Ethernet devices with PoE+ power.

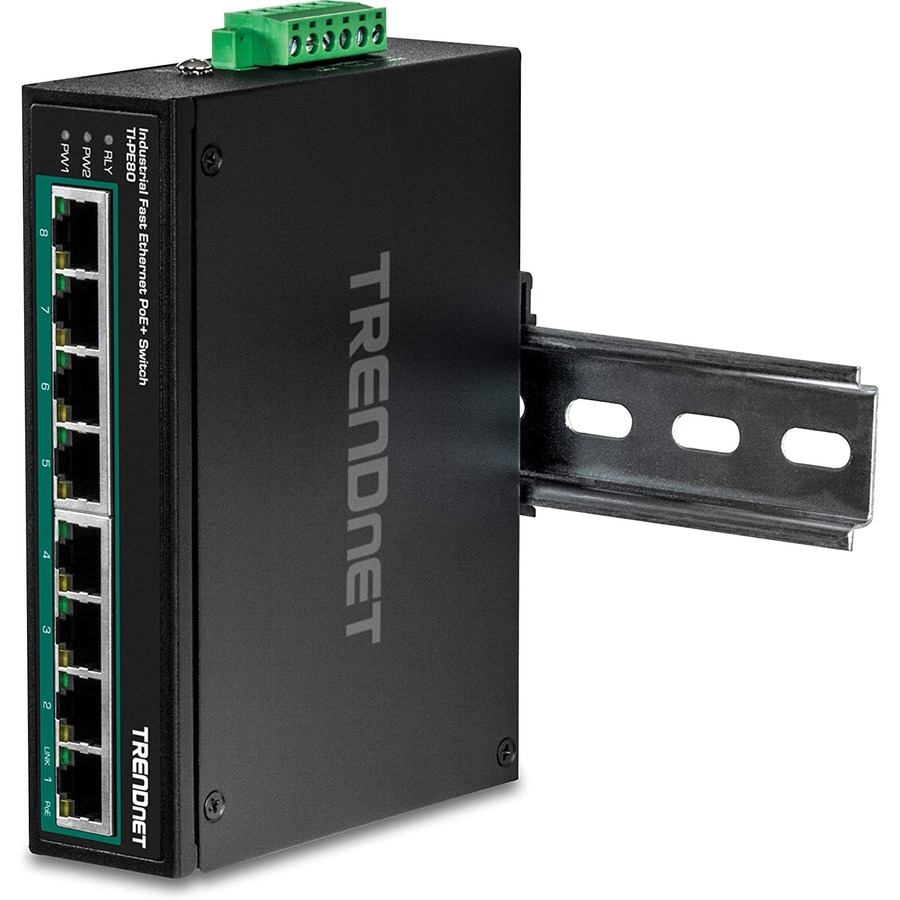

• DIN-RAIL & WALL MOUNT KIT: This 8-Port PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets.

• SHOCK AND VIBRATION RESISTANT: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

• EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail switch is equipped with a rugged IP30 rated

enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.

• REDUNDANT POWER: The 8 port network switch has dual redundant power inputs with overload current protection (power supply sold separately: models: TI-S24052)

• ALARM RELAY: Features redundant power inputs from external power sources and an output alarm relay to indicate the event of input power failure.

More from the Manufacturer

OVERVIEW

TRENDnet’s 8-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch, model TI-PE80, features a rugged IP50 rated metal enclosure. This industrial unmanaged PoE+ switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection minimizes network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Fast Ethernet PoE+ Switch by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. Utilize TRENDnet's industrial PoE+ switch to easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

PoE+ Power

Maximum 200W PoE+ power budget supplies power up to eight Power over Ethernet devices.

Fault Tolerance

Features redundant power inputs from external power sources and an output alarm relay to indicate the event of input power failure.

Industrial Hardened Design

Rugged IP50 rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).

PoE+ Power

Up to 30W of power per port and data over a single Ethernet cable to PoE devices

Easy Installation

No configuration needed, simply connect PoE+ network devices to the industrial unmanaged PoE+ switch

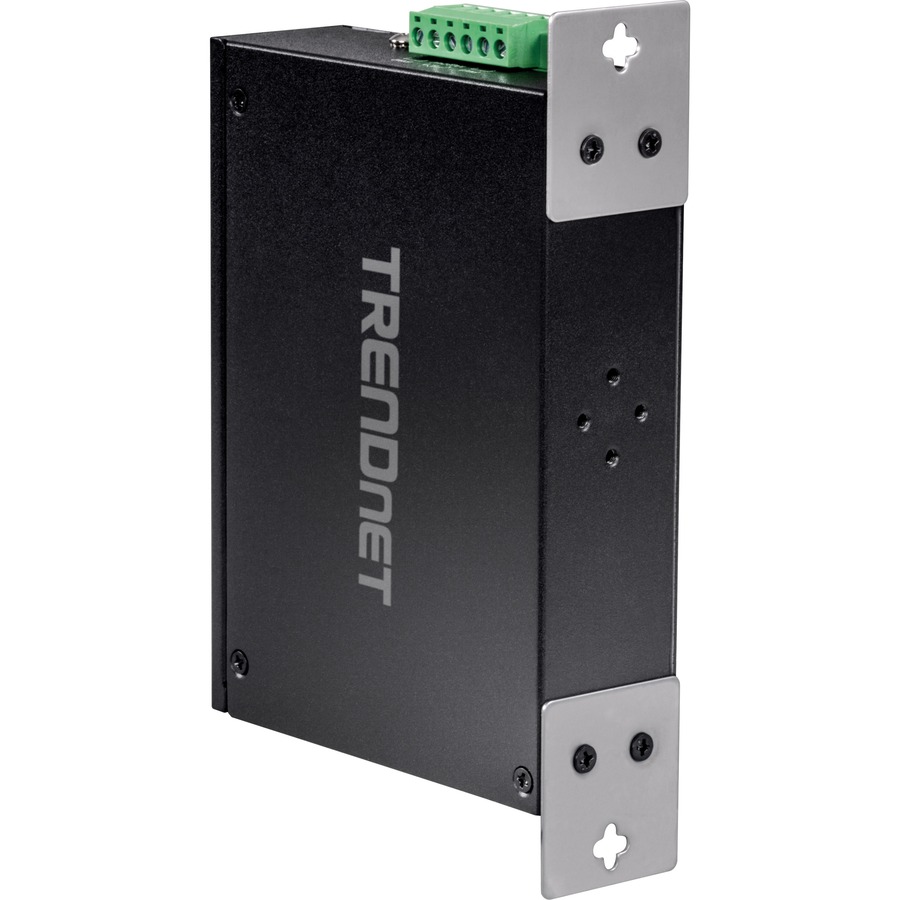

DIN-Rail / Wall Mounts

The rugged PoE+ switch features an IP50 rated metal enclosure with DIN-Rail mount and wall mount hardware included

Redundant Power

Dual inputs provide redundant power with overload current protection (power supply sold separately, model: TI-S24052)

Extreme Temperature Range

An extreme operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with intense hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2); Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

Grounding Point

The industrial unmanaged PoE+ switch features a grounding point to protect equipment from external electrical surges

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3af

IEEE 802.3at

Device Interface

8 x 10/100Mbps PoE+ ports

6-pin removable terminal block

LED indicators

DIN-Rail mount

Wall mount

Grounding point

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Performance

Data RAM Buffer: 125KB

Switching Fabric: 1.6Gbps

MAC Address Table: 1K entries

Forwarding rate: 1.19Mpps (64-byte packet size)

Power

Input: 48 - 56V DC

Compatible power supply: TI-S24052 (sold separately)

Max. consumption: 5.76W @ 56V DC (without PD)

PoE

802.3at: Up to 30W per port

Hi-PoE: Up to 36W per port

Max. PoE budget: 120W - 200W

PoE Mode A: Pins 1, 2, 3, and 6 for power

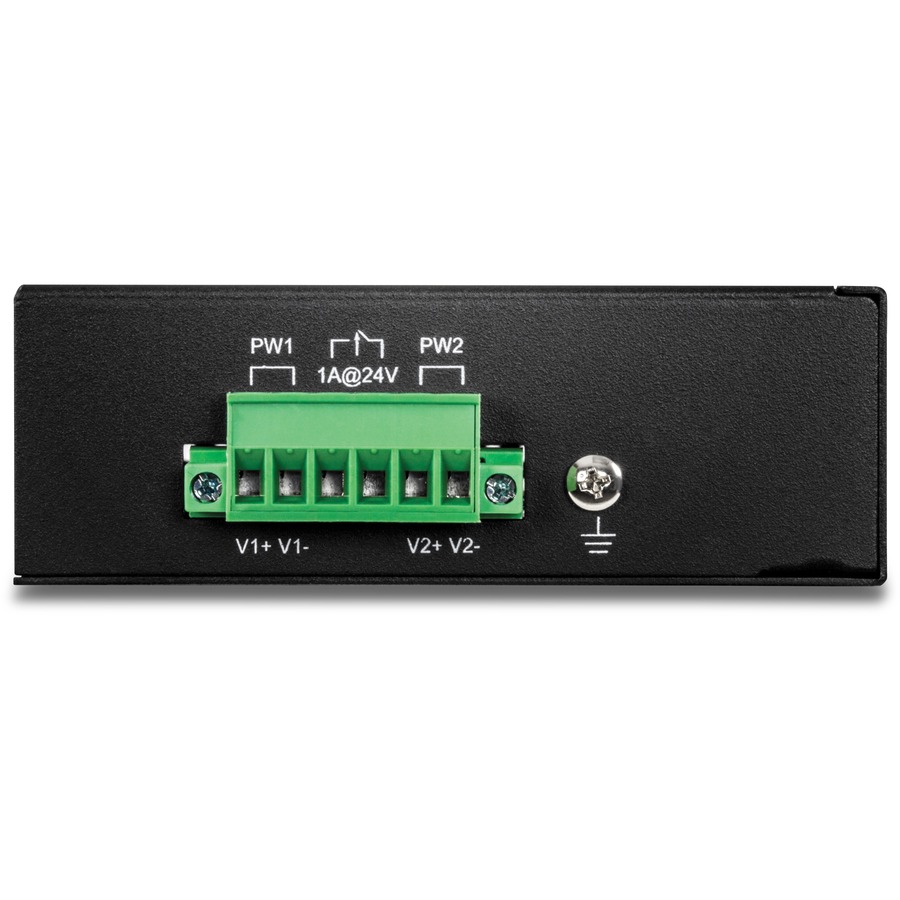

Terminal Block

Redundant power inputs, 6-pin

Wire range: 0.34mm^2 to 2.5mm^2

Solid wire (AWG): 12-24

Stranded wire (AWG): 12-24

Torque: 5 lb. – In / 0.5Nm / 0.56 Nm

Wire strip length: 7-8mm

Alarm relay output: 24V DC, 1A

MTBF

543,292 hours @ 25° C

Housing

IP50 metal case

DIN-Rail mount

Wall mount

Grounding point

6kV ESD protection

2kV surge protection

Operating Temperature

- 40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions (L x W x H)

142 x 105 x 37mm (5.6 x 4.1 x 1.5 in.)

Weight

486g (17 oz.)

Certifications

CE

FCC

LVD

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-PE80

Removable terminal block

DIN-Rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

8-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch

8 x Fast Ethernet PoE+ ports

Up to 200W PoE power budget

Hardened IP50 rated metal switch

Extreme operating temperature range of -40° – 75°C (-40° – 167°F)

Dual inputs provide redundant power with overload current protection

1.6Gbps switching capacity

Alarm relay triggered by power failure

Includes DIN-Rail mount and wall mount brackets

Power supply sold separately (model: TI-S24052)

NDAA / TAA compliant (U.S. and Canada only)

Lifetime Warranty
