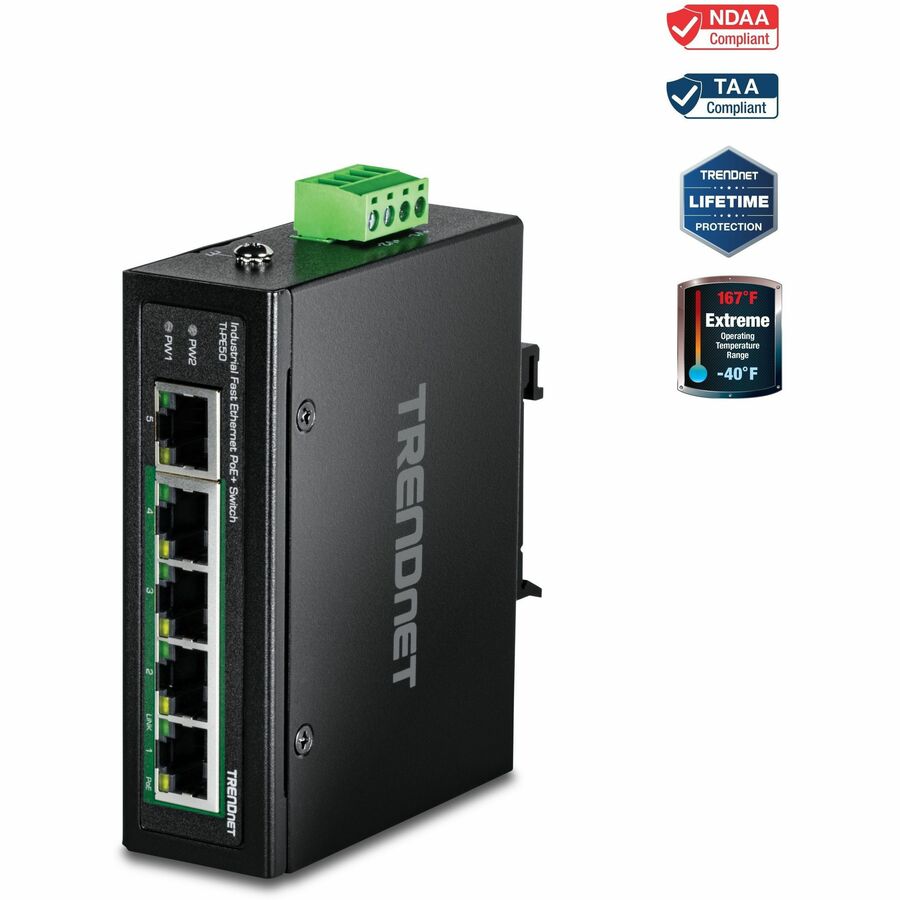

TRENDnet 5-Port Industrial Fast Ethernet DIN-Rail Switch, TI-PE50…

TRENDnet's 5-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch, model TI-PE50, features a rugged IP50 rated aluminum enclosure. This industrial unmanaged PoE+ switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection minimizes network downtime. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Fast Ethernet PoE+ Switch by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. Utilize TRENDnet's industrial PoE+ switch to easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

DEVICE INTERFACE: 4 x Fast Ethernet PoE+ Ports; 1 x Fast Ethernet Port

TRENDnet LIFETIME PROTECTION: We stand by our products. The TI-PE50 5-Port Industrial Switch is secured with LifetimeManufacturer Protection from TRENDnet.

NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions thatgovernment customers demand today. (U.S. and Canada only)

RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all yourneeds during normal business hours. We take pride in being there for our customers.

POE+ POWER & SWITCHING CAPACITY: The industrial unmanaged switch is equipped with 1Gbps switching capacity, and up to90W PoE power budget supplies up to four Power over Ethernet devices with PoE+ power.

DIN-RAIL & WALL MOUNT KIT: This 5-Port PoE+ switch comes with an integrated DIN-Rail mount and mounting hardwarebrackets.

SHOCK AND VIBRATION RESISTANT: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

EXTREME TEMPERATURE SWITCH: The metal hardened IP50 rated DIN-Rail switch is equipped with a rugged IP30 ratedenclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with awide temperature range (- 40 - 75 °C (-40 - 167 °F)) for harsh environments.

REDUNDANT POWER: The 5 port network switch has dual redundant power inputs with overload current protection (power

supply sold separately: models: TI-S15052)

GROUNDING POINT: The industrial unmanaged PoE+ switch features a grounding point to protect equipment from externalelectrical surges

More from the Manufacturer

OVERVIEW

TRENDnet’s 5-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch, model TI-PE50, features a rugged IP50 rated aluminum enclosure. This industrial unmanaged PoE+ switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection minimizes network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Fast Ethernet PoE+ Switch by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. Utilize TRENDnet's industrial PoE+ switch to easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

PoE+ Power

Maximum 90W PoE+ power budget supplies power up to four Power over Ethernet devices.

Fault Tolerance

The industrial unmanaged PoE+ switch features redundant power inputs for backup power.

Industrial Hardened Design

Rugged IP50 rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).

PoE+ Power

Up to 30W of power per port and

data over a single Ethernet cable

to PoE devices

Easy Installation

No configuration needed, simply

connect PoE+ network devices

to the industrial unmanaged

PoE+ switch

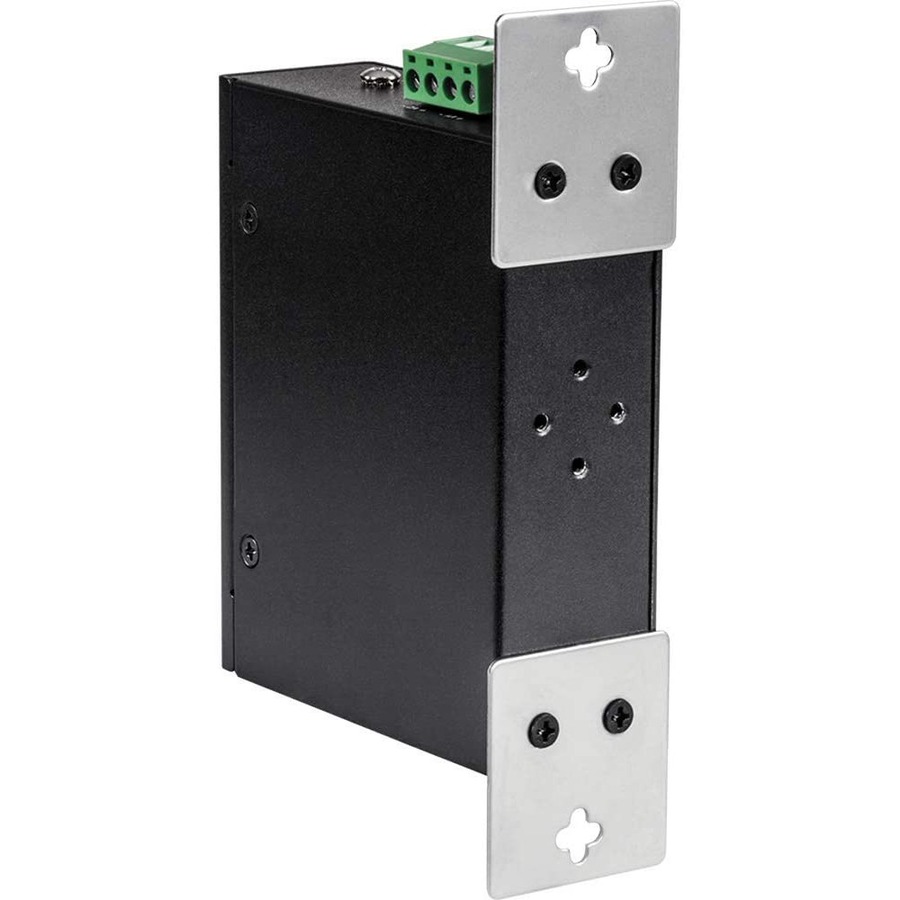

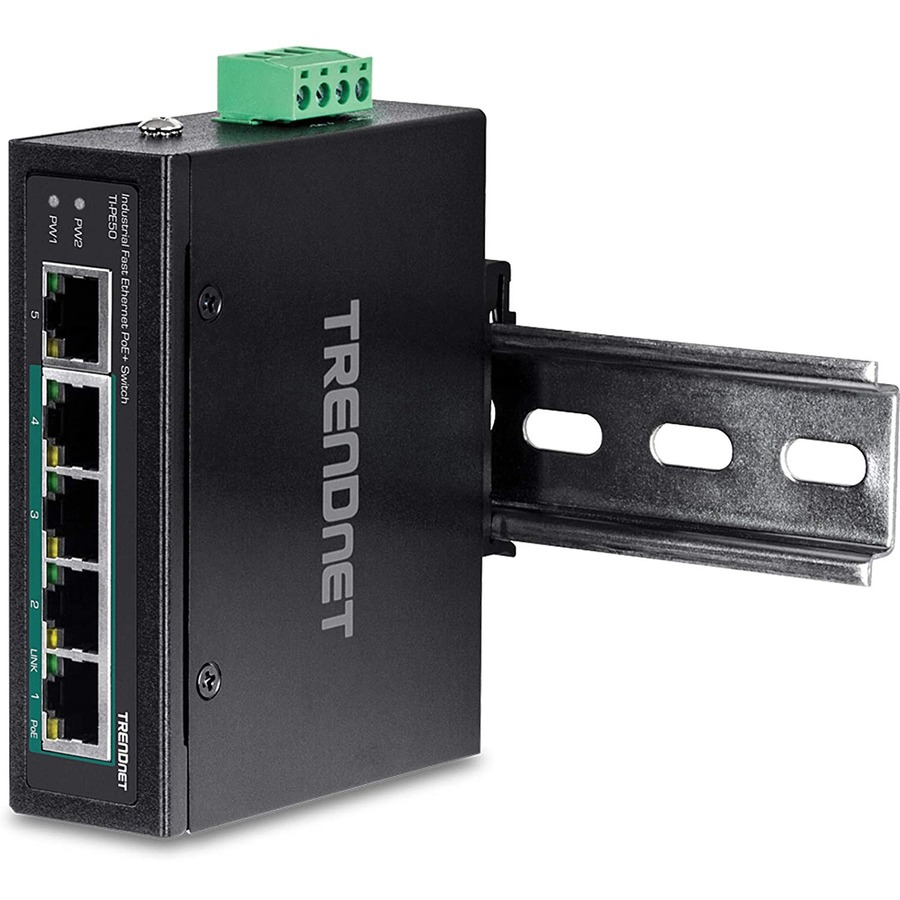

DIN-Rail / Wall Mounts

The rugged PoE+ switch features

an IP50 rated aluminum enclosure

with DIN-Rail mount and wall

mount hardware included

Redundant Power

Dual inputs provide redundant

power with overload current

protection (power supply sold

separately, model: TI-S15052)

Extreme Temperature Range

An extreme operating temperature

range of -40° – 75° C (-40° – 167°

F) allows for installations in

industrial environments with

intense hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27),

freefall (EN 60068-2-32), and

vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS

certifications ESD (IEC 61000-42);

Contact: 6kV, Air: 8kV; EFT (IEC

61000-4-4): Power 2kV, Signal:

2kV; Surge (IEC 61000-4-5):

Power: 2kV, Signal: 2kV

Grounding Point

The industrial unmanaged PoE+

switch features a grounding point

to protect equipment from external

electrical surges

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3af

IEEE 802.3at

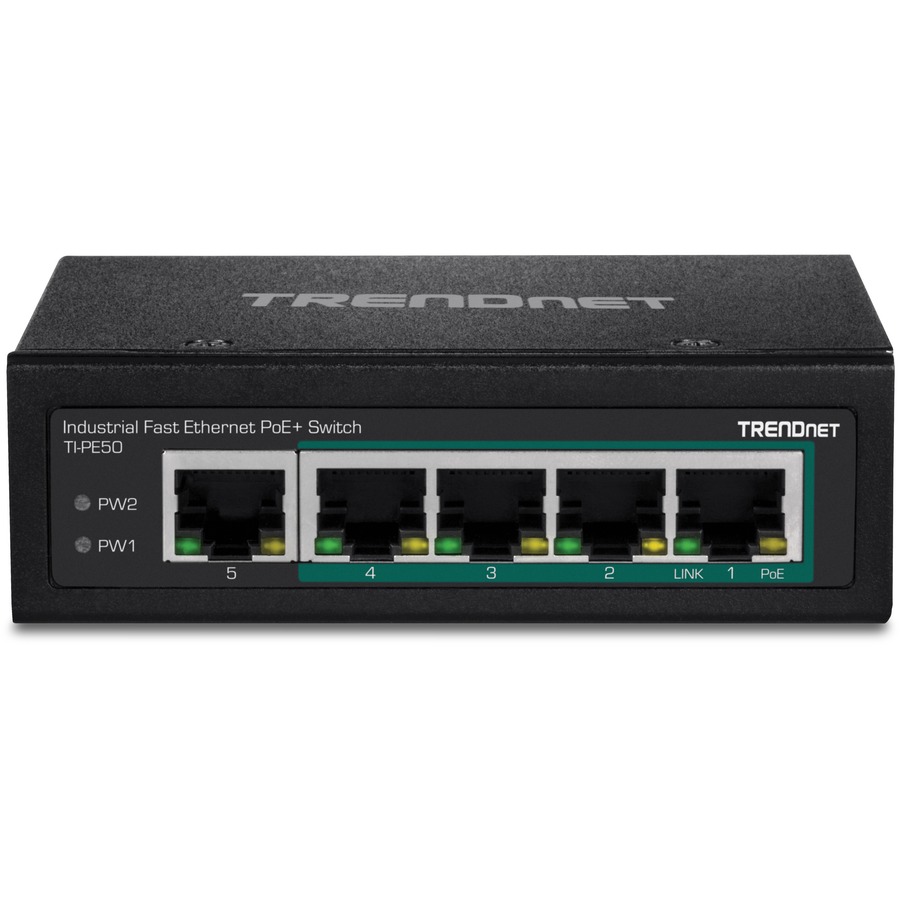

Device Interface

4 x 10/100Mbps PoE+ ports

1 x 10/100Mbps port

4-pin removable terminal block

LED indicators

DIN-Rail mount

Wall mount

Grounding point

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Performance

Data RAM Buffer: 56KB

Switching Fabric: 1Gbps

MAC Address Table: 1K entries

Forwarding rate: 148.8Kpps (64-byte packet size)

Power

Input: 48 - 56V DC

Compatible power supply: TI-S15052 (sold separately)

Max. consumption: 1.68W @ 56V DC (without PD)

PoE

802.3at: Up to 30W per port

PoE budget: 60W - 90W

PoE Mode A: Pins 1, 2, 3, and 6 for power

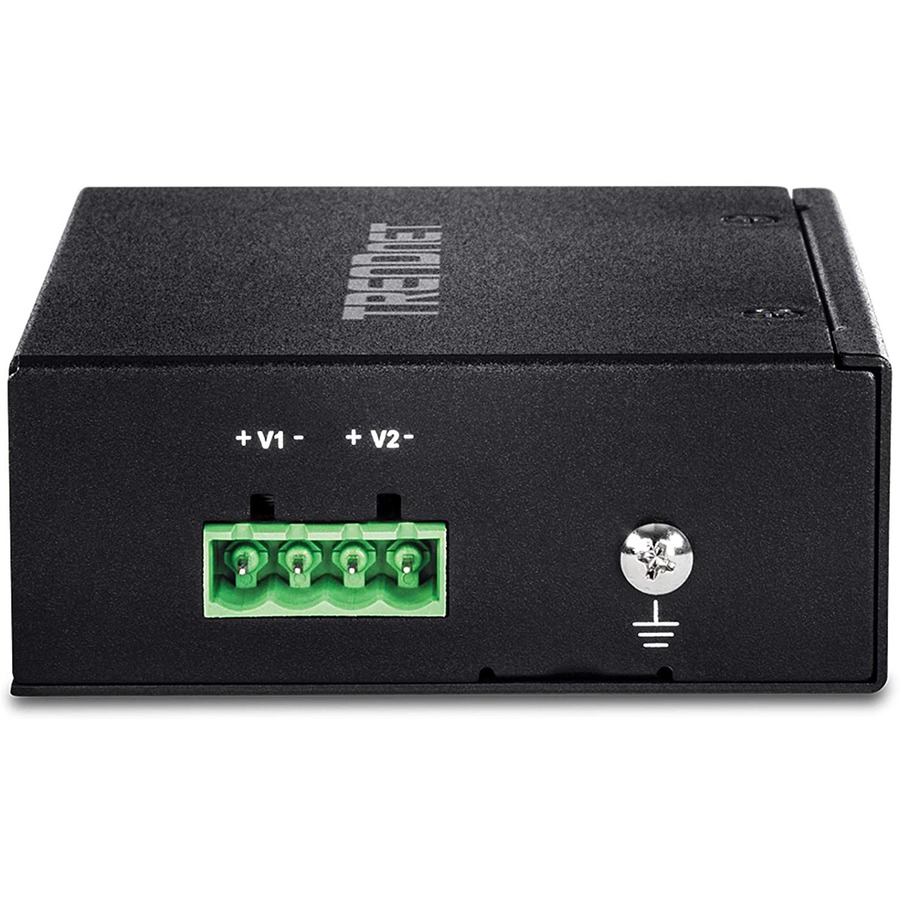

Terminal Block

Redundant power inputs, 4-pin

Wire range: 0.34mm^2 to 2.5mm^2

Solid wire (AWG): 12-24

Stranded wire (AWG): 12-24

Torque: 5 lb. – In / 0.5Nm / 0.56 Nm

Wire strip length: 7-8mm

MTBF

543,292 hours @ 25° C

Housing

IP50 metal case

DIN-Rail mount

Wall mount

Grounding point

6kV ESD protection

2kV surge protection

Operating Temperature

-40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions (L x W x H)

103.5 x 81.5 x 32mm (4 x 3.2 x 1.2 in.)

Weight

170g (5.9 oz.)

Certifications

CE

FCC

LVD

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-PE50

Removable terminal block

DIN-Rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

5-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch

4 x Fast Ethernet PoE+ ports

1 x Fast Ethernet port

Up to 90W PoE power budget

1Gbps switching capacity

Hardened IP50 rated aluminum switch

Extreme operating temperature range of -40° – 75°C (-40° – 167°F)

Dual inputs provide redundant power with overload current protection

Includes DIN-Rail mount and wall mount brackets

Power supply sold separately (model: TI-S15052)

NDAA / TAA compliant

Lifetime Warranty
