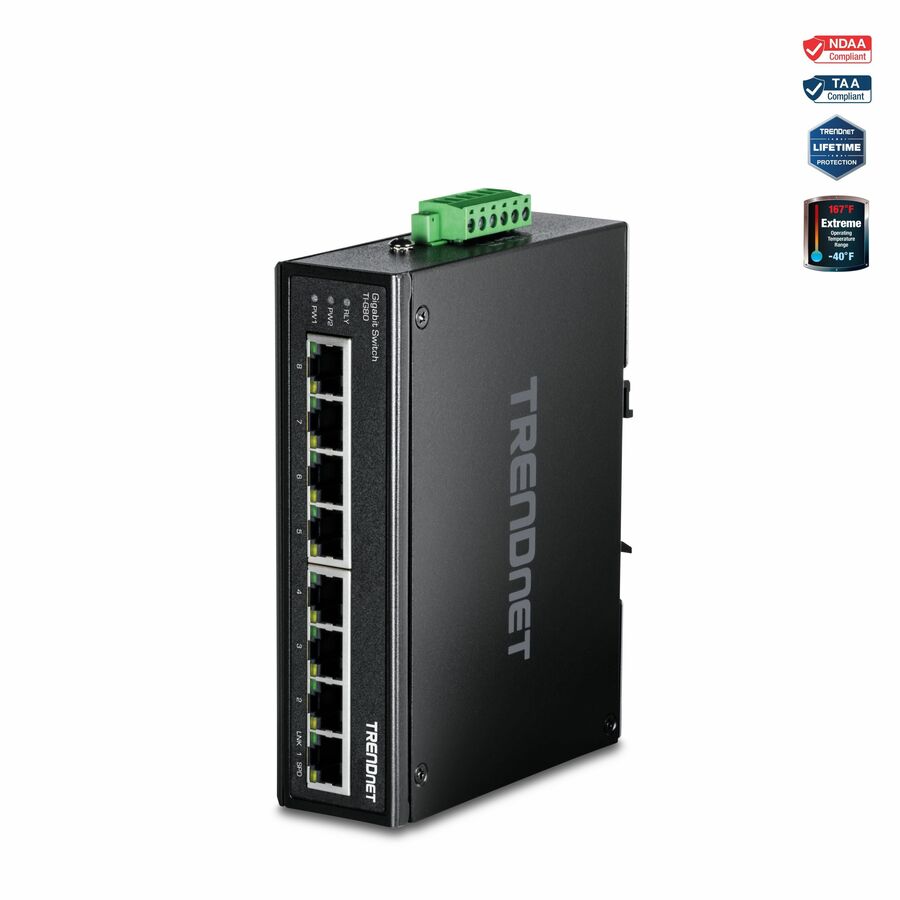

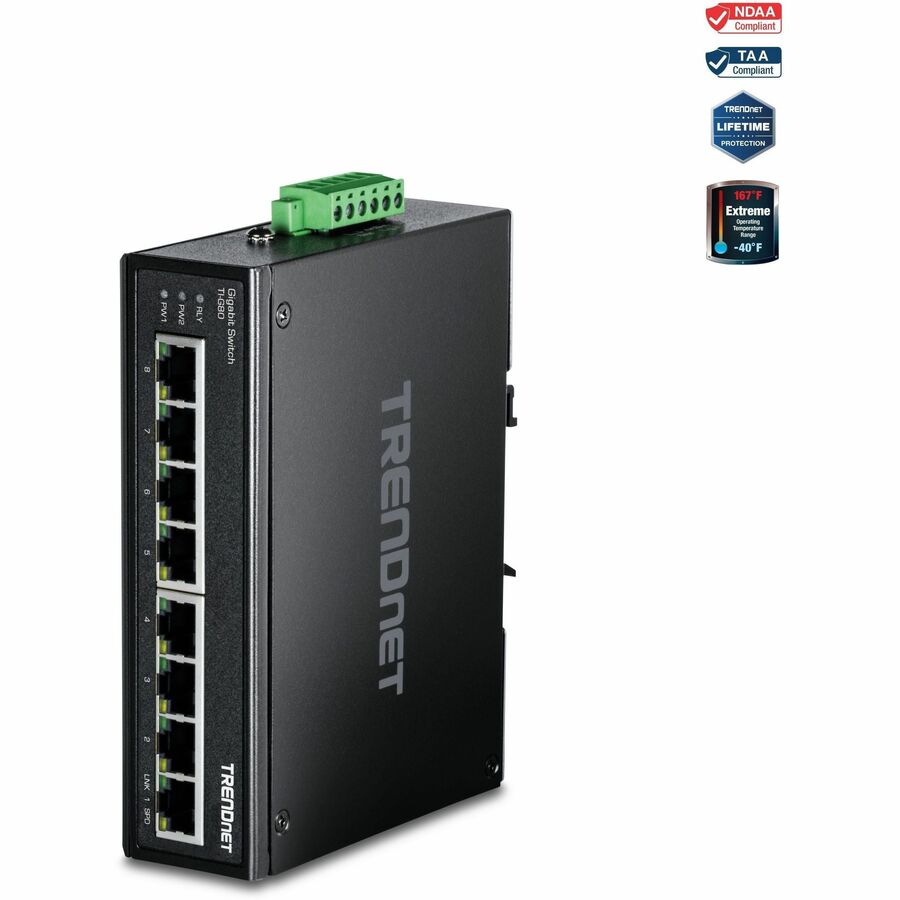

TRENDnet 8-Port Industrial Gigabit Ethernet DIN-Rail Switch, TI-G80, 8…

TRENDnet's 8-Port Industrial Gigabit Ethernet DIN-Rail Switch, model TI-G80, features a rugged IP50 rated metal enclosure. This industrial unmanaged Ethernet switch is designed to withstand high levels of vibration and shock, while operating in both low and high temperatures for industrial environments within a -40° - 75° C (-40° - 167° F) extreme temperature range. Redundant power inputs with overload current protection minimize network downtime.

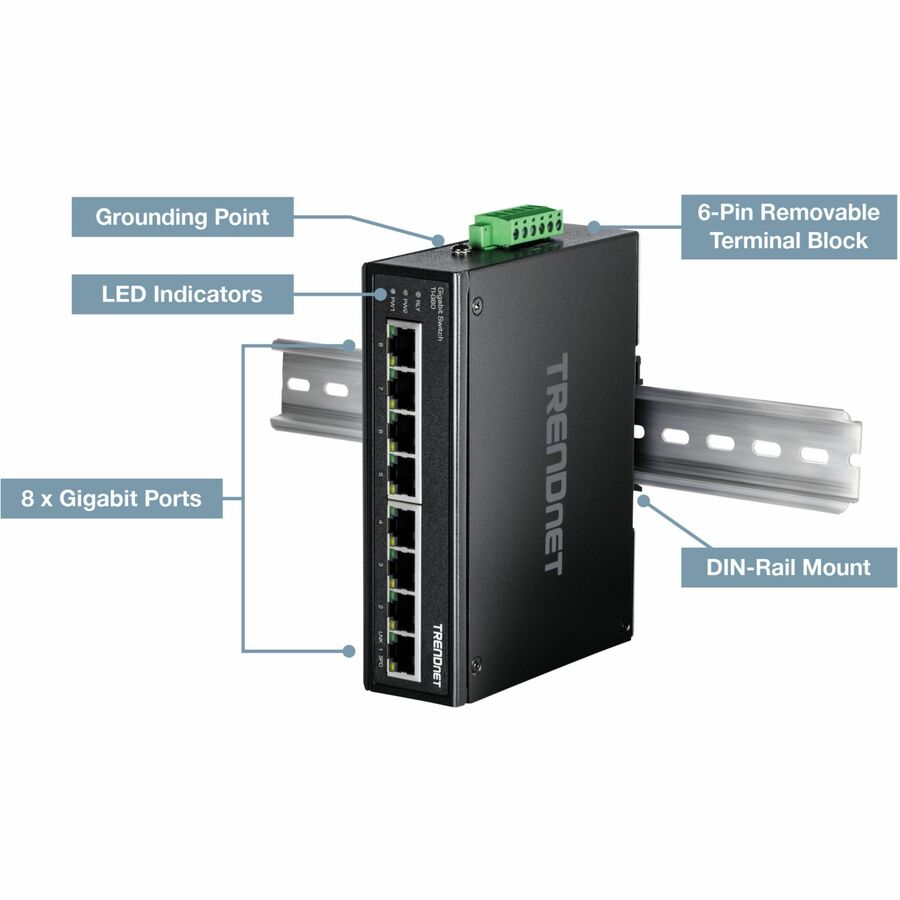

• DEVICE INTERFACE: 8 x Gigabit Ports; 6-Pin Removable Terminal Block; LED Indicators

• TRENDnet LIFETIME PROTECTION: We stand by our products. The TI-G80 8-Port Industrial Switch is secured with Lifetime Manufacturer Protection from TRENDnet.

• NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only)

• RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.

• INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F).

• DIN RAIL & WALL MOUNTS: IP50 rated metal enclosure on the industrial switch with included DIN-Rail mount and wall mount hardware

• POWER SUPPLY SOLD SEPARATELY: Use this industrial switch with the compatible power supply

• Model TI-M6024 (Sold Separately)

• FAULT TOLERANCE: The industrial Ethernet switch features dual power inputs to provide redundant power with overload current protection.

• EASY INSTALLATION: No configuration needed, simply connect network devices to the industrial Ethernet switch with an intuitive guided setup

• GROUNDING POINT: The industrial switch features a grounding point to protect equipment from external electrical surges

More from the Manufacturer

OVERVIEW

TRENDnet’s 8-Port Industrial Gigabit Ethernet DIN-Rail Switch, model TI-G80, features a rugged IP50 rated metal enclosure. This industrial unmanaged Ethernet switch is designed to withstand high levels of vibration and shock, while operating in both low and high temperatures for industrial environments within a -40° – 75° C (-40° – 167° F) extreme temperature range. Redundant power inputs with overload current protection minimize network downtime.

Industrial Hardened Design

Equipped with a rugged IP50 rated housing, and designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F).

Fault Tolerance

Features redundant power inputs from external power sources and an output alarm relay to indicate the event of input power failure.

Easy Installation

No configuration needed, simply connect network devices to the industrial Ethernet switch.

Easy Installation

Quick and easy installation

process with an intuitive guided

setup

IP50 Rated

IP50 rated for ingress

dust protection

Fault Tolerance

Features redundant power inputs

from external power sources and

an output alarm relay to indicate an

input power failure – power supply

sold separately (model: TI-M6024)

Extreme Temperature Range

An extreme operating temperature

range of -40° – 75° C (-40° – 167°

F) allows for installations in

industrial environments with

severe hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27),

freefall (EN 60068-2-32), and

vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS

certifications ESD (IEC 61000-42):

Contact: 6kV, Air: 8kV; EFT (IEC

61000-4-4): Power: 2kV, Signal:

2kV; Surge (IEC 61000-4-5):

Power: 2kV, Signal: 2kV

DIN-Rail / Wall Mounts

Includes DIN-Rail mount and

wall mount hardware

Grounding Point

Grounding point is designed to

protect equipment from

external electrical surges

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3x

Device Interface

8 x Gigabit ports

6-pin removable terminal block

LED indicators

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2Gbps (full duplex)

Performance

Data RAM Buffer: 512KB

Switching Fabric: 16Gbps

MAC Address Table: 8K entries

Jumbo Frame: 9KB

Forwarding rate: 11.9Mpps (64-byte packet size)

Power

Input: 12 – 56V DC

Compatible power supply: TI-M6024 (sold separately)

Max. consumption: 3.36W @ 48V DC

Terminal Block

Redundant power inputs, 6-pin

Alarm Relay: 1A @ 24V DC

Wire range: 0.34mm^2 to 2.5mm^2

Solid wire (AWG): 12-24

Stranded wire (AWG): 12-24

Torque: 5 lb. – In / 0.5Nm / 0.56 Nm

Wire strip length: 7-8mm

MTBF

538,297 hours @ 25° C

Enclosure

IP50 metal case

DIN-Rail mount

Wall mount

Grounding point

6kV ESD protection

2kV surge protection

Operating Temperature

- 40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

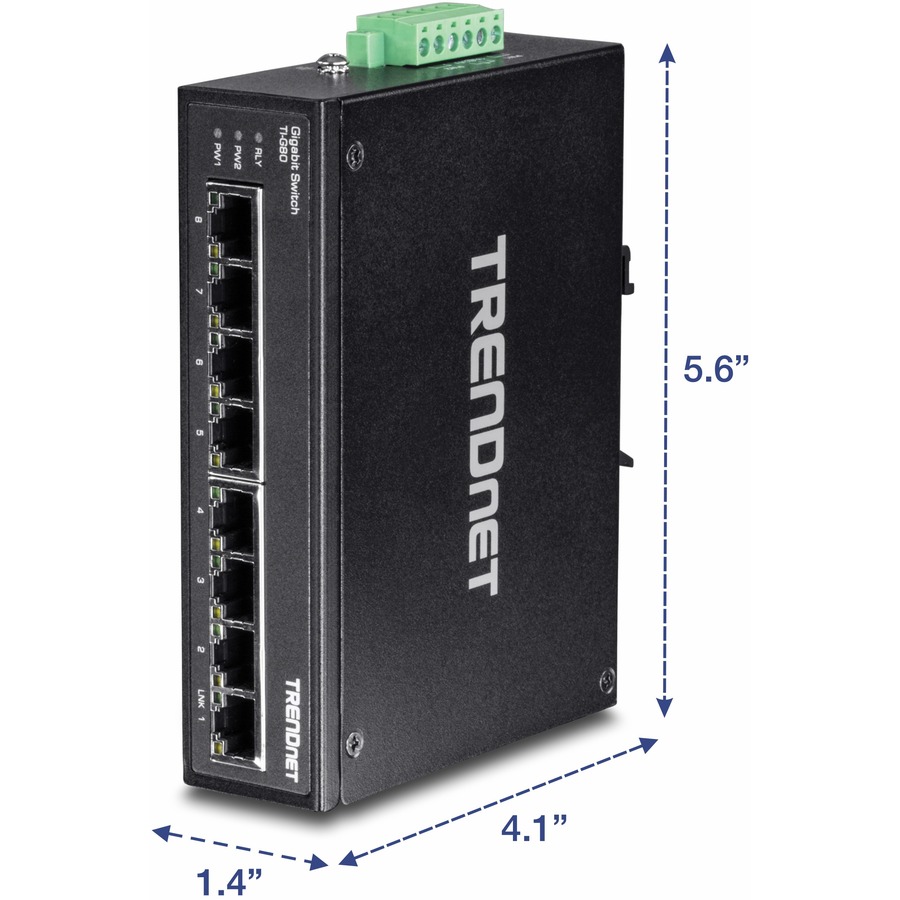

Dimensions

143 x 104 x 36mm (5.6 x 4.1 x 1.4 in.)

Weight

528g (18.6 oz.)

Certifications

CE

FCC

LVD

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

Warranty

Lifetime Warranty*

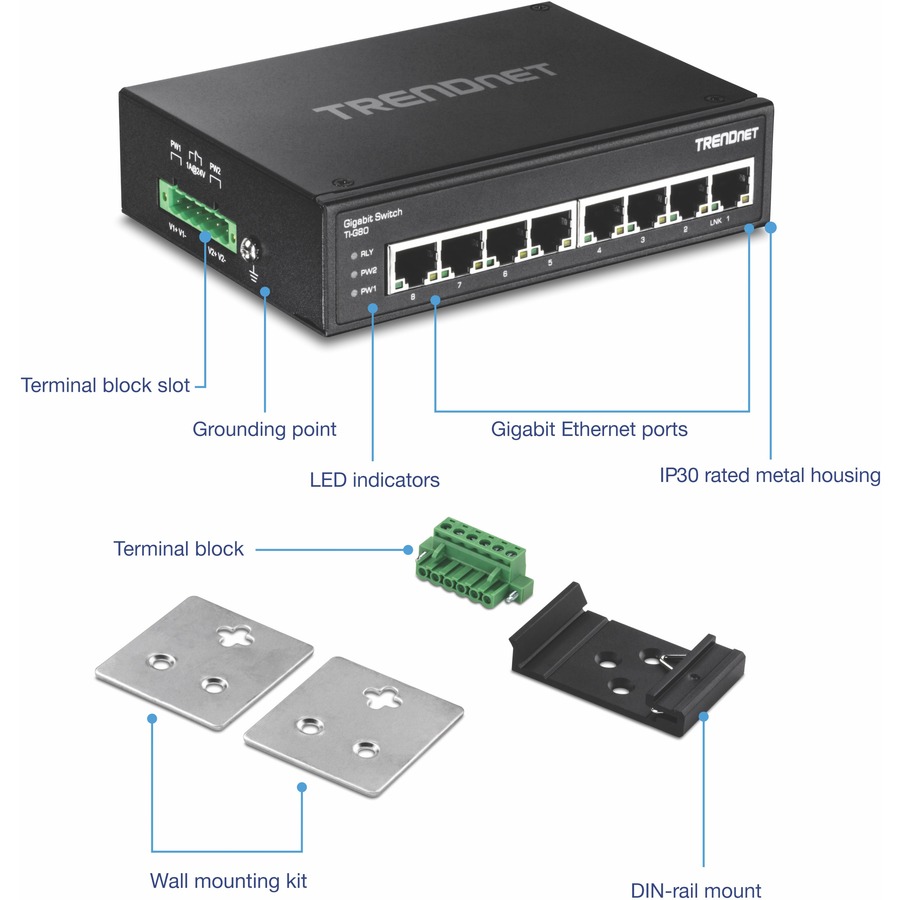

PACKAGE CONTENTS

TI-G80

Removable terminal block

DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage

8-Port Hardened Industrial Gigabit DIN-Rail Switch

8 x Gigabit Ethernet ports

Hardened IP50 rated metal switch

Extreme operating temperature range of -40° – 75° C (-40° – 167° F)

Dual power inputs provide redundant power with overload current protection

Alarm relay triggered by power failure

Fanless design for silent operation

16Gbps switching capacity

Includes DIN-Rail mount and wall mount brackets

Power supply sold separately (model: TI-M6024)

NDAA / TAA compliant (U.S. and Canada only)

Lifetime Warranty
