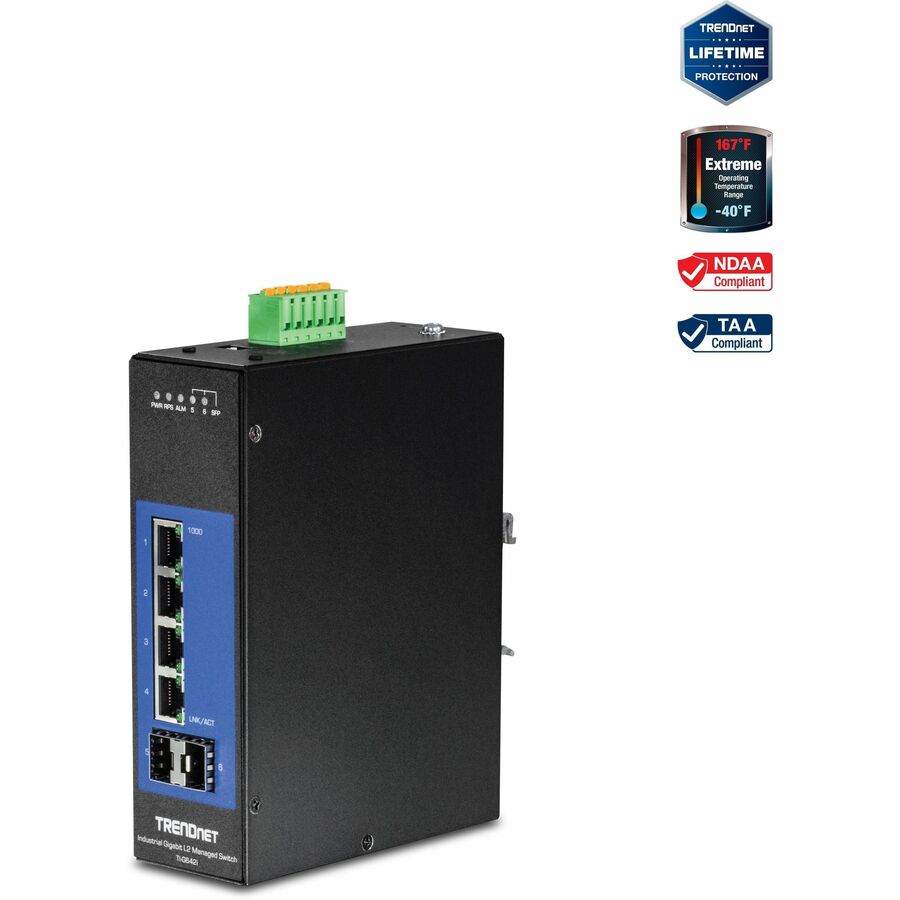

TRENDnet 6-Port Industrial Gigabit L2 Managed DIN-Rail Switch; 4 x Gigabit Ports; 2 x SFP Slots; DIN-Rail Mount; IP30; VLAN; QoS; LACP; STP/RSTP; Bandwidth management; Lifetime Protection; TI-G642i

TRENDnet's Industrial Gigabit L2 Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Our industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber networking applications. These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.

• DEVICE INTERFACE: 4 x Gigabit ports, 2 x SFP slots, Supports 100/1000base-fx fiber SFP modules

• LIFETIME PROTECTION -We stand by the quality of our products. The TI-G642i 6-Port Industrial Gigabit L2 Managed DIN-Rail Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• 12Gbps switching capacity, hardened IP30 rated metal housing

• Power supply sold separately (model: TI-M6024), includes DIN-rail mounting bracket

• WIDE TEMPERATURE RANGE: A wide operating temperature range of -40° - 75° C (-40° - 167° F) allows for installations in industrial environments with extreme hot or cold conditions

• ALARM RELAY: Alarm relay output triggered by power failure of primary and / or redundant power to the industrial layer 2 managed switch

• ACCESS CONTROL: Managed access control features include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping, and IP Source Guard provide the industrial layer 2 managed switches with layered network access controls

• INTEGRATION FLEXIBILITY: Managed layer 2 features include VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

More from the Manufacturer

OVERVIEW

TRENDnet's Industrial Gigabit L2 Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Our industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber networking applications.

These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.

Integration Flexibility

Managed layer 2 features include VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

Shock and Vibration Resistant

The industrial layer 2 managed switches are rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6).

Industrial Design

Equipped with an IP30 rated metal enclosure, the industrial layer 2 managed switch operates within a wide temperature range of -40° – 75° C (-40° – 167° F).

Network Ports

Gigabit ports for high-speed network connectivity and SFP slots for long distance fiber applications

Traffic Management

Layer 2 Managed features include 802.1Q, MAC & Port Isolation VLAN, IGMP Snooping, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP spanning tree, and link aggregation for flexible network integration

Access Control

Managed access control features include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping, and IP Source Guard provide the industrial layer 2 managed switches with layered network access controls

System Monitoring

Monitoring features include SNMP v1 / v2c / v3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, and SFP DDMI

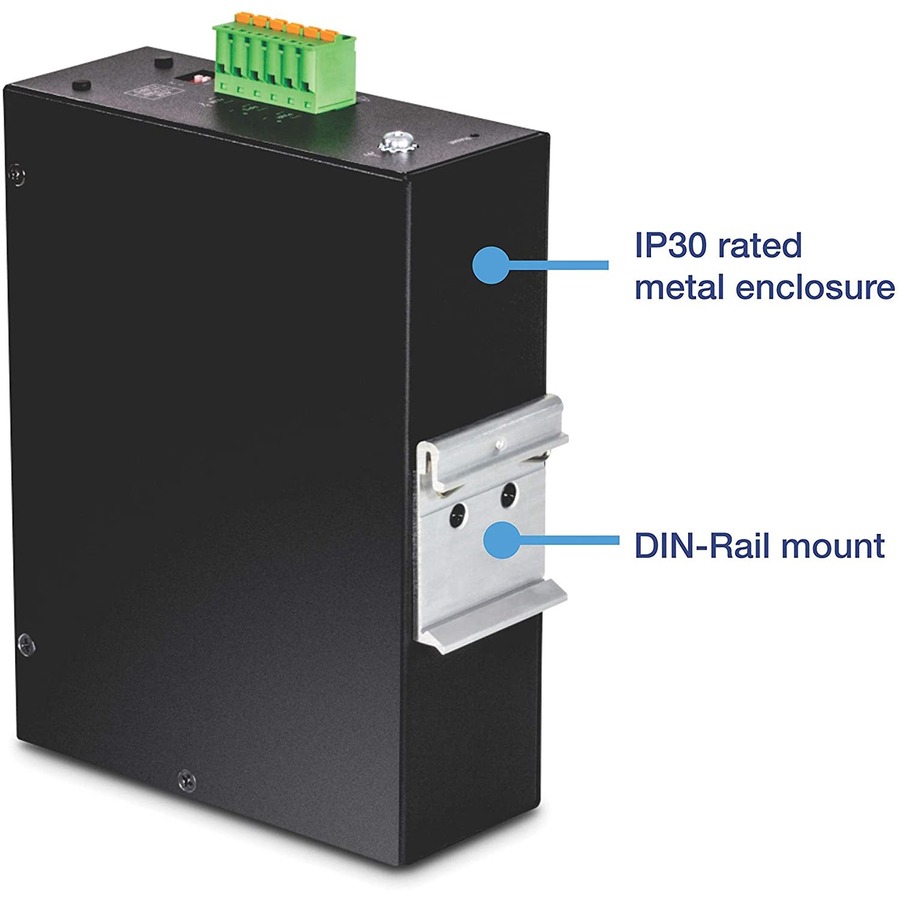

DIN-Rail Mount

IP30 rated metal enclosure, includes DIN-rail mounting bracket for the industrial layer 2 managed switch

Redundant Power

Dual redundant power inputs with overload current protection (power supply sold separately)

Alarm Relay

Alarm relay output triggered by power failure of primary and / or redundant power to the industrial layer 2 managed switch

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance from the industrial layer 2 managed switch

Wide Temperature Range

A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges on the industrial layer 2 managed switch

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.1ax

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3az

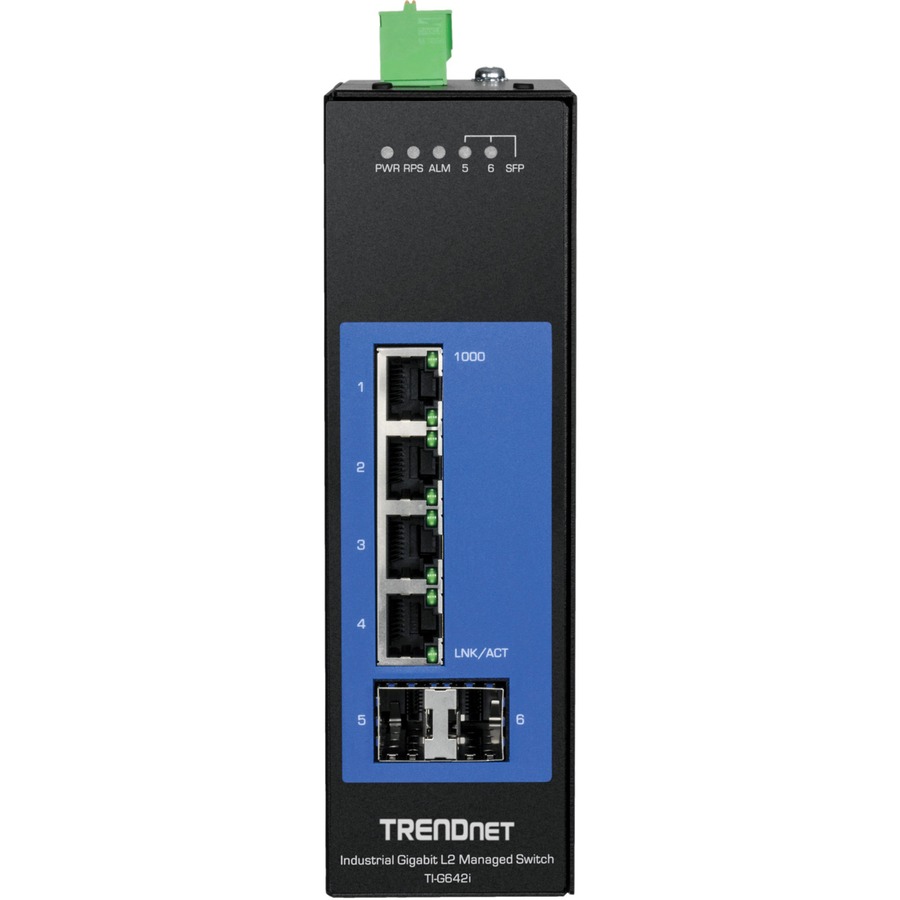

Device Interface

4 x Gigabit ports

2 x 100/1000Mbps SFP slots

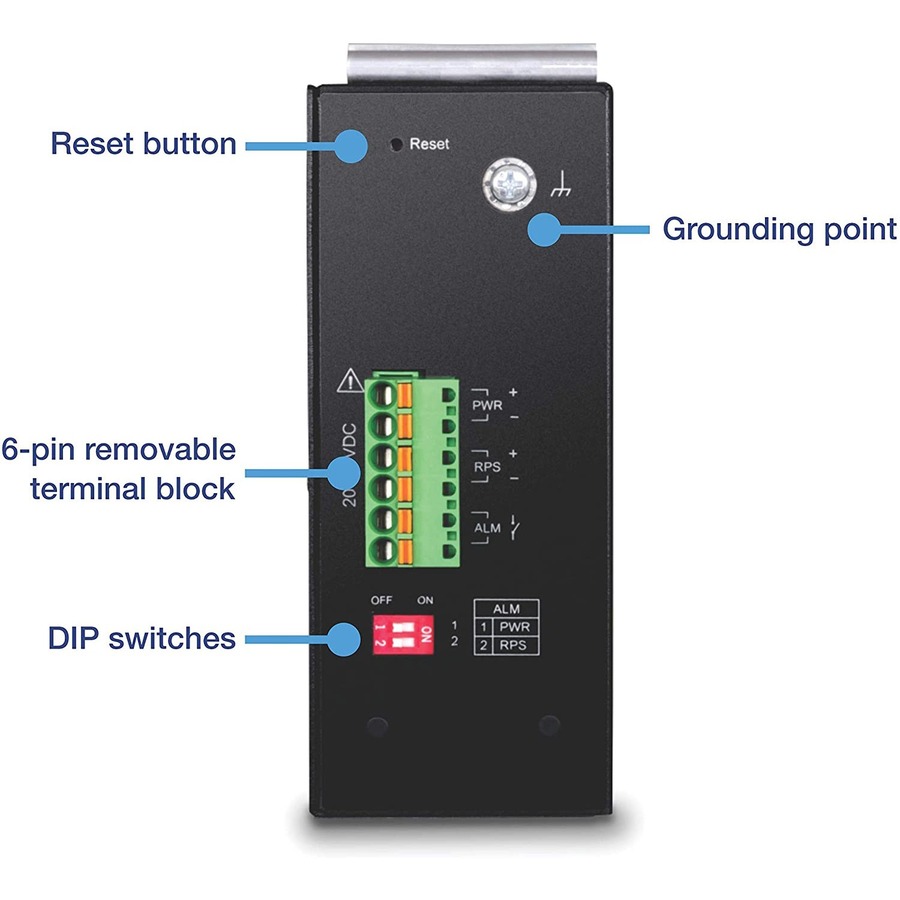

6-pin removable terminal block (primary/RPS power inputs & alarm relay output)

DIP switches

LED indicators

Reset button

Data Transfer Rate

Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit Ethernet: 2000Mbps (full duplex)

Performance

Switch fabric: 12Gbps

RAM buffer: 512KB

MAC address table: 8K entries

Jumbo frames: 10KB

Forwarding mode: store and forward

Forwarding rate: 8.92Mpps (64-byte packet size)

Management

HTTP web-based GUI

CLI: Telnet / SSHv2

SNMP v1, v2c, v3

SNMP trap (up to 5 receivers)

RMON groups 1/2/3/9

Device configuration backup & restore, upgrade firmware, reboot, and reset to default

Multiple administrative or read-only user accounts

Enable or disable power saving mode per port

Static MAC entries

LLDP (Link layer discovery protocol)

Netlite device map

ONVIF device discovery

SNTP

SMTP alert

Syslog

Port statistics/utilization

Traffic monitor

Port mirror: one to one, many to one

Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)

Loopback detection

DHCP relay/option 82

Modbus/TCP

SFP DDMI (Digital Diagnostic Monitoring Interface)

ERPS (Ethernet Ring Protection Switching) G8032v2

MIB

MIB II RFC 1213

Bridge MIB RFC 1493

RMON (Group 1,2,3,9) RFC 2819 RFC 1757

Spanning Tree

IEEE 802.1d STP (spanning tree protocol)

IEEE 802.1w RSTP (rapid spanning tree protocol)

BPDU filter, guard, and root guard

Link Aggregation

Static link aggregation and 802.3ad dynamic LACP (Up to 3 groups)

Quality of Service (QoS)

802.1p Class of service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth control per port

Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)

VLAN

802.1Q tagged VLAN

MAC-based VLAN

Port isolation

Up to 256 VLAN groups, ID range 1-4094

Multicast

IGMP snooping v1, v2, v3

IGMP querier

IGMP fast leave

Up to 256 multicast groups

Static multicast entries

Access Control

802.1X authentication (Local user database, RADIUS, guest VLAN assignment)

DHCP snooping/screening

Trusted host/IP access list for management access

Port Security/MAC address learning restriction (Up to 100 entries per port)

Static/dynamic ARP inspection

ACL

Source/Destination MAC address

Source/Destination IP address

Source Interface

VLAN ID

EtherType

TCP/UDP port 1-65535

Special Features

Netlite device discovery and map display in GUI

Port security: MAC address learning restriction per port

DHCP relay/option 82 & DHCP server snooping/screening support

Wide operating temperature range

Dual redundant power inputs

Alarm relay triggered by power failure

Surge and ESD protection

Power

PWR (Primary) terminal input: 20 – 60V DC

RPS (Redundant) terminal input: 20 – 60V DC

Compatible power supply: TI-M6024 (60W), TI-S12024 (120W), TI-S12048 (120W), and TI-S24048 (240W) sold separately

Max. consumption: 12W

Terminal Block

Redundant power inputs, alarm relay contact, 6 pin

Wire range: 0.5 mm^2 to 2.5 mm^2

Solid wire (AWG): 12-26

Stranded wire (AWG): 12-26

Wire strip length: 10-11mm

DIP Switch

Switch

Status

Function

OFF

Disable alarm relay for PWR power input

ON

Enable alarm relay for power failure on PWR power input

OFF

Disable alarm relay for RPS power input

ON

Enable alarm relay for power failure on RPS power input

Alarm Relay Output

Relay output with current carrying capacity of 1A, 24V DC

Short circuit mode when one power source is connected

Open circuit mode when two power sources are connected

Enclosure

IP30 rated metal enclosure

Fanless passive cooling

DIN-Rail mount

Grounding point

ESD (Ethernet) Protection: 8KV DC

Surge (Power) Protection: 2KV DC

MTBF

996,299 hours @ 25° C

125,932 hours @ 75° C

Operating Temperature

-40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)

Weight

720g (1.59 lbs.)

Certifications

CE

FCC

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-G642i

Quick Installation Guide

Removable terminal block

DIN rail mounting bracket

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
