Attention: Due to high order volume, orders may require an additional business day to process.
Ports, 2 x Gigabit SFP Ports, IP50 Weather Rated, 14Gbps, NDAA TAA Compliant, Lifetime Protection
6-Port Hardened Industrial Gigabit DIN-Rail Switch
$176.33*
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 25 and Nov 29, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine TRENDnet through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

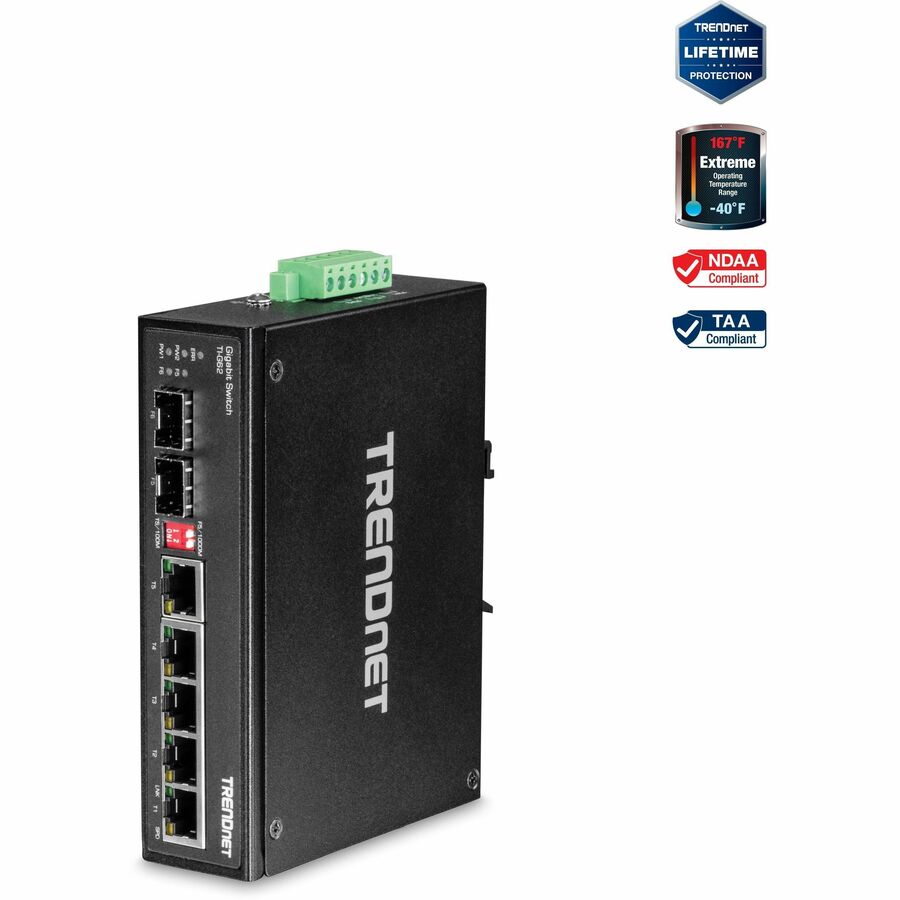

TRENDnet's 7-Port Industrial Gigabit DIN-Rail Switch, model TI-G62, features a rugged IP50- rated metal enclosure for industrial environments. This industrial unmanaged switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures within -40° - 75° C (-40° - 167° F). Redundant power inputs with power failure alarm relay and overload current protection minimize network downtime.
• DEVICE INTERFACE: 5 x Gigabit Ports (10/100/1000Mbps); 2 x Gigabit SFP Ports (1000Mbps); 6-Pin Removable TerminalBlock; LED Indicators; 16Gbps Switching Capacity
• TRENDnet LIFETIME PROTECTION: We stand by our products. The TI-G62 7-Port Industrial Switch is secured with LifetimeManufacturer Protection from TRENDnet.
• NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutionsthat government customers demand today. (U.S. and Canada only)
• INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree of
vibration and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F).
• DIN RAIL & WALL MOUNTS: IP50 rated metal enclosure on the industrial switch with included DIN-Rail mount and wall mount
hardware
• POWER SUPPLY SOLD SEPARATELY: Use this industrial switch with the compatible power supply
• Model TI-M6024 or TI-S15052 (Sold Separately)
• FAULT TOLERANCE: The industrial Ethernet switch features dual power inputs to provide redundant power with overload current protection.
• EASY INSTALLATION: No configuration needed, simply connect network devices to the industrial Ethernet switch with an
intuitive guided setup
• GROUNDING POINT: The industrial switch features a grounding point to protect equipment from external electrical surges
More from the Manufacturer
OVERVIEW
TRENDnet's TI-G62 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit Ethernet ports, one shared SFP slot, one dedicated SFP slot, and a 12 Gbps switching capacity. DIP switches toggle between the shared Gigabit port and SFP slot and set supported throughput to either 100 Mbps or 1 Gbps. Redundant power inputs (power supply sold separately: TI-M6024) and a power failure alarm output trigger support zero downtime applications.
Network Ports
5 x Gigabit Ethernet ports, 1 x shared SFP slot (shared with Ethernet port 5 and features a supply 100/1000 Mbps DIP switch) and 1 x dedicated SFP slot
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: model TI-M6024)
Switching Capacity
12 Gbps switching capacity
Grounding Point
Grounding point protects equipment from external electrical surges
Shock and Vibration Resistant
Rated for shock, free fall, and vibration
Extreme Temperatures
Hardened switch is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)
Electro Magnetic Compliance
Complies with FCC and CE standards
Certifications
Rated for information technology equipment, industrial, scientific, and medical equipment
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
Device Interface
5 x Gigabit ports
1 x Shared SFP slot (port F5)
1 x Gigabit SFP slot (port F6)
6-pin removable terminal block
LED indicators
DIP switch
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Performance
Data RAM Buffer: 128 KB
Switching Fabric: 12 Gbps
MAC Address Table: 2 K entries
Jumbo Frame: 9 KB
Forwarding rate: 8.9 Mpps (64-byte packet size)
Special Features
Hardened components rated for extreme temperatures
Redundant power inputs
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
Power
Input: 12 - 56 V DC
Compatible power supply: TI-M6024 (sold separately)
Consumption: Max. 3.84 Watts
Terminal Block
Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.34 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
Wire strip length: 7-8 mm
DIP Switch
1: set port 5 to copper port or SFP slot
2: set port 5 to 100 Mbps or 1000 Mbps on SFP slot
Alarm Relay Contact
Relay outputs with current carrying capacity of 1 A, 24 V DC
Short circuit mode when two power sources are connected
Open circuit mode when only one power source is connected
MTBF
510,304 hours
Housing
IP30 metal case
DIN-rail mount
Wall mount
Grounding point
ESD Protection: Contact: 6kV / Air: 8kV
Surge Protection: 2kV
Operating Temperature
- 40 to 75 °C (-40 to 167 °F)
Operating Humidity
Max. 95 % non-condensing

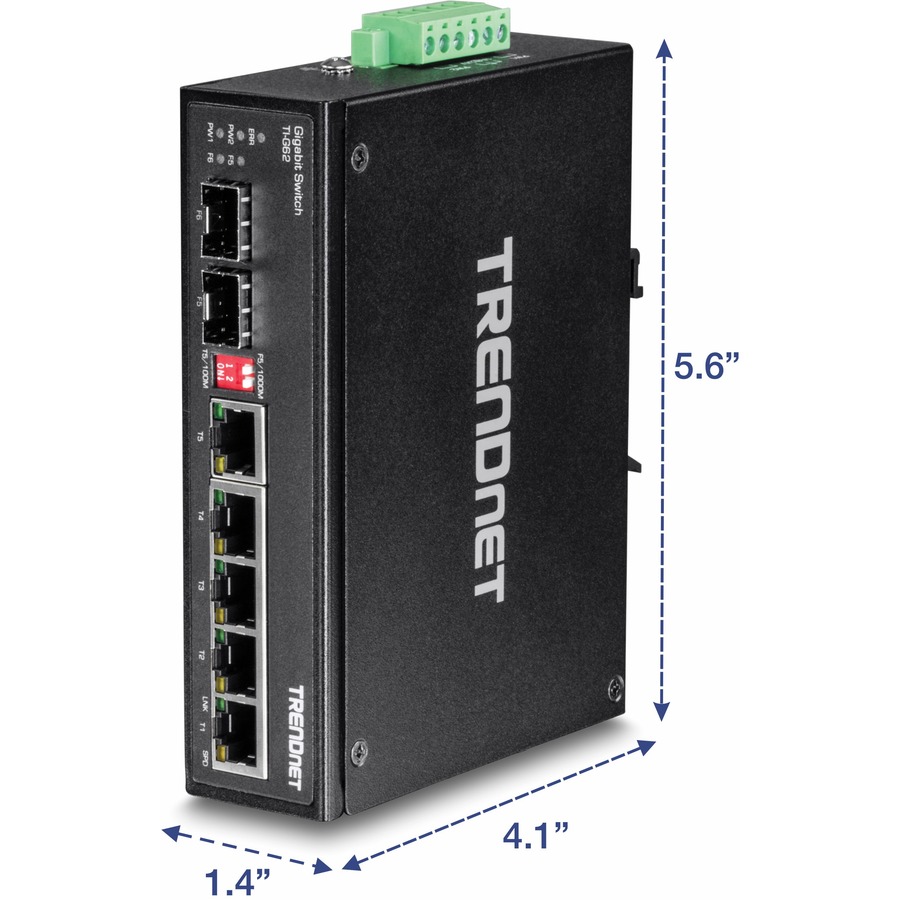

Dimensions
143 x 104 x 36 mm (5.6 x 4.1 x 1.4 in.)
Weight
514 g (1.1 lb)
Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TI-G62
Quick Installation Guide
Removable terminal block

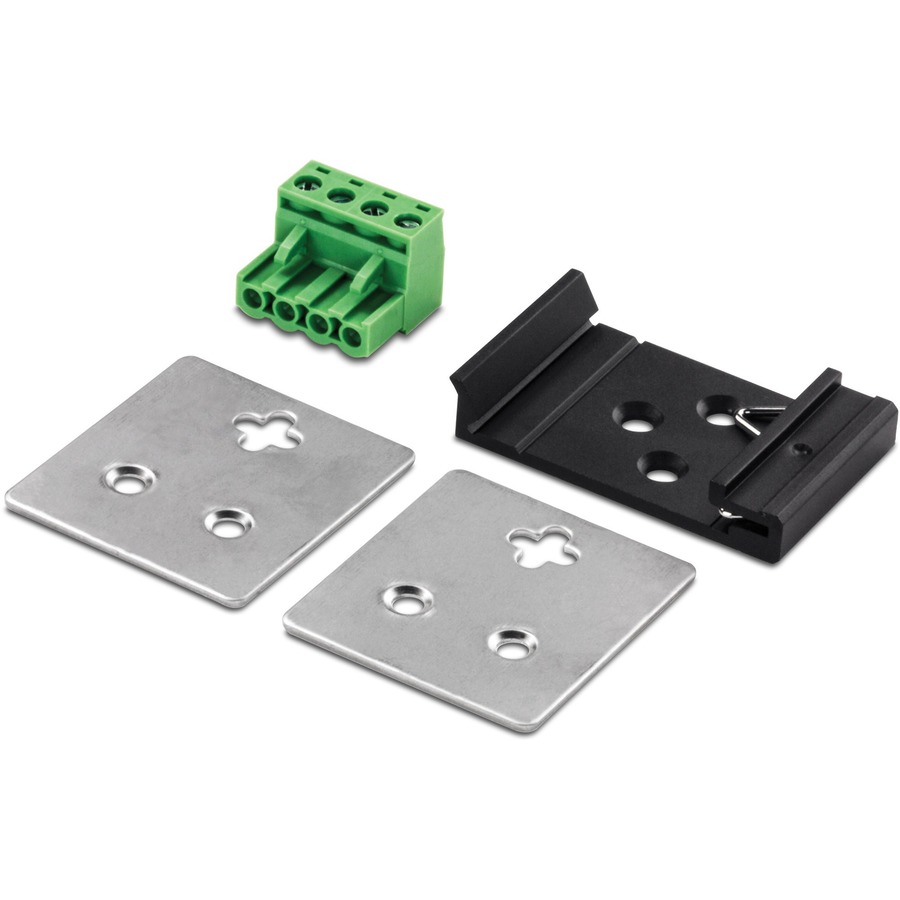

DIN-rail / wall mount kit
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

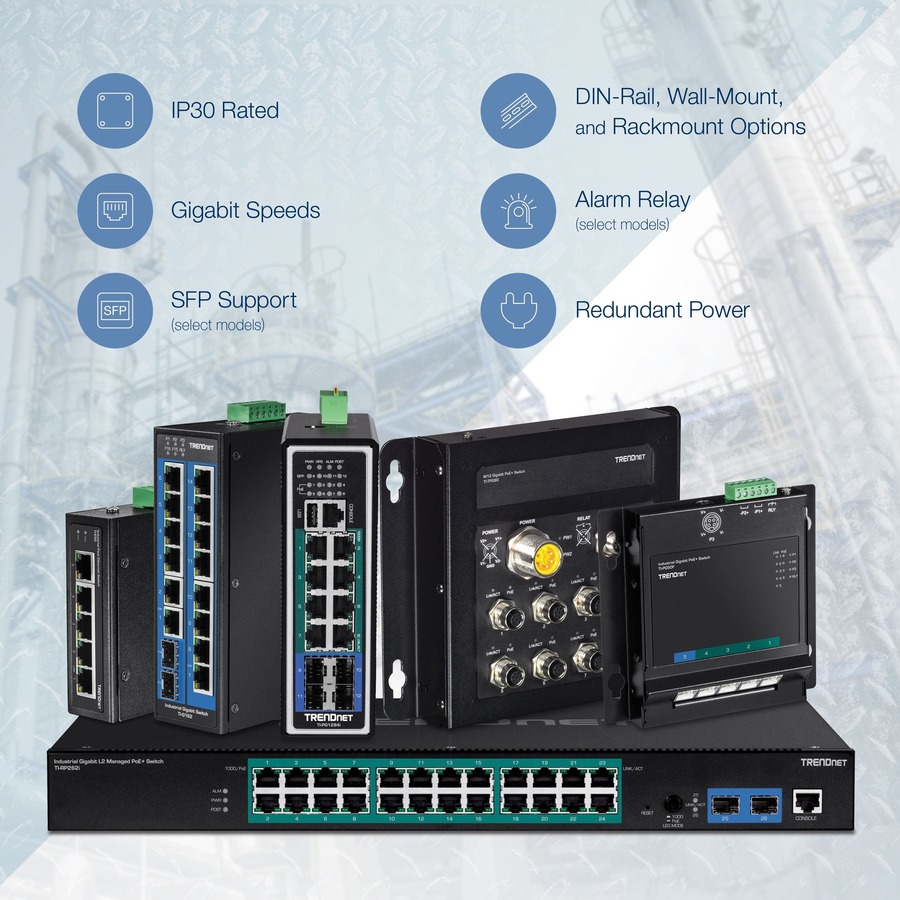

TRENDnet hardened industrial switches
Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

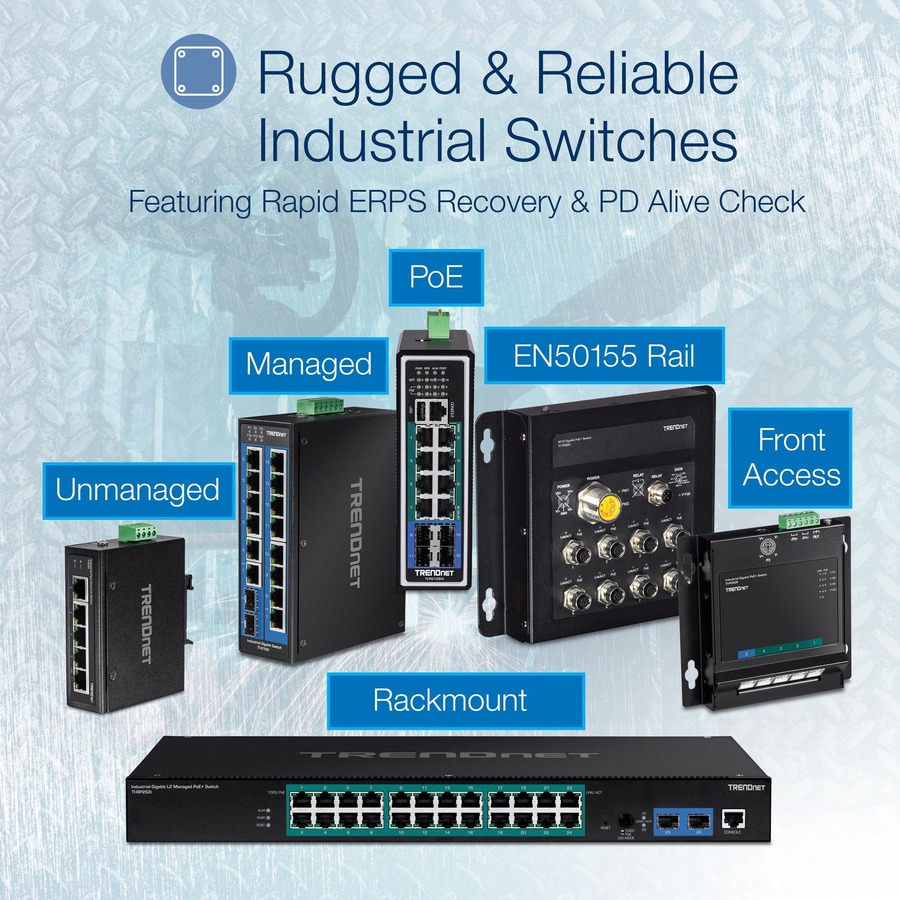

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.
6-Port Hardened Industrial Gigabit DIN-Rail Switch
5 x Gigabit Ethernet ports
1 x shared SFP slot and 1 x dedicated SFP slot
12 Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-rail and wall mounts
Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
Redundant power inputs with overload current protection
Alarm output triggered by power failure
Power supply sold separately (model TI-M6024)
NDAA / TAA compliant
Lifetime Warranty
Limited Warranty: Lifetime
TRENDnet 6-Port Hardened Industrial Gigabit DIN-Rail Switch
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-G62 |
| Brand Name | TRENDnet |
| Product Model | TI-G62 |
| Product Name | 6-Port Hardened Industrial Gigabit DIN-Rail Switch |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 6 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network, 1 x Gigabit Ethernet Expansion Slot |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T, 1000Base-X |
| Network & Communication | |
| Layer Supported | 2 |
| Physical Characteristics | |
| Form Factor | Rail-mountable, Wall Mountable |
| Height | 3" |
| Width | 5" |
| Depth | 10" |
| Weight (Approximate) | 1.49 lb |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 1 |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
