TI-E80 8 x Fast Ethernet Ports; 1.6Gbps Switching Capacity;8 Port Network Fast Ethernet Switch;IP30 Metal Switch;Lifetime Protection

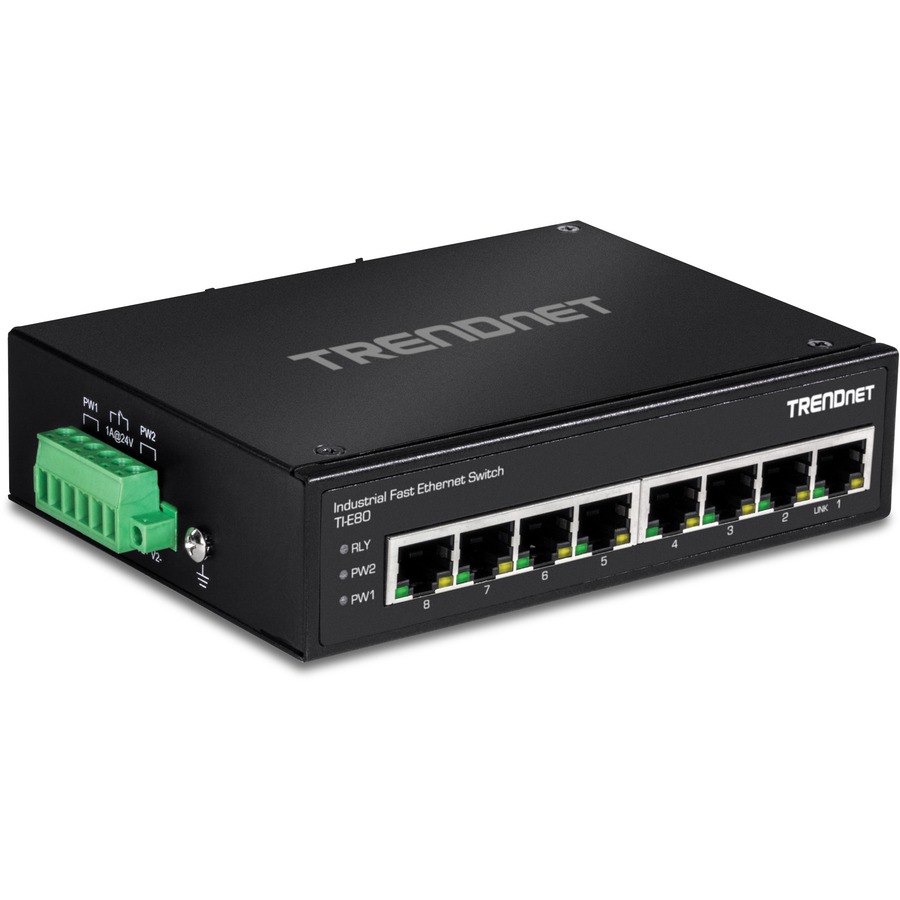

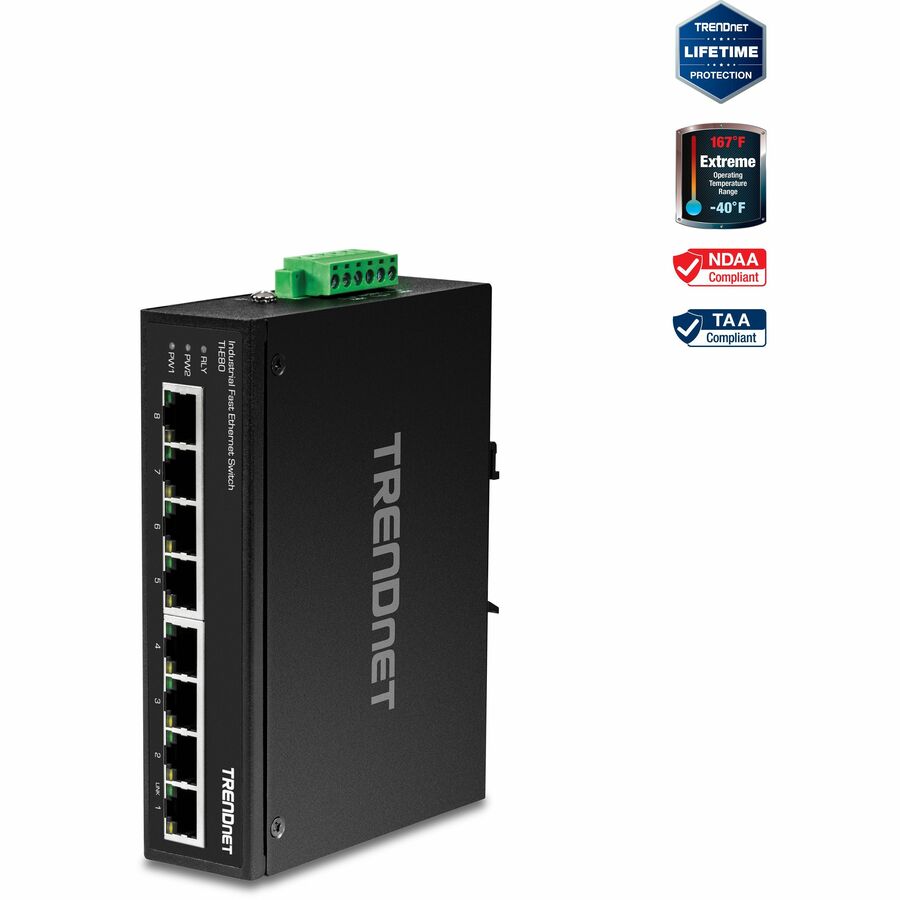

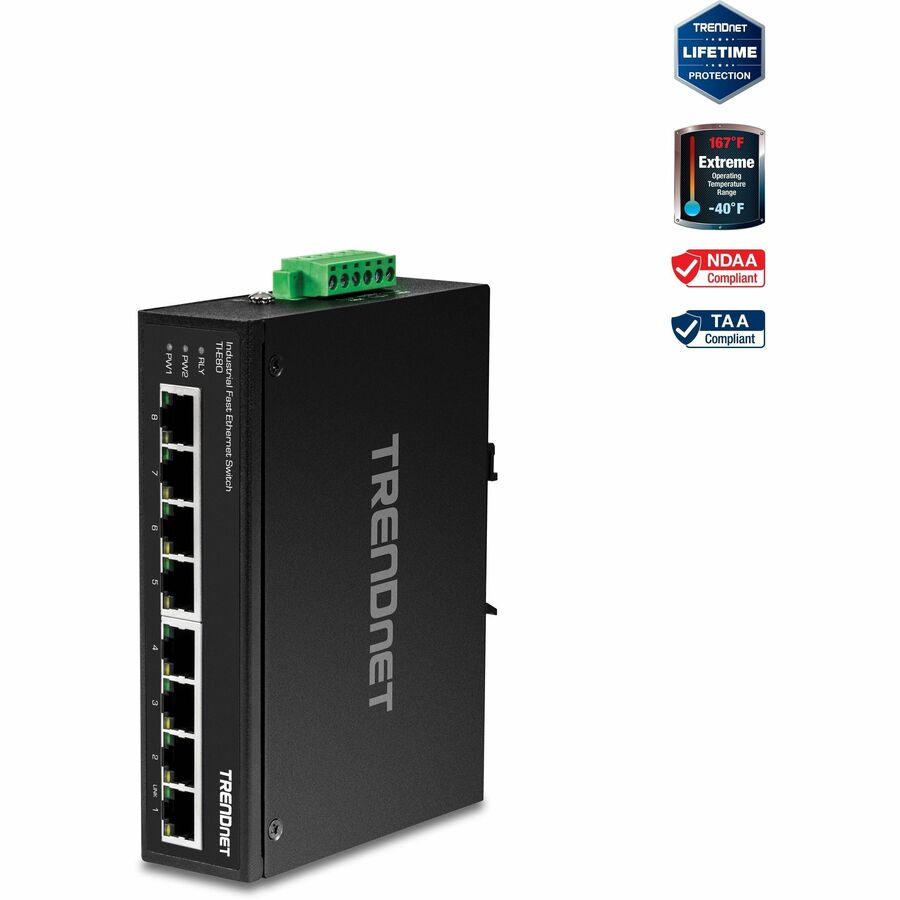

8-Port Industrial Fast Ethernet DIN-Rail Switch
$100.58*
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 25 and Nov 29, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine TRENDnet through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
TRENDnet's Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a -40° - 75° C (-40° - 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime.
• ETHERNET PORT INTERFACE: 8 x fast Ethernet ports
• LIFETIME PROTECTION -We stand by the quality of our products. The TI-E80 8-Port Industrial Unmanaged Fast Ethernet DIN-Rail Switch with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• SWITCHING CAPACITY: The network switch allows for a 1. 6Gbps switching capacity.
• DIN-RAIL & WALL MOUNT KIT: This 8-port Fast Ethernet Switch comes with an integrated DIN-rail mount and mounting hardware.
• POWER SUPPLY SOLD SEPARATELY: The power supply for this 8 port DIN-rail Ethernet Switch is sold separately (model: TI-M6024)
• EXTREME TEMPERATURE SWITCH: the metal hardened IP30 rated network switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, while operating with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F) For harsh environments
• REDUNDANT POWER: the 8 port switch feature Dual power inputs to provide redundant power with overload current protection
• SHOCK AND VIBRATION RESISTANT:Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
More from the Manufacturer
OVERVIEW
TRENDnet's Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a -40° – 75° C (-40° – 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime.
Easy Installation
No configuration needed, simply connect network devices to the industrial Ethernet switch.
Redundant Power
The industrial Ethernet switches feature dual power inputs to provide redundant power with overload current protection.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F).
Easy Installation
Industrial Ethernet switches feature a quick and easy installation process with an intuitive guided setup

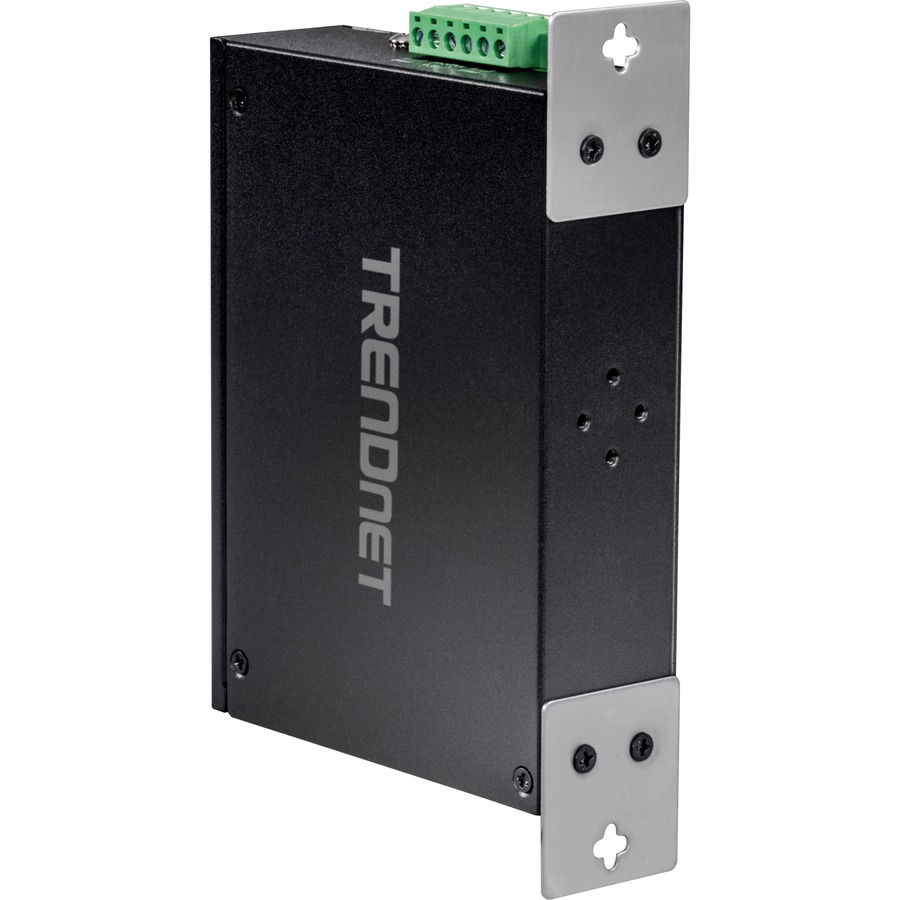

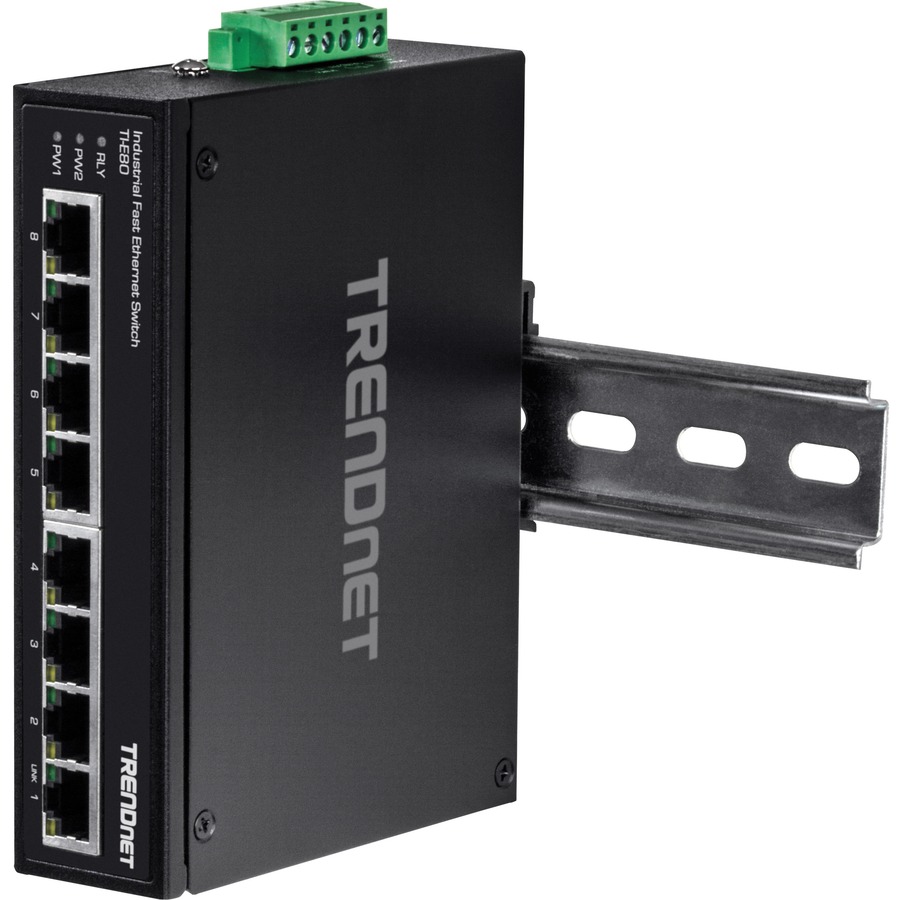

DIN-Rail / Wall Mounts
IP30 rated metal enclosure with DIN-Rail mount and wall mount hardware included
Redundant Power
Dual power inputs provide redundant power with overload current protection (power supply sold separately, model: TI-M6024)
Wide Temperature Range
A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with extreme hot or cold conditions
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Electro Magnetic Compliance
Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV
Grounding Point
Grounding point on each industrial Ethernet switch designed to protect equipment from external electrical surges
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
Device Interface
8 x Fast Ethernet ports
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Performance
Data RAM Buffer: 56KB
Switching Fabric: 1.6Gbps
MAC Address Table: 1K entries
Forwarding rate: 1.19Mpps (64-byte packet size)
Special Features
Hardened components rated for extreme temperatures
Redundant power inputs
ESD 8kV support
Low-profile design
DC Power
Input: 12 – 56V DC
Recommended power supply: TI-M6024 (sold separately)
Max. consumption: 3W
Terminal Block
Redundant power inputs, alarm relay contact, 6-pin
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – in. / 0.5Nm / 0.56Nm
Wire strip length: 7-8mm
Alarm Relay Contact
Relay outputs with current carrying capacity of 1A, 24V DC
Open circuit mode when two power sources are connected
Short circuit mode when only one power source is connected
MTBF
510,304 hours
Housing
IP30 metal case
DIN-Rail mount
Wall mount
Grounding point
Operating Temperature
-40° – 75° C (-40° – 167° F)
Operating Humidity
Max. 95% non-condensing
Dimensions
142 x 105 x 37mm (5.6 x 4.1 x 1.5 in.)
Weight
486g (17.1 oz.)
Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
IEC 61000-4-2
IEC 61000-4-4
IEC 61000-4-5
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TI-E80
Quick Installation Guide
Removable terminal block
DIN-Rail and wall mount kit
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
8-Port Industrial Fast Ethernet DIN-Rail Switch
8 x Fast Ethernet ports
1.6Gbps switching capacity
Forwarding rate: 1.19Mpps (64-byte packet size)
Hardened IP30 rated metal switch
Includes DIN-Rail mount and wall mount brackets
Wide operating temperature range of -40° – 75° C (-40° – 167° F)
Dual inputs provide redundant power with overload current protection
Alarm relay triggered by power failure
Power supply sold separately (model: TI-M6024)
Fanless design for silent operation
NDAA / TAA compliant
Lifetime Warranty
Limited Warranty: Lifetime
TRENDnet 8-Port Industrial Fast Ethernet DIN-Rail Switch
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-E80 |
| Brand Name | TRENDnet |
| Product Model | TI-E80 |
| Product Name | 8-Port Industrial Fast Ethernet DIN-Rail Switch |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-X |
| Network & Communication | |
| Layer Supported | 2 |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 3" |
| Width | 5" |
| Depth | 10" |
| Weight (Approximate) | 1.43 lb |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
