x Fast Ethernet Ports, IP50 Rated, Extreme Temperature Operating Range, 1Gbps Switching Capacity, Lifetime Protection
5-Port Industrial Fast Ethernet DIN-Rail Switch
$77.23*
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 25 and Nov 29, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine TRENDnet through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
• 5 x Fast Ethernet ports
• 1Gbps switching capacity
• Hardened IP30 rated metal switch
• Includes DIN-Rail mount and wall mount brackets
• Wide operating temperature range of -40° - 75° C (-40° - 167° F)
• Dual inputs provide redundant power with overload current protection
• Power supply sold separately (model: TI-M6024)
• Fanless design for silent operation
• Lifetime Warranty
TRENDnet's Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a -40° - 75° C (-40° - 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime.
Easy Installation
No configuration needed, simply connect network devices to the industrial Ethernet switch.
Redundant Power
The industrial Ethernet switches feature dual power inputs to provide redundant power with overload current protection.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F).
More from the Manufacturer

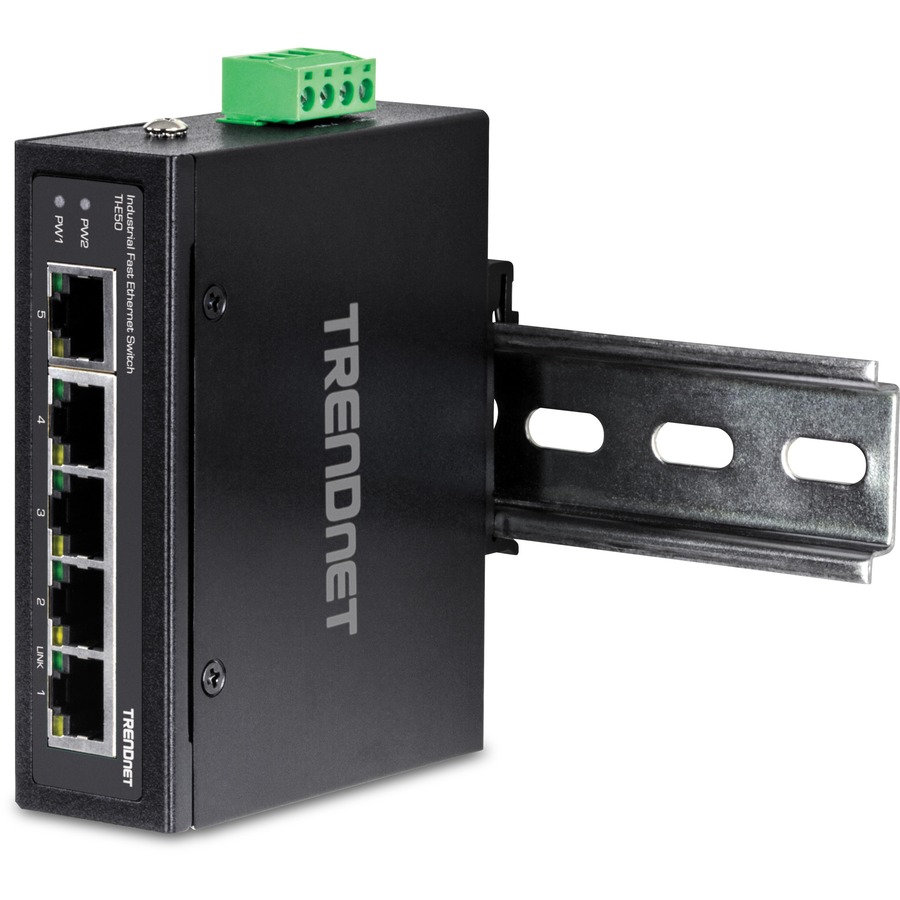

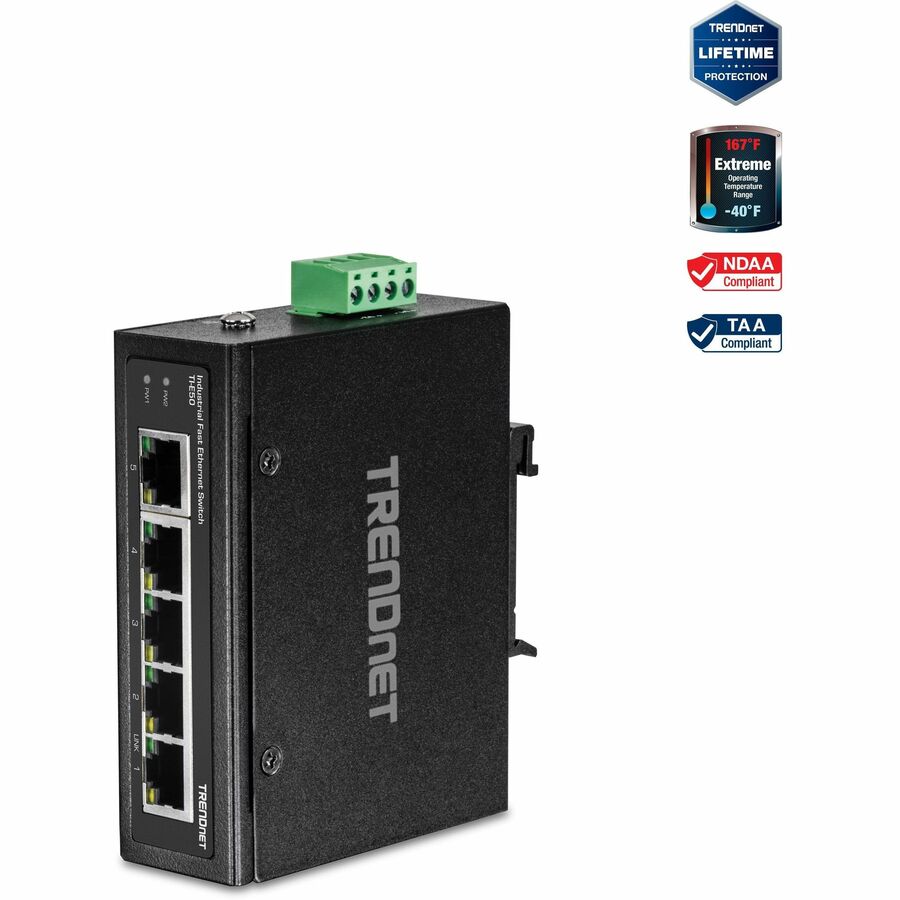

TRENDnet’s 5-Port Industrial Fast Ethernet DIN-Rail Switch, model TI-E50, features a rugged IP50 rated aluminum enclosure. The industrial Ethernet switch is designed to withstand high levels of vibration and shock, while operating in both low and high temperatures for industrial environments within a -40° – 75° C (40° – 167° F) extreme temperature range. Redundant power inputs with overload current protection minimizes network downtime.
Easy Installation
No configuration needed, simply connect network devices to the industrial Ethernet switch.
Redundant Power
The industrial Ethernet switch features dual power inputs to provide redundant power with overload current protection.
Industrial Hardened Design
Equipped with a rugged IP50 rated housing, and designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (40° – 167° F).
Easy Installation
Quick and easy installation process with an intuitive guided setup

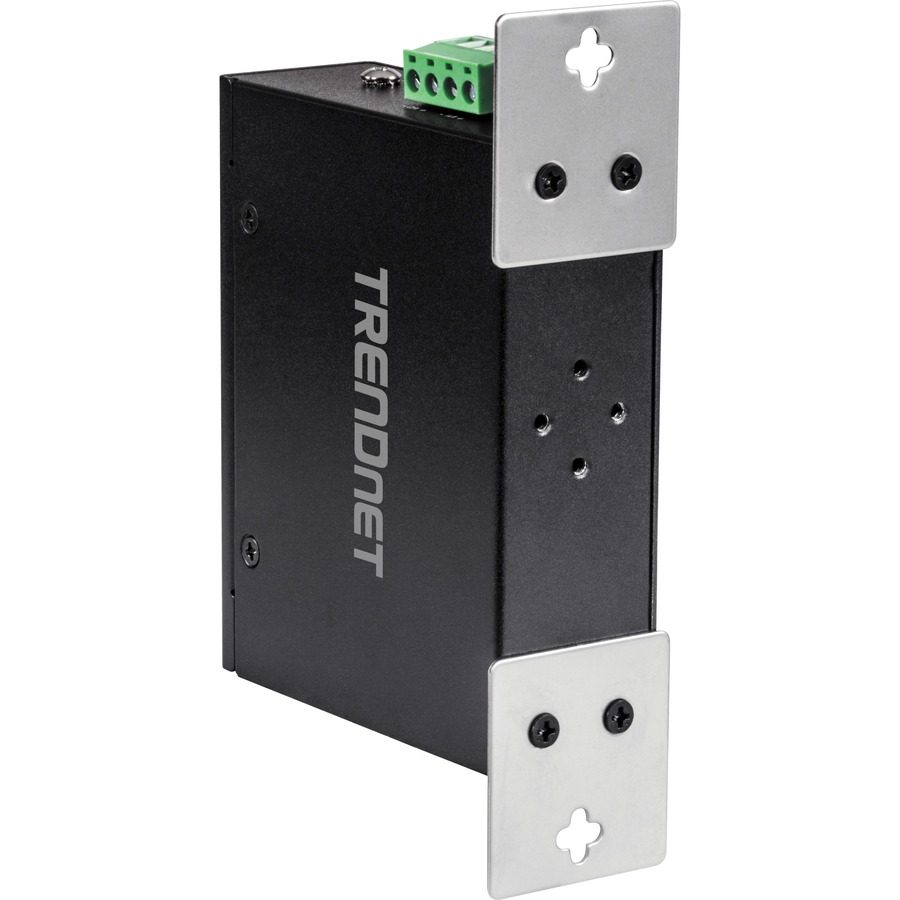

DIN-Rail / Wall Mounts
IP50 rated aluminum enclosure with DIN-Rail mount and wall mount hardware included
Redundant Power
Dual power inputs provide redundant power with overload current protection (power supply sold separately, model: TI-M6024)
Extreme Temperature Range
An extreme operating temperature range of -40° – 75° C (40° – 167° F) allows for installations in industrial environments with severe hot or cold conditions
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Electro Magnetic Compliance
Complies with industrial EMS certifications ESD (IEC 61000-4-2); Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV
Grounding Point
Grounding point is designed to protect equipment from external electrical surges
5-Port Industrial Fast Ethernet DIN-Rail Switch
5 x Fast Ethernet ports
1Gbps switching capacity
Hardened IP50 rated aluminum switch
Extreme operating temperature range of -40° – 75° C (40° – 167° F)
Dual power inputs provide redundant power with overload current protection
Fanless design for silent operation
Includes DIN-Rail mount and wall mount brackets
Power supply sold separately (model: TI-M6024)
NDAA / TAA compliant
Lifetime Warranty
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x

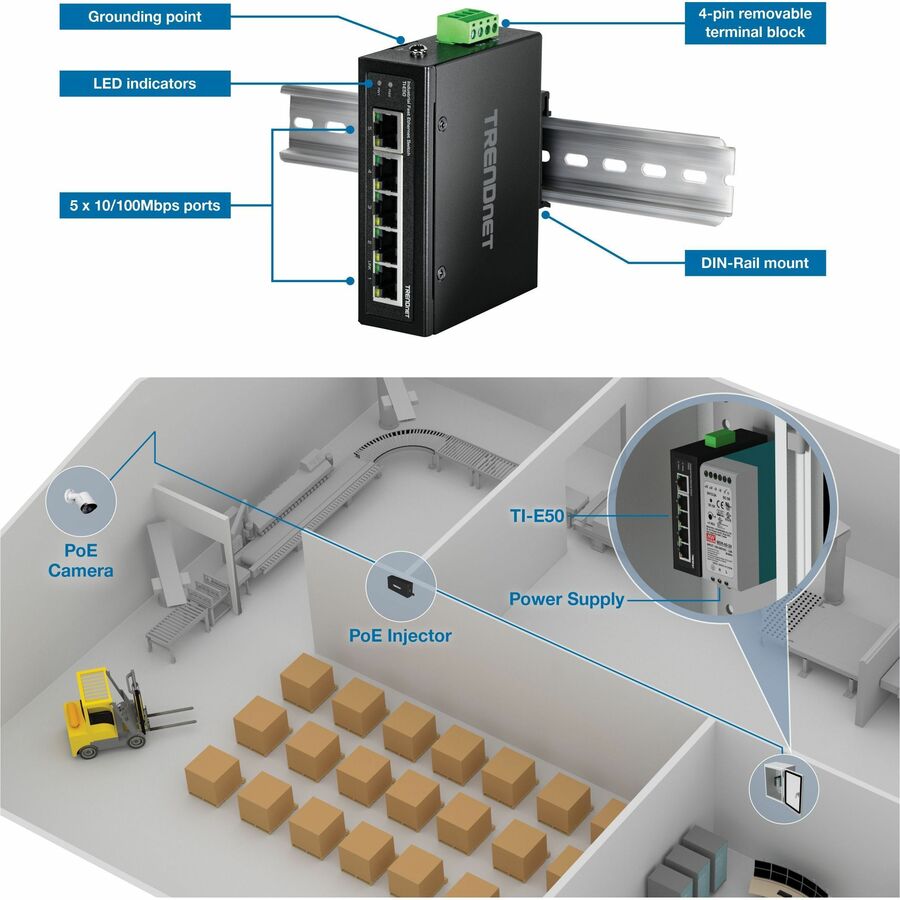

Device Interface
5 x 10/100Mbps ports
4-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Performance
Data RAM Buffer: 56KB
Switching Fabric: 1Gbps
MAC Address Table: 1K entries
Forwarding rate: 148.8Kpps (64-byte packet size)
Power
Input: 12 - 56V DC
Compatible power supply: TI-M6024 (sold separately)
Max. consumption: 1.68W @ 48V DC
Terminal Block
Redundant power inputs, 4-pin
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG): 12-24
Stranded wire (AWG): 12-24
Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
Wire strip length: 7-8mm
MTBF
580,159 hours @ 25° C
Housing
IP50 aluminum case
DIN-Rail mount
Wall mount
Grounding point
6kV ESD protection
2kV surge protection
Operating Temperature
-40° – 75° C (40° – 167° F)
Operating Humidity
Max. 95% non-condensing
Dimensions (L x W x H)
103.5 x 81.5 x 32mm (4 x 3.2 x 1.2 in.)
Weight
160g (5.7 oz.)
Certifications
CE
FCC
LVD
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
IEC 61000-4-2
IEC 61000-4-4
IEC 61000-4-5
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TI-E50
Removable terminal block
DIN-Rail / wall mount kit
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Limited Warranty: Lifetime
TRENDnet 5-Port Industrial Fast Ethernet DIN-Rail Switch
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-E50 |
| Brand Name | TRENDnet |
| Product Model | TI-E50 |
| Product Name | 5-Port Industrial Fast Ethernet DIN-Rail Switch |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-X |
| Maximum Data Transfer Rate | 25 MB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Physical Characteristics | |
| Product Material | Aluminum |
| Form Factor | DIN Rail Mountable, Wall Mountable |
| Height | 1.2" |
| Width | 3.2" |
| Length | 4" |
| Weight (Approximate) | 5.70 oz |
| Power Description | |
| Input Voltage | 12 V DC, 56 V DC |
| Power Source | Power Supply |
| Power Consumption | 1.68 W |
| Plug/Connector Type | Terminal Block |
| Technical Information | |
| Features | Surge Protection, Fanless |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
