TRENDnet's Industrial Gigabit L2+ Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Our industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications. These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.

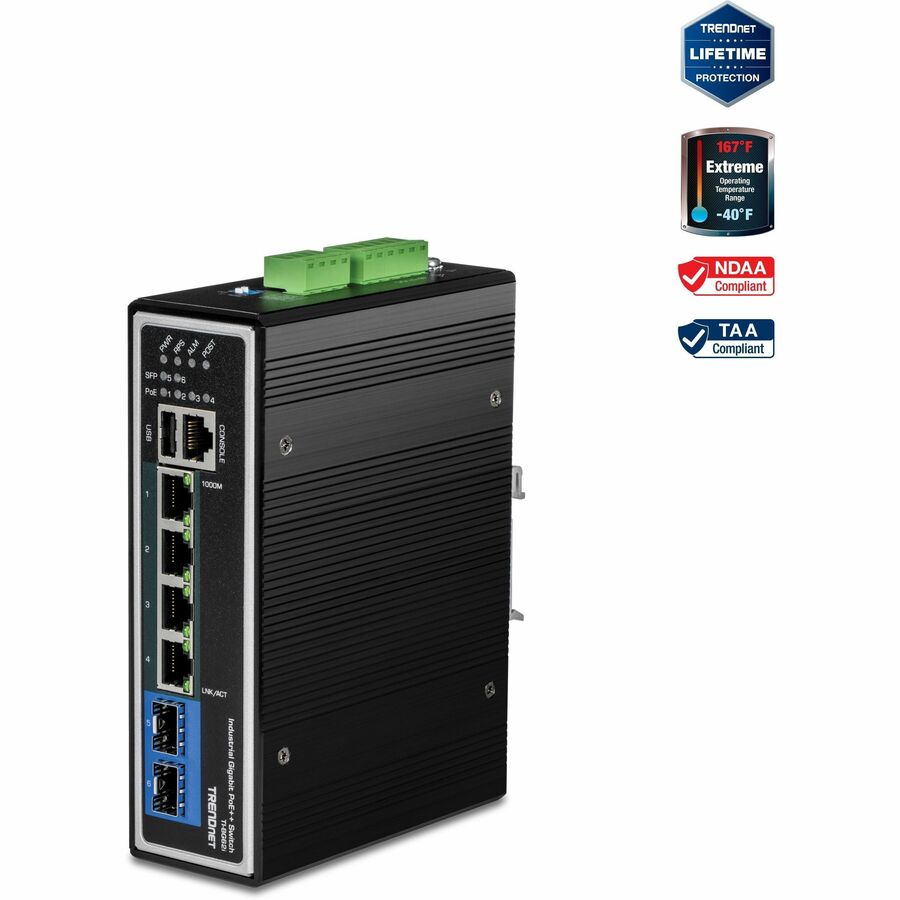

This industrial 802.3bt PoE++ switch has four gigabit PoE++ ports with a 360W PoE power budget, plus two SFP slots for long distance fiber applications. Advanced PoE technology supported includes Perpetual PoE, Fast PoE, and PoE Alive Check.

More from the Manufacturer

TRENDnet’s Industrial Gigabit L2+ Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today’s SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Our industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications.

These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.

This industrial 802.3bt PoE++ switch has four gigabit PoE++ ports with a 360W PoE power budget, plus two SFP slots for long distance fiber applications. Advanced PoE technology supported includes Perpetual PoE, Fast PoE, and PoE Alive Check.

L2 Management

Provides an easy-to-use web management interface for traffic management controls, such as VLAN, QoS, access controls, link aggregation, troubleshooting, SNMP monitoring, and per port MAC restriction.

PoE Power

A 360W PoE power budget supplies up to eight Power over Ethernet devices. Features advanced PoE port controls, such as enabling / disabling PoE, power priority, PD alive check, and power scheduling.

Industrial Design

Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, with a wide operating temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Traffic Management

Managed features include 802.1Q /

Q-in-Q / GVRP / MAC & ProtocolBased VLAN, IGMP v1 / 2 / 3,

IGMP Snooping, MLD, MVR, per

port bandwidth control / 802.1p /

DSCP / Queue Scheduling (SPQ /

WRR), STP / RSTP / MSTP

spanning tree, static and dynamic

link aggregation, Xpress Ring, and

ERPS for flexible network

integration

Network Ports

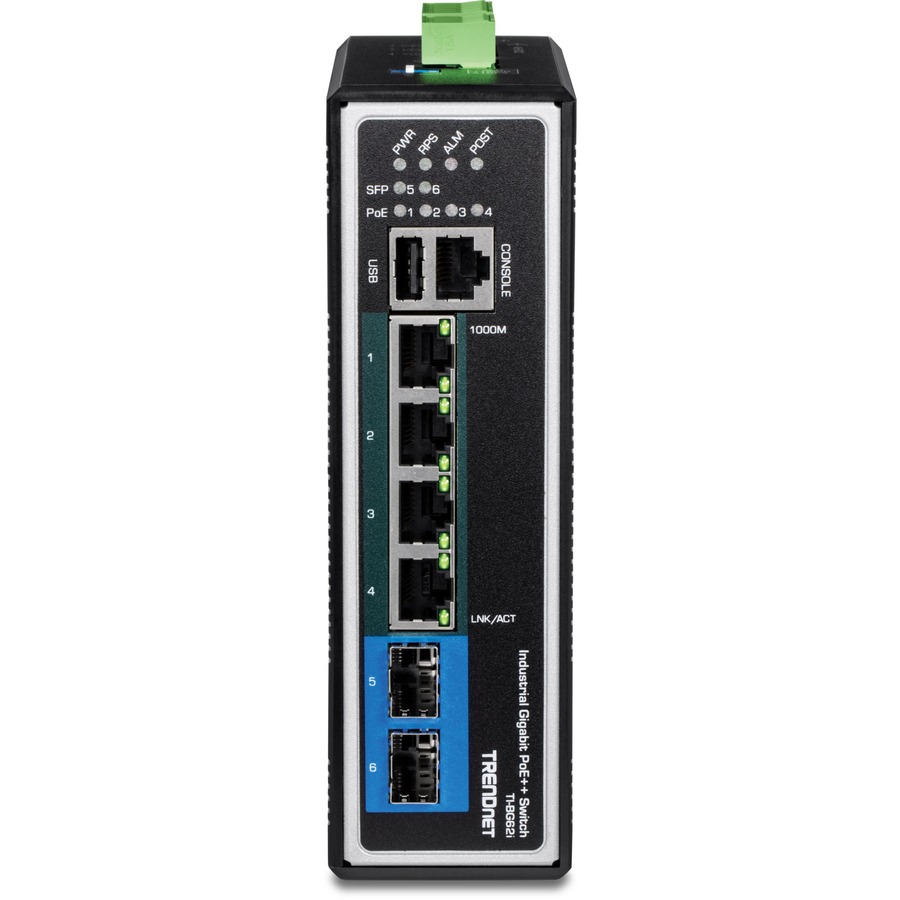

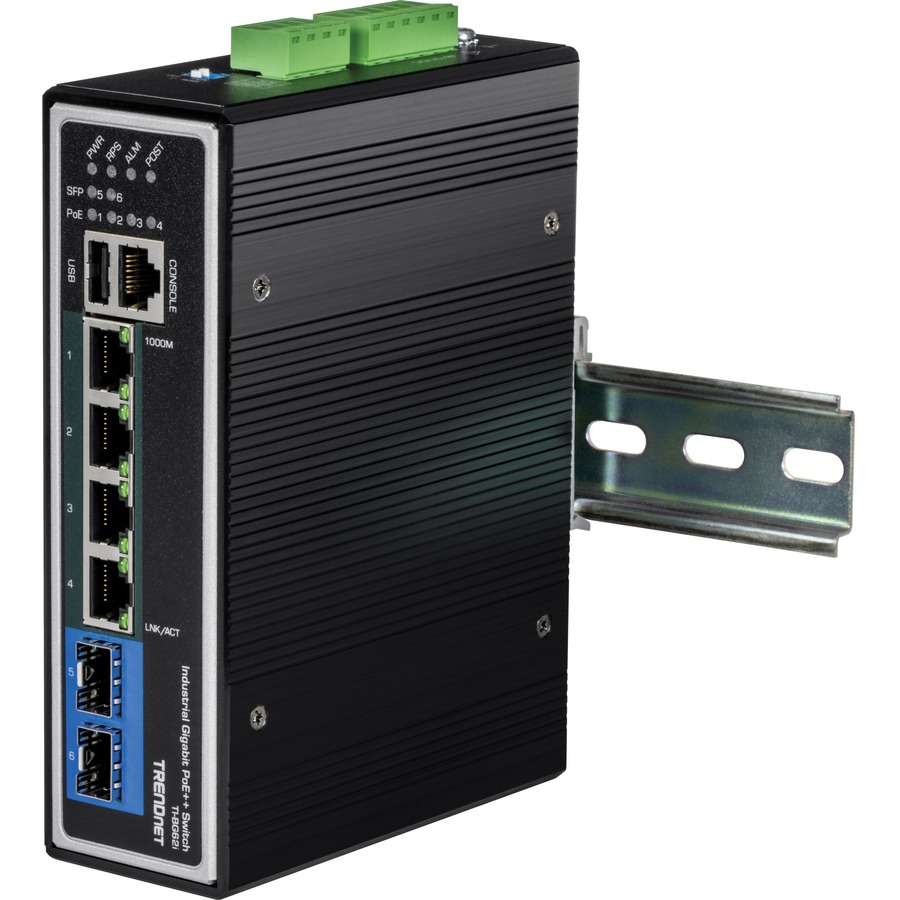

This industrial 802.3bt PoE++

switch features four gigabit PoE++

ports, two gigabit SFP slots, a

12Gbps switching capacity, one

console port (RJ-45 to RS-232) for

out-of-band management, and one

USB port (config backup/firmware

upload)

Access Control

Managed access control features

include ACLs, IP-MAC-Port binding,

ARP inspection, 802.1X RADIUS,

MAC address learning, DHCP

snooping, and IP Source Guard

provide layered network access

controls

ETHERNET PORT INTERFACE: 4 x Gigabit PoE++ ports; 2 x Gigabit SFP slots

POE++ POWER & SWITCHING CAPACITY: A 12Gbps switching capacity and a 360W PoE power budget supplies up to eight Power over Ethernet devices, and includes advanced PoE port controls such as enabling / disabling PoE, power priority, PD alive check, and power scheduling

OTHER POE FEATURES: Perpetual PoE provides PoE power to connected devices at booting; Fast PoE remembers per port PoE power draw of connected devices at booting; PoE alive check restarts unresponsive PoE powered devices

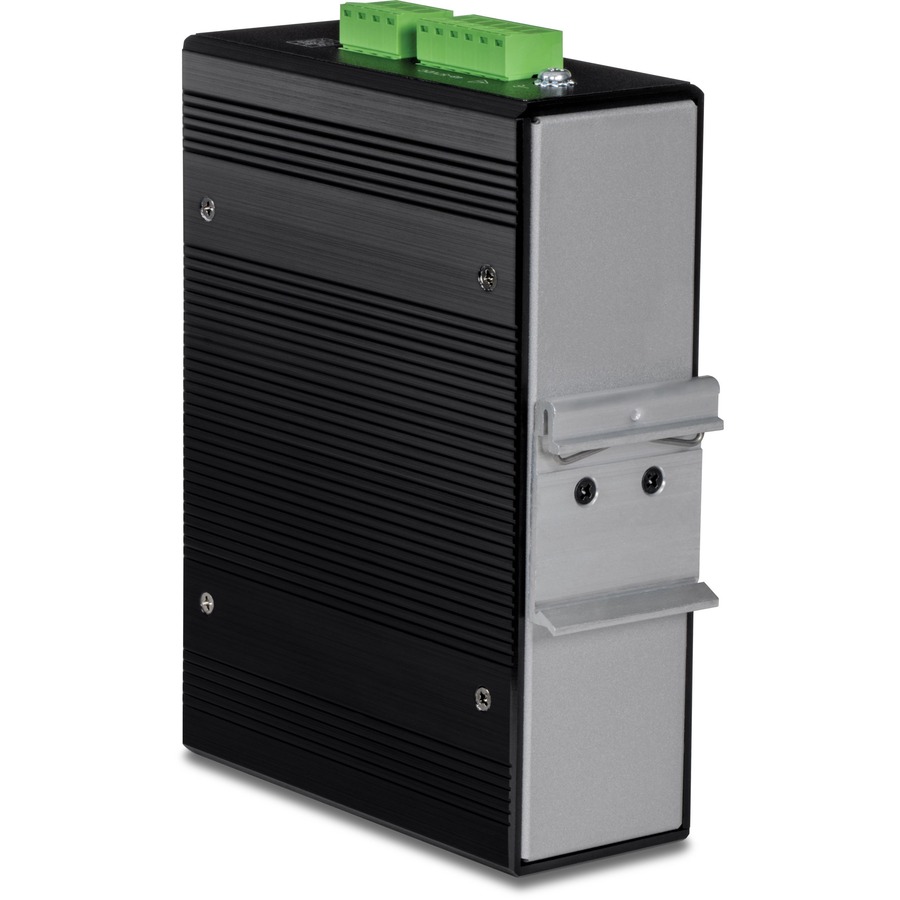

DIN-RAIL & WALL MOUNT KIT: This 6-Port gigabit layer 2 PoE+ industrial switch comes with an integrated DIN-Rail mount and mounting hardware.

EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated gigabit layer 2 PoE+ DIN-Rail switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.

LAYER 2 MANAGEMENT: The layer 2 managed switch Provides an easy to use web management interface for traffic management controls such as VLAN, QoS, access controls, link aggregation, troubleshooting, SNMP monitoring, and per port MAC restriction.

ACCESS CONTROL: Managed access control featues include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping and IP Source Guard provides layered network access controls

REDUNDANT POWER: The 6 port network switch has dual redundant power inputs with overload current protection (power supply sold separately: TI-S48048

TRAFFIC MANAGEMENT: Managed features include 802.1Q / Q-in-Q / GVRP / MAC & Protocol-Based VLAN, IGMP v1 / 2 / 3, IGMP Snooping, MLD, MVR, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP / MSTP spanning tree, static and dynamic link aggregation, Xpress Ring, and ERPS for flexible network integration

TRENDnet hardened industrial switches

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.1ax

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3az

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bt

Device Interface

4 x Gigabit PoE++ ports

2 x 100/1000Mbps SFP slots

DIP switches

6-pin removable terminal block (primary/RPS power inputs & alarm relay output)

4-pin removable terminal block (digital input/output)

LED indicators

Reboot button

Data Transfer Rate

Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit Ethernet: 2000Mbps (full duplex)

Performance

Switch fabric: 12Gbps

RAM buffer: 512MB

MAC address table: 16K entries

Jumbo frames: 10KB

Forwarding mode: store and forward

Forwarding rate: 8.9Mpps (64-byte packet size)

Management

HTTP web-based GUI

CLI: Telnet / SSHv2

SNMP v1, v2c, v3

SNMP trap (up to 5 receivers)

RMON groups 1/2/3/9

Device configuration backup & restore, upgrade firmware, reboot, and reset to default

Multiple administrative or read-only user accounts

Enable or disable power saving mode per port

Static MAC entries

LLDP (Link layer discovery protocol)

Netlite device map

ONVIF device discovery

SNTP

SMTP alert

Syslog

Port statistics/utilization

Traffic monitor

Port mirror: one to one, many to one

Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)

Loopback detection

DHCP relay/option 82

Xpress Ring

ERPS (Ethernet Ring Protection Switching) G8032v2

SFP DDMI (Digital Diagnostic Monitoring Interface)

MIB

MIB II RFC 1213

Bridge MIB RFC 1493

RMON (Group 1,2,3,9) RFC 2819 RFC 1757

Spanning Tree

IEEE 802.1d STP (spanning tree protocol)

IEEE 802.1w RSTP (rapid spanning tree protocol)

IEEE 802.1s MSTP (multiple spanning tree protocol)

BPDU filter, guard, and root guard

Link Aggregation

Static link aggregation and 802.3ad dynamic LACP (Up to 3 groups)

Quality of Service (QoS)

802.1p Class of service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth control per port

Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)

VLAN

802.1Q tagged VLAN

MAC-based VLAN

Port isolation

Up to 256 VLAN groups, ID range 1-4094

Multicast

IGMP snooping v1, v2, v3

IGMP querier

IGMP fast leave

Up to 256 multicast groups

Static multicast entries

Access Control

802.1X authentication (Local user database, RADIUS, guest VLAN assignment)

DHCP snooping/screening

Trusted host/IP access list for management access

Port Security/MAC address learning restriction (Up to 100 entries per port)

Static/dynamic ARP inspection

ACL

Source/Destination MAC address

Source/Destination IP address

Source Interface

VLAN ID

EtherType

TCP/UDP port 1-65535

Layer 3 Features

IPv4 / IPv6 static routing

IPv4 / IPv6 proxy ARP

IP interfaces: Up to 16

Routing table entries: Up to 500 (IPv4: 400 / IPv6: 100)

DHCP Relay / Option 82

Special Features

Netlite device discovery and map display in GUI

Port security: MAC address learning restriction per port

DHCP relay/option 82 & DHCP server snooping/screening support

Wide operating temperature range

Dual redundant power inputs

Alarm relay triggered by power failure

Surge and ESD protection

Fast PoE & Perpetual PoE

Power

PWR (Primary) terminal input: 48 – 57V DC

RPS (Redundant) terminal input: 48 – 57V DC

Compatible power supply: TI-S12048 (120W), TI-S24048 (240W), TI-S48048 (480W) sold separately

Max. Consumption: 20W (no PoE load), 380W (full PoE load)

PoE

PoE budget: 360W@48V DC input,

PoE++ (802.3bt): Up to 95W per port

PoE++: mode A+ (1, 2, 3, 6) and mode B- (4, 5, 7, and 8) for power

PoE auto classification

PoE port priority/power scheduling/PD alive check

Fast PoE/perpetual PoE

Over current/short circuit protection

Terminal Block

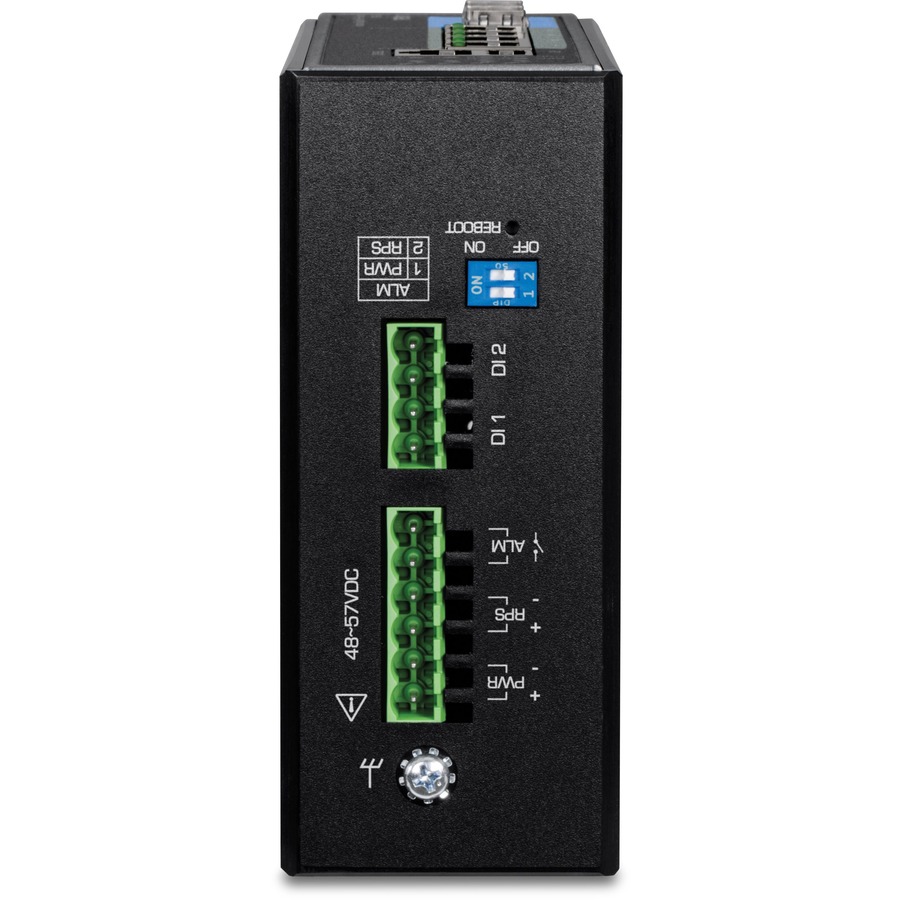

Redundant power inputs, alarm relay contact, 6 pin

Wire range: 0.5 mm^2 to 2.5 mm^2

Solid wire (AWG): 12-26

Stranded wire (AWG): 12-26

Wire strip length: 10-11mm

DIP Switch

Switch

Status

Function

OFF

Disable alarm relay for PWR power input

ON

Enable alarm relay for power failure on PWR power input

OFF

Disable alarm relay for RPS power input

ON

Enable alarm relay for power failure on RPS power input

Alarm Relay Output

Relay output with current carrying capacity of 1A, 24V DC

Short circuit mode when one power source is connected

Open circuit mode when two power sources are connected

Enclosure

IP30 rated metal enclosure

Fanless passive cooling

DIN-Rail mount

Grounding point

ESD (Ethernet) Protection: 8KV DC

Surge (Power) Protection: 6KV DC

MTBF

379,100 hours @ 25° C

48,624 hours @ 75° C

Operating Temperature

-40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

170 x 118 x 50mm (6.69 x 4.65 x 1.97 in.)

Weight

956g (2.1 lbs.)

Certifications

CE

FCC

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-BG62i

Quick Installation Guide

Removable terminal block

DIN rail mounting bracket
