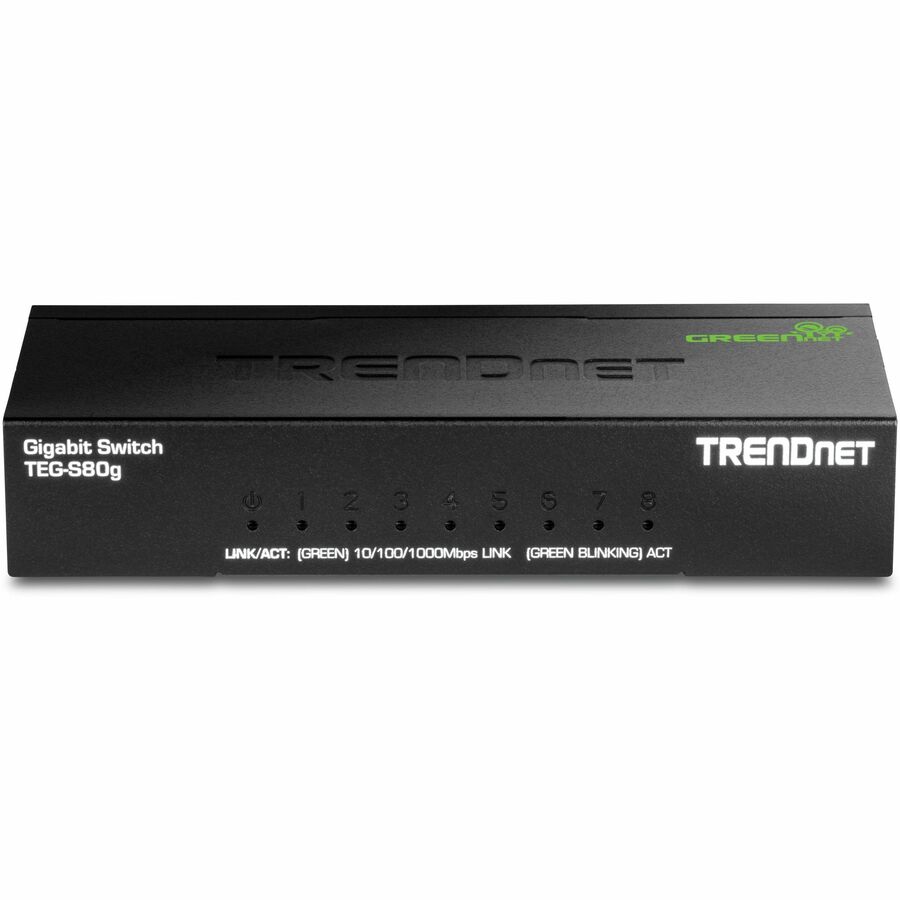

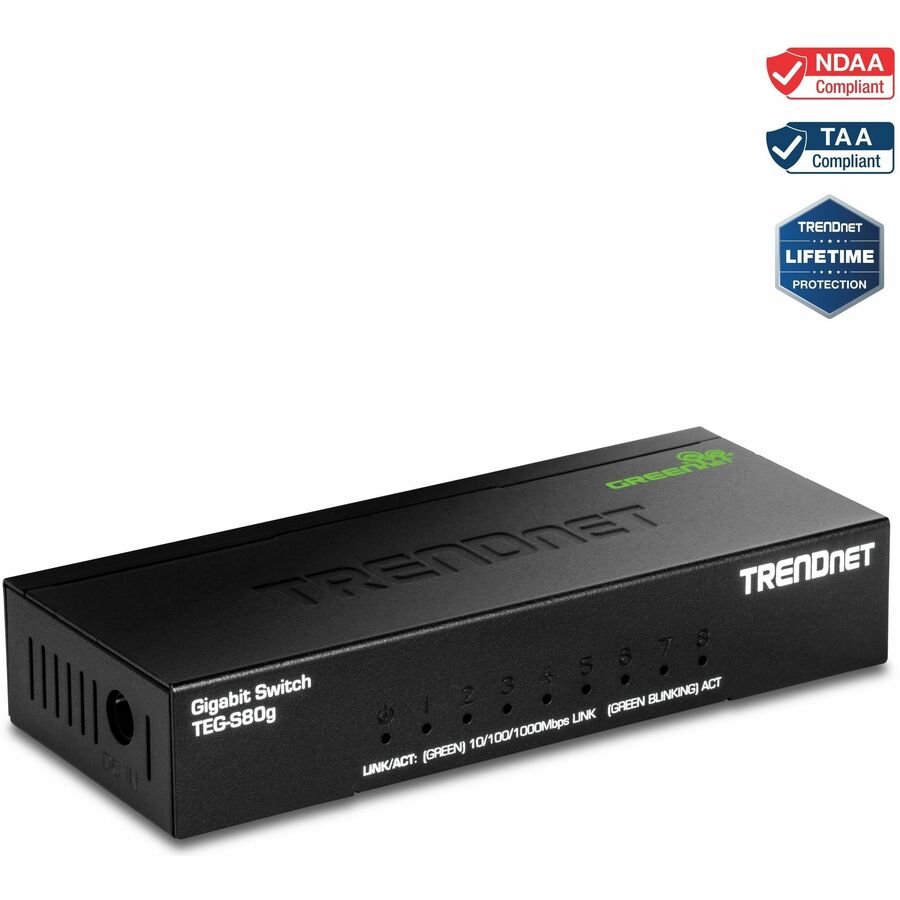

8-Port Gigabit GREENnet Mini Switch
$38.74*
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote — commercial pricing may differ.
Genuine TRENDnet through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
The 8-Port Gigabit GREENnet Mini Switch, model TEG-S80g, provides high-bandwidth performance, ease-of-use, and reliability, all from a tiny and durable metal enclosure, while reducing power consumption. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement. This space-saving metal mini switch is designed to fit into any desktop setup, and is small enough to fit into your pocket. It's ideal for both a minimalist desk setup or a desk packed with gear. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy mini switch for reliable high-speed network connectivity.

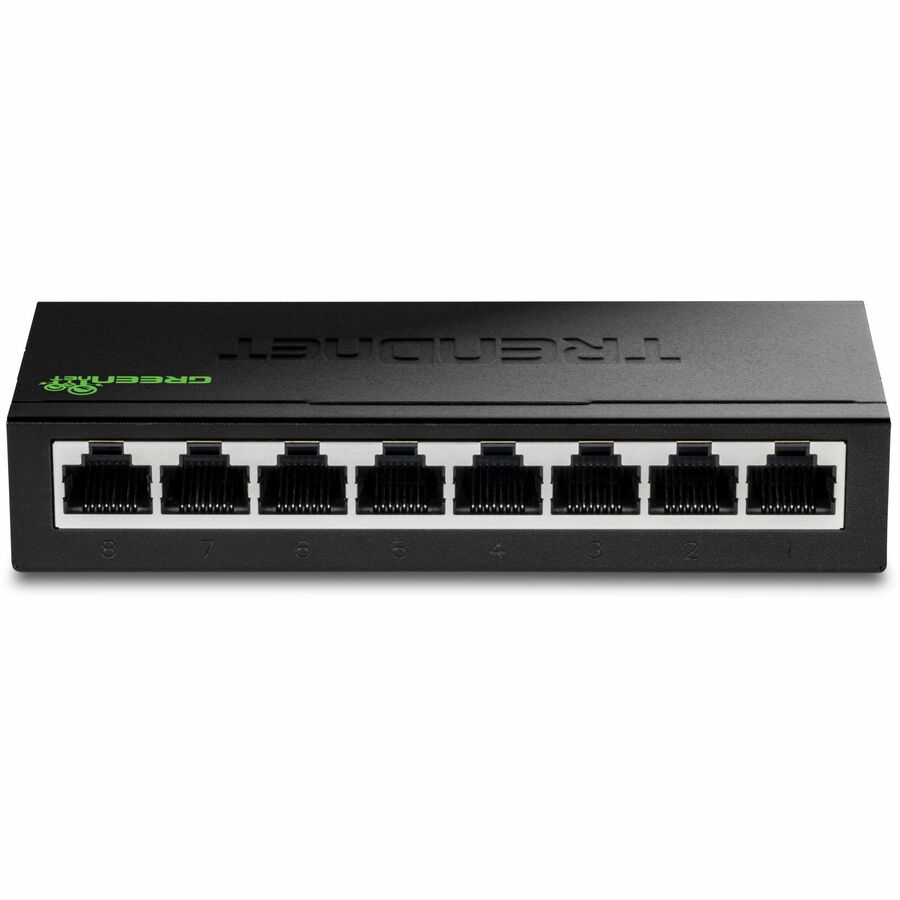

• DEVICE INTERFACE: 8 x Gigabit Ports; LED Indicators; Wall Mountable
• LIFETIME PROTECTION -We stand by the quality of our products. The TEG-S80G 8-Port Gigabit GREENnet Mini Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• POCKET SIZED HOUSING: The industry leading mini switch design is only 4.96 x 2.04 x 0.94 inches, which allows for maximum space saving.
• GIGABIT SPEEDS: Eight gigabit ports provide high-speed network connections to devices and a 16Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
• ENERGY SAVINGS: GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. No management or setup required.
• EASY INSTALLATION: No configuration needed, simply connect network devices to this 8 port gigabit switch

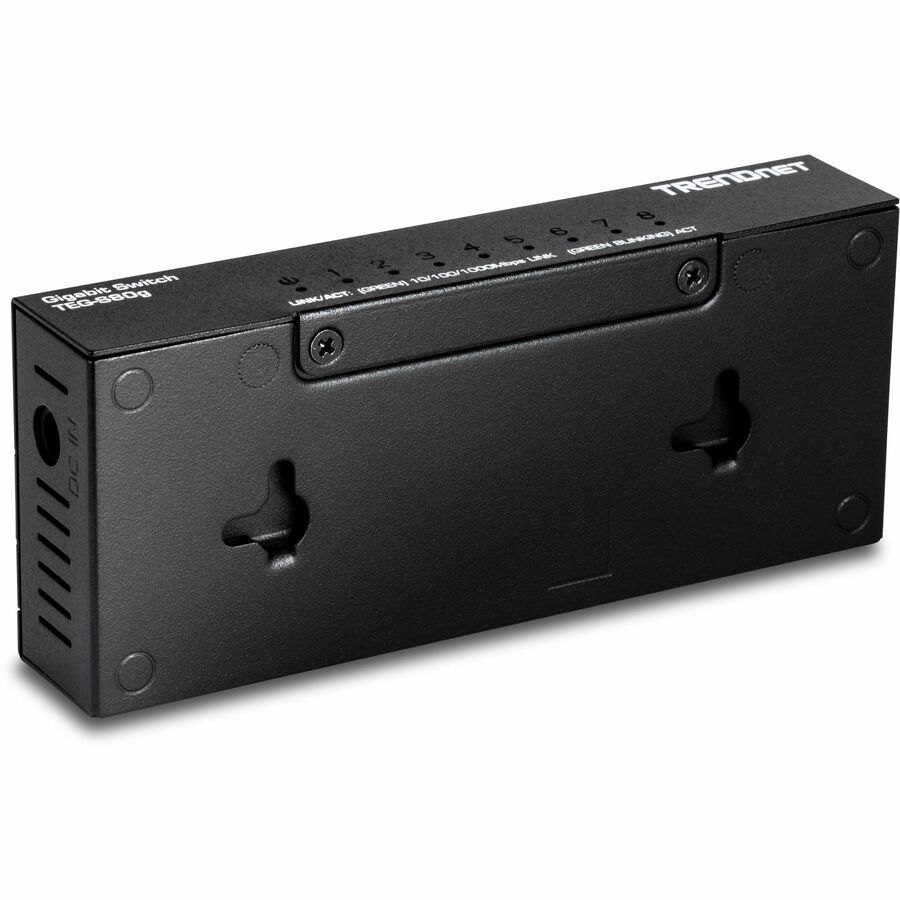

• WALL MOUNTABLE DESIGN: The metal network switch features a convenient wall mountable design for greater installation flexibility
• FANLESS: Well suited for quiet environments that require silent operation while lowering energy consumption and eliminating operating noise
More from the Manufacturer
The 8-Port Gigabit GREENnet Mini Switch, model TEG-S80g, provides high-bandwidth performance, ease-of-use, and reliability, all from a tiny and durable metal enclosure, while reducing power consumption. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement. TEG-S80g This space-saving metal mini switch is designed to fit into any desktop setup and is small enough to fit into your pocket. It’s ideal for both a minimalist desk setup or a desk packed with gear. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy mini switch for reliable high-speed network connectivity.
FEATURES
Energy Savings
Embedded GREENnet technology provides cost savings and reduces power consumption. It works right out of the box with no management required.
Gigabit Speeds
Eight gigabit ports provide high-speed network connections to devices, and a 16Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Compact Design
With a compact metal housing design, this mini switch is well-suited for desktop or wall mount installations. Its fanless design is perfect for quiet environments that require silent operation.
Easy Installation
No configuration needed, simply connect network devices to this gigabit mini switch
Gigabit Ports
Equipped with eight gigabit Ethernet ports
Switching Capacity
16Gbps switching capacity
Fanless
Fanless design lowers energy consumption and eliminates operating noise
Housing Design
Compact and lightweight metal housing
Wall Mountable
Features a convenient wall mountable design for greater installation flexibility
Jumbo Frame
Send larger packets, or Jumbo Frames (up to 9KB), for increased performance
LED Indicators
LED indicators convey port status
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3az
Device Interface
8 x Gigabit ports
LED indicators
Wall mountable
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Performance
Switch fabric: 16Gbps
RAM buffer: 192KB
MAC address table: 4K entries
Jumbo Frames: 9KB
Forwarding mode: Store and forward
Forwarding rate: 11.9Mpps (64-byte packet size)
Power
Input: 100 – 240V AC, 50/60 Hz
Output: 5V DC, 1A
Max. consumption: 3.2W
MTBF
104,375 hours
Fan / Acoustics
Fanless
Operating Temperature
0° – 40° C (32° – 104° F)
Operating Humidity
Max. 90% non-condensing
Dimensions
126 x 51.8 x 24mm (4.96 x 2.04 x 0.94 in.)
Weight
0.176 kg (0.388 lbs.)
Certifications
CE
FCC
LVD
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TEG-S80g
Quick Installation Guide
Power adapter (5V, 1A)
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3az
Device Interface
8 x Gigabit ports
LED indicators
Wall mountable
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Performance
Switch fabric: 16Gbps
RAM buffer: 192KB
MAC address table: 4K entries
Jumbo Frames: 9KB
Forwarding mode: Store and forward
Forwarding rate: 11.9Mpps (64-byte packet size)
Power
Input: 100 – 240V AC, 50/60 Hz
Output: 5V DC, 1A
Max. consumption: 3.2W
MTBF
104,375 hours
Fan / Acoustics
Fanless
Operating Temperature
0° – 40° C (32° – 104° F)
Operating Humidity
Max. 90% non-condensing
Dimensions
126 x 51.8 x 24mm (4.96 x 2.04 x 0.94 in.)
Weight
0.176 kg (0.388 lbs.)
Certifications
CE
FCC
LVD
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TEG-S80g
Quick Installation Guide
Power adapter (5V, 1A)
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
8-Port Gigabit GREENnet Mini Switch
8 x Gigabit ports
16Gbps switching capacity
Energy savings with GREENnet™ technology
Sturdy wall mountable metal mini switch
Fanless design eliminates operating noise
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEG-S80G |
| Brand Name | TRENDnet |
| Product Line | GREENnet |
| Product Model | TEG-S80g |
| Product Name | 8-Port Gigabit GREENnet Mini Switch |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet, Fast Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Wall Mountable, Desktop |
| Height | 0.9" |
| Width | 5" |
| Depth | 2" |
| Length | 6.7" |
| Weight (Approximate) | 6.21 oz |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Power Source | Power Adapter |
| Power Consumption | 3.20 W |
| Technical Information | |
| Features | Fanless |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
