Overview

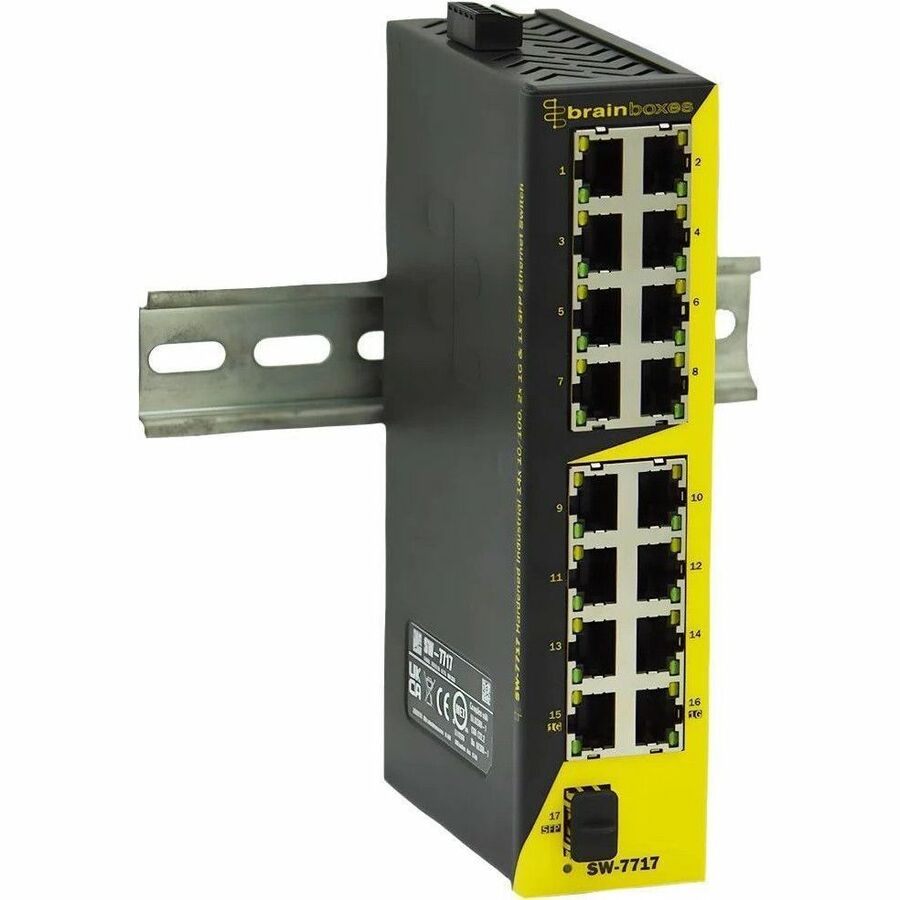

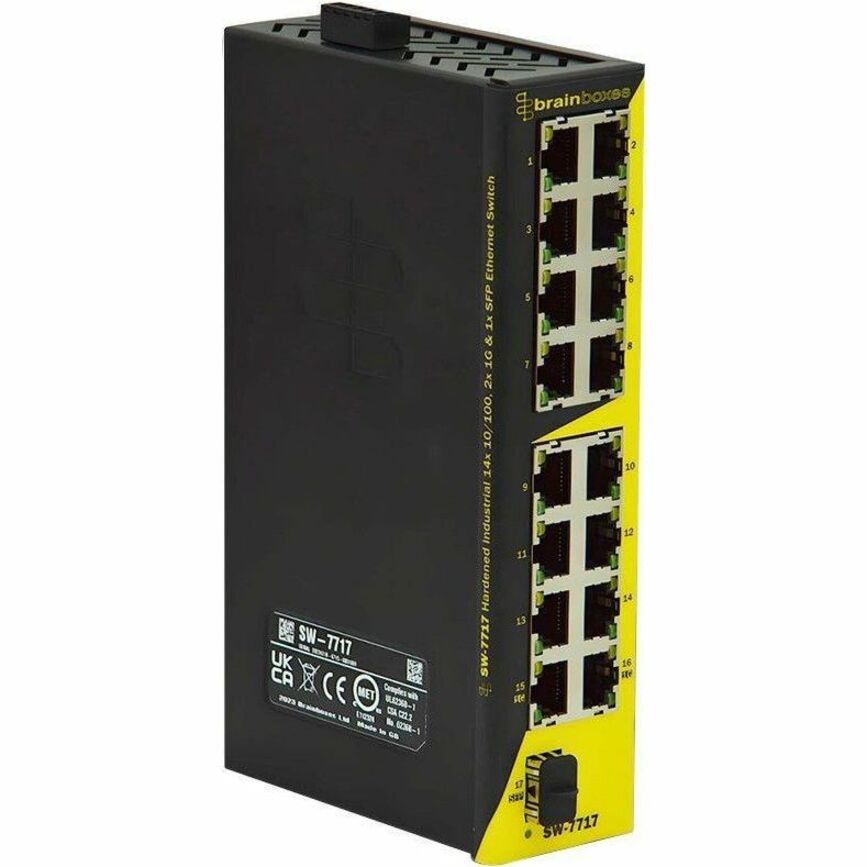

Hardened Industrial 14x 10/100, 2x 1G & 1x SFP Ethernet Switch - SFP uplink supports fibre optic connectivity, overcoming distance limitations of copper Ethernet cables and enabling communication between remote devices and control systems.
14x 10/100 Fast Ethernet ports and 2x 10/100/1000 Gigabit ports ensure flexibility in network integration, accommodating diverse network requirements and device capabilities, making it easier to integrate into existing industrial automation setups.
Extend network reach and reliability by integrating fibre optic uplinks to connect equipment across large production areas/multiple manufacturing floors.
Wide voltage input range (+5V to +30VDC) and dual redundant power inputs ensure reliability and reduce the risk of power outages.
Hardened industrial design and wide temperature range of -40°C to +80°C (-40°F to 176°F) for reliable operation in challenging environments, minimising the risk of downtime due to environmental factors.
Warranty
Limited Warranty: Lifetime
Highlights
Effectively increases available bandwidth on your network
Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
Quickly and easily set up a wired network with 16 networking ports
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
DIN Rail Mountable form factor for added reliability and dependability
The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-7717
Brand Name
Brainboxes
Product Model
SW-7717
Product Name
SW-7717 Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
16
Network (RJ-45)
Yes
Uplink Port
Yes
Port/Expansion Slot Details

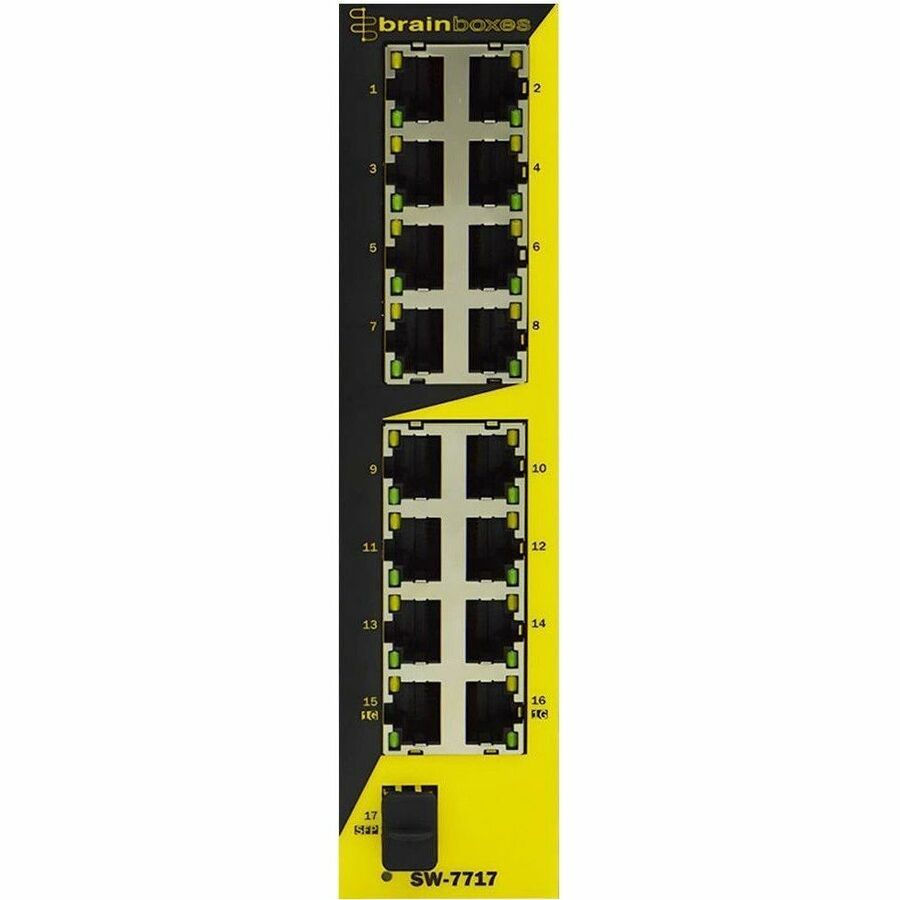

14 x 10/100BASE-T RJ-45 Network Port, 2 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port, 1 x 1000BASE-X SFP Expansion Slot
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T, 1000Base-X
Maximum Data Transfer Rate
125 MB/s
Network & Communication
Layer Supported
2
Physical Characteristics
Product Material
Metal

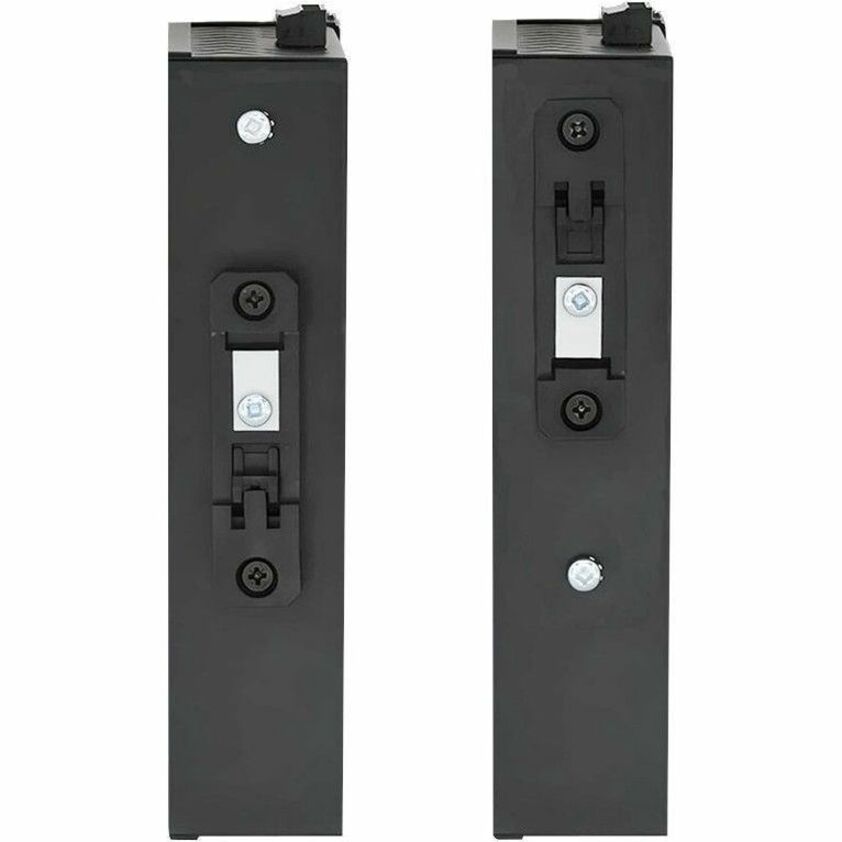

Form Factor
DIN Rail Mountable
Height
7.1"
Width
1.7"
Depth
4.3"
Weight (Approximate)
1.41 lb

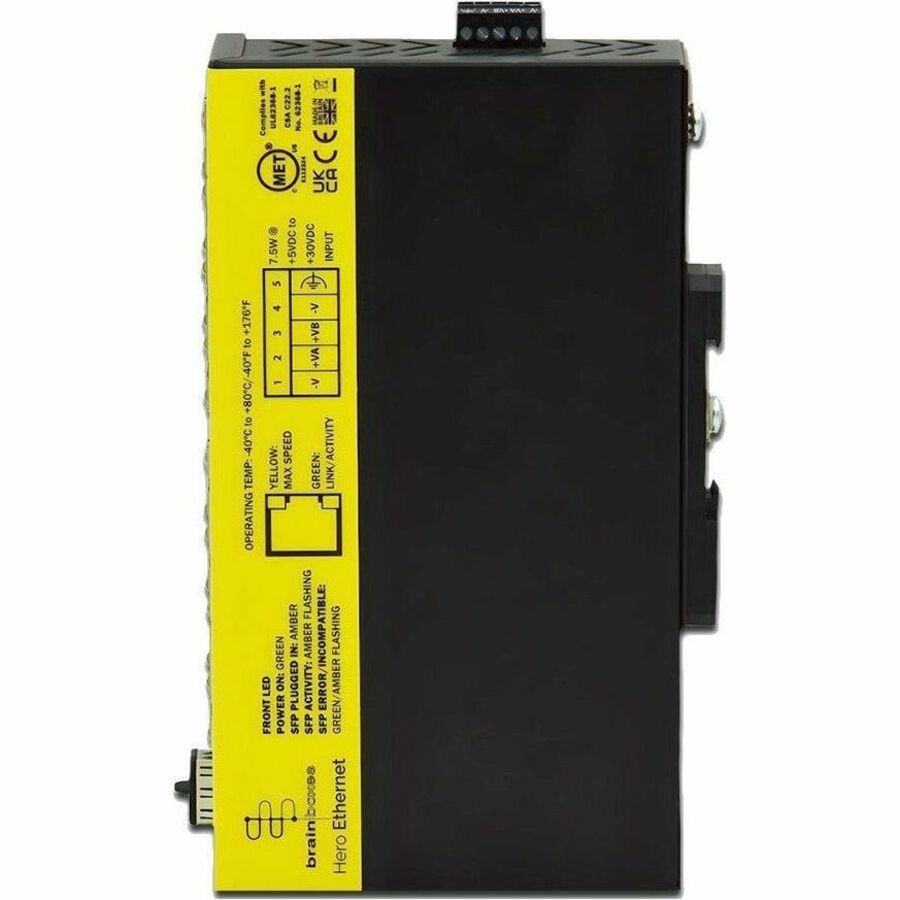

Power Description
Input Voltage
5 V, 30 V DC
Power Consumption
7.50 W
Warranty
Limited Warranty
Lifetime
I/O Expansions
Total Number of Expansion Slots
1
Expansion Slot Type
SFP
Number of SFP Slots
1
Miscellaneous
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
