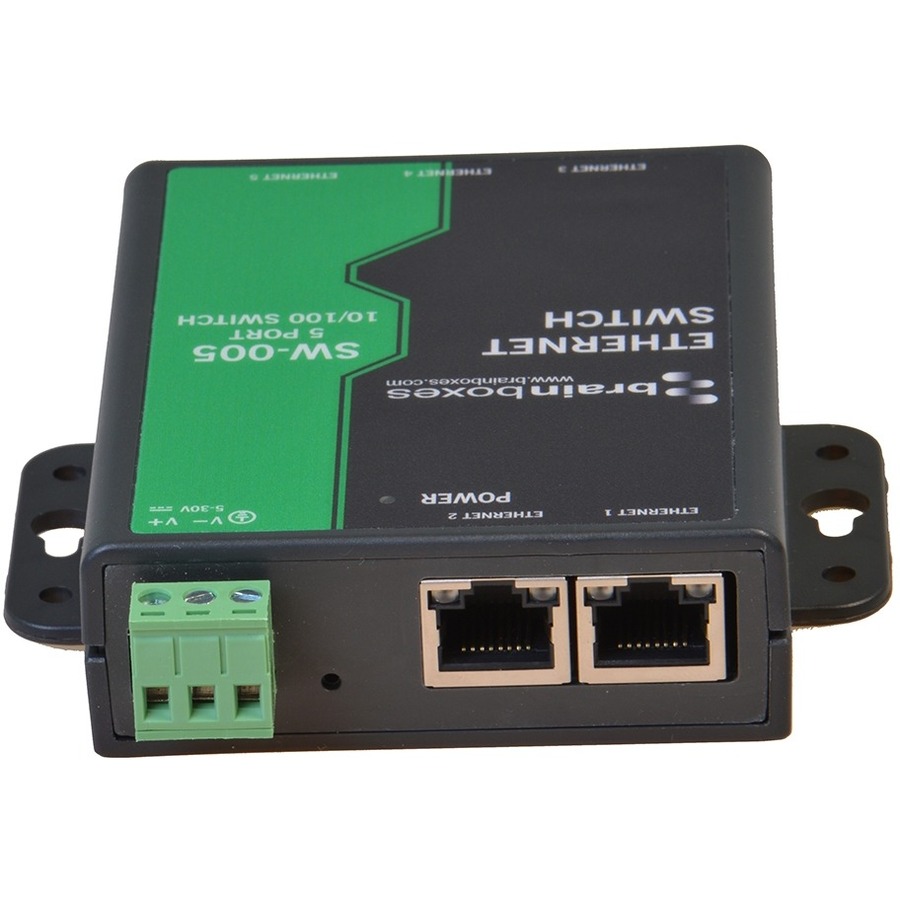

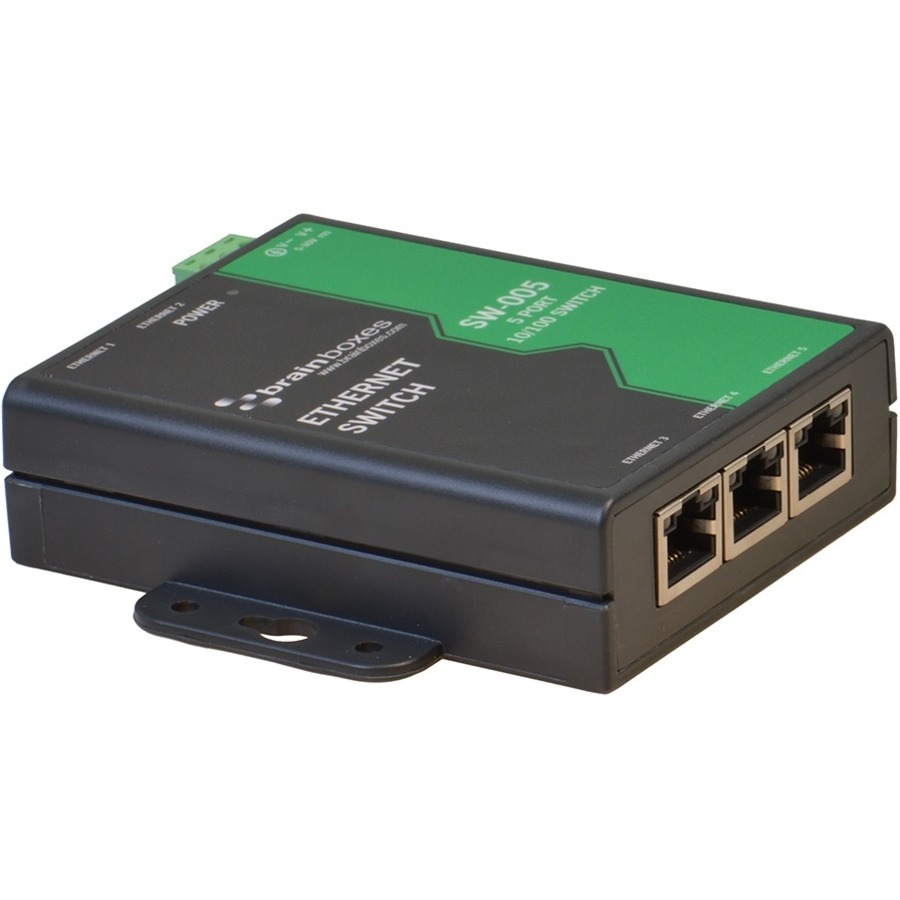

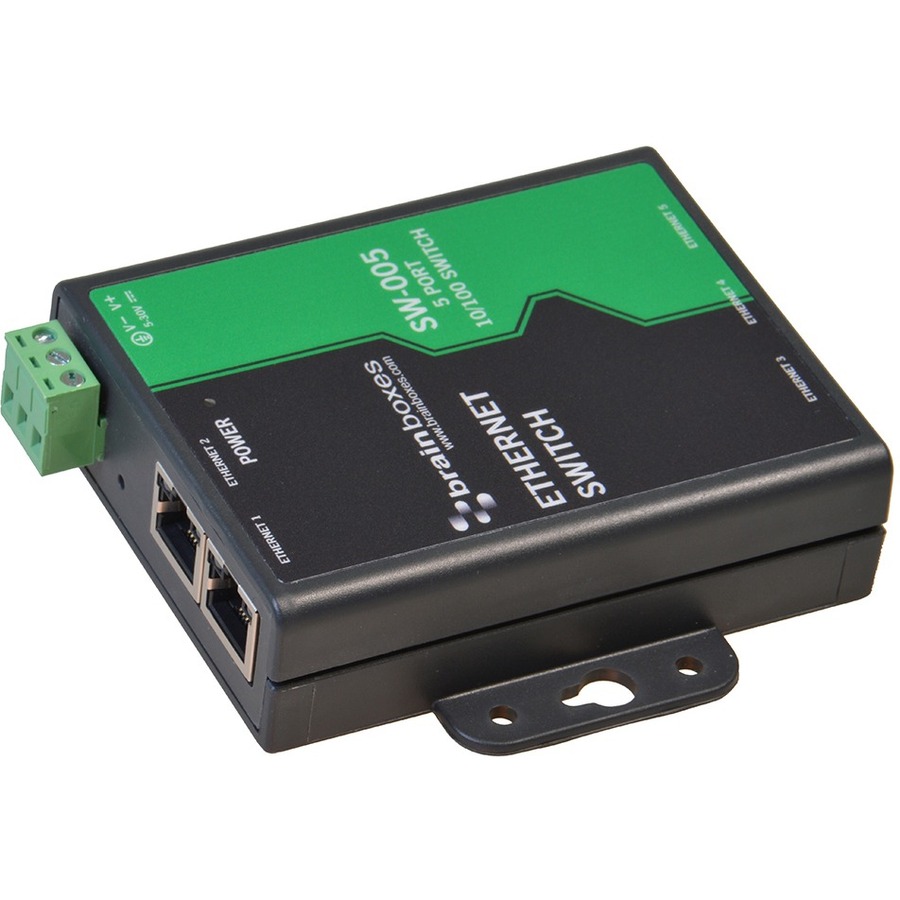

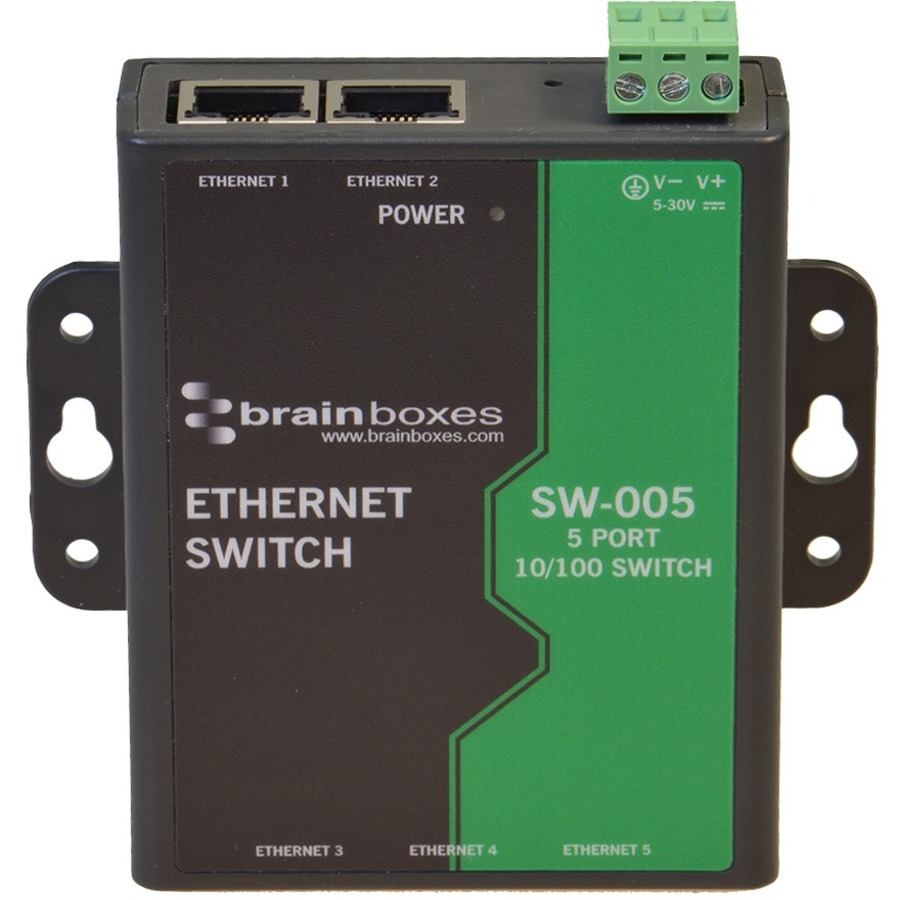

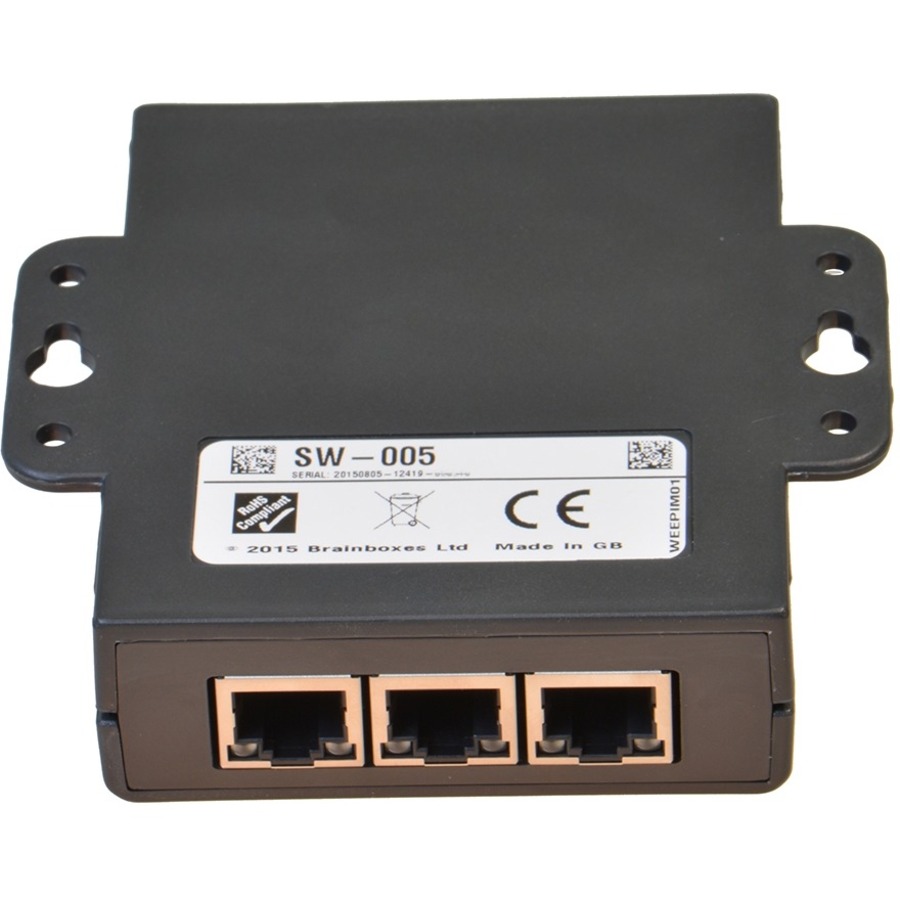

Brainboxes 5 Port Unmanaged Ethernet Switch Mountable
Brainboxes

Brainboxes 5 Port Unmanaged Ethernet Switch Mountable

5 Ports - Fast Ethernet - 10/100Base-T - 2 Layer Supported - Twisted Pair - Wall Mountable, Rail-mountable - Lifetime Limited Warranty

SKU
SW-005-X20M
Category
Switches & Bridges

MSRP$1,118.48

$974.38

Save 13%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Brainboxes through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SW-005-X20M
Category
Switches & Bridges

Overview

• 5 Port 10/100 Mbs Ethernet Switch

• Power inputs: +5V to +30V DC

• Compact design with integral wall mount

• No software required - Simply plug in and connect

• Integral wall mount or optional DIN rail mount

• Connection speed and activity LEDs on each Port

Switches control the flow of network traffic based on the address information in each packet. A switch learns which devices are connected to its ports (by monitoring the packets it receives), and then forwards on packets to the appropriate port only. This allows simultaneous communication across the switch, improving bandwidth.

Highlights

  • Effectively reduces downtime with improved network performance
  • Quickly and easily set up a wired network with 5 networking ports
  • Just plug-in the switch with USB port to make it run
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • Rail mounting is ideal for factory areas, in vehicles and marine applications
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Specifications

Product TypeEthernet Switch
Manufacturer Part NumberSW-005-X20M
Packaged Quantity20
Power SourceUSB
Limited WarrantyLifetime
Layer Supported2
Weight (Approximate)4.83 oz
Form FactorWall Mountable, Rail-mountable
ManufacturerBrainboxes Limited
Product ModelSW-005
Product Name5 Port Unmanaged Ethernet Switch Mountable
Network Technology10/100Base-T
Brand NameBrainboxes
Country of OriginUnited Kingdom
Height1.1"
Width4"
Depth4.2"
ManageableNo
Environmentally FriendlyYes
Ethernet TechnologyFast Ethernet
Media Type SupportedTwisted Pair
Total Number of Network Ports5
Port/Expansion Slot Details5 x Fast Ethernet Network
