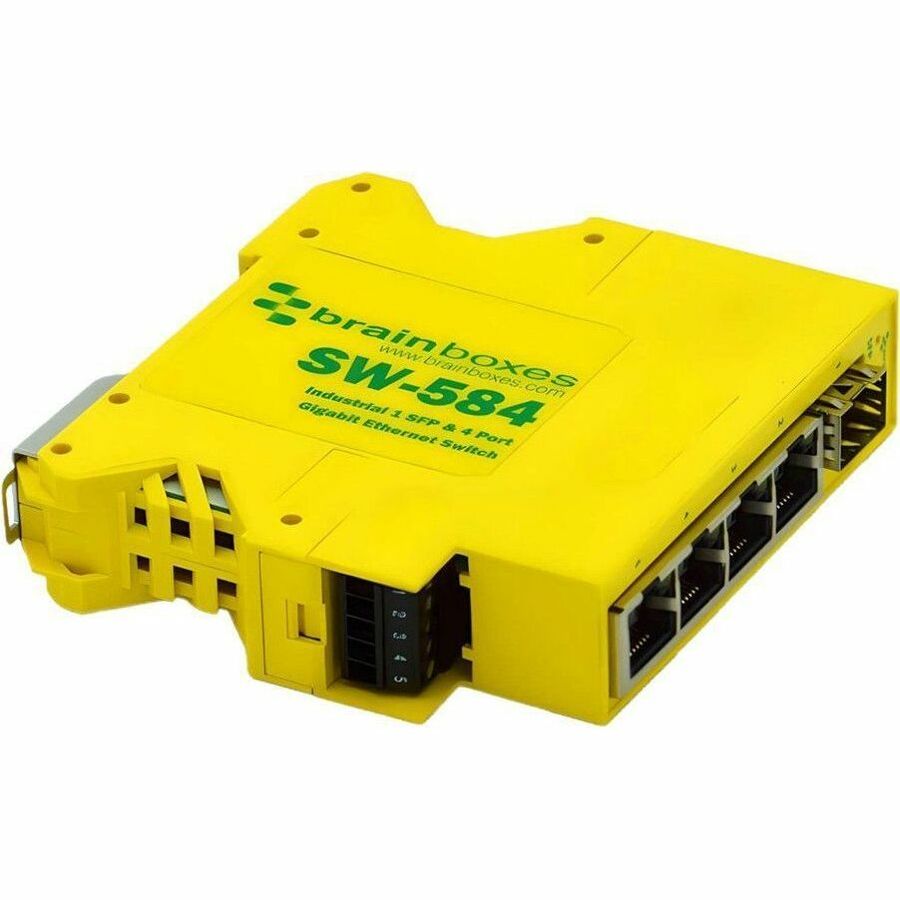

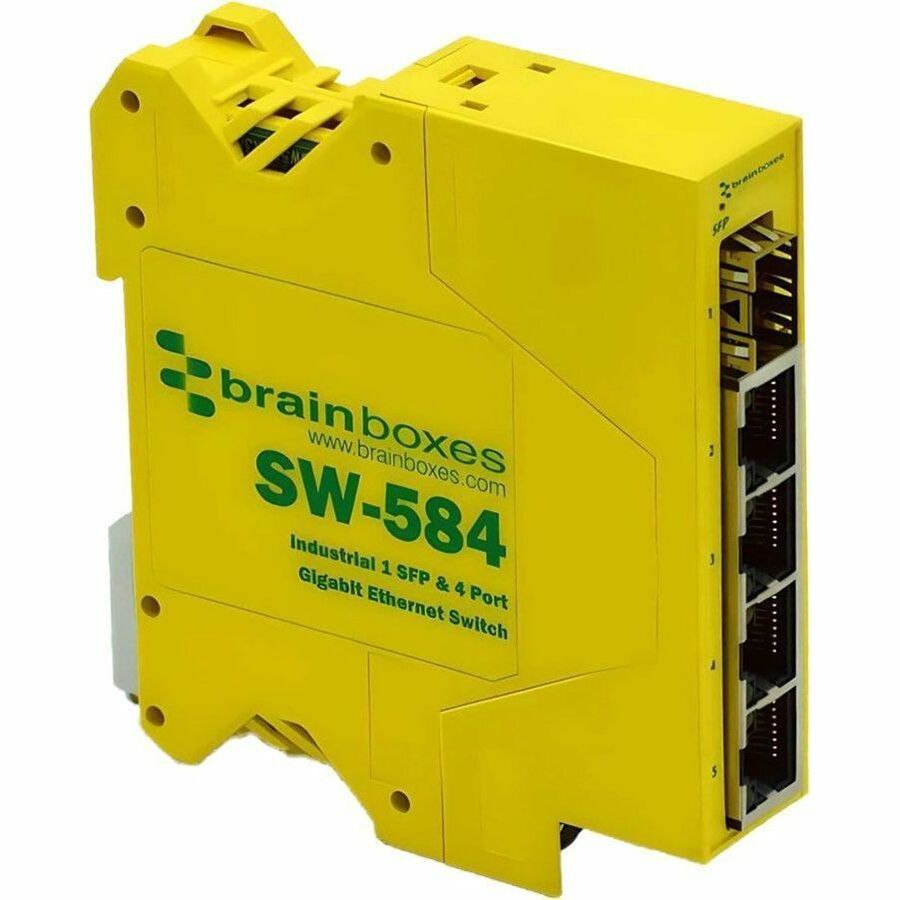

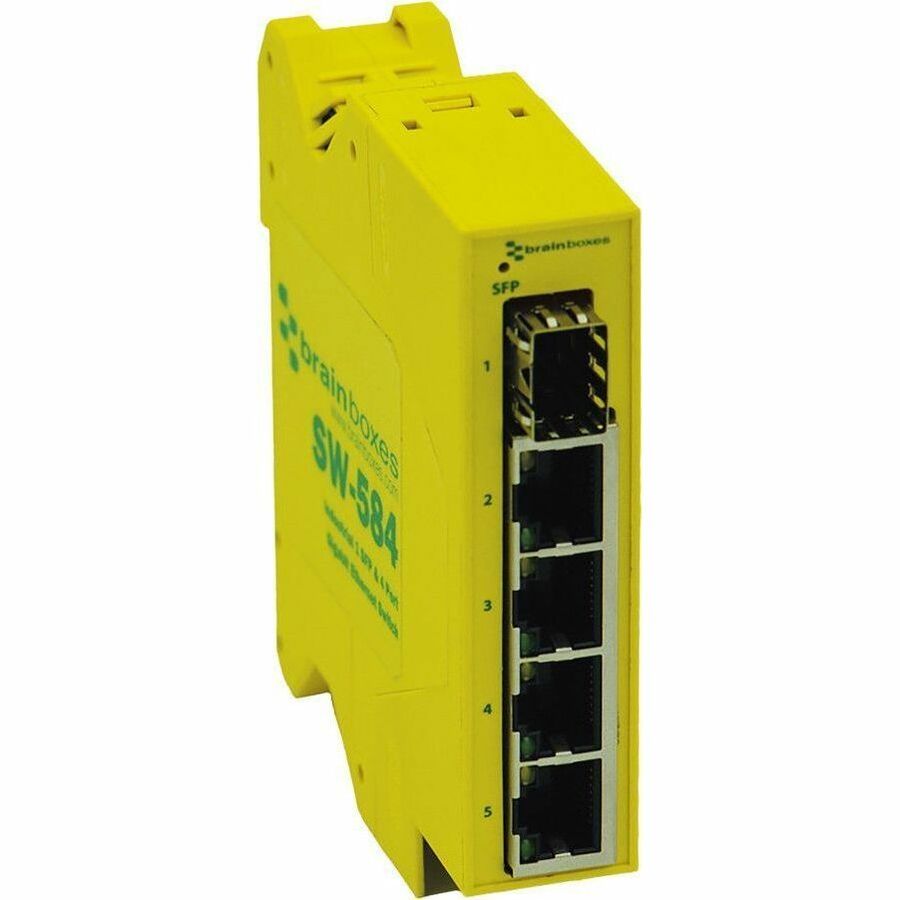

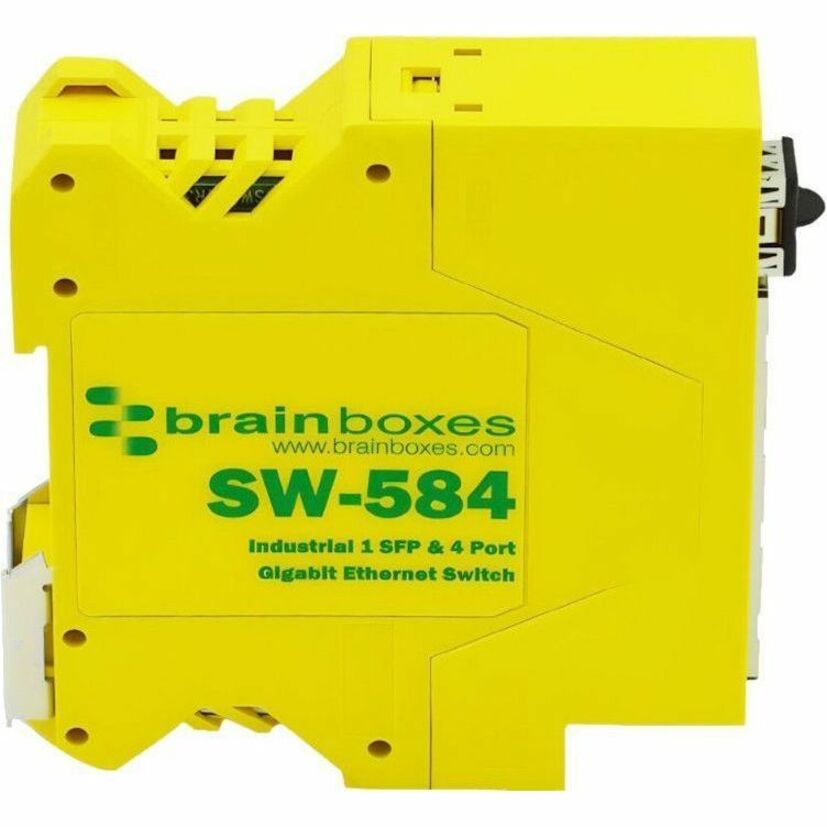

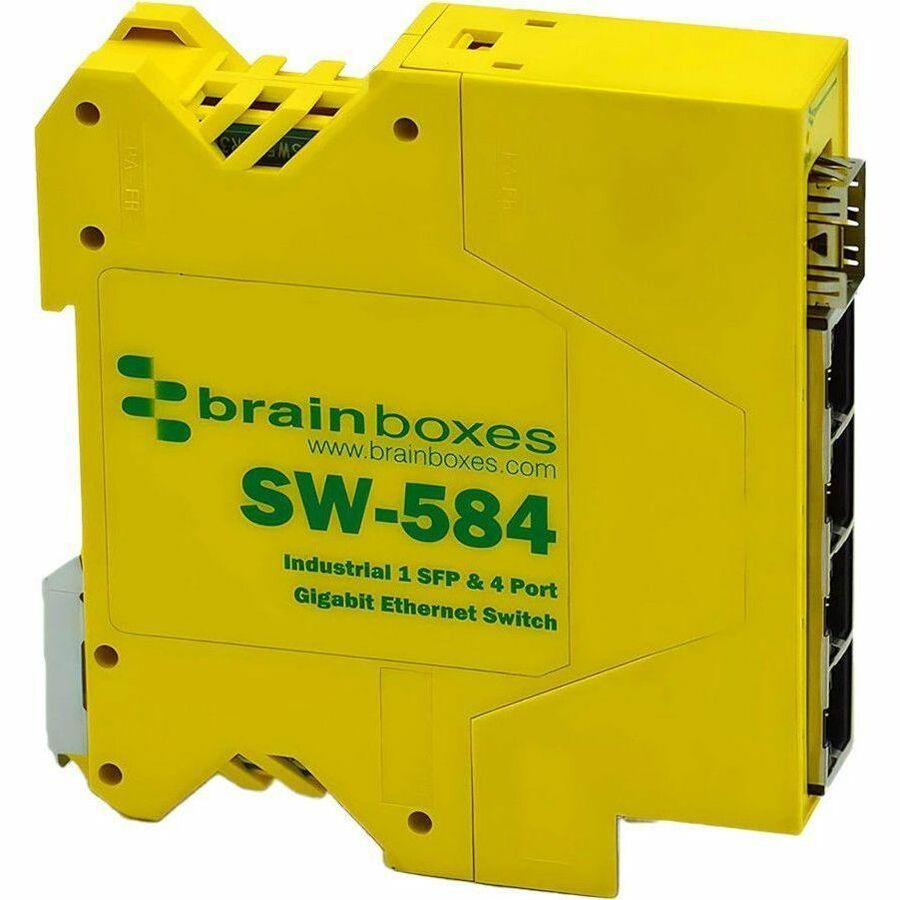

Brainboxes 1 SFP & 4 Port Gigabit Ethernet Switch
Brainboxes

Brainboxes 1 SFP & 4 Port Gigabit Ethernet Switch

4 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 1 SFP Slots - 3.60 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Compact - Lifetime Limited Warranty

SKU
SW-584
Category
Switches & Bridges

MSRP$132.17

$121.91

Save 8%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Brainboxes through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SW-584
Category
Switches & Bridges

Overview

SFP & Industrial Gigabit Ethernet switch.

Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.

Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

Highlights

  • Fast, low cost, future-proof way to deploy long network segments
  • Connect to wide variety of fibre optic and copper cable types
  • High speed data connection over extended distances
  • Reduce susceptibility to electromagnetic interference
  • Industrial temperature range: -40ºC to +80ºC/-40ºF to +176ºF - works in extreme conditions
  • Jumbo Frame support up to 9K frames
  • Integral DIN mount
  • SFP Port Power Overcurrent protection

Specifications

Package Contents
  • 1 SFP & 4 Port Gigabit Ethernet Switch
  • Quick Start Guide
Product TypeEthernet Switch
Input Voltage5 V DC, 30 V DC
Manufacturer Part NumberSW-584
Power SourcePower Supply, USB
Limited WarrantyLifetime
Layer Supported2
Weight (Approximate)3.84 oz
FeaturesIP20
Form FactorDIN Rail Mountable, Compact
ManufacturerBrainboxes Limited
Product ModelSW-584
Product Name1 SFP & 4 Port Gigabit Ethernet Switch
Network Technology10/100/1000Base-T, 1000Base-X
Power Consumption3.60 W
Brand NameBrainboxes
Plug/Connector TypeTerminal Block
Expansion Slot TypeSFP (mini-GBIC)
Country of OriginGreat Britain
Height0.9"
Width3.9"
Depth3.7"
Environmentally FriendlyYes
Maximum Data Transfer Rate125 MB/s
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Number of SFP Slots1
ModularYes
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Network Ports4
Port/Expansion Slot Details4 x Gigabit Ethernet Network, 1 x Gigabit Ethernet Expansion Slot
Total Number of Expansion Slots1
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
