Overview

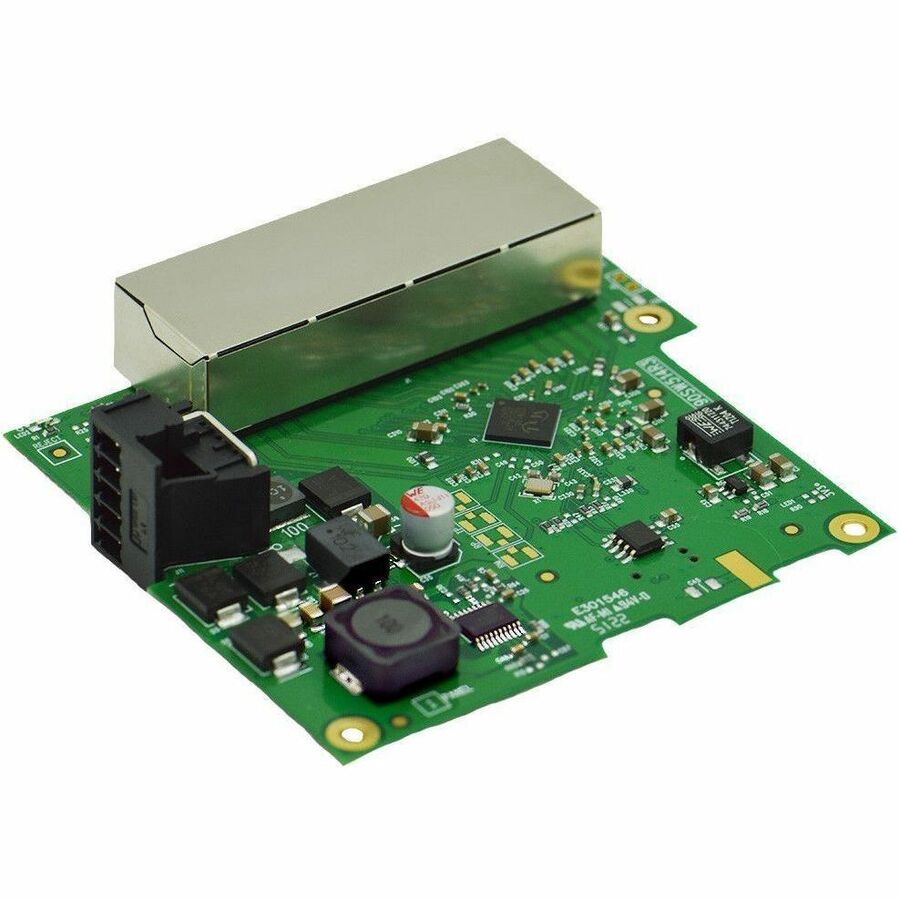

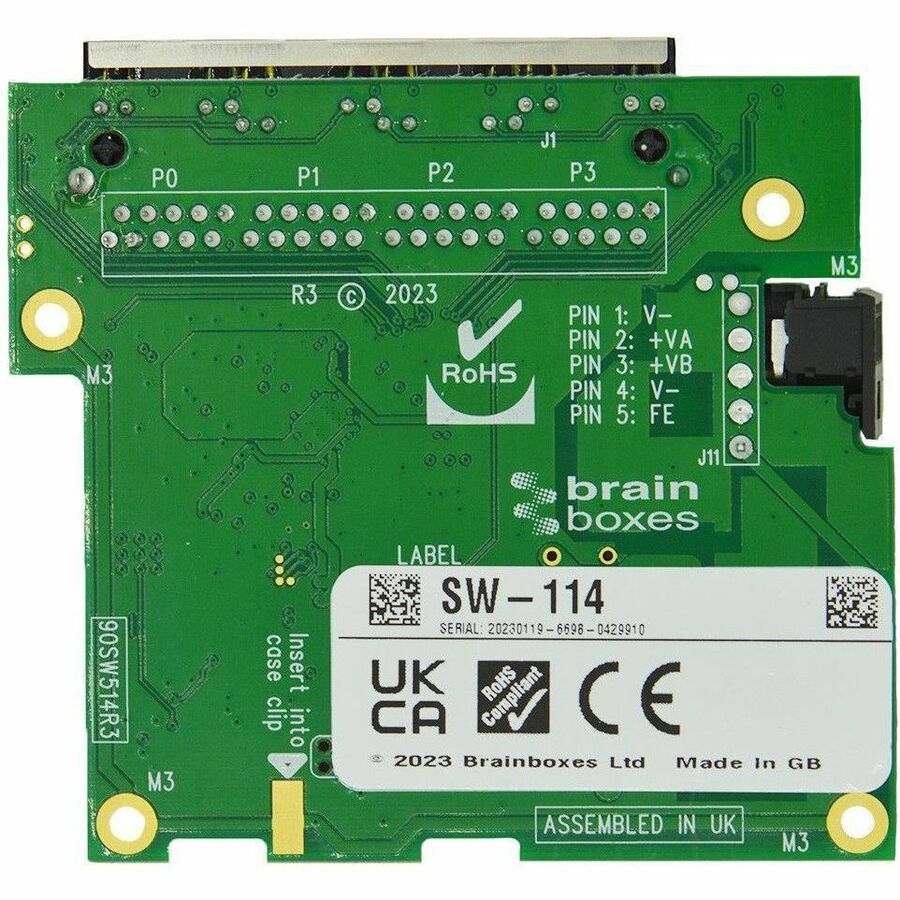

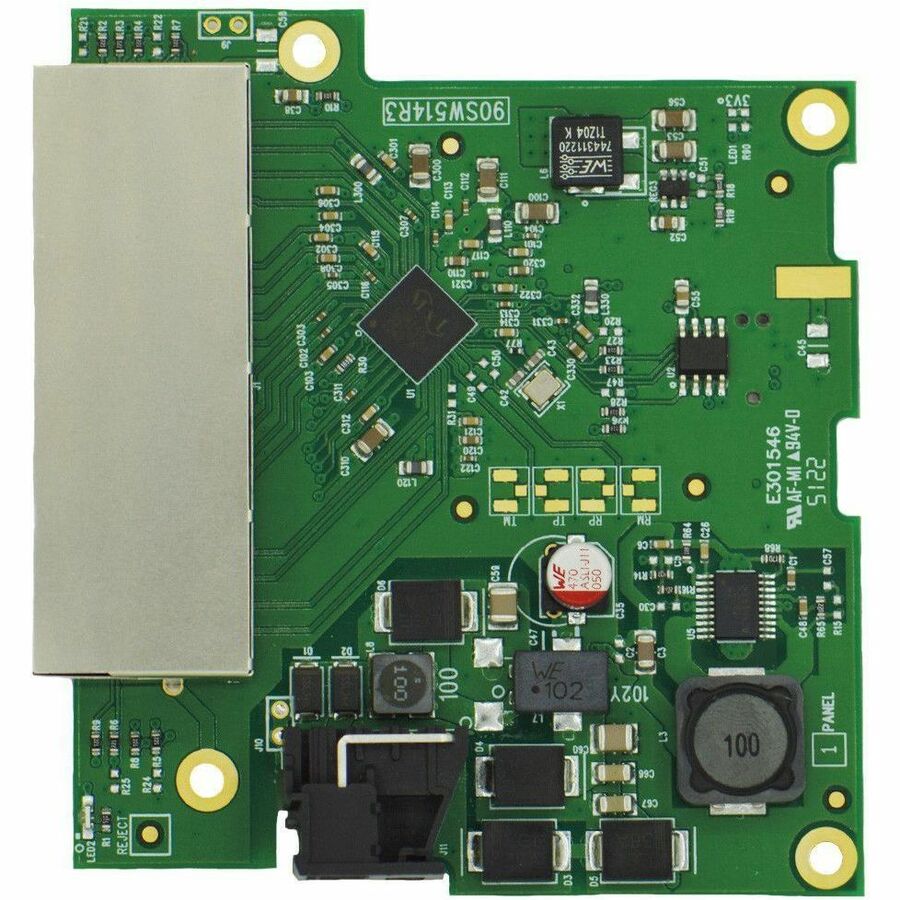

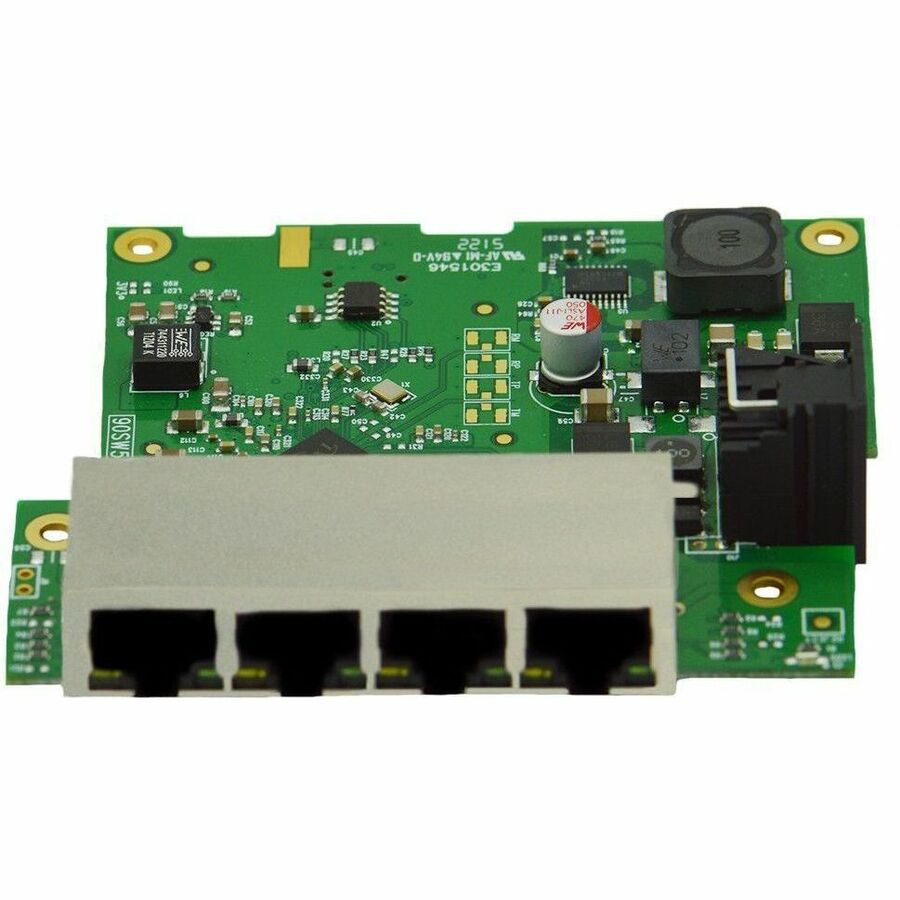

Embedded industrial 4 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
Highlights
4 Gigabit Ethernet ports
Wide voltage input range: +5V to +30VDC - can be powered by a variety of sources
Industrial temperature range: -40ºC to +80ºC/-40ºF to +176ºF - works in extreme conditions
Redundant dual power inputs - reduces risk of power outage
Mounting holes in PCB
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-114
Brand Name
Brainboxes
Product Name
Embedded Industrial 4 Port Gigabit Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
4
Network (RJ-45)
Yes
Port/Expansion Slot Details
4 x Gigabit Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
Rack-mountable
Height
1.9"
Width
6.3"
Depth
5.3"
Weight (Approximate)
6.74 oz
Power Description
Input Voltage
5 V DC, 30 V DC
Power Source
DC
Redundant Power Supply Supported
Yes
Power Consumption
3.60 W
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
