SKU
SW-515
Category
Switches & Bridges
Overview

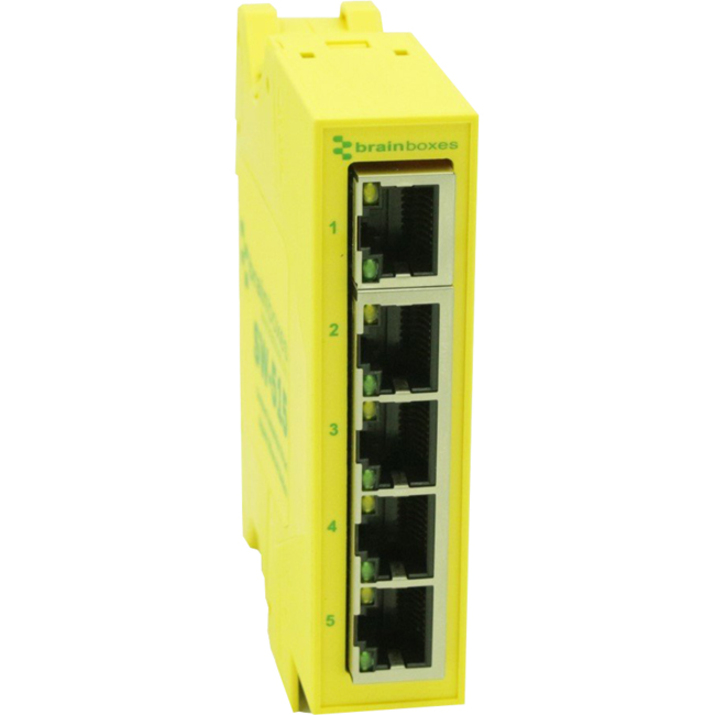

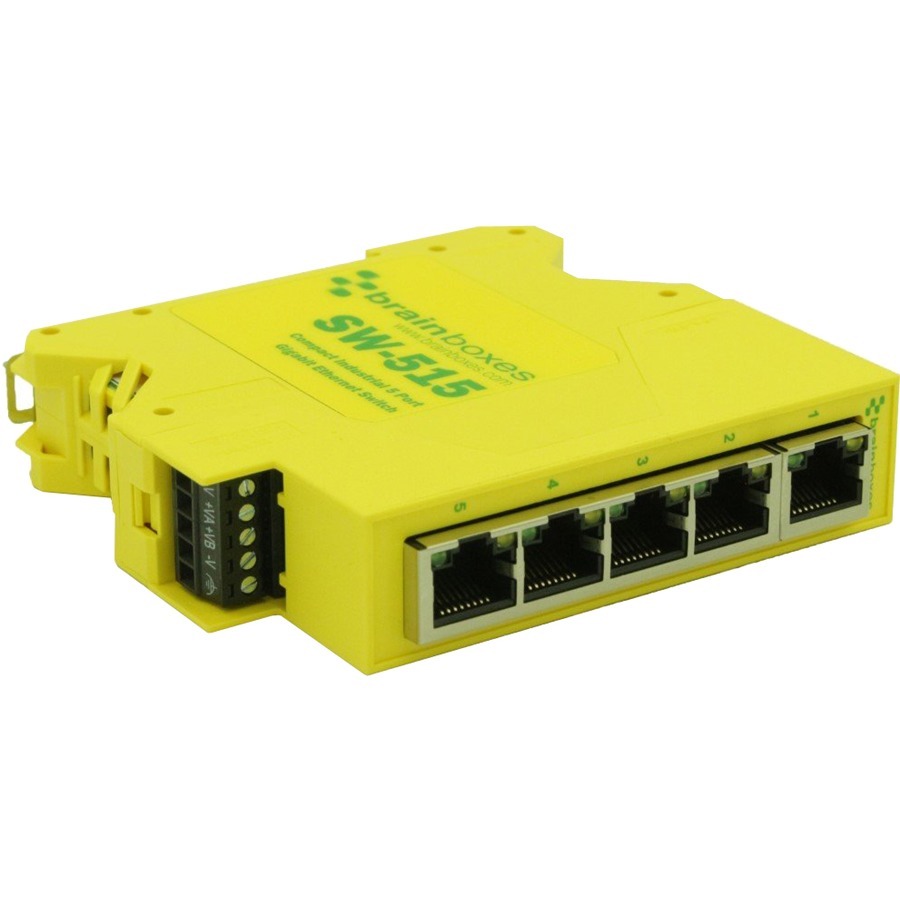

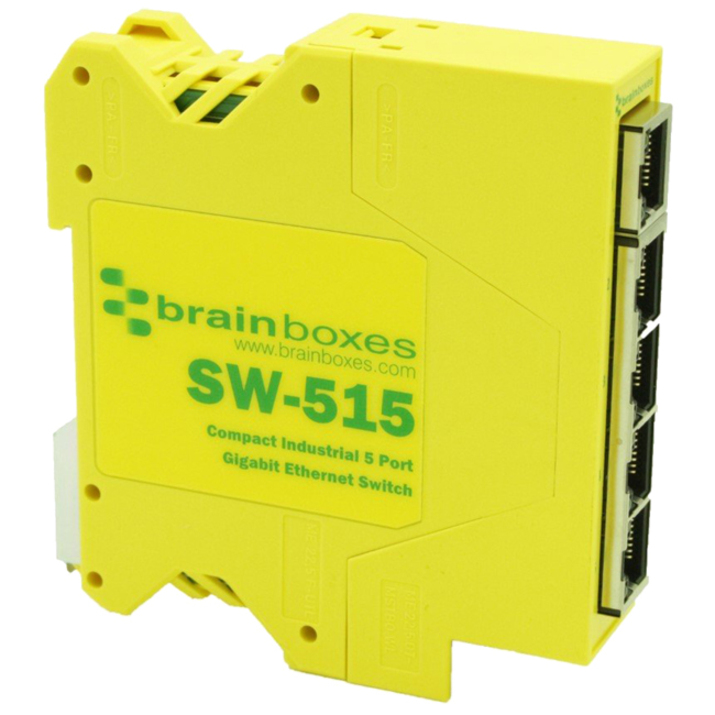

Compact industrial 5 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Highlights
5 Gigabit Ethernet ports
Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources
Industrial operating temperature range: -40ºC to +80ºC/-40ºF to +176ºF - works in extreme conditions
Redundant dual power inputs - reduces risk of power outage
Small Footprint Case, only 23mm wide, 94mm deep
Specifications
Package Contents
Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable
Quick Start Guide
Product Type
Ethernet Switch
Manufacturer Part Number
SW-515
Limited Warranty
Lifetime
Layer Supported
2
Weight (Approximate)
3.95 oz
Form Factor

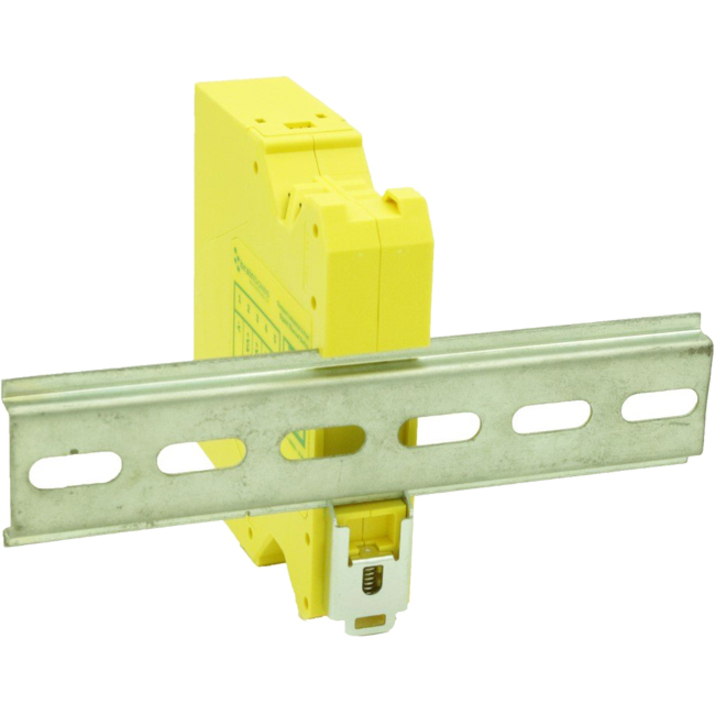

DIN Rail Mountable
Manufacturer
Brainboxes Limited
Product Model
SW-515
Product Name
Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable
Network Technology
10/100/1000Base-T
Brand Name
Brainboxes
Country of Origin
United Kingdom
Height
3.9"
Width
0.9"
Depth
3.7"
Manageable
No
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Modular
No
Uplink Port
No
Stack Port
No
Media Type Supported
Twisted Pair
Total Number of Network Ports
5
Port/Expansion Slot Details
5 x Gigabit Ethernet Network
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
