SKU
SW-008
Category
Switches & Bridges
Overview

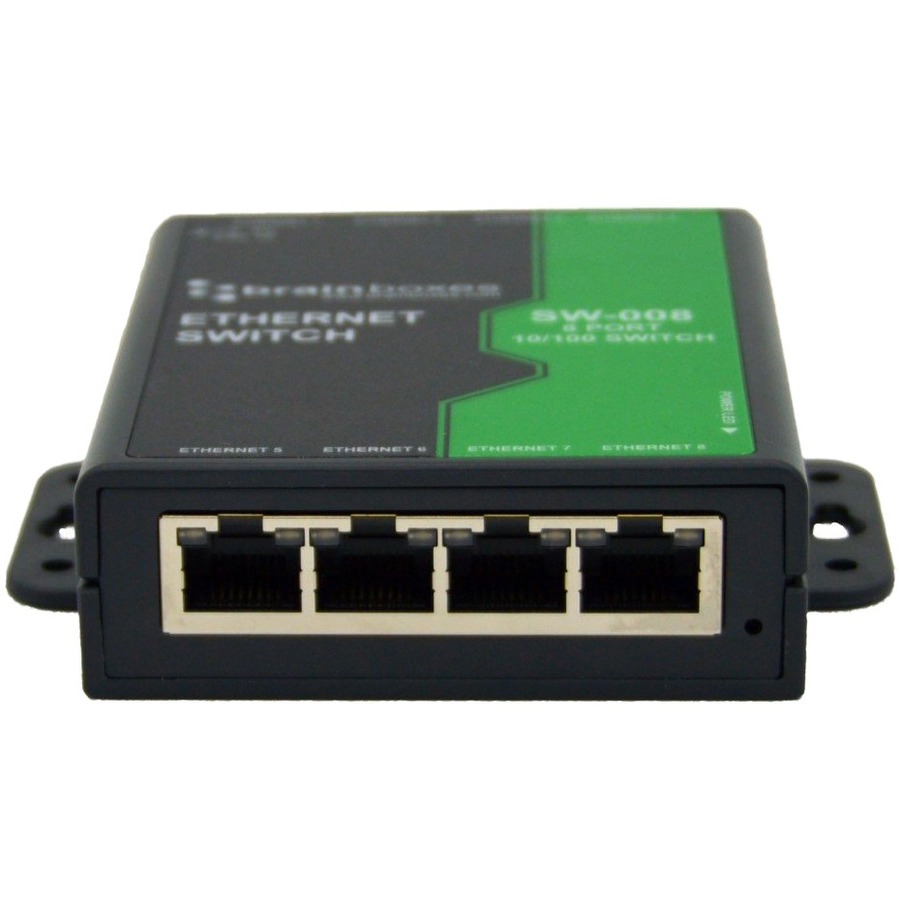

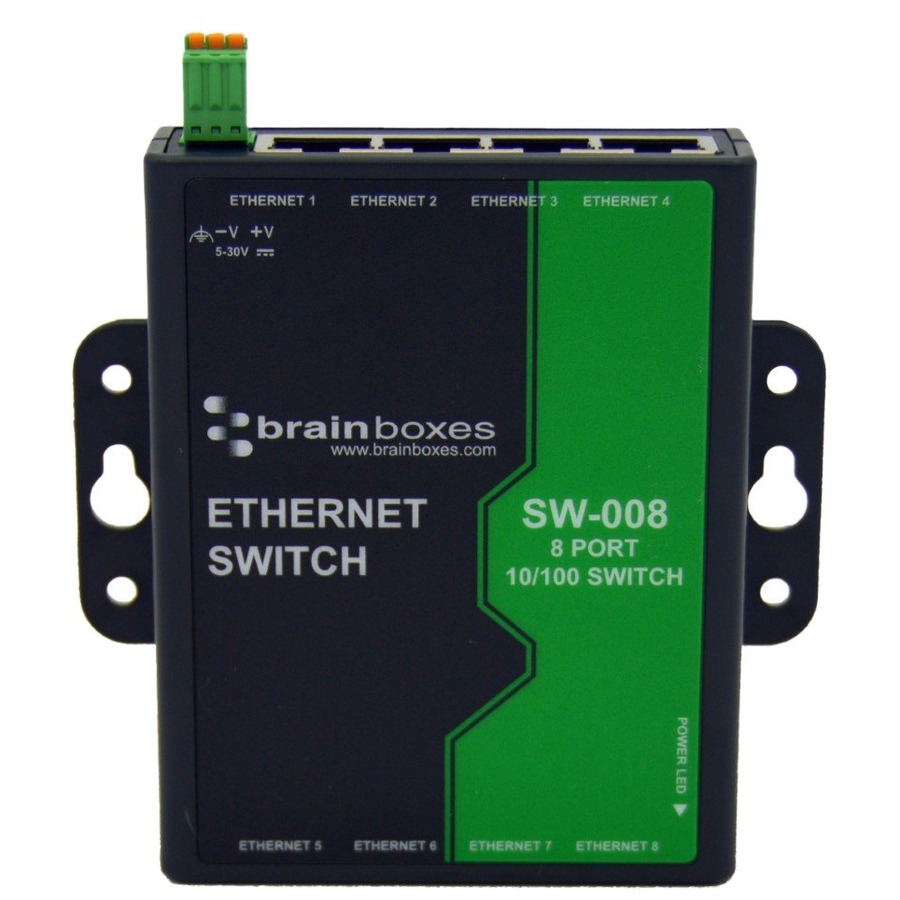

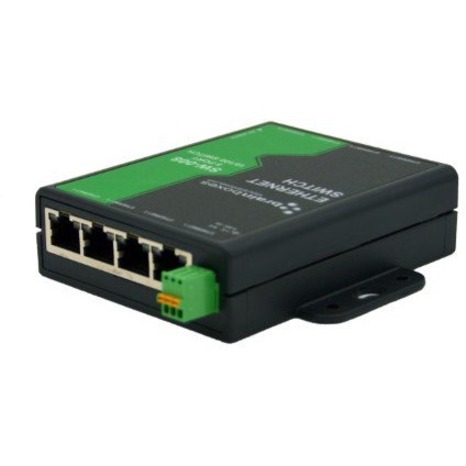

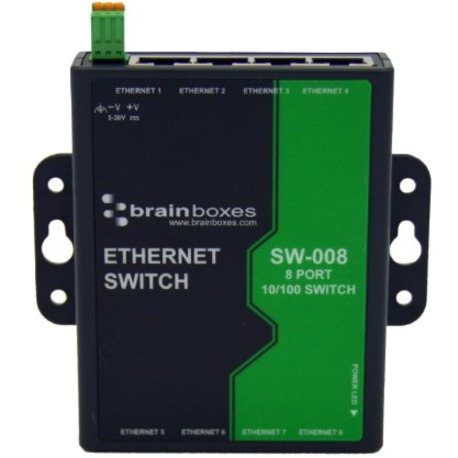

Light Industrial/Commercial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, optional DIN Rail mount accessory available (see MK-048).
Warranty
Limited Warranty: Lifetime
Highlights
8 Port Ethernet Switch
Wide Power Input: +5V to +30V DC

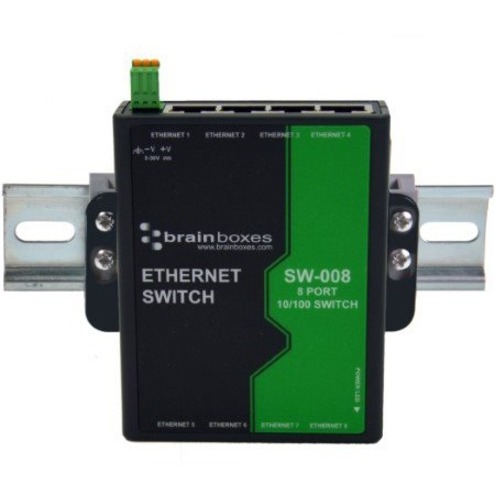

Wall Mountable, or DIN rail mountable with optional accessory
-10°C to +60°C / -14°F to +140°F operating temperature
No software required
Lifetime Support and Lifetime Warranty
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-008
Brand Name
Brainboxes
Product Model
SW-008
Product Name
8 Port Unmanaged Ethernet Switch Wall Mountable
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
8
Port/Expansion Slot Details
8 x Fast Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Fast Ethernet
Network Technology
10/100Base-T
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
DIN Rail Mountable, Wall Mountable
Height
1.2"
Width
4.3"
Depth
3.9"
Weight (Approximate)
5.01 oz
Power Description
PoE (RJ-45) Port
No
Power Source
Power Supply
Power Consumption
1.10 W
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
8 Port Unmanaged Ethernet Switch Wall Mountable
Quick Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
