SKU
SW-514
Category
Switches & Bridges
Overview

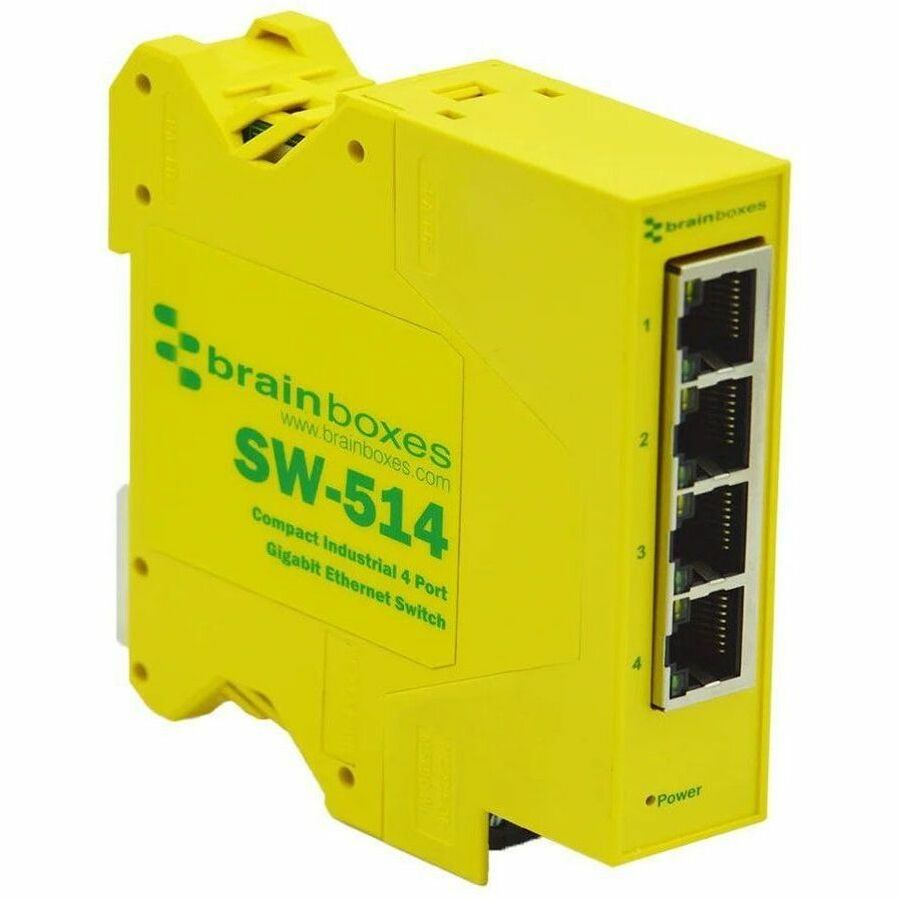

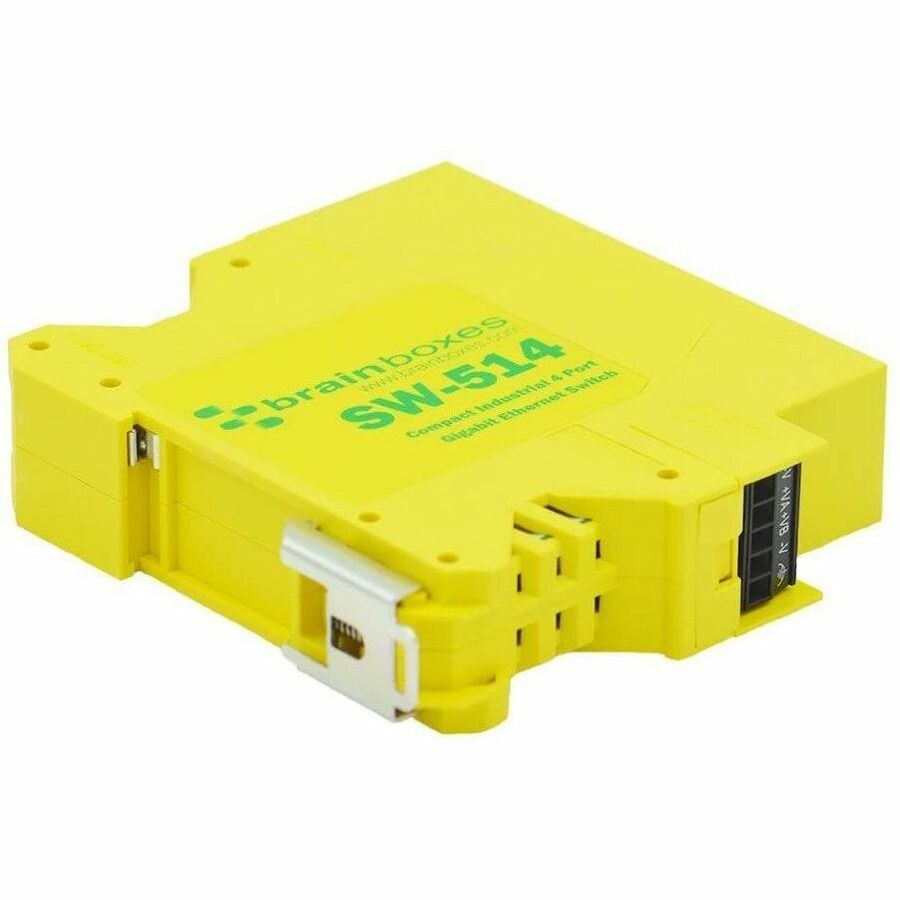

Industrial Gigabit Ethernet switch. Compact 4 port unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Warranty
Limited Warranty: Lifetime
Highlights
Effectively increases available bandwidth on your network
Quickly and easily set up a wired network with 4 networking ports
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience

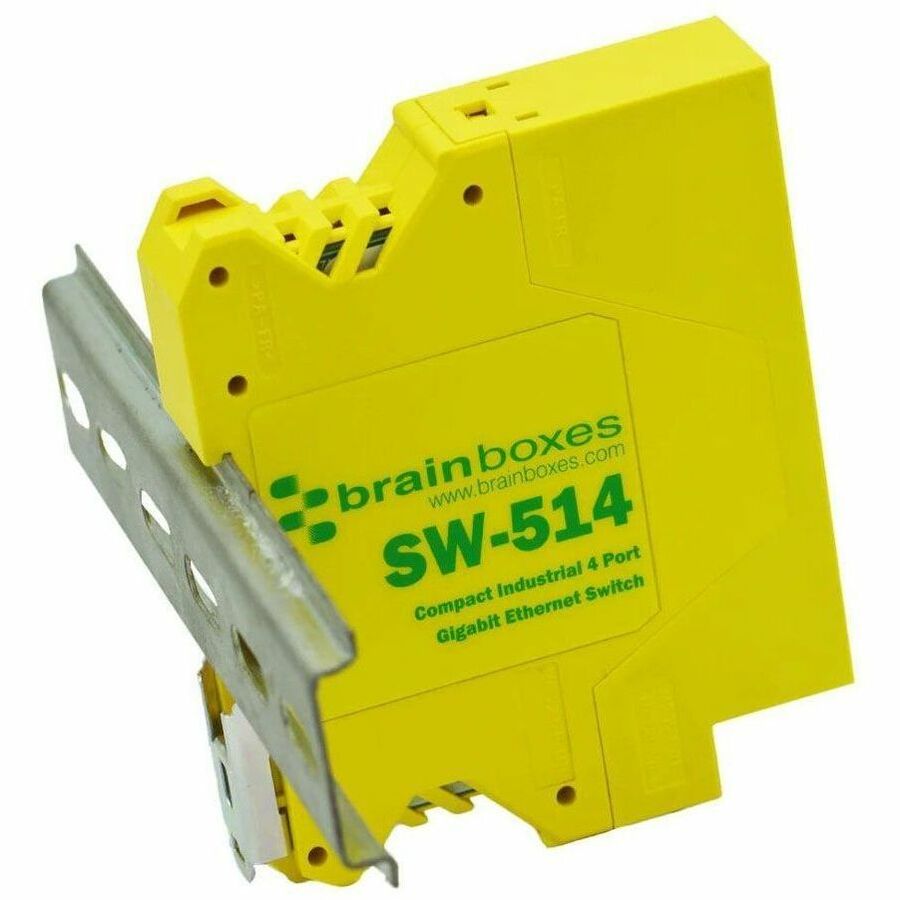

DIN Rail Mountable form factor allows hassle-free and easy usage with increased efficiency
The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-514
Brand Name
Brainboxes
Product Model
SW-514
Product Name

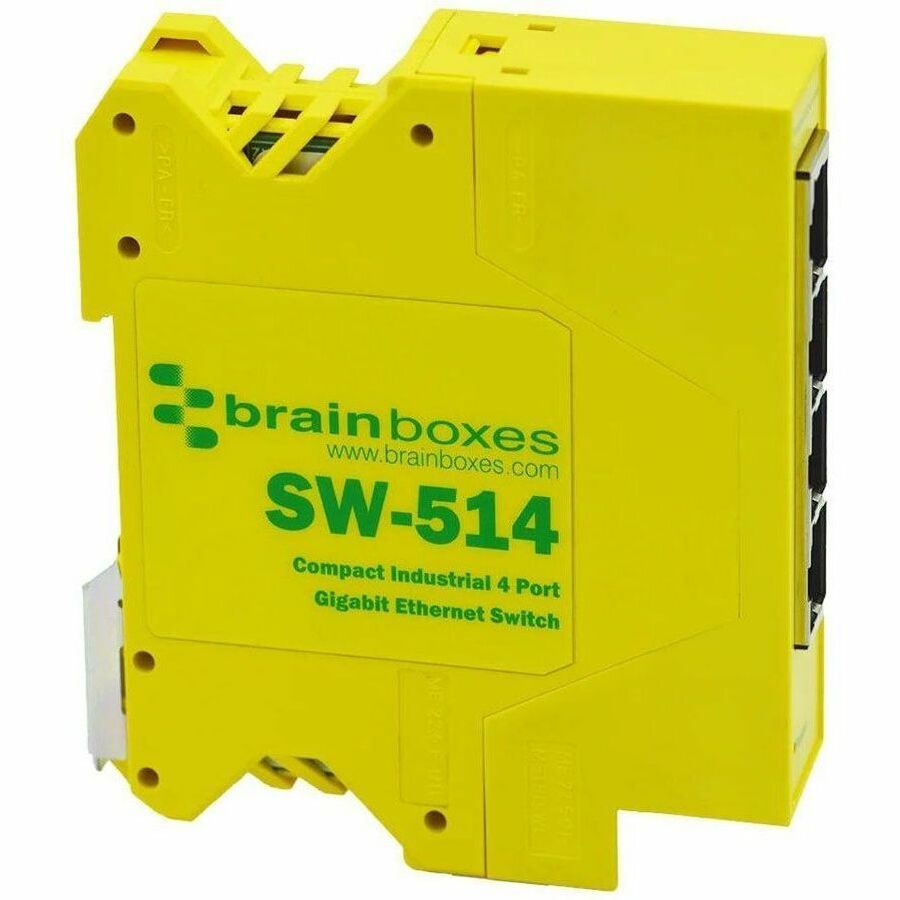

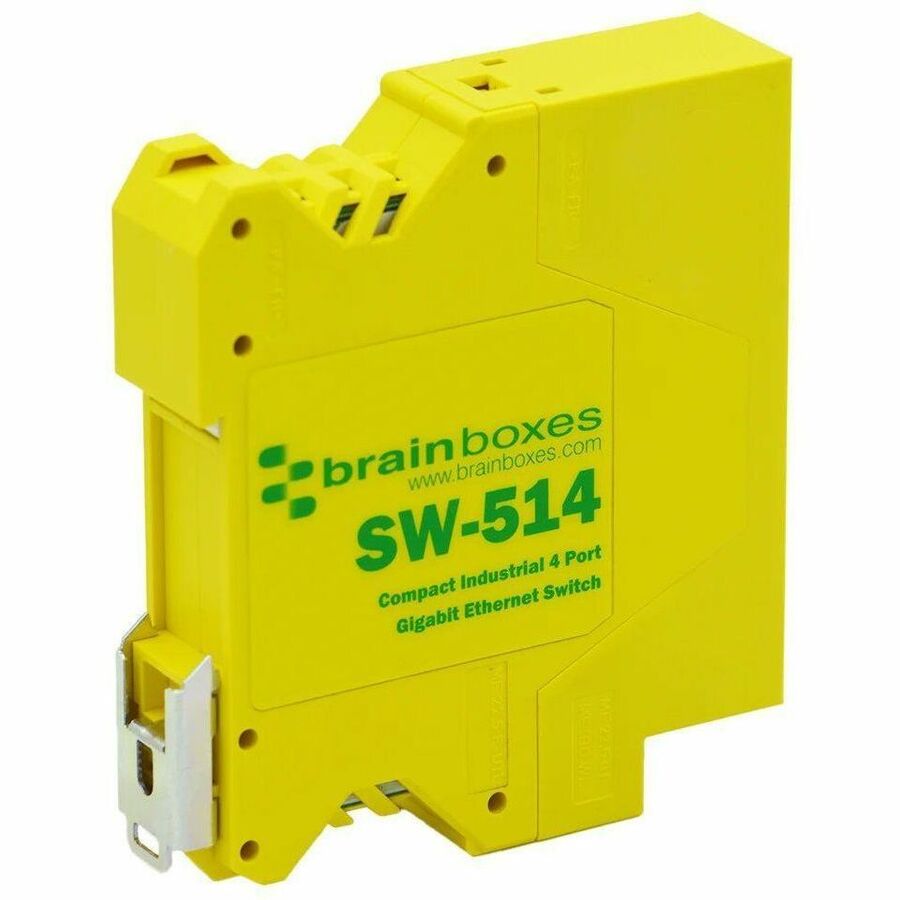

Compact Industrial 4 Port Gigabit Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
4
Uplink Port
No
Modular
No
Stack Port
No
Port/Expansion Slot Details
4 x Gigabit Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
DIN Rail Mountable
Height
3.9"
Width
0.9"
Depth
3.7"
Weight (Approximate)
3.95 oz
Power Description
Input Voltage
30 V DC
Power Source
Power Supply
Power Consumption
3.60 W
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Compact Industrial 4 Port Gigabit Ethernet Switch
Quick Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
