SKU
SW-084
Category
Switches & Bridges
Overview

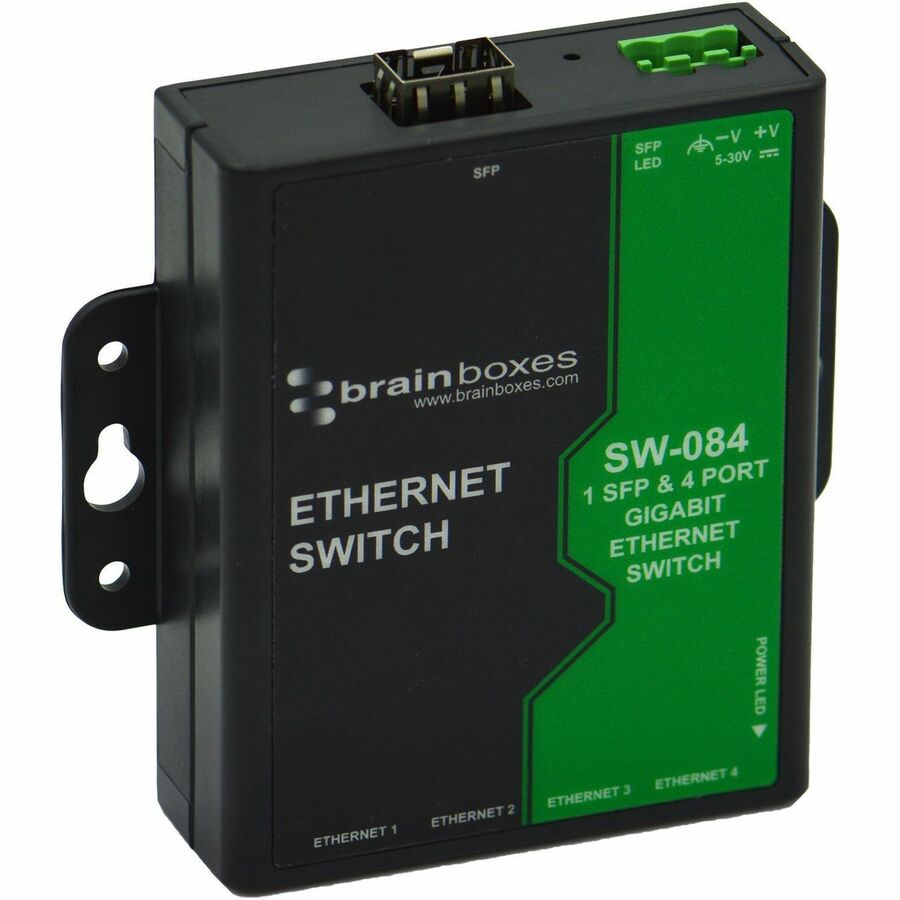

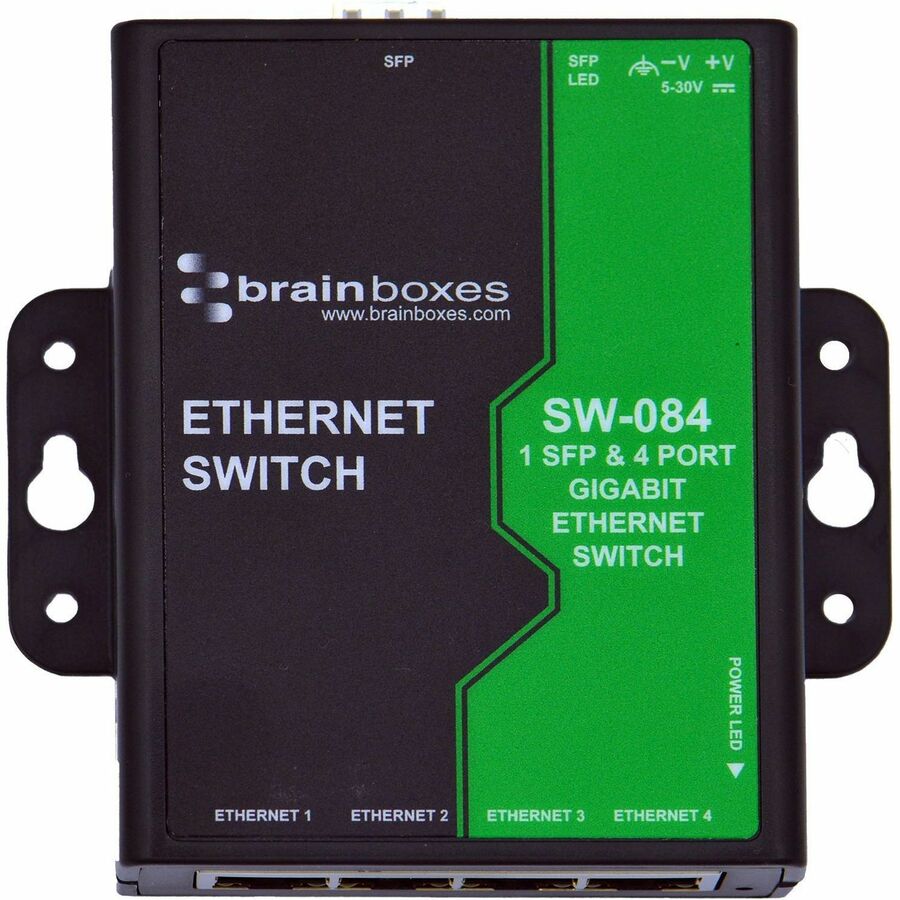

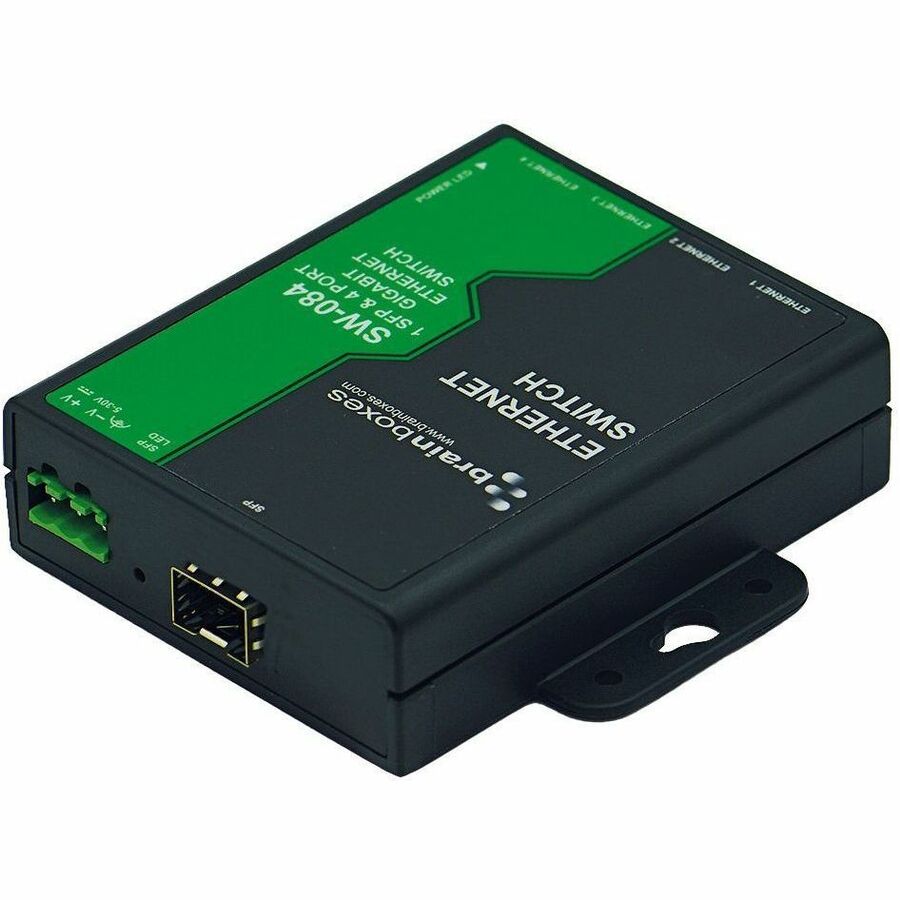

SFP & Light Industrial Gigabit Ethernet switch.
Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.
Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Wide temperature range of -10ºC to +60ºC/-14ºF to +140ºF and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Warranty
Limited Warranty: Lifetime
Highlights
Fast, low cost, future-proof way to deploy long network segments
Connect to wide variety of fibre optic and copper cable types
High speed data connection over extended distances
Reduce susceptibility to electromagnetic interference
Wide temperature range: -10ºC to +60ºC/-14ºF to +140ºF - works in extreme conditions
Jumbo Frame support up to 9K frames

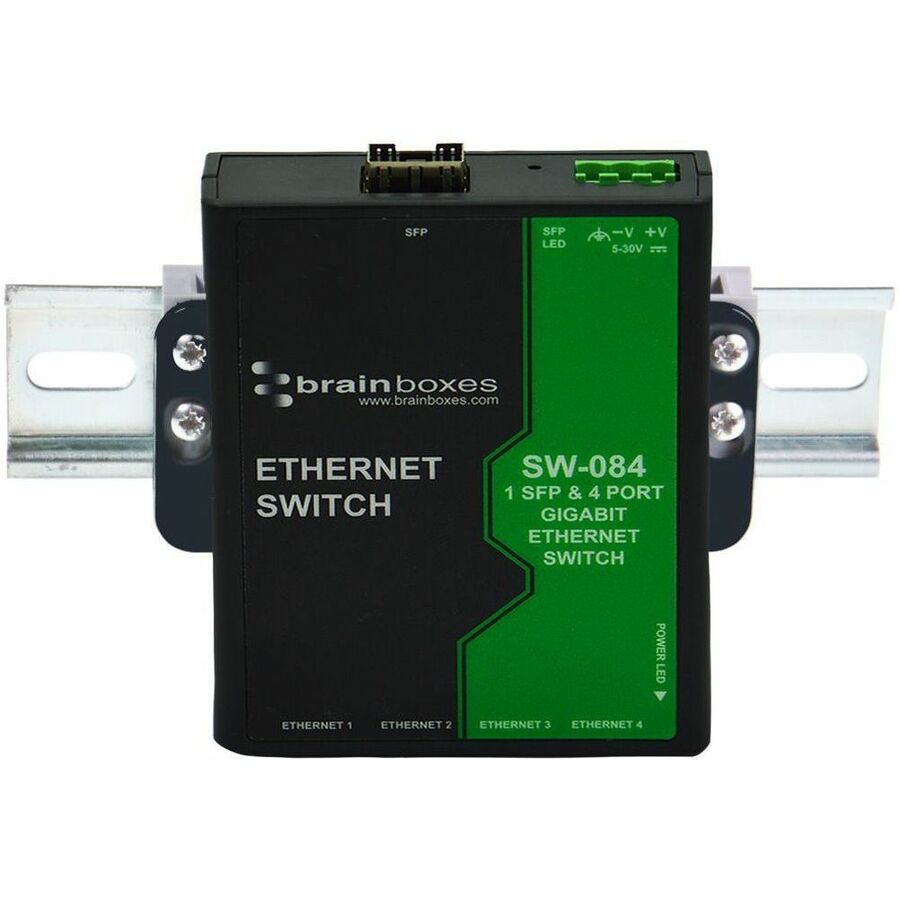

Integral wall mount or optional DIN rail mount
SFP Port Power Overcurrent protection
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-084
Brand Name
Brainboxes
Product Model
SW-084
Product Name
1 SFP & 4 Port Gigabit Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
4
Network (RJ-45)
Yes
Modular
Yes
Port/Expansion Slot Details
4 x Gigabit Ethernet Network, 1 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T, 1000Base-X
Maximum Data Transfer Rate
128 MB/s
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
Wall Mountable, DIN Rail Mountable, Compact
Height
1.1"
Width
4.2"
Depth
4"
Weight (Approximate)
9.74 oz
Power Description
Input Voltage
5 V DC, 30 V DC
Power Source
Power Supply, USB
Power Consumption
3.60 W
Plug/Connector Type
Terminal Block
Technical Information
Features
IP30
Warranty
Limited Warranty
Lifetime
I/O Expansions
Total Number of Expansion Slots
1
Expansion Slot Type
SFP (mini-GBIC)
Number of SFP Slots
1
Miscellaneous
Package Contents
1 SFP & 4 Port Gigabit Ethernet Switch
Quick Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
