SKU
SW-015
Category
Switches & Bridges
Overview

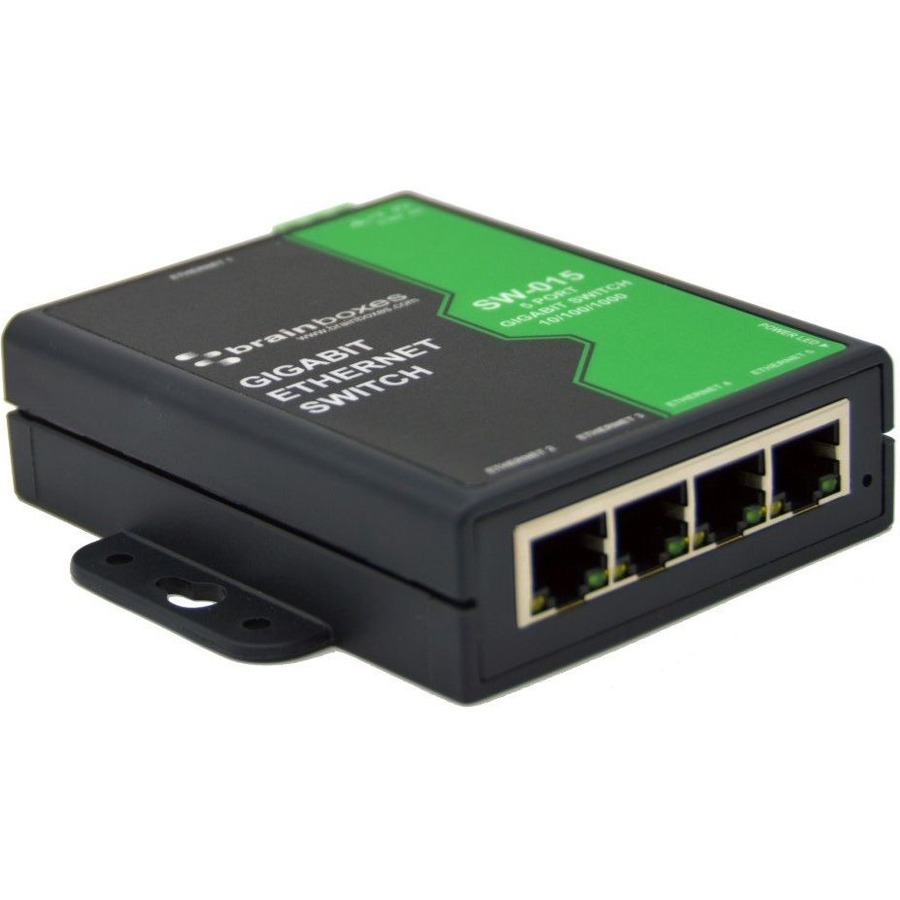

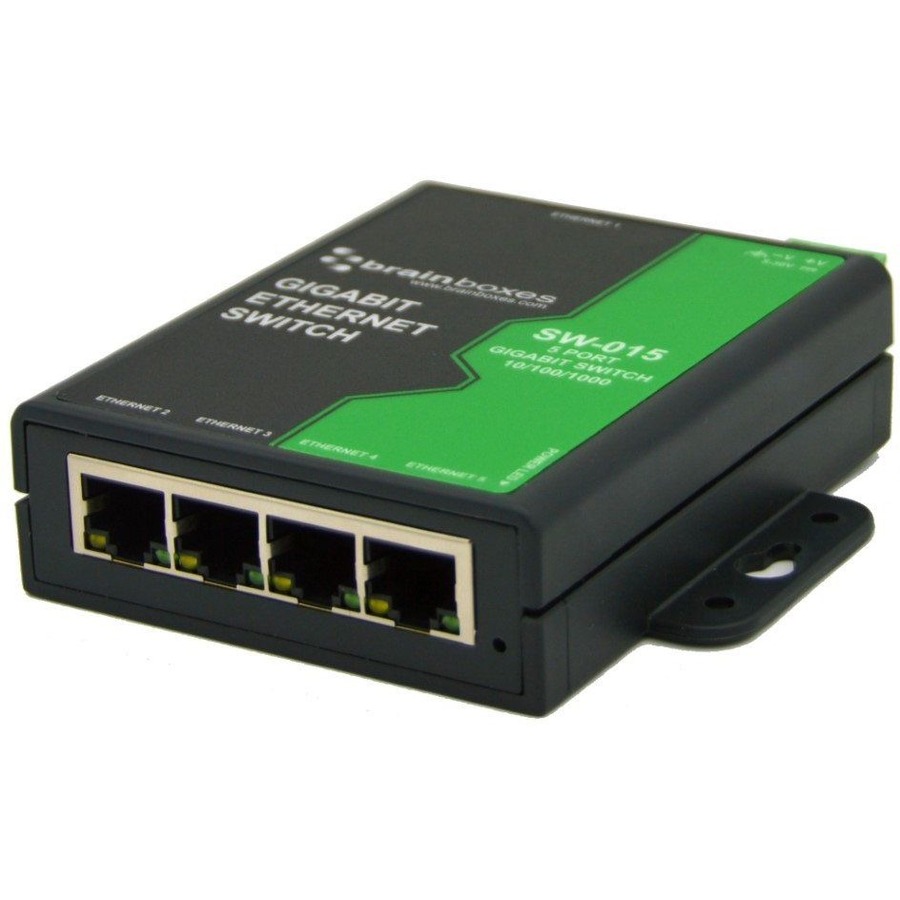

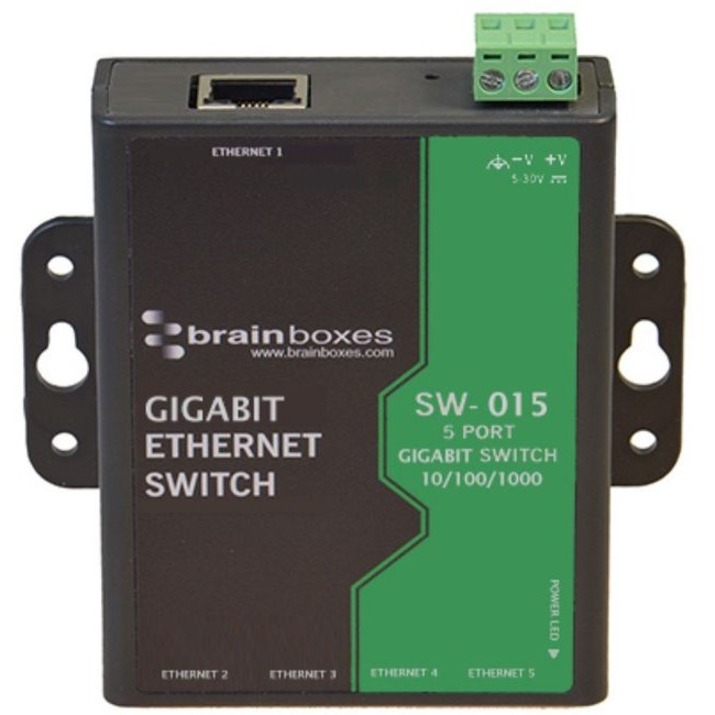

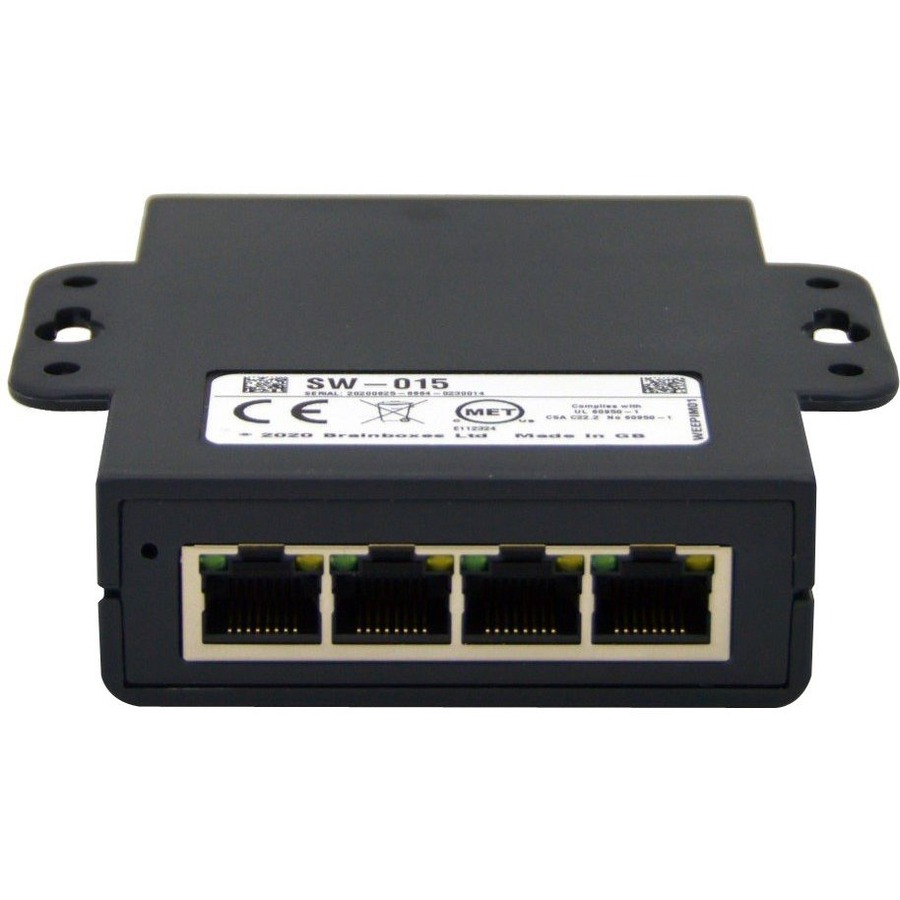

Compact 5 port Gigabit Ethernet unmanaged switch.
With data transmission at 1000 Mbs per second; the Gigabit standard provides simultaneous sending and receiving of data at a speed 10 times faster than Fast Ethernet.
Backwards compatible; the SW-015 can plug into older networks, and connect to devices that are 10Mbs, Fast Ethernet (100Mbs) or Gigabit, whilst detecting the highest common speed between both ends of the connection.
As with all Ethernet Switches in the SW range - the SW-015 can be powered from +5VDC to +30VDC, and has a wide operating temperature range (-10ºC to +60ºC /-14ºF to +140ºF)
Connection monitoring automatically powers down devices when not in use for optimum energy efficiency.
Warranty
Limited Warranty: Lifetime
Highlights
5 Gigabit Ethernet ports
Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources
Wide operating temperature range: -10ºC to +60ºC/-14ºF to +140ºF
Bi-directional data flow at super-fast speed
Small Footprint Case, only 23mm wide, 94mm deep
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-015
Brand Name
Brainboxes
Product Model
SW-015
Product Name
Compact 5 Port Gigabit Ethernet Switch DIN Rail Mountable
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
5
Port/Expansion Slot Details
5 x Gigabit Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
DIN Rail Mountable, Wall Mountable
Height
1"
Width
4.2"
Depth
4"
Weight (Approximate)
4.55 oz
Power Description
Power Source
Power Supply
Redundant Power Supply Supported
Yes
Power Consumption
3.60 W
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Compact 5 Port Gigabit Ethernet Switch DIN Rail Mountable
Quick Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
