Genuine Brainboxes through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Switches & Bridges
Country of origin
Great Britain
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

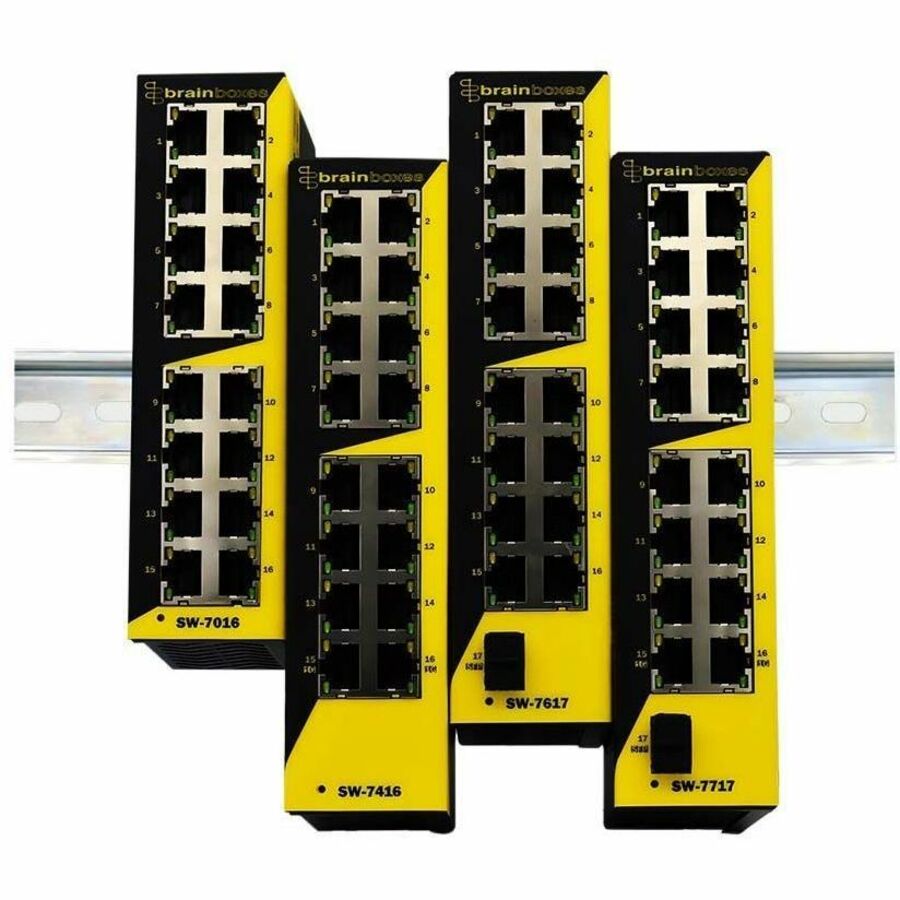

Overview Solutions for high-speed data transfer, extended network reach, and robust reliability
Designed for enhanced connectivity, Brainboxes Industrial 16 Port Ethernet Switches are a cost-effective solution to streamline installations, simplify maintenance and wiring complexity, and improve efficiency whilst reducing potential points of failure. Available with Fast and Gigabit Ethernet, and with SFP, all Hero Ethernet switches come in an industrial hardened metal enclosure for reliable operation in demanding environments.
Warranty
Limited Warranty: Lifetime
Highlights
Enhanced connectivity and flexibility: Higher port count enables flexible network layout and device placement

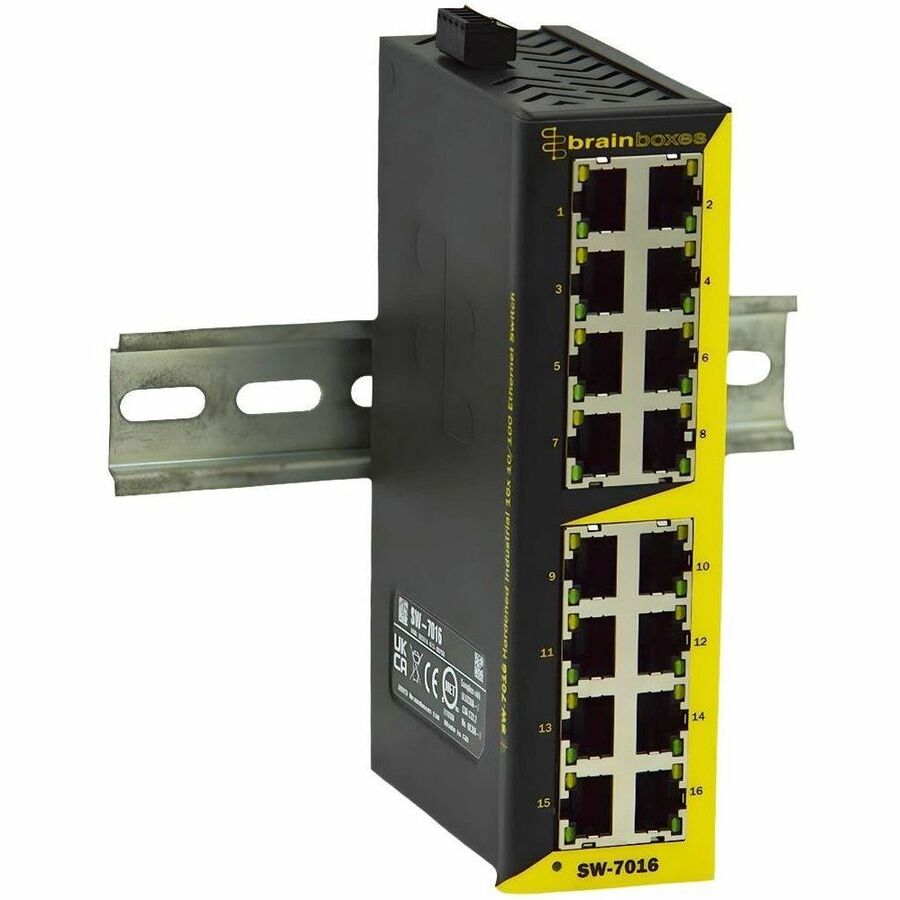

Integrated, adjustable DIN-rail mount with grounding
Wide voltage input range (+5V to +30VDC) and dual redundant power inputs - ensures reliability and reduces the risk of power outages
Industrial hardened enclosure and wide operating temperature range (-40°C to +80°C / -40°F to +176°F) - reliable operation in harsh environments
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-7016
Brand Name
Brainboxes
Product Series
SW
Product Model
SW-7016
Product Name

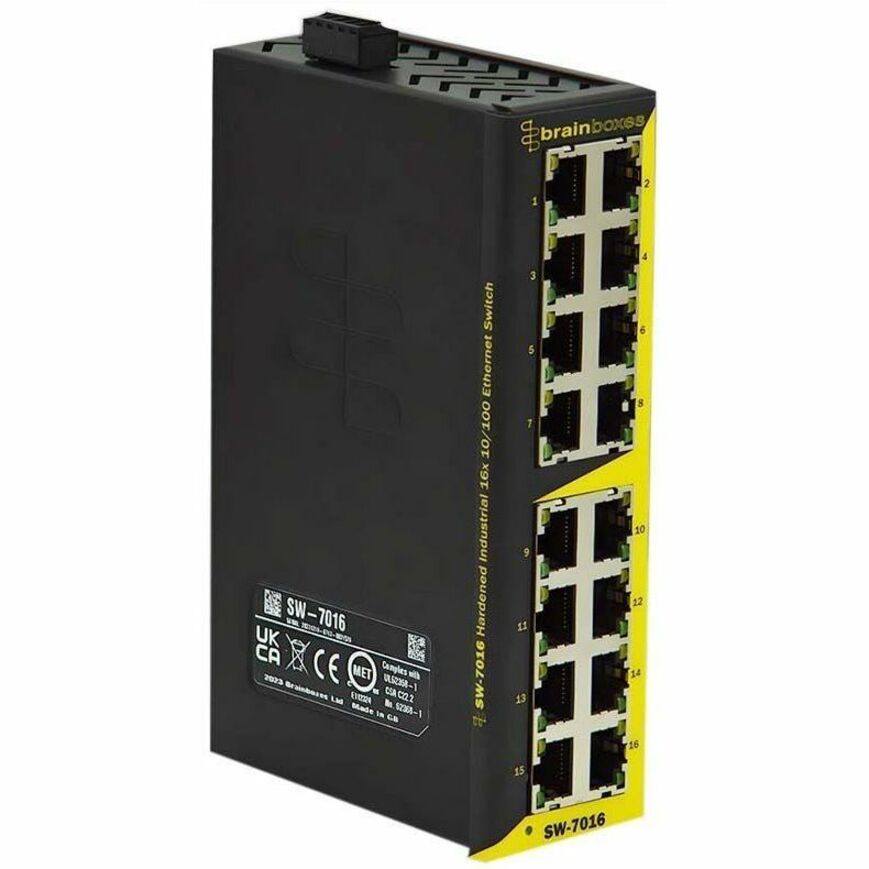

SW-7016 Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
16
Network (RJ-45)
Yes
Port/Expansion Slot Details

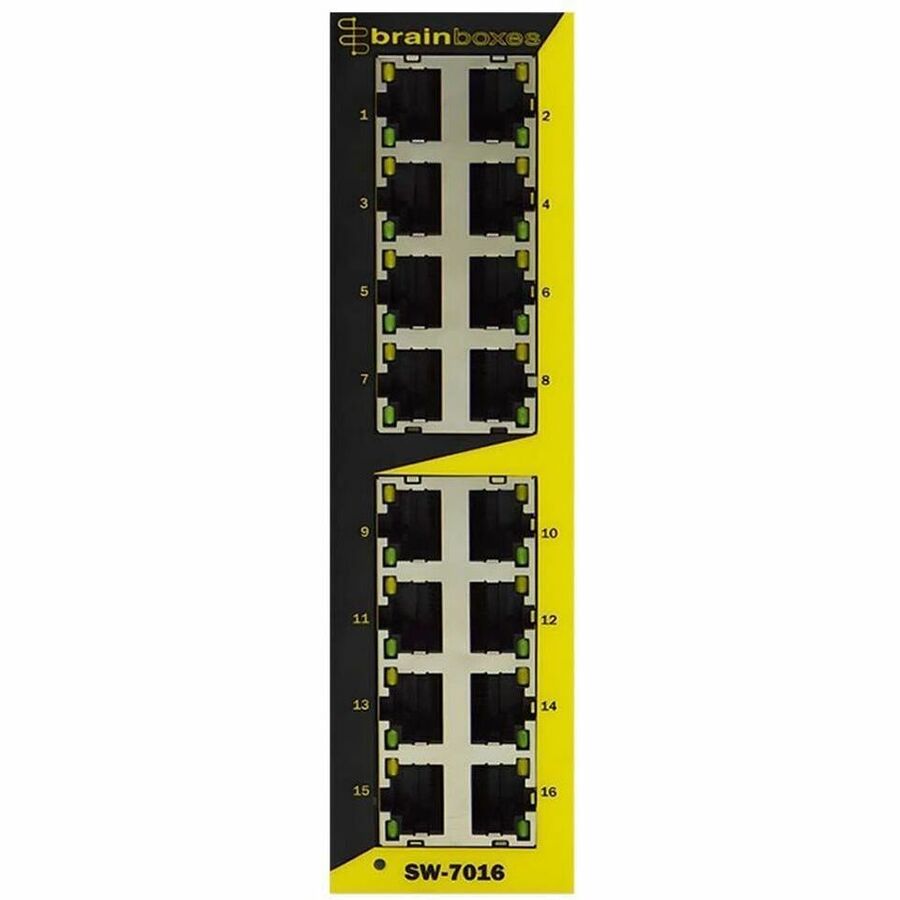

16 x 10/100BASE-T RJ-45 Network Port
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Fast Ethernet
Network Technology
10/100Base-T
Maximum Data Transfer Rate
12.50 MB/s
Physical Characteristics
Product Material
Metal
Form Factor
DIN Rail Mountable
Height
13.2 ft
Width
43"
Depth
102"
Weight (Approximate)
1.17 lb
Power Description
Input Voltage
5 V, 30 V DC
Power Source
DC
Power Consumption
3.80 W
Technical Information
Features
IP20
Warranty
Limited Warranty
Lifetime
Miscellaneous
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
