Overview
Overview Solutions for high-speed data transfer, extended network reach, and robust reliability
Designed for enhanced connectivity, Brainboxes Industrial 16 Port Ethernet Switches are a cost-effective solution to streamline installations, simplify maintenance and wiring complexity, and improve efficiency whilst reducing potential points of failure.
Available with Fast and Gigabit Ethernet, and with SFP, all Hero Ethernet switches come in an industrial hardened metal enclosure for reliable operation in demanding environments.
Warranty
Limited Warranty: Lifetime
Highlights

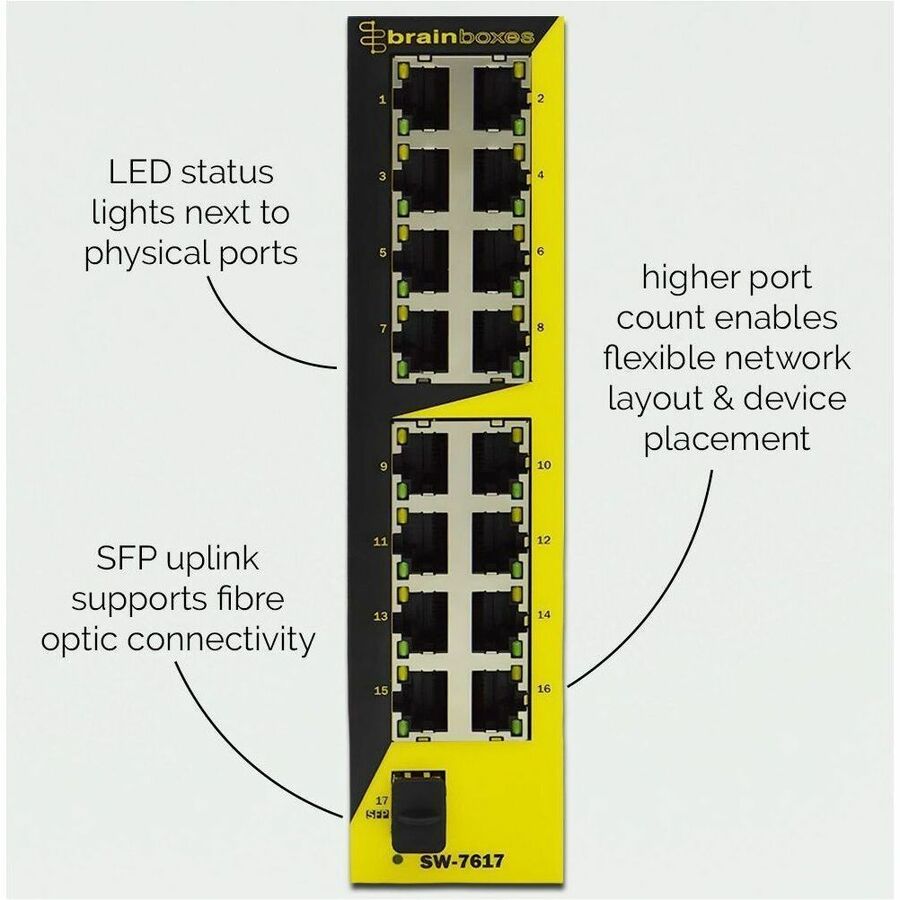

Enhanced connectivity and flexibility: Higher port count enables flexible network layout and device placement

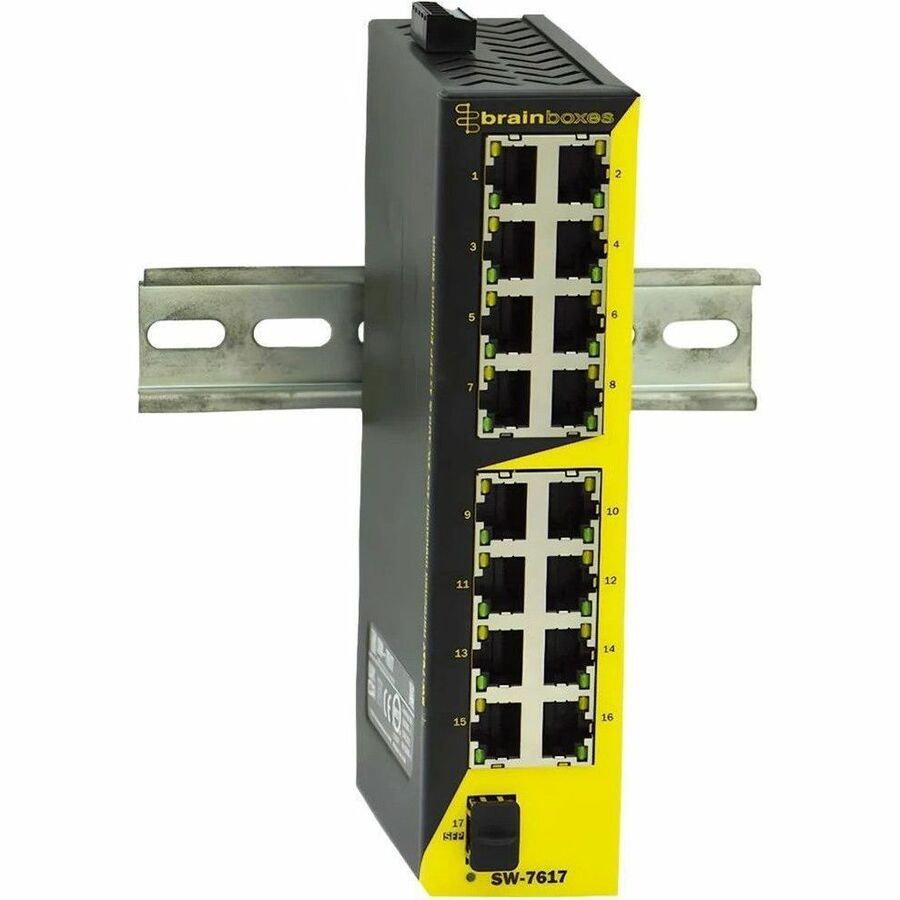

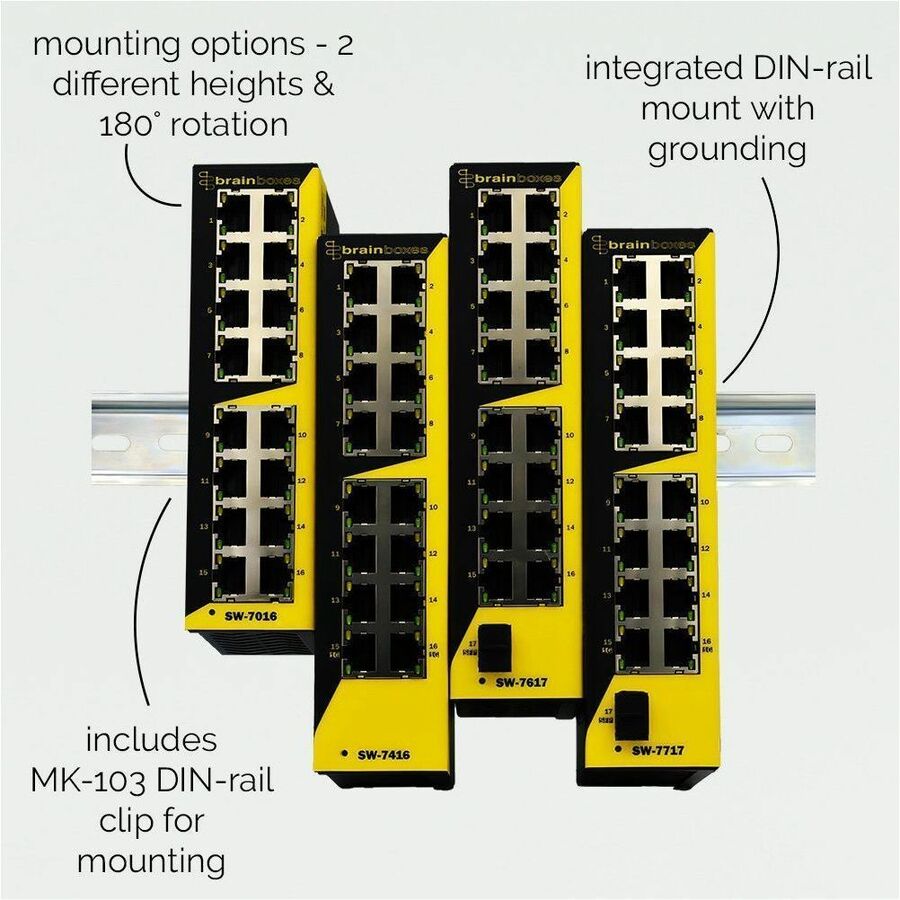

Integrated, adjustable DIN-rail mount with grounding
Wide voltage input range (+5V to +30VDC) and dual redundant power inputs - ensures reliability and reduces the risk of power outages
Industrial hardened enclosure and wide operating temperature range (-40°C to +80°C / -40°F to +176°F) - reliable operation in harsh environments
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number

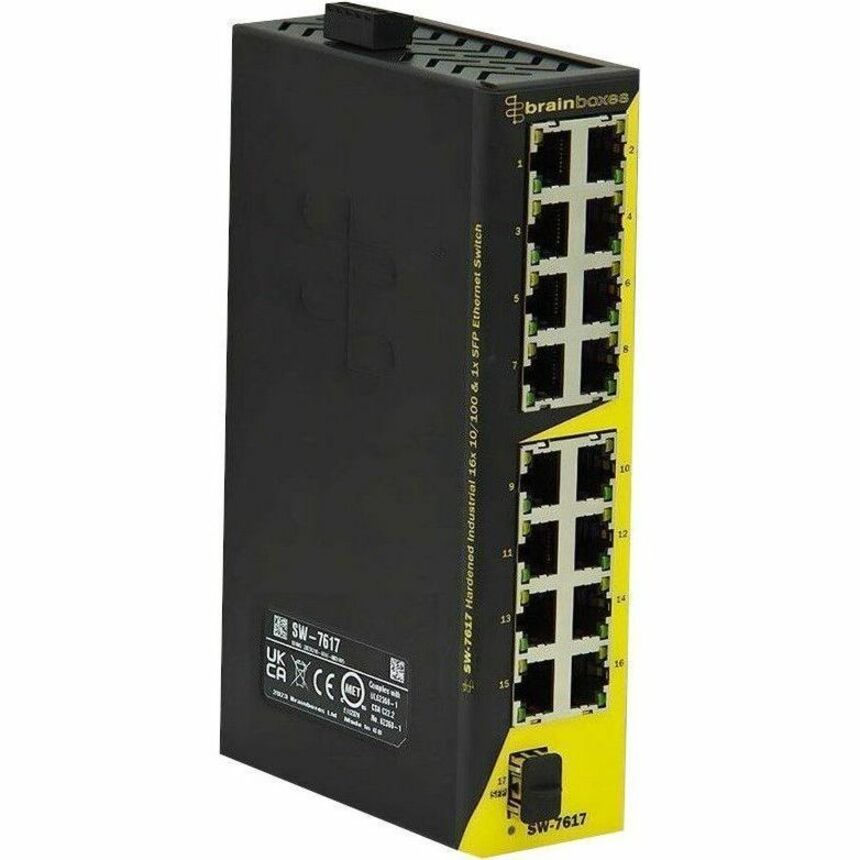

SW-7617
Brand Name
Brainboxes
Product Model
SW-7617
Product Name
SW-7617 Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
16
Network (RJ-45)
Yes
Port/Expansion Slot Details
16 x 10/100BASE-T Ethernet RJ-45 Network Port, 1 x 1000BASE-X SFP Expansion Slot
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Ethernet Technology
Fast Ethernet, Gigabit Ethernet
Network Technology
10/100Base-T, 1000Base-X
Maximum Data Transfer Rate
128 MB/s
Network & Communication
Layer Supported
2
Physical Characteristics
Product Material
Metal
Form Factor
DIN Rail Mountable

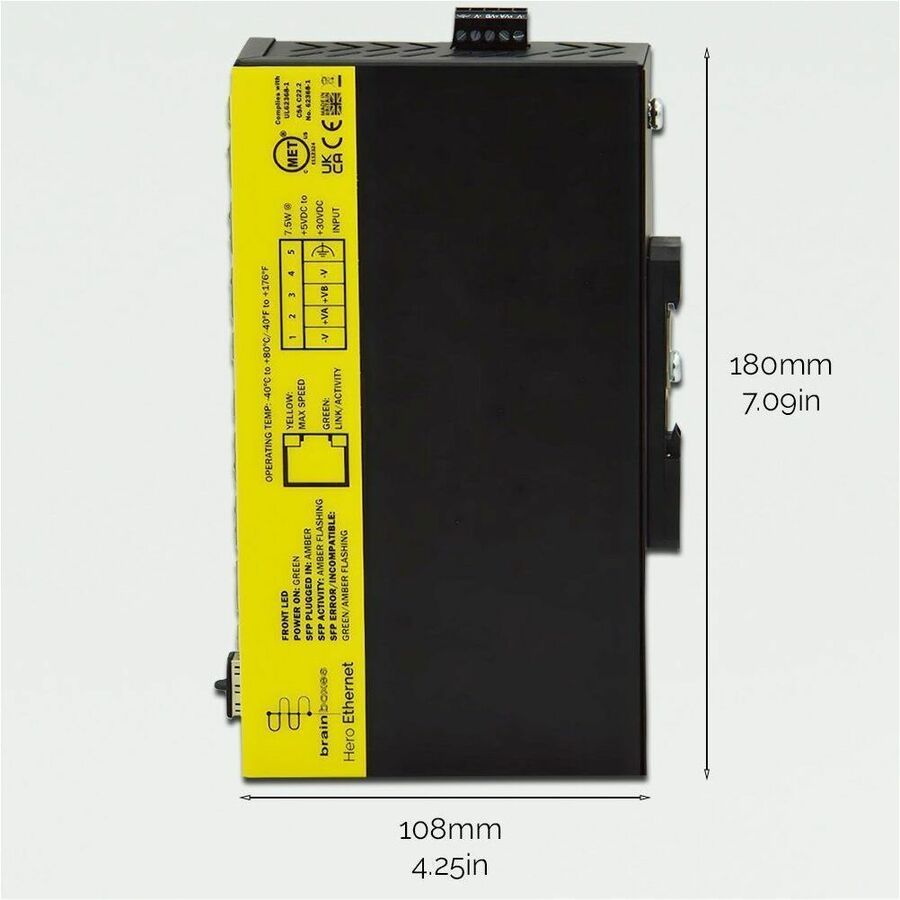

Height
1.7"
Width
7.1"
Depth
4.3"
Weight (Approximate)
1.41 lb
Power Description
Input Voltage
5 V DC, 30 V DC
Power Source
Power Supply, DC
Redundant Power Supply Supported
Yes
Power Consumption
7.50 W
Plug/Connector Type
Terminal Block
Warranty
Limited Warranty
Lifetime
I/O Expansions
Total Number of Expansion Slots
1
Expansion Slot Type
SFP
Number of SFP Slots
1
Miscellaneous
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
