16 Ports - Gigabit Ethernet - 1000Base-X - 2 Layer Supported - Power Supply - 9.19 W Power Consumption - Twisted Pair - 1U High - Rack-mountable
$87.91
In stock: 326
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

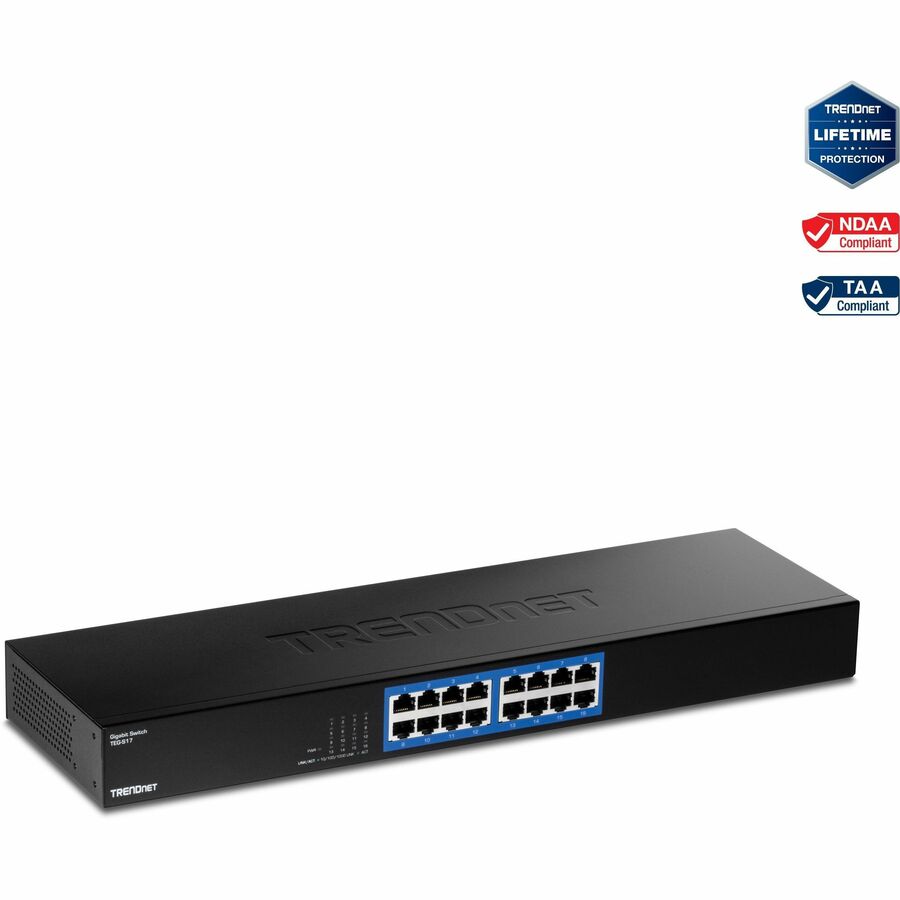

The 16-Port Gigabit Switch, model TEG-S17, provides high-bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
• DEVICE INTERFACE: 16 x Gigabit RJ-45 ports; LED indicators
• LIFETIME PROTECTION -We stand by the quality of our products. The TEG-S17 16-Port Gigabit Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• SWITCHING CAPACITY: This 16-port gigabit switch has a 32Gbps switching capacity with a forwarding rate of 23.8Mpps (64-byte packet size)
• RACKMOUNT DESIGN: Sturdy metal housing with rackmount brackets included for greater installation flexibility and well suited for 19" 1U rack installation
• FANLESS DESIGN: The network swich fanless design lowers energy consumption and eliminates operating noise.
• INTERNAL POWER SUPPLY: 100 - 240V AC, 50/60 Hz, 1A; Max. Consumption: 9.19W
More from the Manufacturer
The 16-Port Gigabit Switch, model TEG-S17, provides high-bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
16-Port Gigabit Switch
16 x Gigabit RJ-45 ports
Sturdy metal switch
Built-in power supply
32Gbps forwarding capacity
Fanless design
1U 19” rackmount brackets included
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

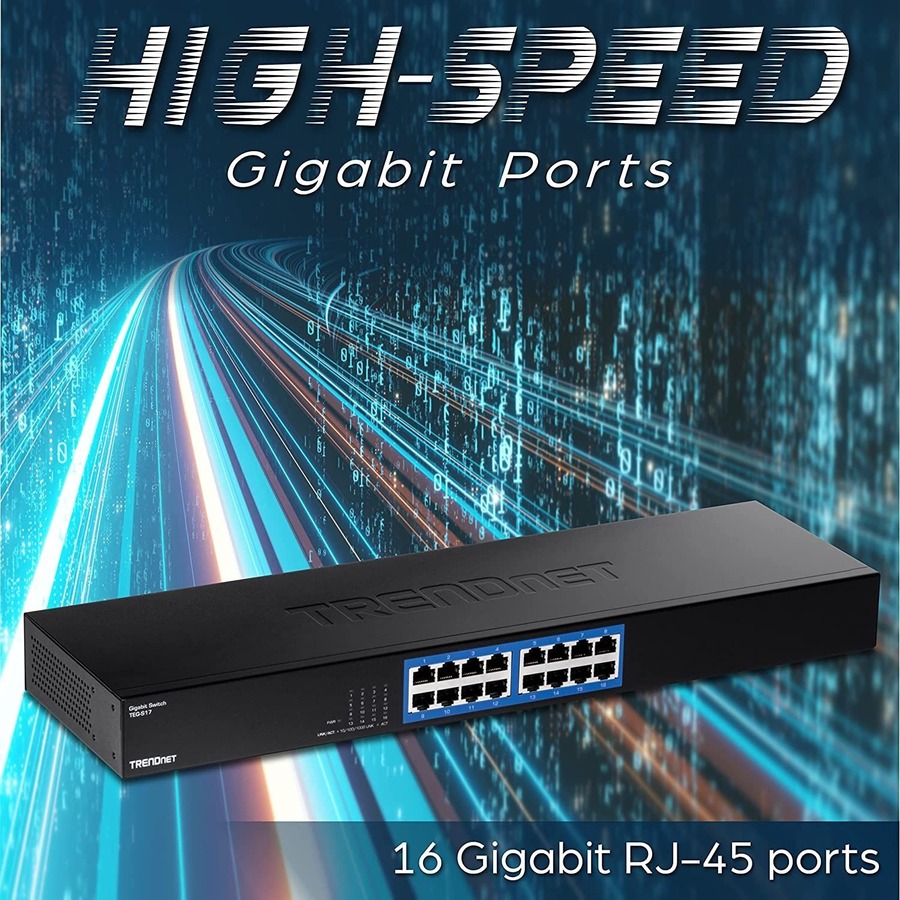

Gigabit Speeds
Gigabit ports provide high-speed network connections to 16 devices, and a 32Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Rackmount Design
With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19” 1U rack installations.

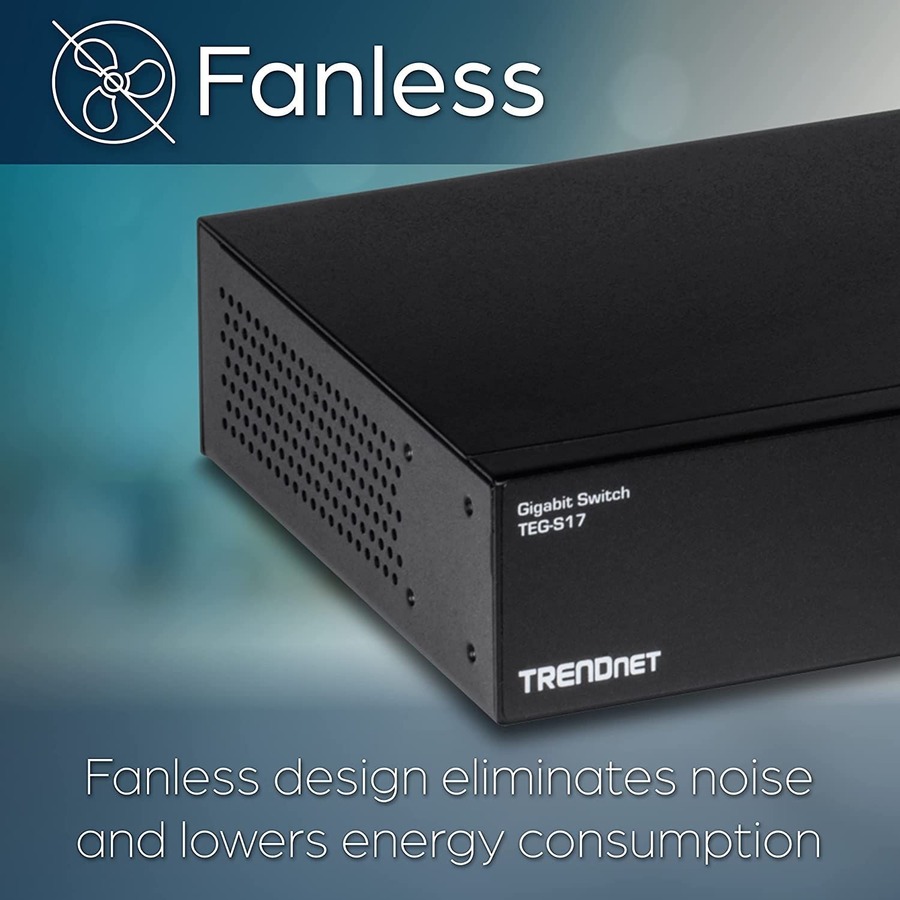

Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
Plug and Play
Simply power up the switch and plug in connected devices
Ports
16 x Gigabit Ethernet ports
Switching Capacity
32Gbps switching capacity
Rackmount Design
With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19” 1U rack installations
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Fanless
Fanless design lowers energy consumption and eliminates operating noise
LED Indicators
LEDs convey power, link and activity
Internal Power Supply
100~240VAC, 50/60Hz internal universal switching power supply
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
Device Interface
16x Gigabit ports
LED indicators
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Performance
Switching Capacity: 32Gbps
RAM Buffer: 512KB
MAC Address Table: 8K entries
Forwarding Rate: 23.8Mpps (64-byte packet size)
Jumbo Frames: 9KB
Special Features
Rack Mountable
Power
Internal power supply: 100 – 240V AC, 50/60 Hz, 0.2A
Max. Consumption: 9.19W
Fan/Acoustics
Fanless design
MTBF
1,121,721 hours
Operating Temperature
0° – 40° C (32° – 104° F)
Operating Humidity
Max. 90% non-condensing
Dimensions (L x W x H)
435 x 130 x 43mm (17.12 x 5.11 x 1.69 in.)
Weight
1.63kg (3.59 lbs.)
Certifications
FCC
CE
ETL
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TEG-S17
Quick Installation Guide
Rack Mount Kit
Power Cord (1.5m / 4.9 ft.)
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEG-S17 |
| Brand Name | TRENDnet |
| Product Model | TEG-S17 |
| Product Name | 16-Port Gigabit Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Physical Characteristics | |
| Product Material | Metal |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 4.3" |
| Width | 1" |
| Length | 6.3" |
| Weight (Approximate) | 14.60 oz |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 9.19 W |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
