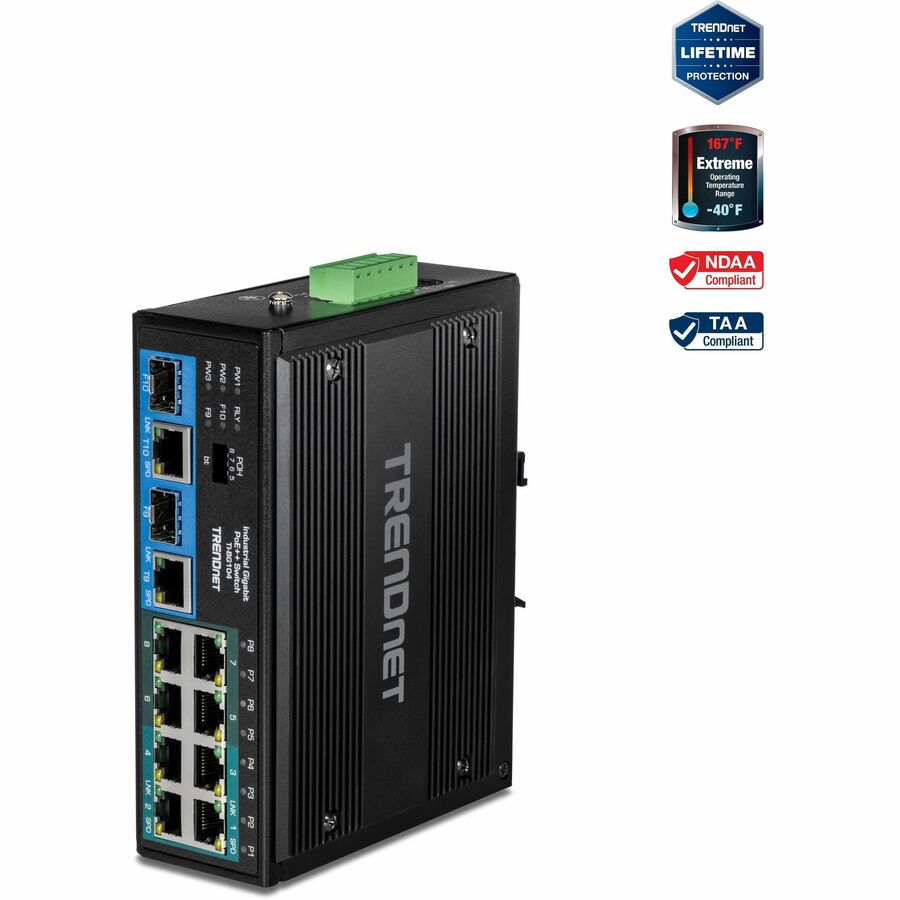

TRENDnet 10-Port Hardened Industrial Unmanaged Gigabit PoE ++ DIN-Rail Switch, 4 Gigabit PoE++ Ports, 4 Gigabit PoE+, 2 Gigabit Share Ports SFP or RJ-45, 360W Power Budget, Black, TI-BG104

TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switches delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switches each feature a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). These hardened industrial PoE++ switch models feature copper Gigabit PoE+ ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DINRail Switches by delivering up to 90W per port of PoE power and data over existing Ethernet cables. With PoE technology inside these industrial PoE++ switches, users only need one set of cables to deliver both data and power. Easily network PoE devices to this hardened industrial PoE+ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

• NETWORK PORTS: 4 x Gigabit PoE++ ports; 4 x Gigabit PoE+ ports; 2 x Gigabit Share ports (SFP or RJ-45)

• LIFETIME PROTECTION -We stand by the quality of our products. The TI-BG104 10-Port Hardened Industrial Unmanaged Gigabit PoE ++ DIN-Rail Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available

• REDUNDANT POWER: Multiple power inputs provide redundant power with overload current protection on this industrial PoE+ + switch, minimizing network downtime (power supplies sold separately, model TI-S48048).

• INDUSTRIAL HARDENED DESIGN: The DIN-rail switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

• DIN-RAIL & WALL MOUNT KIT: This PoE switch includes DIN-Rail and wall mount hardware

• ALARM RELAY: Alarm relay triggered by power failure of primary and/or redundant power

• PoE POWER BUDGET: A 360W PoE power budget supports up to eight Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power.

• SHOCK AND VIBRATION RESISTANT: Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

More from the Manufacturer

OVERVIEW

TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switches delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switches each feature a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). These hardened industrial PoE++ switch models feature copper Gigabit PoE+ ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switches by delivering up to 90W per port of PoE power and data over existing Ethernet cables. With PoE technology inside these industrial PoE++ switches, users only need one set of cables to deliver both data and power. Easily network PoE devices to this hardened industrial PoE+ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

PoE++

A 360W PoE power budget supports up to

eight Power over Ethernet devices with PoE

(15.4W), PoE+ (30W), or PoE++ (90W) power.

Redundant Power

Multiple power inputs provide redundant power

with overload current protection, minimizing

network downtime (power supplies sold

separately).

Industrial Hardened Design

Rugged IP30 enclosure with a high degree of

vibration and shock resistance, ESD/EMI/surge

protection, and a wide operating temperature

range (- 40° – 75° C (- 40°- 167° F)).

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

PoE Power Budget

A 360W PoE power budget on this industrial 802.3bt PoE++ switch supports up to eight Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power

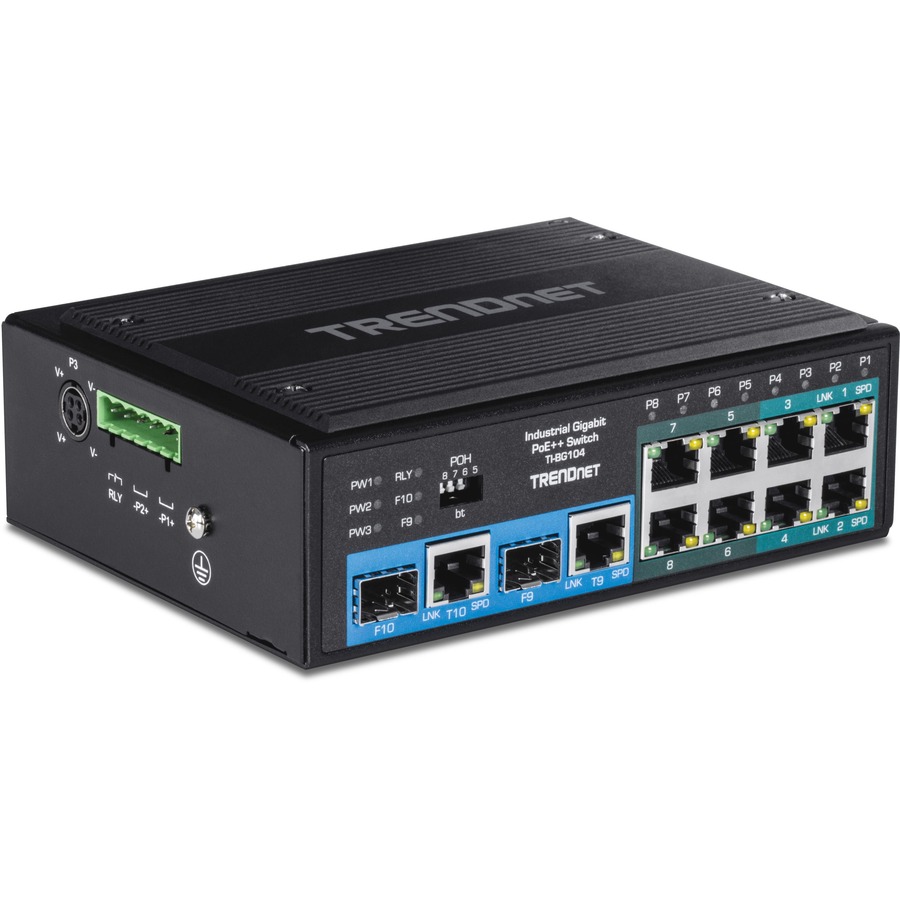

Network Ports

4 x Gigabit PoE++ ports (802.3bt PoE++ ports), 4 x Gigabit PoE+ ports, and 2 x Gigabit share ports (SFP or RJ-45)

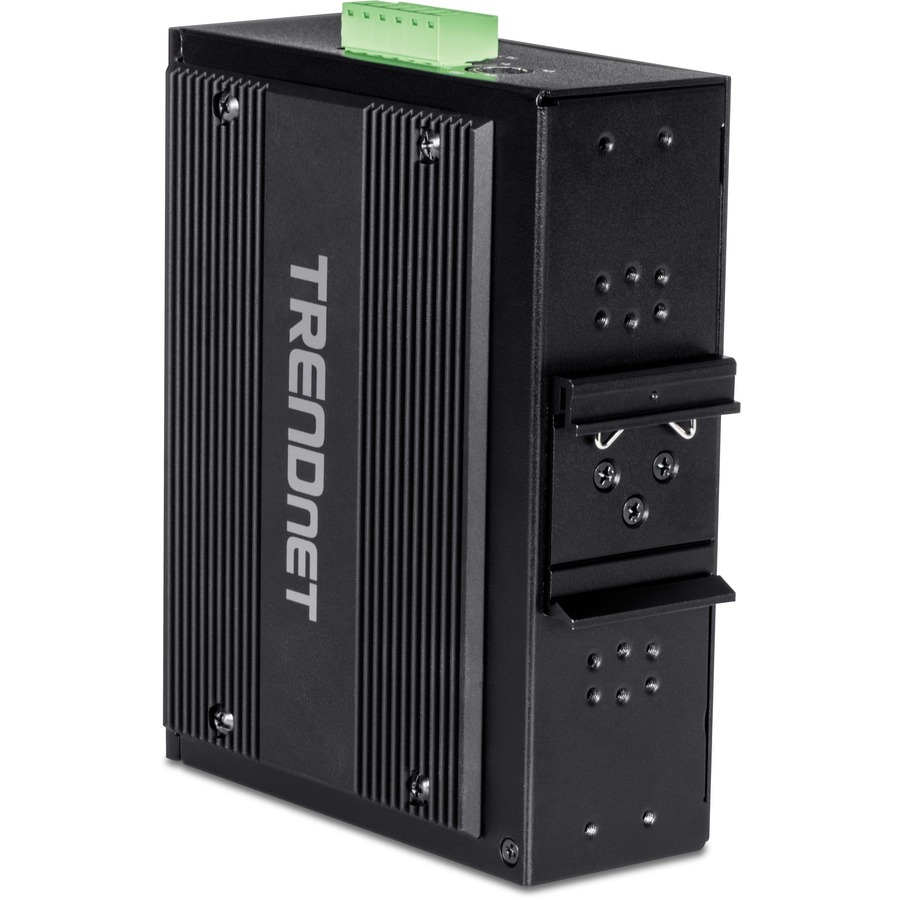

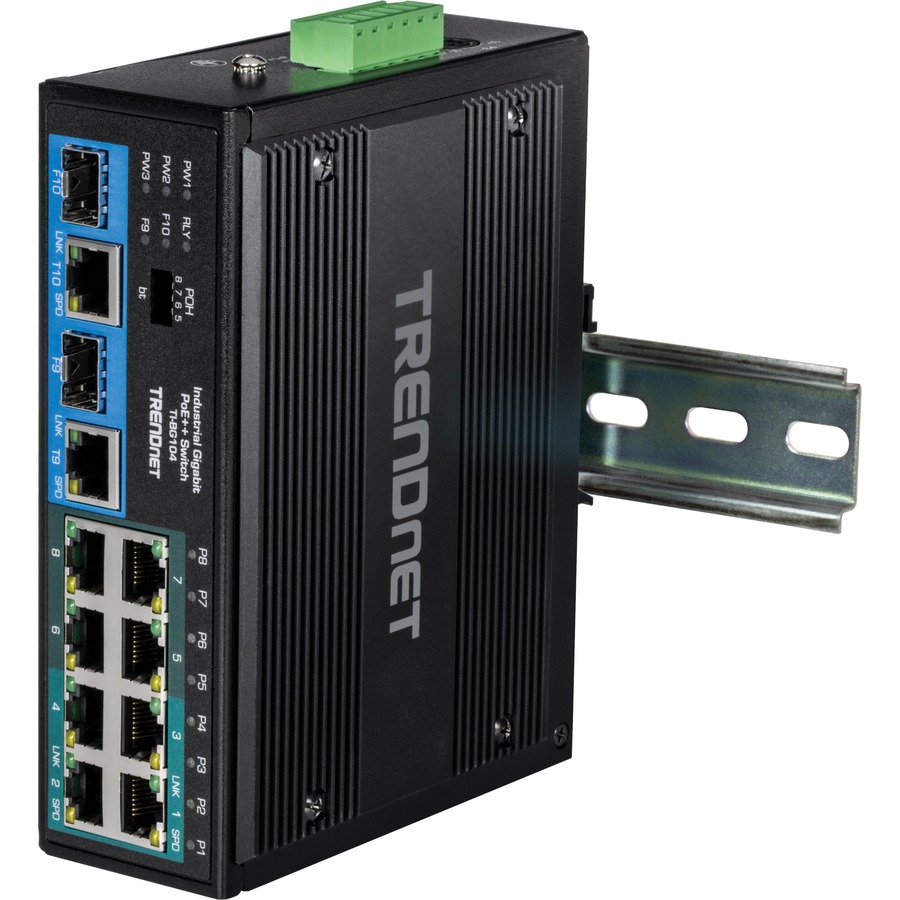

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with included DIN-Rail and wall mount hardware

Switching Capacity

20Gbps switching capacity

Redundant Power

Dual power inputs for redundancy with overload current protection (power supplies sold separately, model TI-S48048)

Alarm Relay

Industrial PoE++ switch’s alarm relay is triggered by power failure of primary and/or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Rated for Extreme Environments

Rugged IP30 rated enclosure designed to withstand a high degree of vibration and shock, and operate within a wide temperature range (- 40° – 75° C (- 40° - 167° F)) for harsh environments

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3z

IEEE 802.3x

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bt

Device Interface

4 x Gigabit PoE++ ports

4 x Gigabit PoE+ ports

2 x Gigabit share port

2 x Gigabit share SFP slots

6-pin removable terminal block

LED indicators

DIN-Rail mount

Wall mount

Grounding point

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2000Mbps (full duplex)

Fiber: 2000Mbps (full duplex)

Performance

Data RAM Buffer: 2MB

Switching Fabric: 20Gbps

MAC Address Table: 11K entries

Jumbo Frame: 10KB

Forwarding rate: 8.9Mpps (64-byte packet size)

Special Features

Hardened components rated for extreme temperatures

Multiple power inputs

Auto-Negotiation

Auto store and forward architecture

Automatic address learning and address aging

ESD 8KV protection

DC Power

Input: 48 - 56V DC

Compatible power supply: TI-S24048, TI-S48048 (sold separately)

Max. consumption: 6.2W (no PD)

AC Power

Input 100 – 240V AC, 50/60Hz, 2A

Compatible power adapter: 48VDC3000 (sold separately)

Output: 48C DC, 3.34A 160W max.

PoE

PoE: up to 15.4W per port

PoE+: up to 30W per port

PoE++: up to 90W per port

Power budget: 360W

Terminal Block

Redundant power inputs, alarm relay contact, 6 pin

Wire range: 0.34mm^2 to 2.5mm^2

Solid wire (AWG): 12-24/14-22

Stranded wire (AWG): 12-24/14-22

Torque: 5 lb. – In / 0.5Nm / 0.56 Nm

Wire strip length: 7-8mm

Alarm Relay Contact

Relay outputs with current carrying capacity of 1A, 24V DC

Short circuit mode when two power sources are connected

Open circuit mode when only one power source is connected

MTBF

510,304 hours

Housing

IP30 metal case

DIN-Rail mount

Wall mount

Grounding point

8KV ESD protection

Operating Temperature

- 40° – 75° C (-40 – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

156 x 122 x 48mm (6.1 x 4.8 x 1.9 in.)

Weight

630g (1.38 lb)

Certifications

CE

FCC

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

Warranty

Lifetime Warranty*

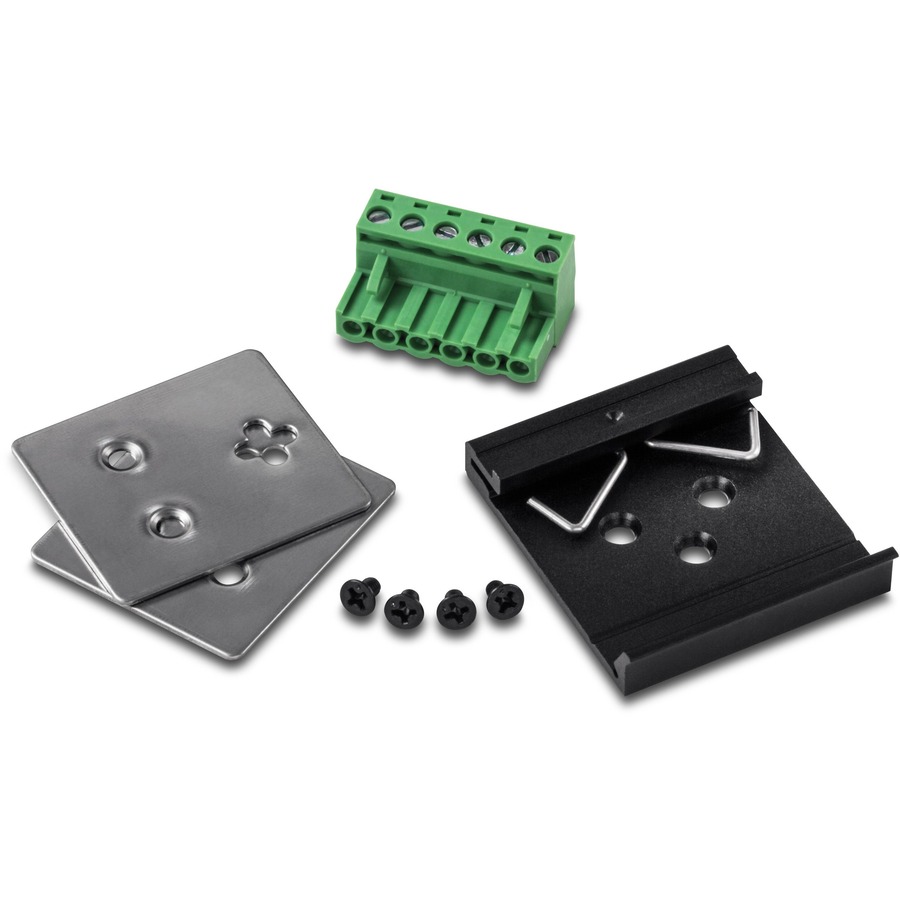

PACKAGE CONTENTS

TI-BG104

Quick Installation Guide

Removable terminal block

DIN-Rail and wall mount kit

10-Port Industrial Gigabit PoE++ DIN-Rail Switch

4 x Gigabit PoE++ ports

4 x Gigabit PoE+ ports

2 x Gigabit Share ports (SFP or RJ-45)

360W power budget

20Gbps switching capacity

Hardened IP30 rated metal switch

Includes DIN-Rail and wall mounts

Extreme operating temperature range of -40° – 75° C (-40° – 167° F)

Dual power inputs for redundancy

Alarm output triggered by power failure

Power supply sold separately (TI-S48048)

NDAA / TAA compliant

Lifetime Warranty
